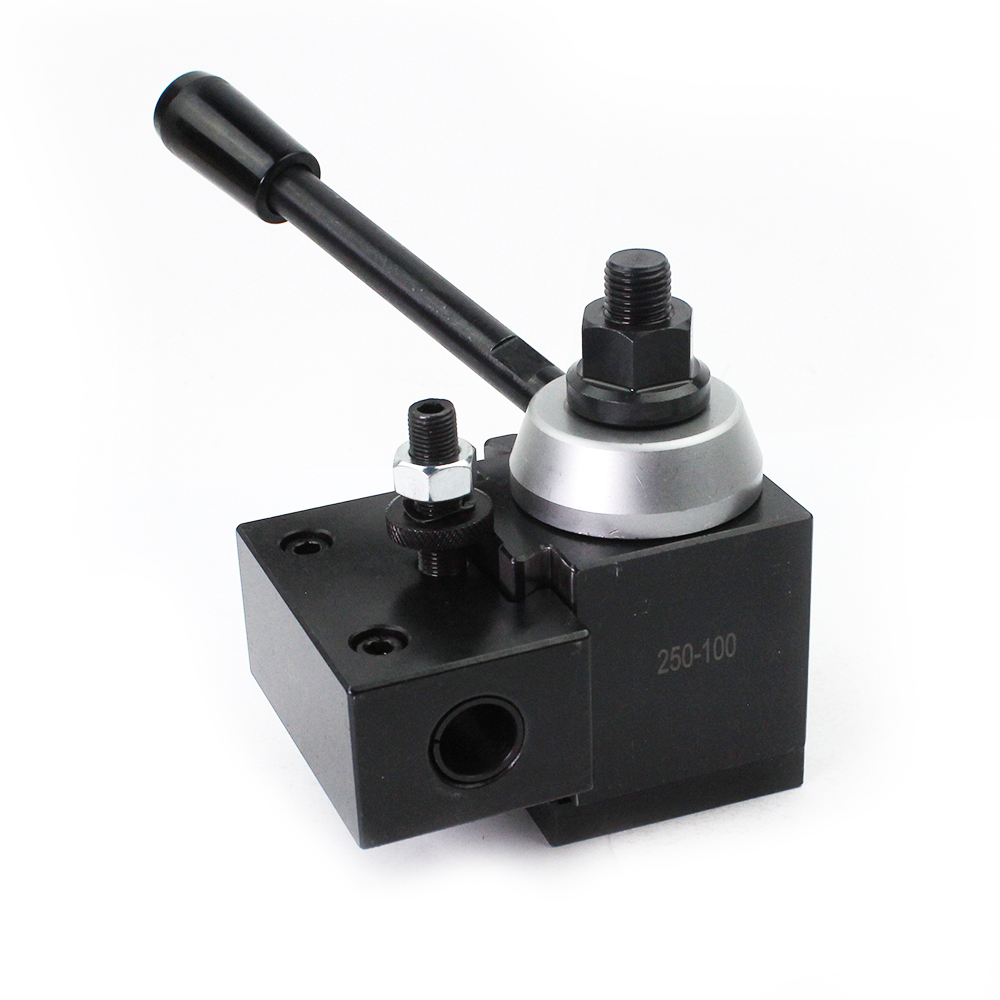

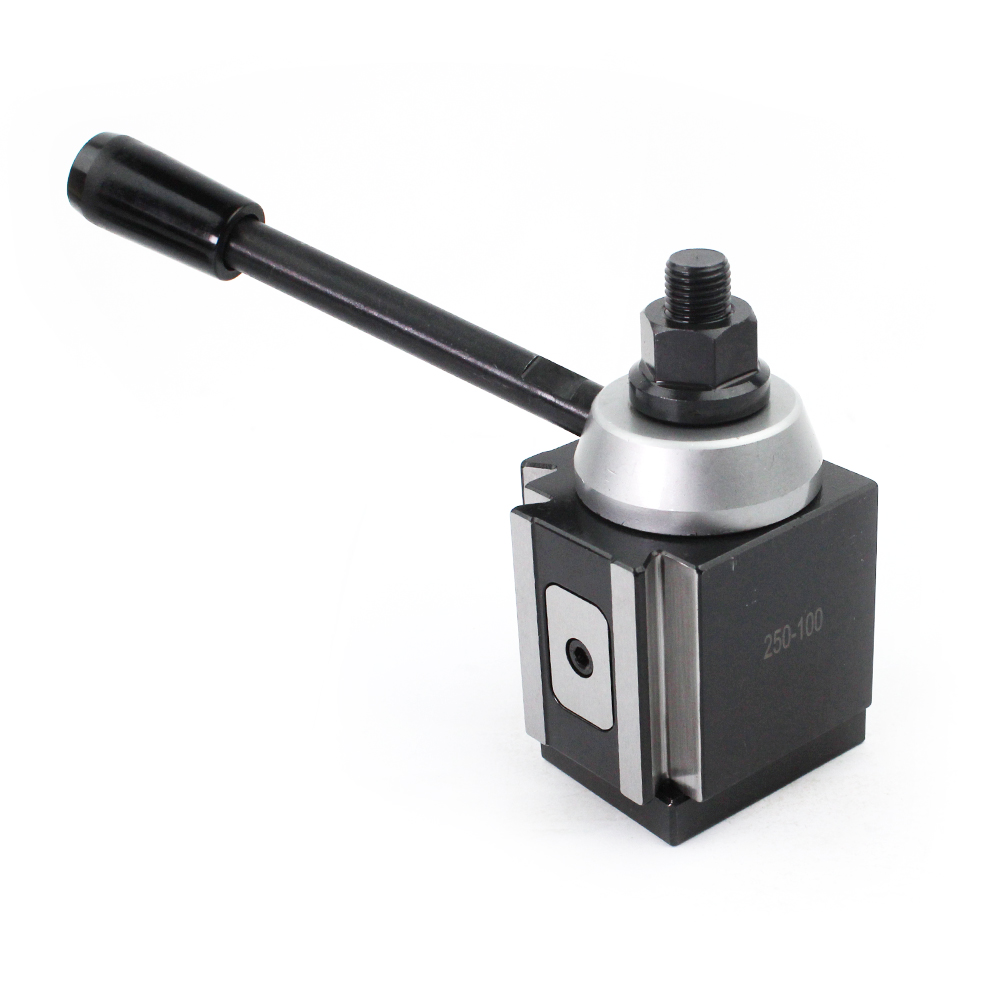

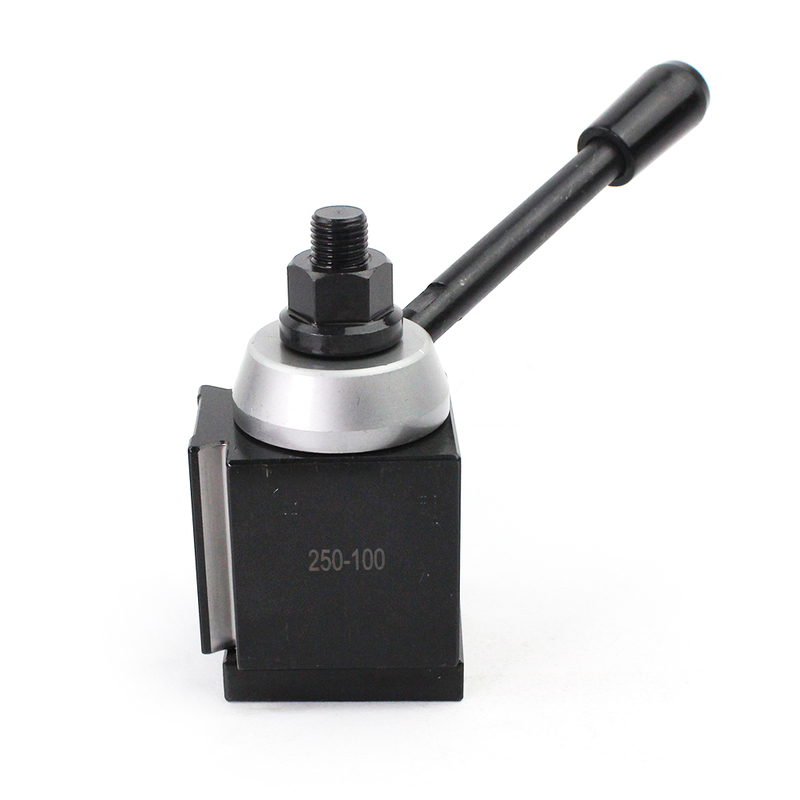

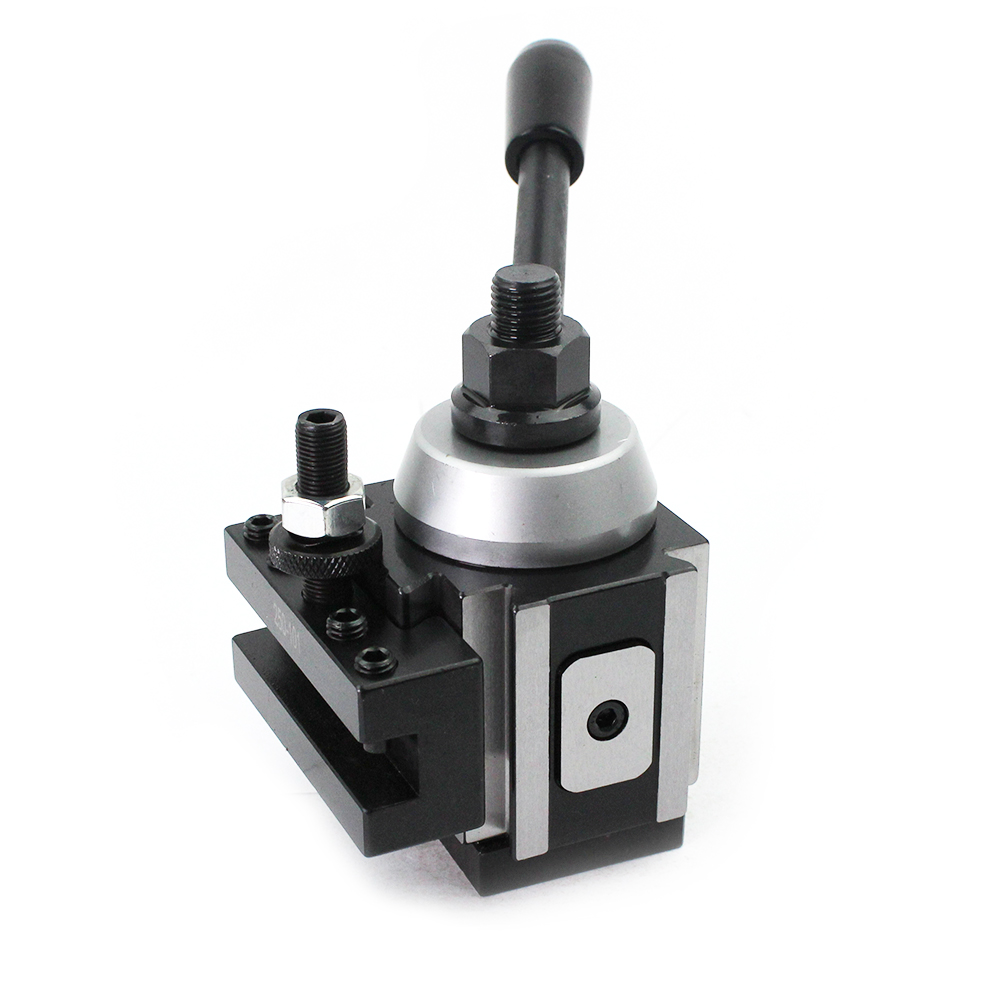

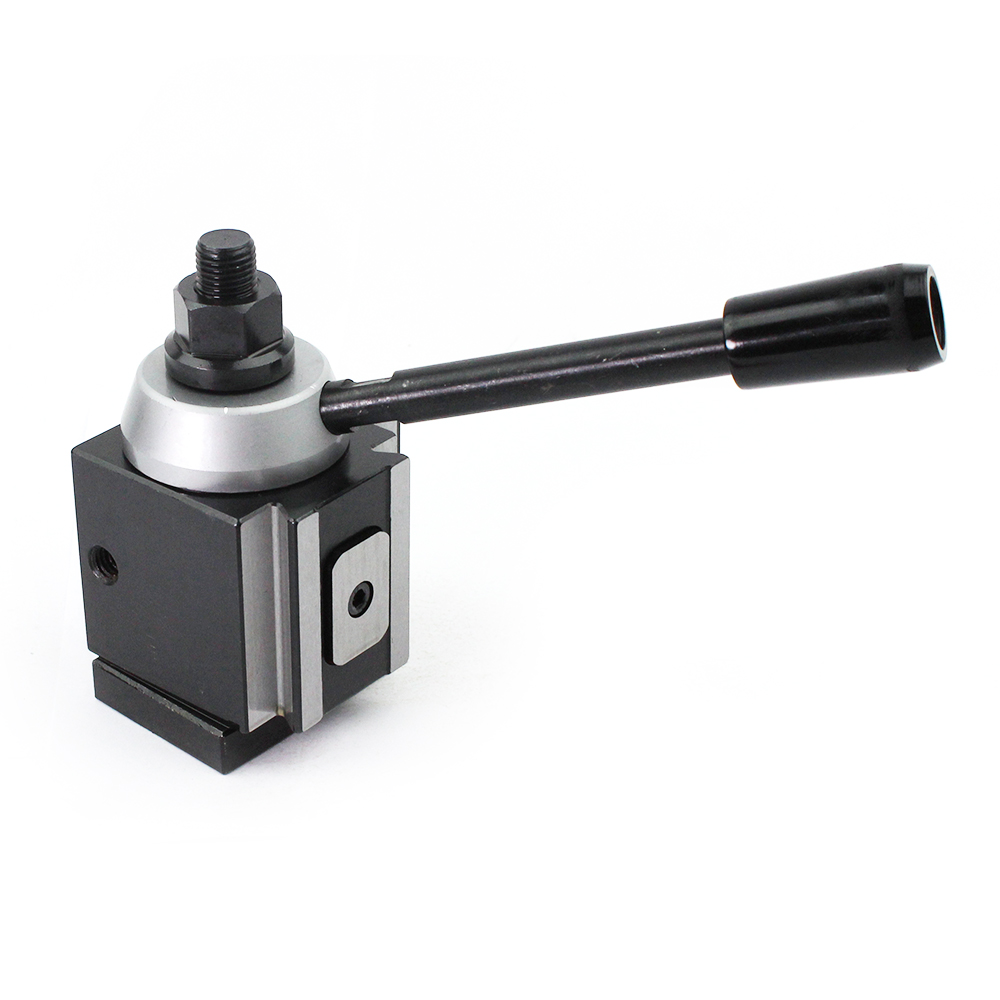

250-100 Piston Style Lathe Tool Post
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of Piston Type Quick Change Tool Post for Lathe
CNC lathe machine tool post Title:
Wholesale Hardended Steel Piston style tool post Piston quick change tool post from China
250-100: It is usually the model number of the product, and the meaning of the model may vary from manufacturer to manufacturer. It is generally used to identify specific information such as product specifications and series.
Piston type: refers to the structure type of the tool holder being piston type. This structure usually utilizes the movement of the piston to achieve rapid tool replacement and positioning, and has the advantages of easy operation and fast replacement speed.
Quick change tool post: also known as quick change tool holder, is a fixture installed on a lathe for quickly changing different types of tools to improve machining efficiency and accuracy.
Specification:
250-100 Piston Lathe Quick Change Tool Post
Compatible model: 250-100 Piston Style
Lathe Swing (Inch):12 inch

Product Features:
Quick tool change: Adopting a piston type quick change system, it can quickly and conveniently change tools, greatly saving processing time and improving production efficiency.
High precision: The tool holder is designed and processed with precision to ensure the repeated positioning accuracy of the tool, ensuring the dimensional accuracy and surface quality of the processed parts.

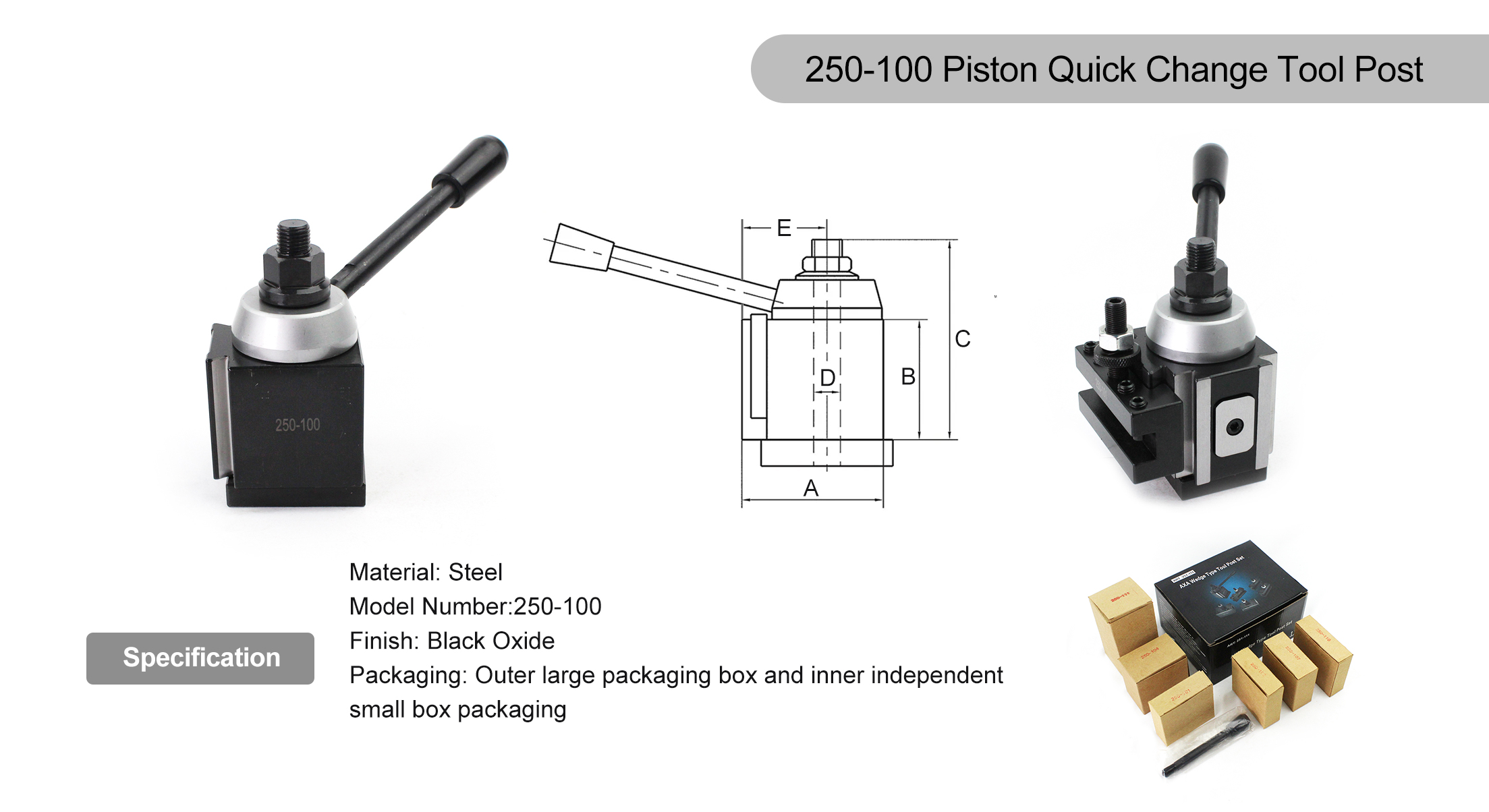

| Specs | Lathe Swing (In.) | A | B | |||
| Model | Inch | mm | Inch | mm | Inch | mm |
| 250-100 | 12 | 304 | 2 1/2 | 63.5 | 2 1/4 | 57.15 |
| 250-200 | 10-15 | 254-381 | 3 | 76.2 | 2 3/4 | 69.85 |
| 250-300 | 13-18 | 330-457 | 3 3/8 | 85.725 | 3 | 76.2 |
| 250-400 | 14-20 | 355-508 | 4 | 101.6 | 3 5/8 | 92.075 |
| 250-500 | 17-48 | 432-1219 | 5 | 127 | 4 5/8 | 117.47 |
| 250-600 | 35-60 | 889-1524 | 6 3/4 | 175 | 6 1/8 | 156 |
| Specs | C | D | E | Holder Code | Order No. | ||
| Model | Inch | mm | Inch | mm | |||
| 250-100 | 3 7/8 | 98.425 | M14 x 1.5 | 1 7/16 | 36.512 | 250-1XX | 2500-1000 |
| 250-200 | 4 3/8 | 111.125 | M16 x 1.5 | 1 5/8 | 41.275 | 250-2XX | 2500-2000 |
| 250-300 | 4 7/8 | 123.825 | M20 x 2 | 1 7/8 | 47.625 | 250-3XX | 2500-3000 |
| 250-400 | 6 | 152.4 | M22 x 2 | 2 1/8 | 53.975 | 250-4XX | 2500-4000 |
| 250-500 | 7 3/8 | 187.32 | M24 x 2 | 2 11/16 | 68.26 | 250-5XX | 2500-5000 |
| 250-600 | 10 1/4 | 260 | M30 x 2 | 3 7/8 | 97.8 | 250-6XX | 2500-6000 |
Sturdy structure:
usually made of steel, with good rigidity and wear resistance, able to withstand large cutting forces, ensuring the stability and reliability of the tool holder during the machining process.

Easy maintenance:
All working parts of the tool holder have undergone precise machining and quenching treatment, and are completely sealed, eliminating the need for frequent maintenance and reducing downtime and maintenance costs.
