250-200 Piston Style Tool Post Quick Change
PDM
| Quantity: | |
|---|---|
Features of Post Holder Tool Post
Lathe Tool Post 250-200 Title:
Quick Change piston 250 tool post lathe piston type lathe quick change tool post

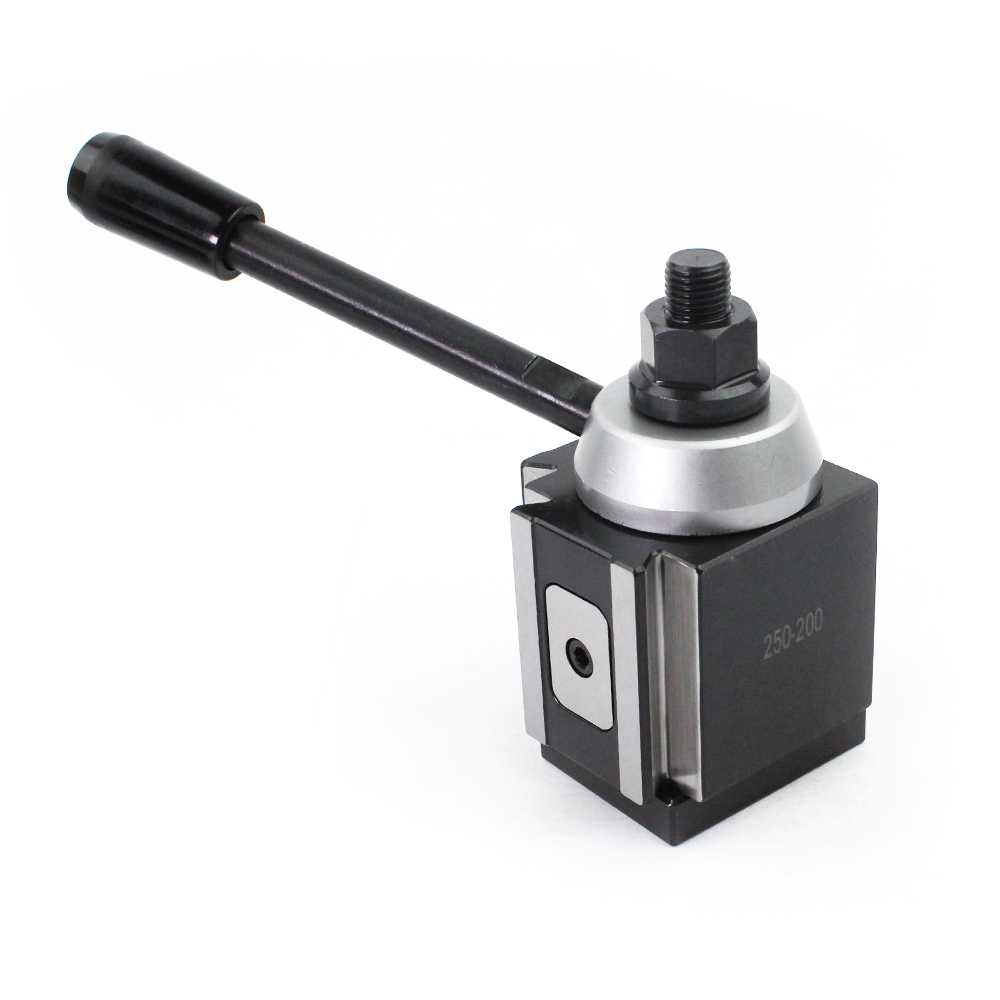

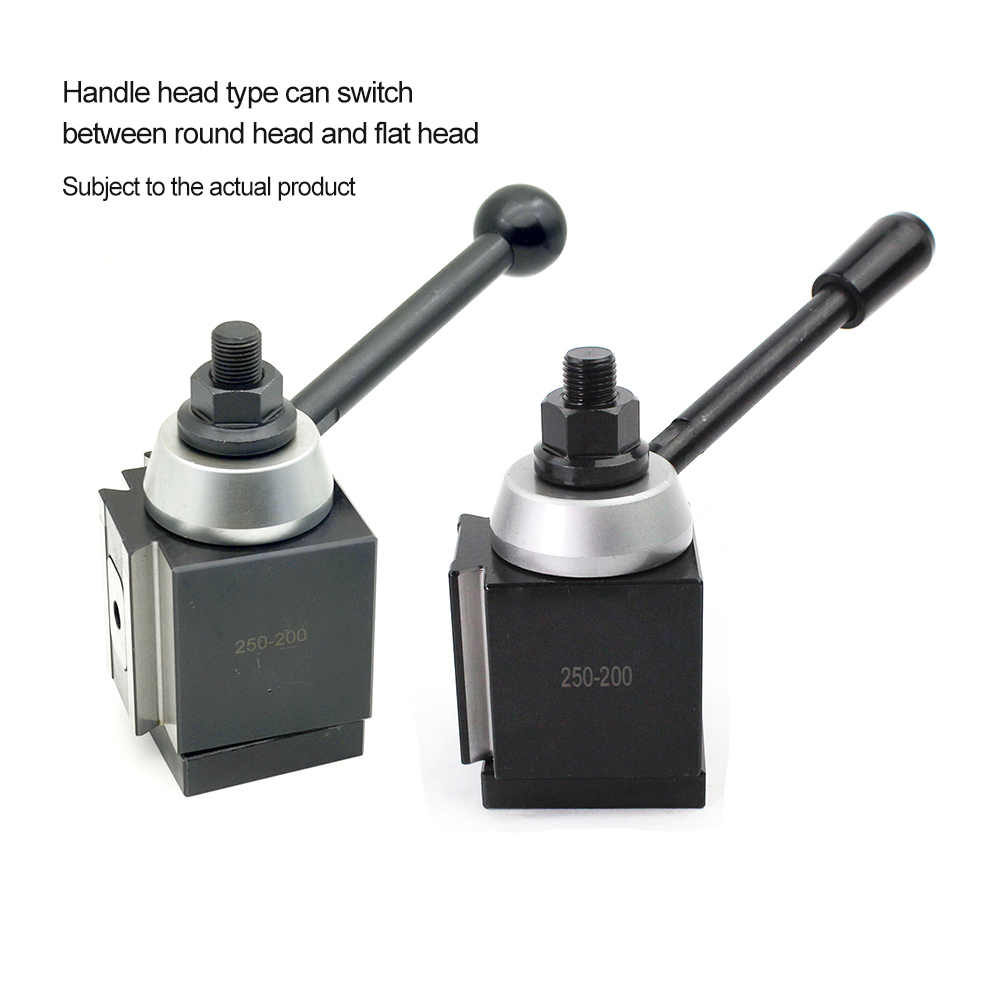

The model 250-200 belongs to the commonly used 250 series piston type quick change tool holder system in the industry, which adopts a wedge-shaped slider locking structure to achieve fast loading and unloading and high repeatability positioning of the tool holder.

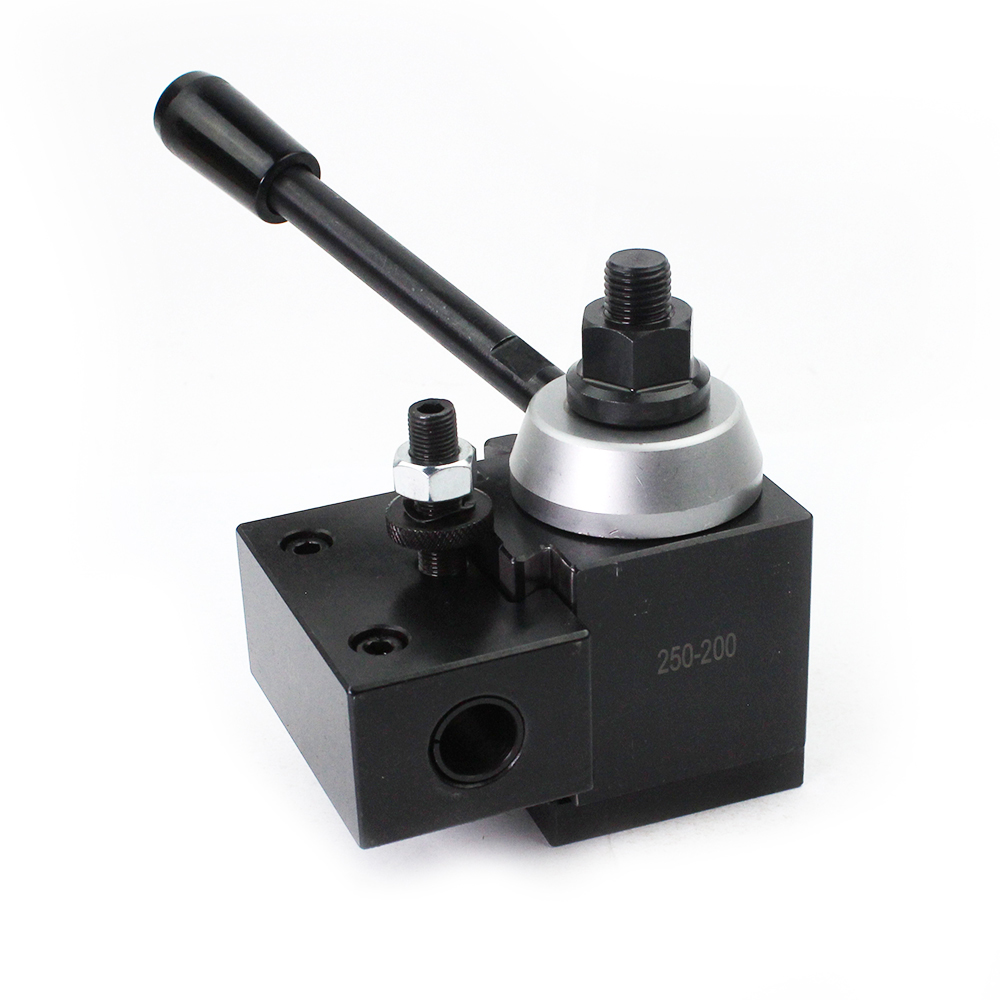

Quick change tool post: also referred to as a quick change tool holder, is a clamping device mounted on a lathe. It facilitates the swift swapping of various tool types, thereby enhancing machining efficiency and ensuring greater precision in the manufacturing process.
Specification：
250-200 Piston Type Tool Post Quick Change
Compatible model: 250-200 Piston Style
Lathe Swing (Inch):10-15 inch
Product Characteristics:

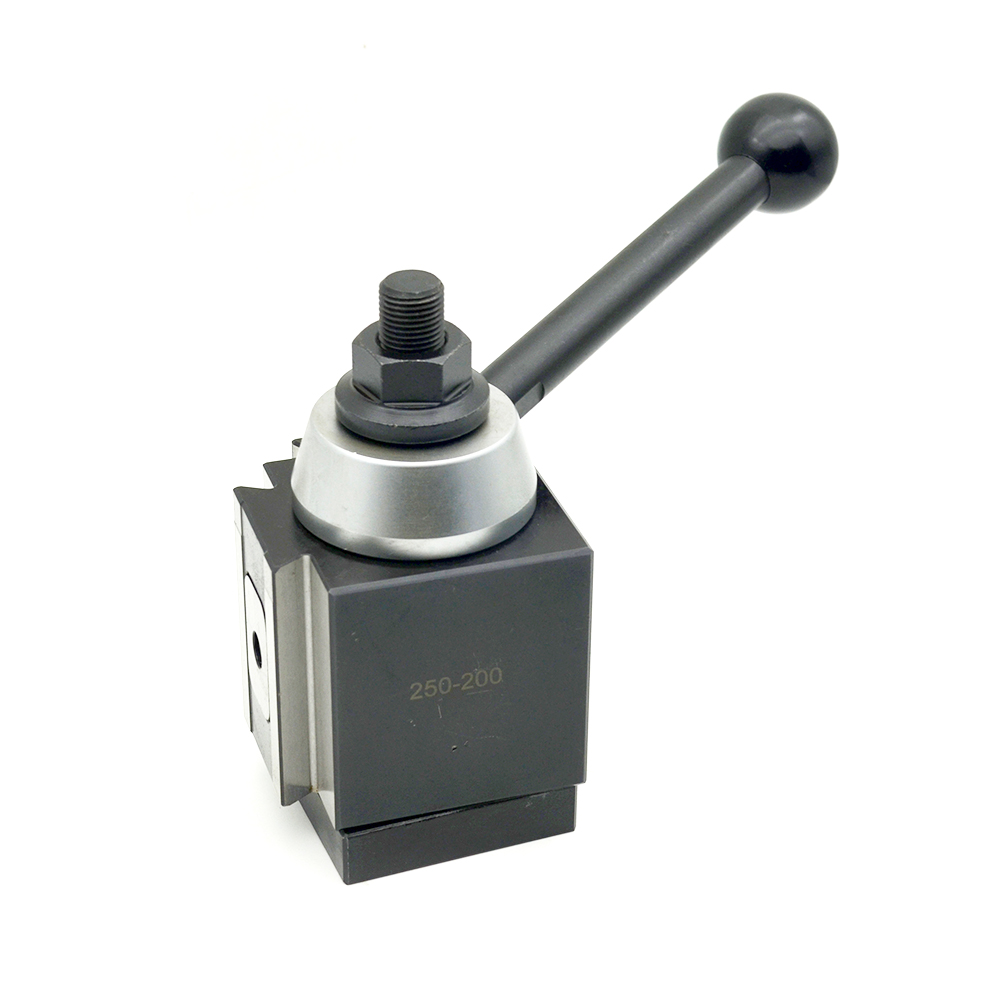

Rapid tool replacement: Equipped with an advanced piston-driven quick change mechanism, this tool post enables swift and hassle-free tool swapping. This significantly reduces tool changeover time, thereby boosting overall production throughput.
Superior precision: Meticulously engineered and manufactured with high-precision processes, the tool holder guarantees exceptional repeat positioning accuracy of the cutting tools. This ensures consistent dimensional precision and superior surface finish of the machined components.
| Specs | Lathe Swing (In.) | A | B | |||
| Model | Inch | mm | Inch | mm | Inch | mm |
| 250-100 | 12 | 304 | 2 1/2 | 63.5 | 2 1/4 | 57.15 |
| 250-200 | 10-15 | 254-381 | 3 | 76.2 | 2 3/4 | 69.85 |
| 250-300 | 13-18 | 330-457 | 3 3/8 | 85.725 | 3 | 76.2 |
| 250-400 | 14-20 | 355-508 | 4 | 101.6 | 3 5/8 | 92.075 |
| 250-500 | 17-48 | 432-1219 | 5 | 127 | 4 5/8 | 117.47 |
| 250-600 | 35-60 | 889-1524 | 6 3/4 | 175 | 6 1/8 | 156 |
| Specs | C | D | E | Holder Code | Order No. | ||
| Model | Inch | mm | Inch | mm | |||
| 250-100 | 3 7/8 | 98.425 | M14 x 1.5 | 1 7/16 | 36.512 | 250-1XX | 2500-1000 |
| 250-200 | 4 3/8 | 111.125 | M16 x 1.5 | 1 5/8 | 41.275 | 250-2XX | 2500-2000 |
| 250-300 | 4 7/8 | 123.825 | M20 x 2 | 1 7/8 | 47.625 | 250-3XX | 2500-3000 |
| 250-400 | 6 | 152.4 | M22 x 2 | 2 1/8 | 53.975 | 250-4XX | 2500-4000 |
| 250-500 | 7 3/8 | 187.32 | M24 x 2 | 2 11/16 | 68.26 | 250-5XX | 2500-5000 |
| 250-600 | 10 1/4 | 260 | M30 x 2 | 3 7/8 | 97.8 | 250-6XX | 2500-6000 |

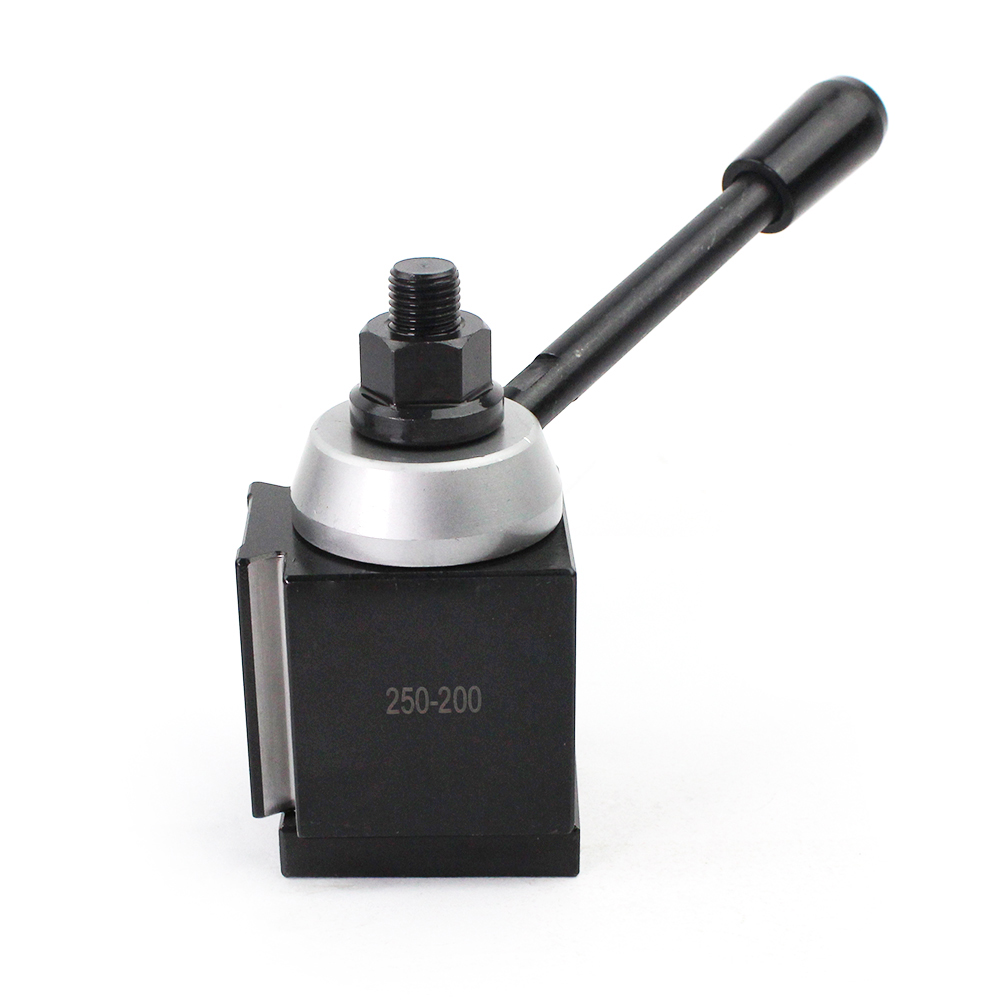

Durable and sturdy structure:
The main body is made of high-quality steel and processed into one piece, with excellent structural rigidity and wear resistance. In high load machining scenarios, it can stably withstand large cutting impact forces, effectively avoid deformation, ensure the stability of the tool holder throughout the entire process, and guarantee the reliability of the machining process.
Strong load-bearing and impact resistant structure:
The core frame is made of all steel material, and after precision machining, it forms a high rigidity structure with excellent wear resistance. This design can directly cope with large cutting forces during machining, fundamentally preventing tool holder shaking or displacement, and providing solid support for continuous and stable machining.
High stability structural design:
The main body of the tool holder is made of steel as the base material, and through scientific structural optimization, it achieves a dual improvement in rigidity and wear resistance. Even in long-term, high load cutting operations, it can always withstand high-intensity machining pressure, ensuring the stability and reliability of tool holder operation, and reducing machining errors caused by equipment problems.
