251-222 Wedge Style Quick Change Tool Post Holder
PDM
| Quantity: | |
|---|---|
Features of Quick Change Tool Post Lathe
Lathe tool post Title:

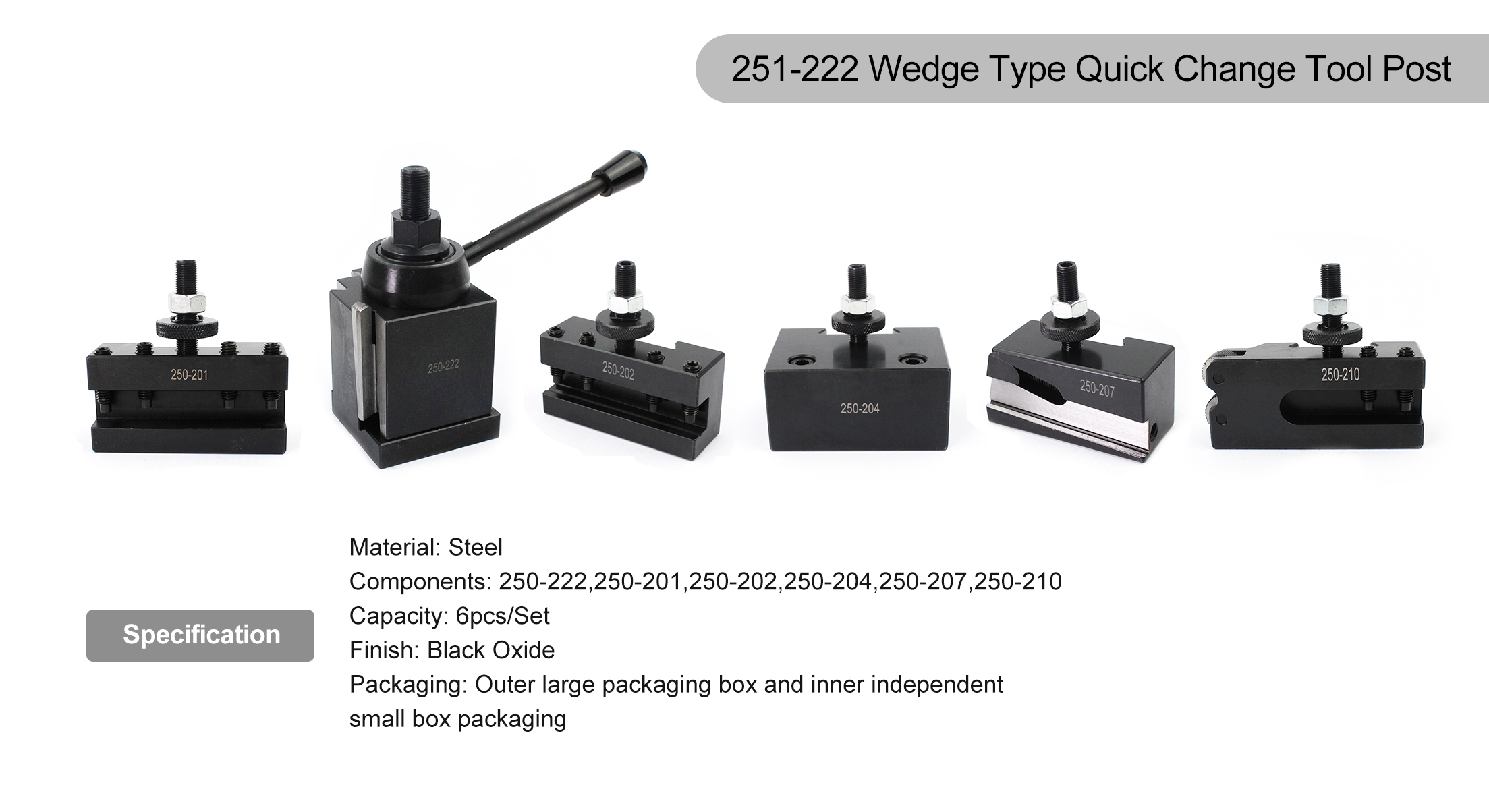

251-222 Wedge Style lathe quick change tool post set quick change tool post for metal lathe
The core functions include:
Quick tool change: The tool holder is fixed by a wedge mechanism, eliminating the need to repeatedly tighten screws and significantly improving tool change efficiency;
High rigidity design: using brass or steel body to ensure stability during processing and reduce vibration errors;
Modular compatibility: usually comes with multiple tool holders (such as 250-201, 250-202, etc.), supporting various machining needs such as turning, drilling, boring, etc;
Structural composition:

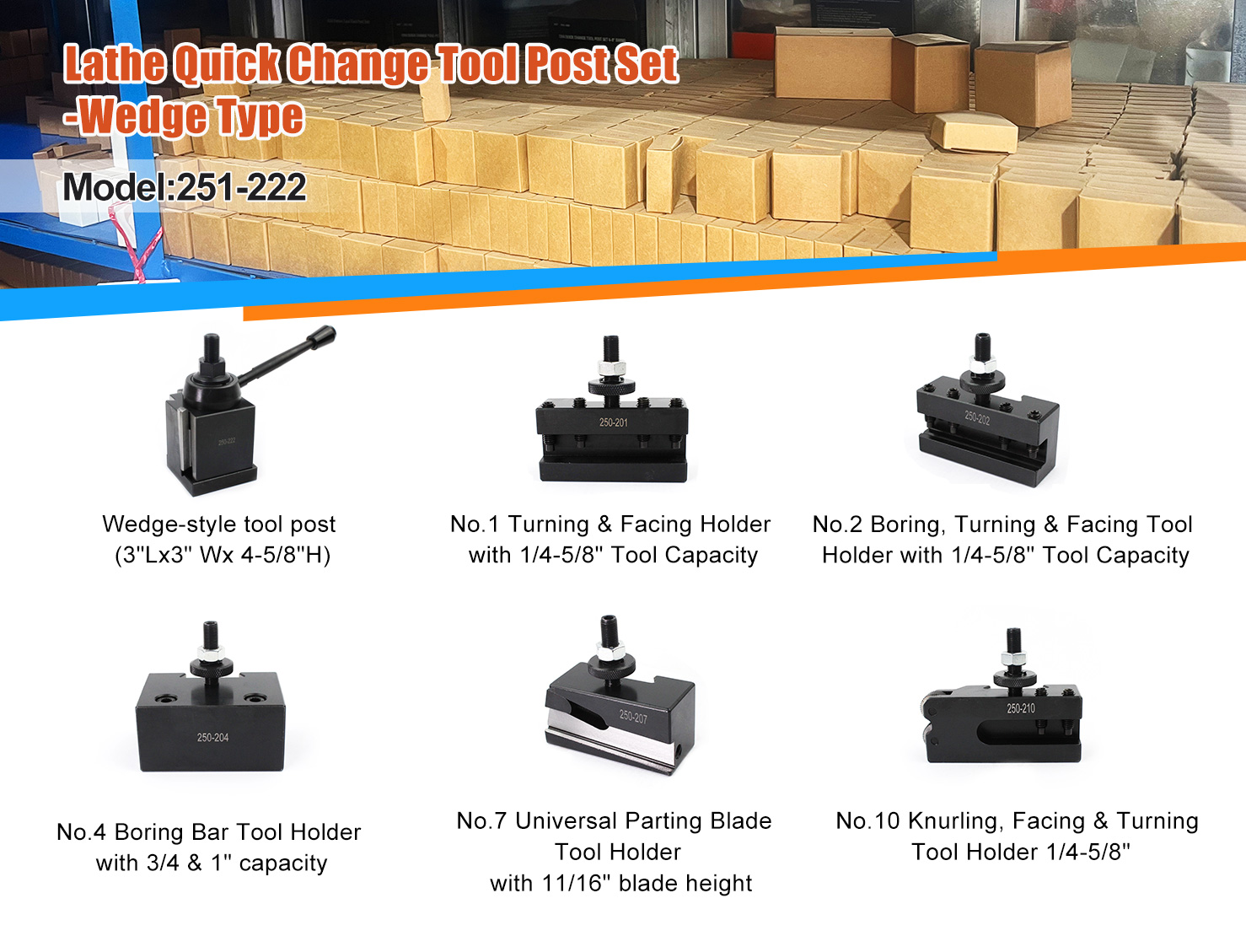

KIT INCLUDES:
Wedge-style tool post(3"Lx3"Wx4-5/8"H)

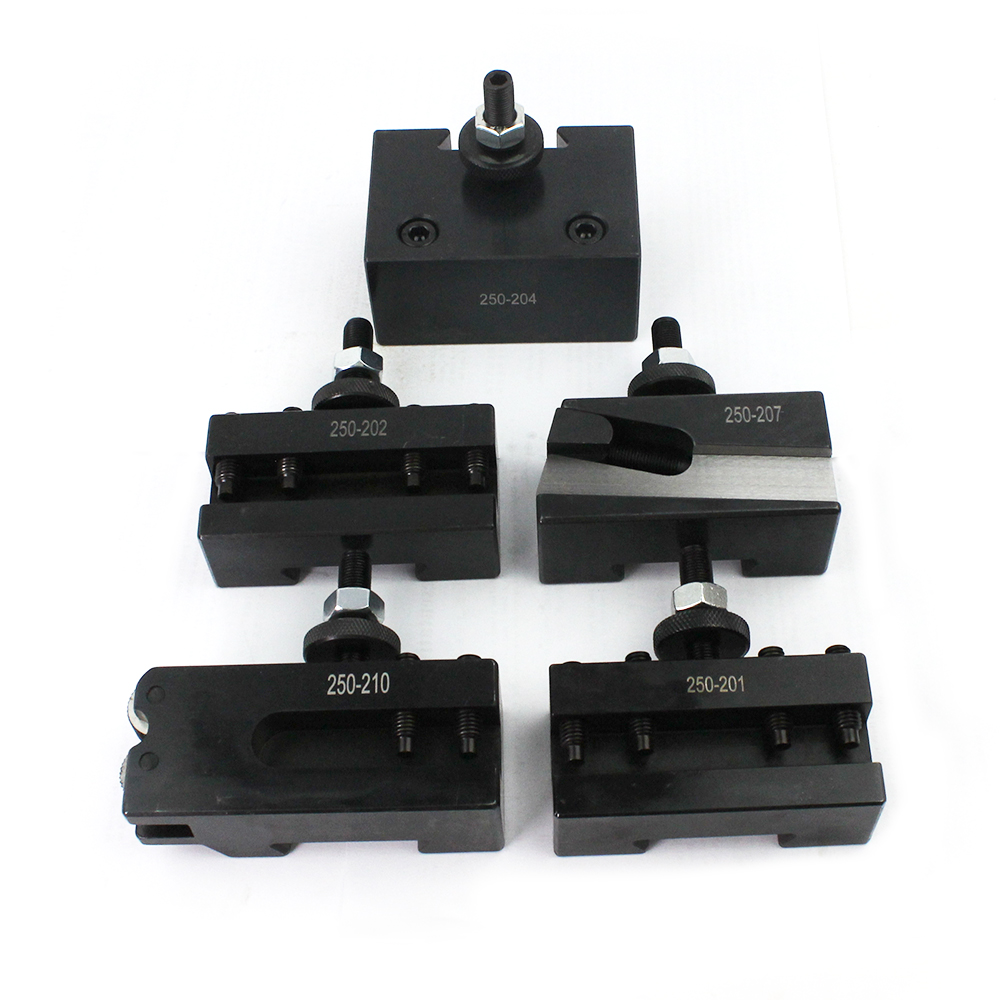

No.1Turning&FacingHolderwith1/4-5/8"Tool Capacity
No.2 Boring,Turning&Facing Tool Holder with 1/4-5/8"Tool Capacity
No.4BoringBarToolHolderwith3/4&1"capacity
No.7UniversalPartingBladeToolHolderwith11/16"blade height
No.10Knurling,Facing& Turning Tool Holder 1/4-5/8
Typical configuration:

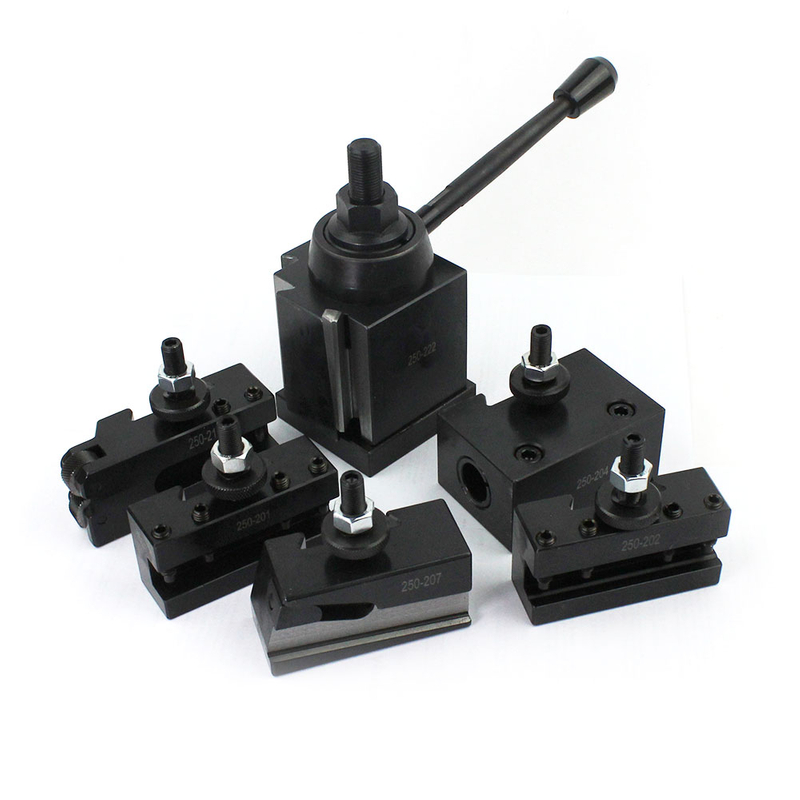

Includes 1 Tool Post and 5 Tool Holders;
The handle types include cylindrical end, concave end, etc., suitable for different processing scenarios;
| Model No. | Lathe Swing(In.) | Each Set Includes | N.W/kg | Order No. |
| 251-000 | 8 | Each 1 of 250-000,250-001,250-002,250-004, 250-007,250-010 | 2.00 | 2510-0000 |
| 251-111 | 12 | Each 1 of 250-111,250-101,250-102,250-104, 250-107,250-110 | 5.00 | 2510-1111 |
| 251-222 | 10-15 | Each 1 of 250-222,250-201,250-202,250-204, 250-207,250-210 | 7.85 | 2510-2222 |
| 251-333 | 13-18 | Each 1 of 250-333,250-301,250-302,250-304, 250-307,250-310 | 11.33 | 2510-3333 |
| 251-444 | 14-20 | Each 1 of 250-444,250-401,250-402,250-404, 250-407,250-410 | 20.76 | 2510-4444 |
| 251-555 | 17-48 | Each 1 of 250-555,250-501,250-502,250-504, 250-507,250-510 | 39.18 | 2510-5555 |
Application:
Suitable for Normal Lathe or Woodworking Lathe;
Product Features:
Accuracy guarantee
Adopting a wedge mechanism, it is formed by CNC machining and suitable for high smoothness turning and precision boring.
Industrial grade rigidity performance
The main material is high-strength steel, combined with stress relief heat treatment technology.
Quickly replace cutting tools
Quickly complete tool replacement and support plug and play function for pre adjusted tool holders (such as the 250-201 series), reducing machine downtime.
Adaptability to all scenarios
Compatible with standard tool holders, suitable for processes such as turning, end face milling, and thread machining.
