AN Fittings Male Weld Bung
PDM-Racing
| Quantity: | |
|---|---|

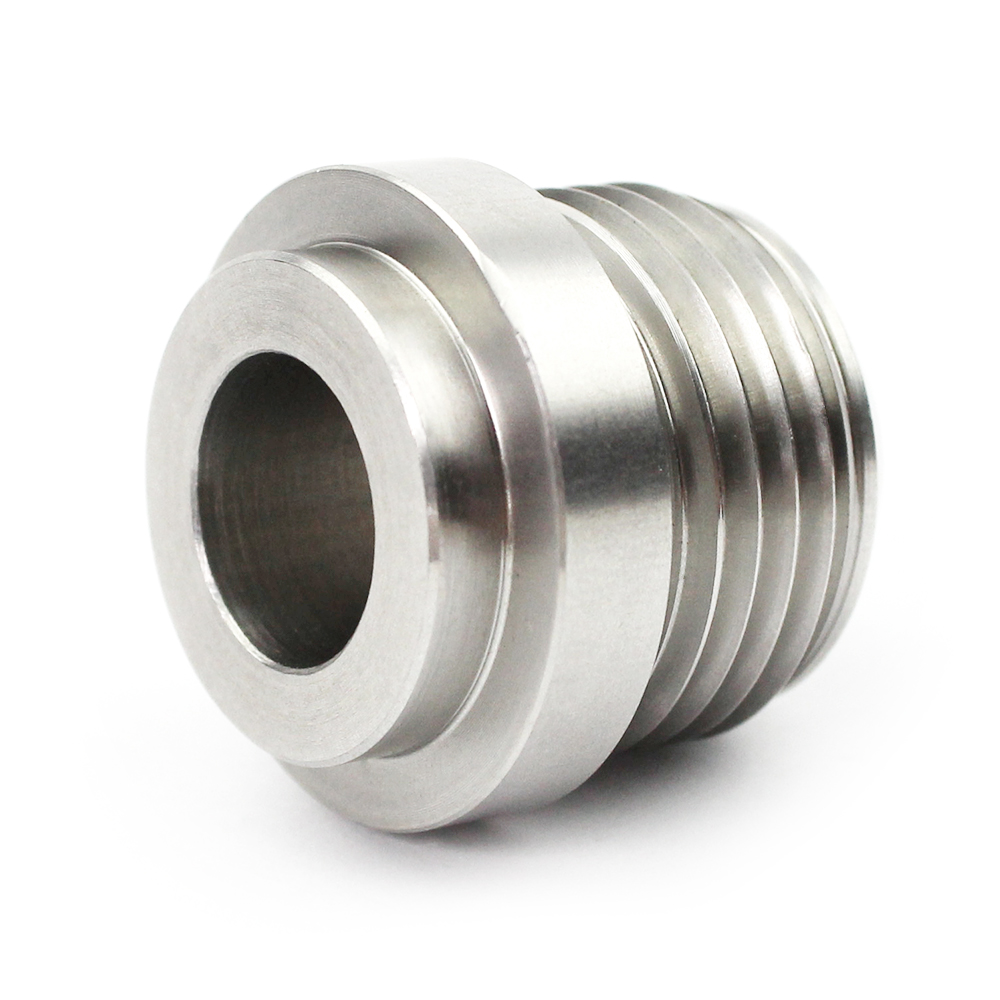

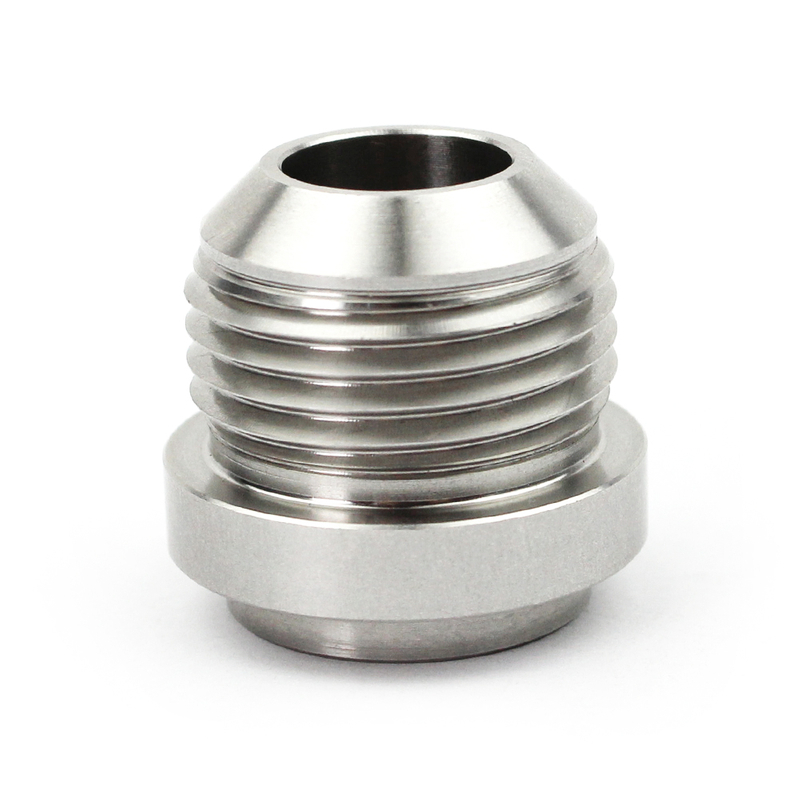

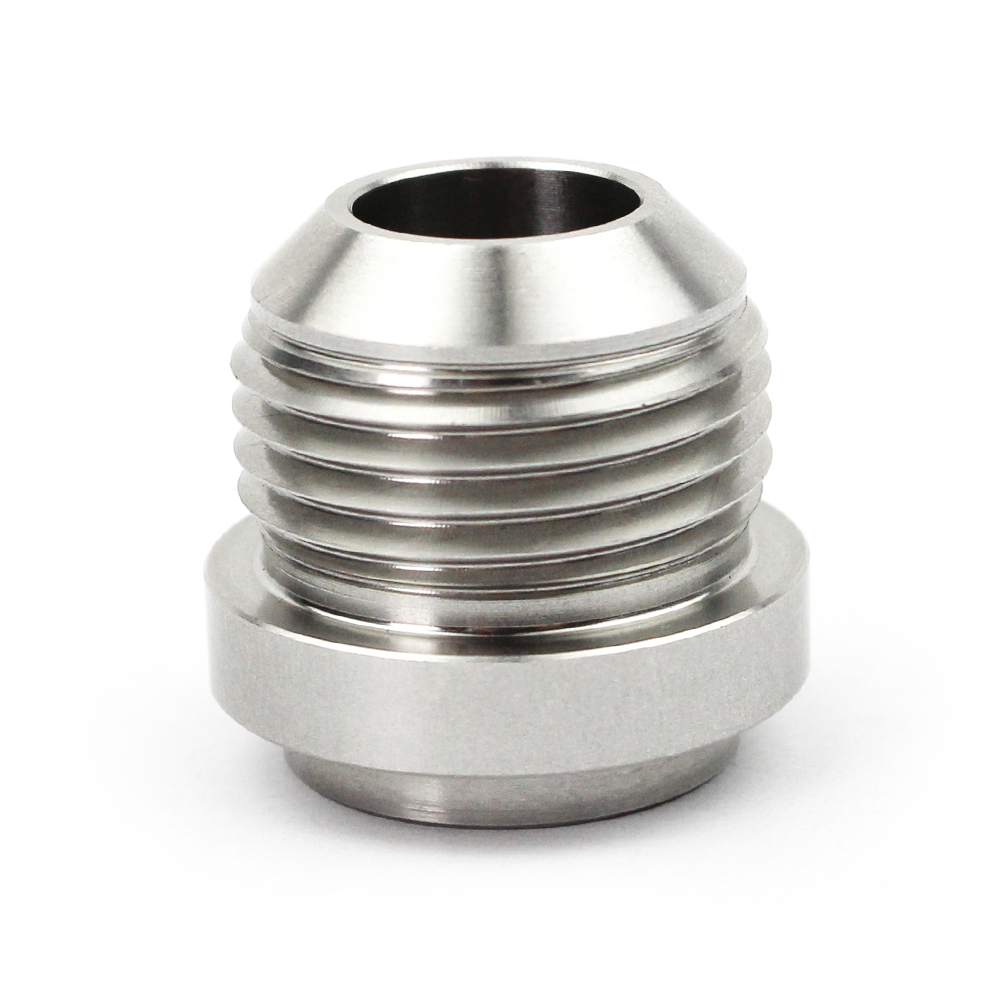

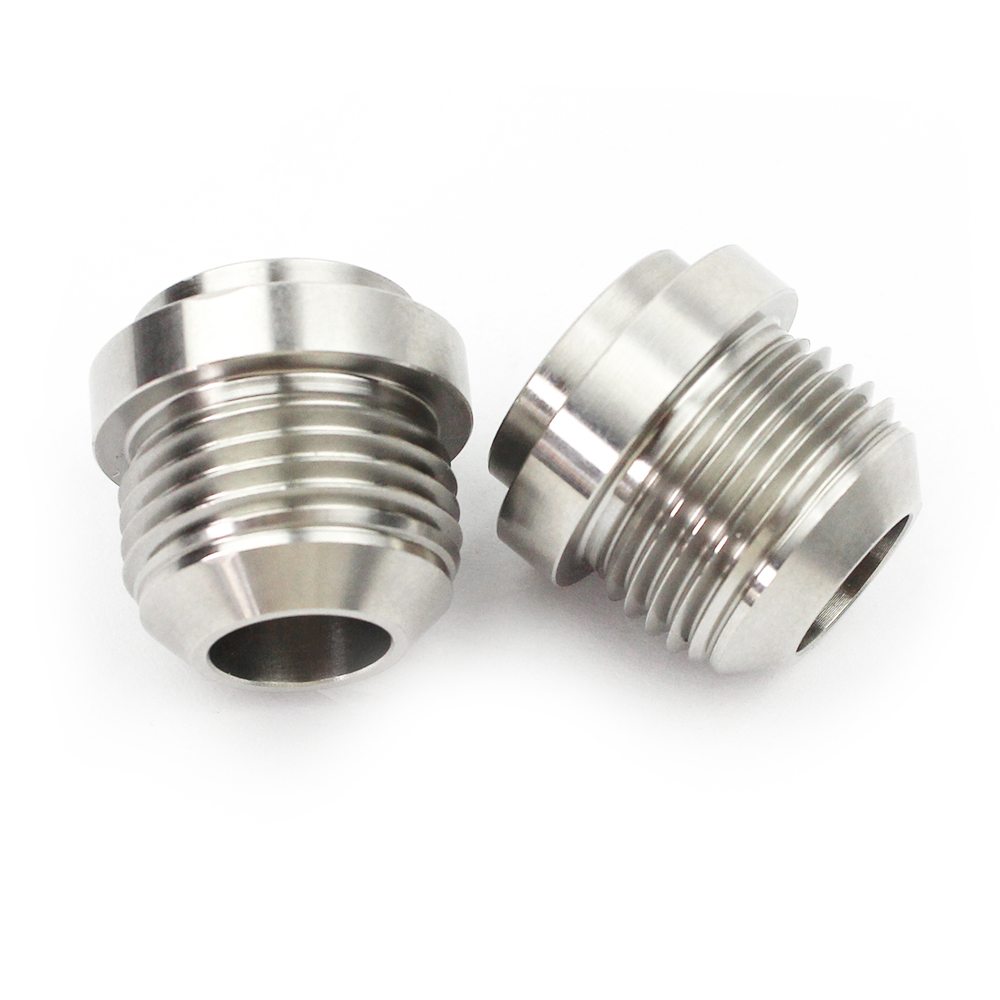

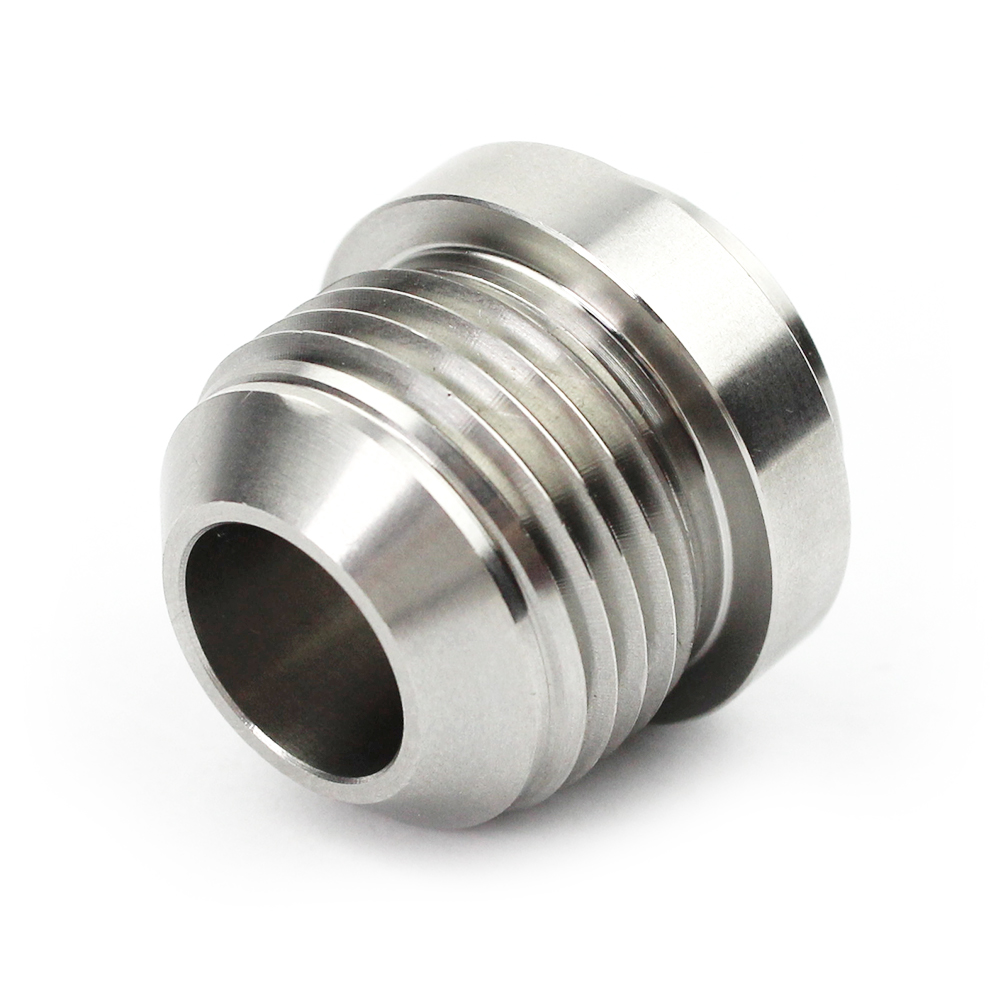

An fittings Male Weld Bung:
Weld Bung Title:
Heavy Duty An fitting adaptor Weld Bung An aluminium fittings for New Energy System
Forged An Fittings Introduction:

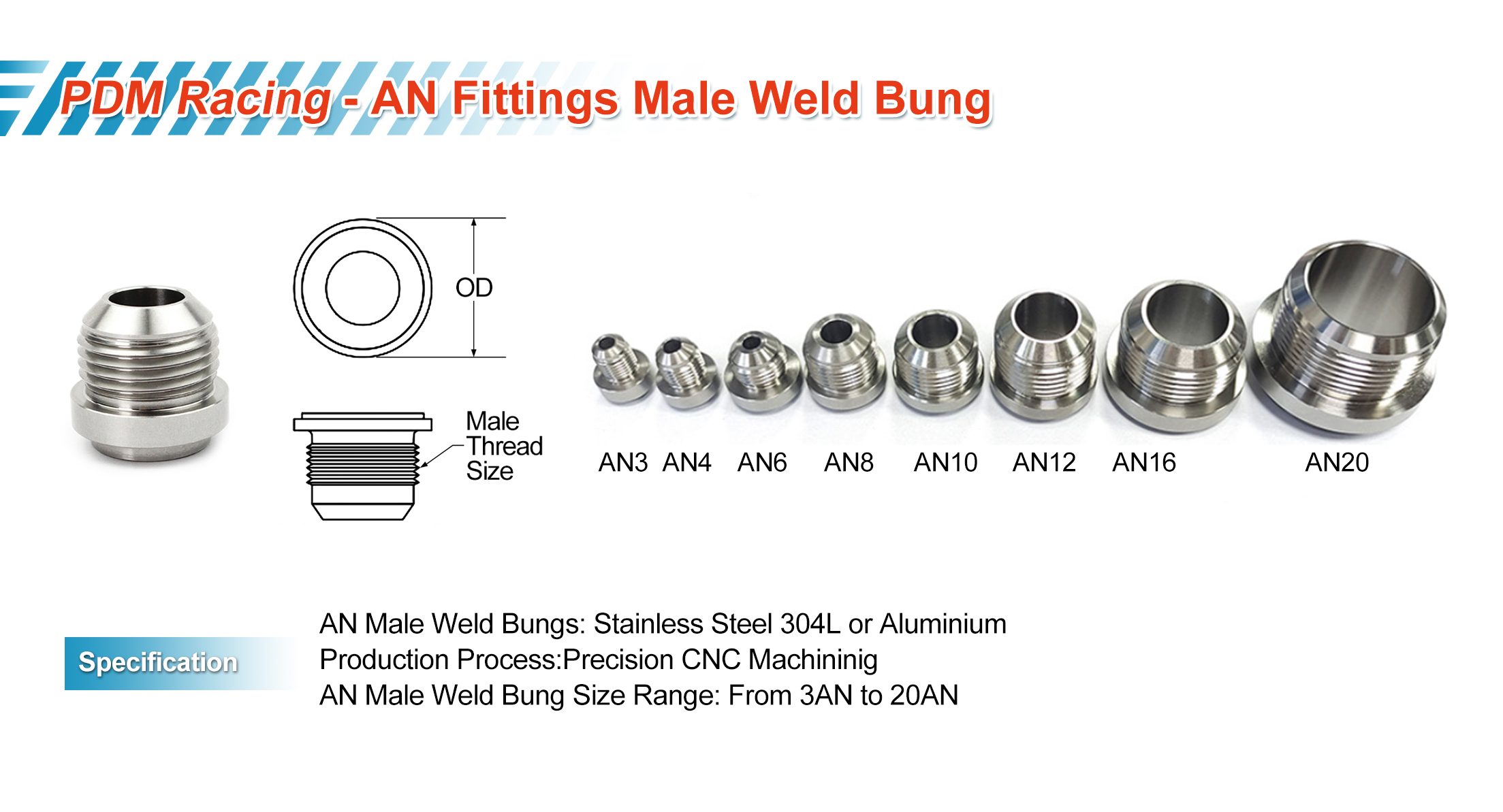

The male threaded end of AN fittings complies with AN (Army Navy) standards (commonly used specifications such as AN-8, AN-10, AN-12, etc.), and the size range of AN Male Weld Bung varies from 3AN to 20AN;
Core functions:
Interface conversion: Upgrade non-standard pipelines to AN standard interfaces and adapt to quick release connectors;
Sealed pressure bearing: suitable for high flow fuel/hydraulic systems;
Material and Processing
Main material: 6061-T6 aluminum alloy&Stainless Steel 304L, with high strength and good weldability;
Surface technology: Hard anodizing treatment to enhance wear resistance and corrosion resistance.
Manufacturing process
Cold forging forming: maintaining the integrity of metal flow lines;
Thread accuracy: AN standard;
Base type：
Straight type: used for flat welding (such as oil tanks and oil coolers);
Angle type (45 °/90 °): Suitable for complex spatial layouts (such as engine compartment pipeline steering);
| Male Thread Size | AN Size* | Equivalent Tube Size (Nominal OD) | Hose ID** | Male Fitting ID |
| 3/8-24" | 3AN | 3/16" | 0.13"** | 0.12" |
| 7/16-20" | 4AN | 1/4" | 0.22" | 0.17" |
| 9/16-18" | 6AN | 3/8" | 0.34" | 0.30" |
| 3/4-16" | 8AN | 1/2" | 0.44" | 0.39" |
| 7/8-14" | 10AN | 5/8" | 0.56" | 0.48" |
| 1 1/16-12" | 12AN | 3/4" | 0.69" | 0.61" |
| 1 5/16-12" | 16AN | 1" | 0.88" | 0.84" |
Application:
Racing fuel system (tank welding AN-10 base) hydraulic system integration (engineering machinery hydraulic tank integration AN-12 base) laser cooling machine welding AN-8 base, etc.
Sealing inspection and joint installation
Weld seam inspection
AN connector installation
Apply special anti sticking paste to the threads (to avoid metal cold welding);
Use a double opening wrench to tighten and tighten;
