Exhaust Muffler Clamp Accuseal Band Clamp
PDM-Racing
| Quantity: | |
|---|---|

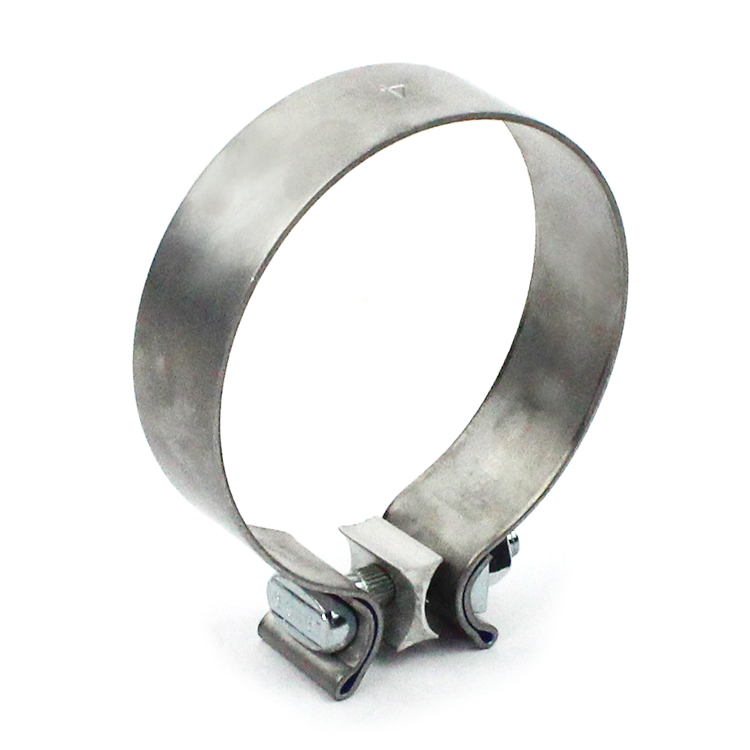

Accuseal Band Clamp:
Exhaust Pipe Sleeve Clamp Title:
Exhaust band clamp Stainless Steel O Band Clamp for Automotive Exhaust System
Core functions:
High pressure sealing: The stainless steel band evenly wraps around the pipeline interface to prevent liquid/gas leakage, especially suitable for hydraulic systems and automotive exhaust pipes.
Anti vibration loosening: The T-shaped bolt structure provides a high-strength pre tightening force of 10.9 level.
Corrosion resistance: Made of SUS 304/316 stainless steel material.

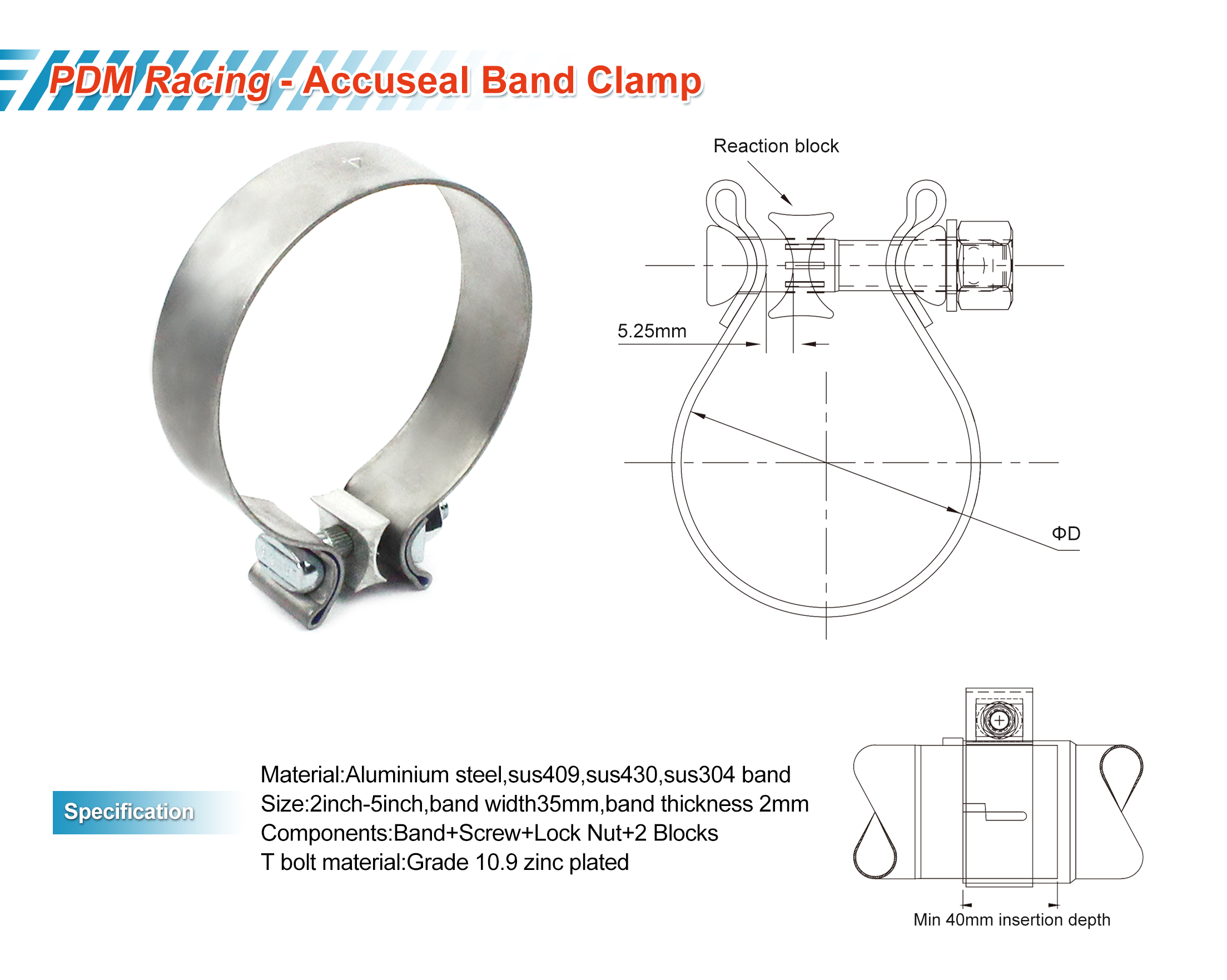

Stainless steel band: SUS 304/316 (thickness approximately 2mm);
Size:2inch-5inch,band width35mm,band thickness 2mm
Components:Band+Screw+Lock Nut+2 Blocks
T bolt material:Grade 10.9 zinc plated
| Size | Aluminized Steel Part No. | Stainless Steel Part No. |
| 2.00" | ABC-AS200 | ABC-SS200 |
| 2.25" | ABC-AS225 | ABC-SS225 |
| 2.50" | ABC-AS250 | ABC-SS250 |
| 2.75" | ABC-AS275 | ABC-SS275 |
| 3.00" | ABC-AS300 | ABC-SS300 |
| 3.50" | ABC-AS350 | ABC-SS350 |
| 4.00" | ABC-AS400 | ABC-SS400 |
| 5.00" | ABC-AS500 | ABC-SS500 |
Application:
Automotive exhaust system: Connect the exhaust pipe to the muffler;
Sealed hydraulic oil pipes, chemical fluid transportation, and ship seawater cooling pipelines.
Sealed design (optional)
O-shaped sealing groove: rubber sealing strip integrated on the inner side of the clamp (optional) to enhance the air tightness of the interface;
Stepless adjustment: supports continuous diameter adjustment and adapts to irregular pipe diameters;
Installation steps:
Surface treatment: Remove rust and burrs from the pipeline interface to ensure smooth contact;
Torque control: The T-bolt is tightened in two steps to avoid bias.
Selection suggestions
Hydraulic system: choose the model with O-ring seal groove;
High temperature exhaust: prioritize pure metal clamps without rubber seals;
Corrosion environment: specified SUS 316L material, salt spray resistant;
