The CY series stamping ball transfer unit is a key component used in automated conveying systems, mainly for achieving fast and accurate transfer of workpieces in stamping production lines.
CY Series Stamping Ball Transfer Units
PDM
| Quantity: | |
|---|---|
Features of Spring Loaded Ball Transfer Units
Spring Ball Transfer Title:
ball transfer roller bearing ball bearings roller cy series stamping process from PDM
Roller Ball Steel Introduction:
The conveyor roller ball unit uses a stamped ball made of stainless steel or nylon material as the core component, and achieves multi-directional flexible movement through a universal ball structure, suitable for high-frequency and high-precision industrial scenarios;

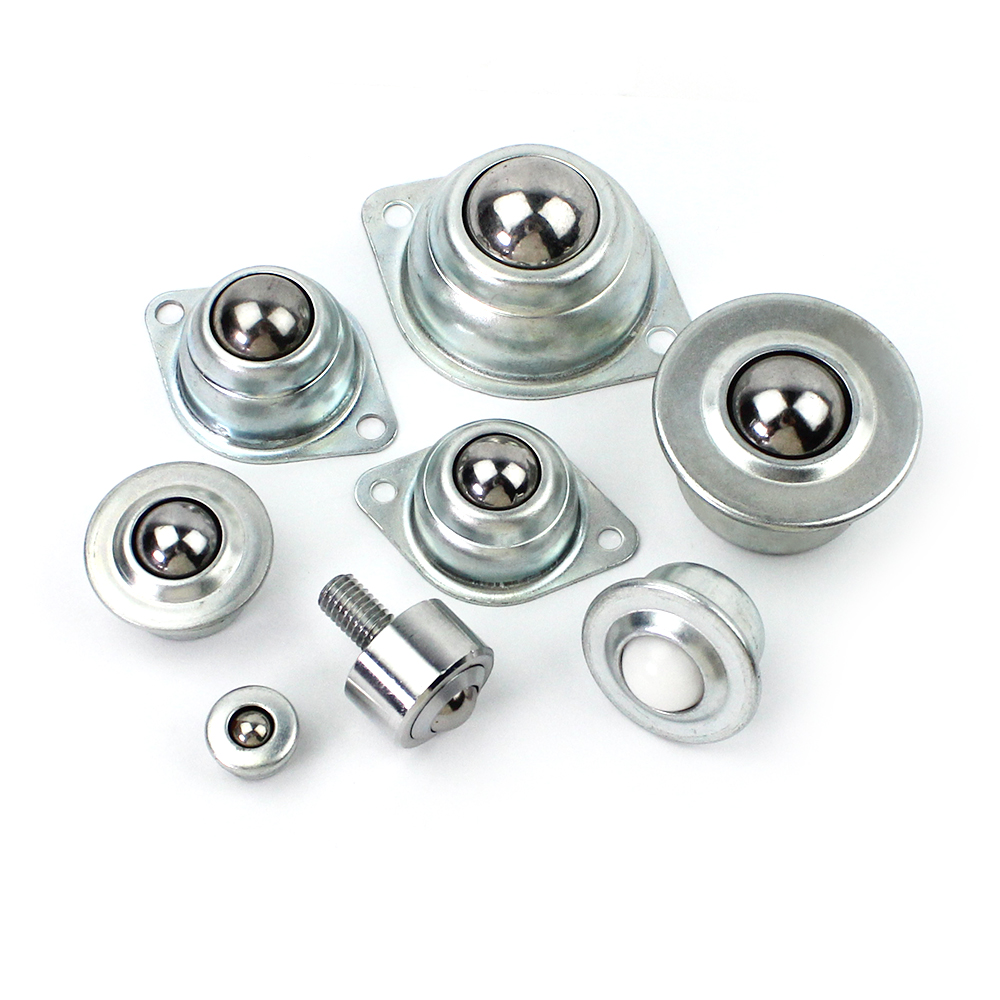

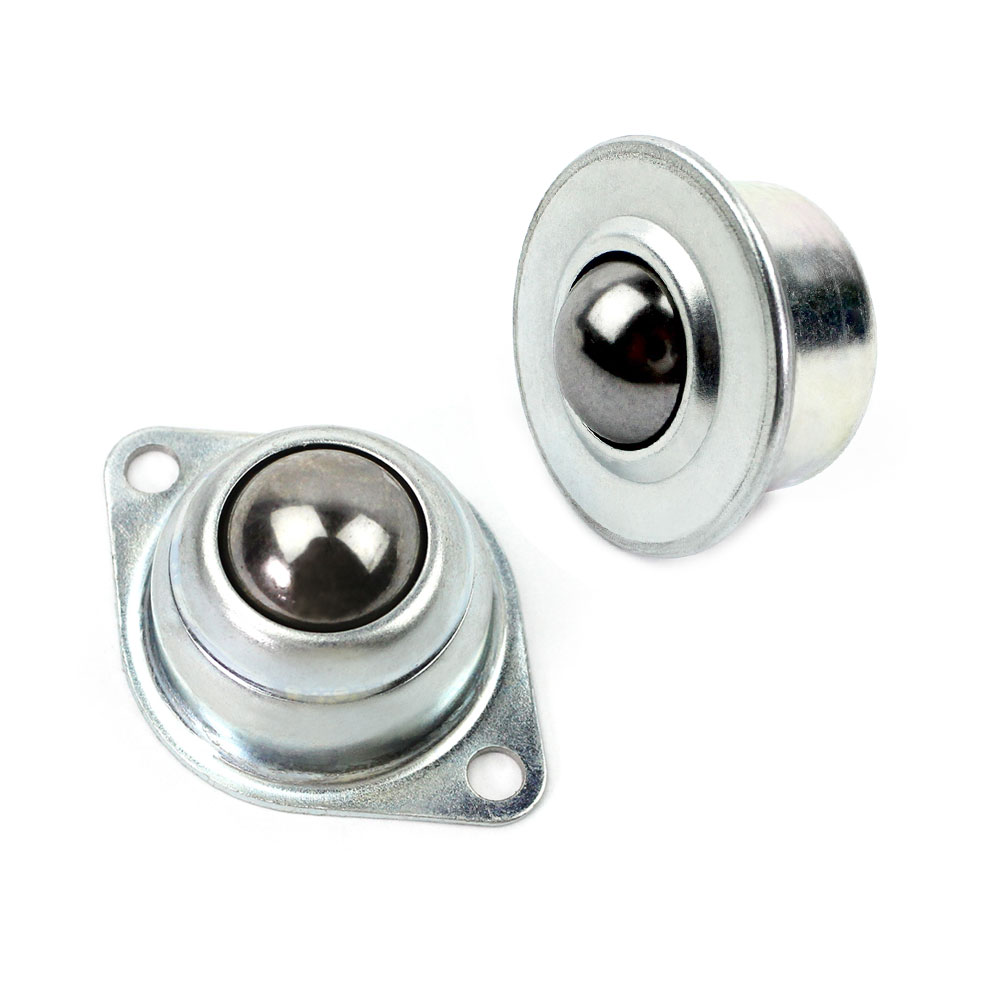

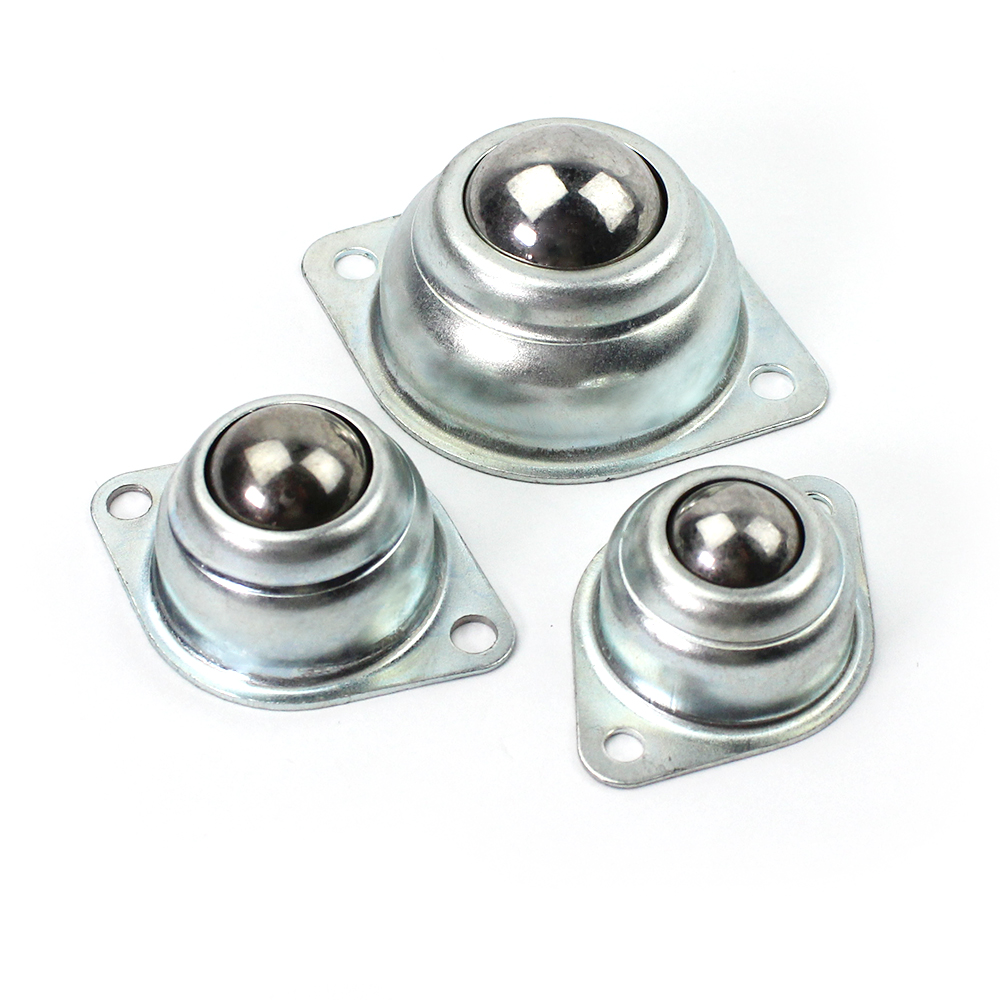

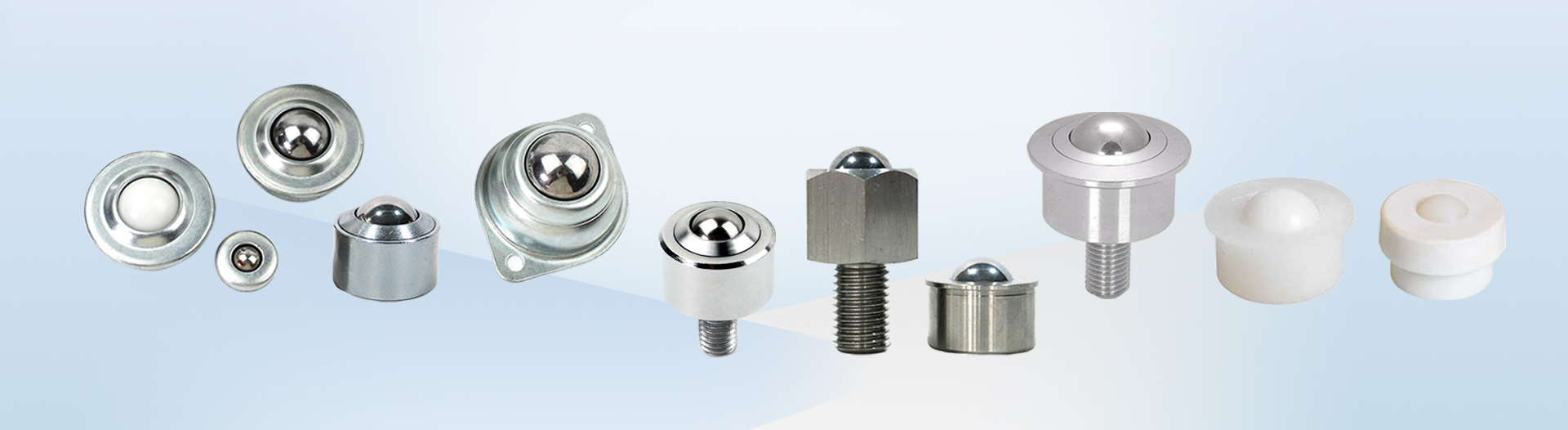

The main body is composed of a large load-bearing ball and several small ball bearings that wrap around it, as well as a stamped shell. The large ball is placed on the small ball bearings of the hemispherical cup and can rotate freely 360 °. The shell is made of stamped technology and is mostly made of carbon steel, stainless steel and other materials. Some models have a double hole flange base for easy installation and fixation.
Some units are equipped with sealed protective covers and hardened ball cups, which can reduce friction torque, prevent dust from entering, extend service life, and also achieve bidirectional installation and use with the ball facing up or down.
Material: CS/CS, PL/CS, SS/CS, SS/SS, PL/SS, etc
Size range: CY-12A to CY-38A, CY12B-CY38B, CY8H-CY40H and other specifications are available for selection;
Load capacity: Depending on the model, the maximum load capacity can reach 50kg
| Material Code for Main-ball/shell | |
| CS/CS | Main ball in Carbon Steel,Shell in Carbon Steel |
| BS/CS | Main ball in Bearing Steel, Shell in Carbon Stee |
| PL/CS | Main ball in Plastic, Shell in Carbon Steel |
| SS/CS | Main ball in 304 Stainless steel, Shell in Carbon Steel |
| SS/SS | Main ball in 304 Stainless steel, Shell in 304 Stainless stee |
| PL/PL | Main ball in Plastic. Shell in Carbon Plastic |
| SS/PL | Main ball in 304 Stainless steel, Shell in Plastic |
| S4/SS | Main ball in 440 Stainless steel, Shell in 304 Stainless stee |
| Others | S6:316 Stainless steel, Ny: Nylon |
Instructions
Default material is CS/CS for CY series Default material is SS/SS for MSM series
Default material is BS/CS for machined steel series Default material is PL/PL for NL series
| Material Code for Main-ball/shell | |
| Self Tapping Screw | Fit for light duty flanged type, like CY-A, CY-B series |
| Rivet | Fit for light duty flanged type, like CY-A, CY-B series |
| Bolt | Fit for heavy duty flanged type, like IA,IS,SD,SI,UK,KSF,NL-A,NL-B series |
| Press Drop-in | Fit for none flange type, like CY-H,SP,KSM series |
| DIN471 Circlip | Fit for none flange type small sizes, like CY-H,SP,KSM,NL-H series |
| Nut | Fit for bolt type, like CY-F,SP-FL,KSM-FL series |
| Welding | Fit for carbon steel shell type, please consider how to replaced if welded |
Application:
Widely used in automated production lines in industries such as automotive manufacturing, electronics, and logistics transportation, it is particularly suitable for scenarios that require frequent changes in transportation direction. In stamping processing, it can be used in conjunction with multi station presses to achieve automatic transfer and positioning of workpieces

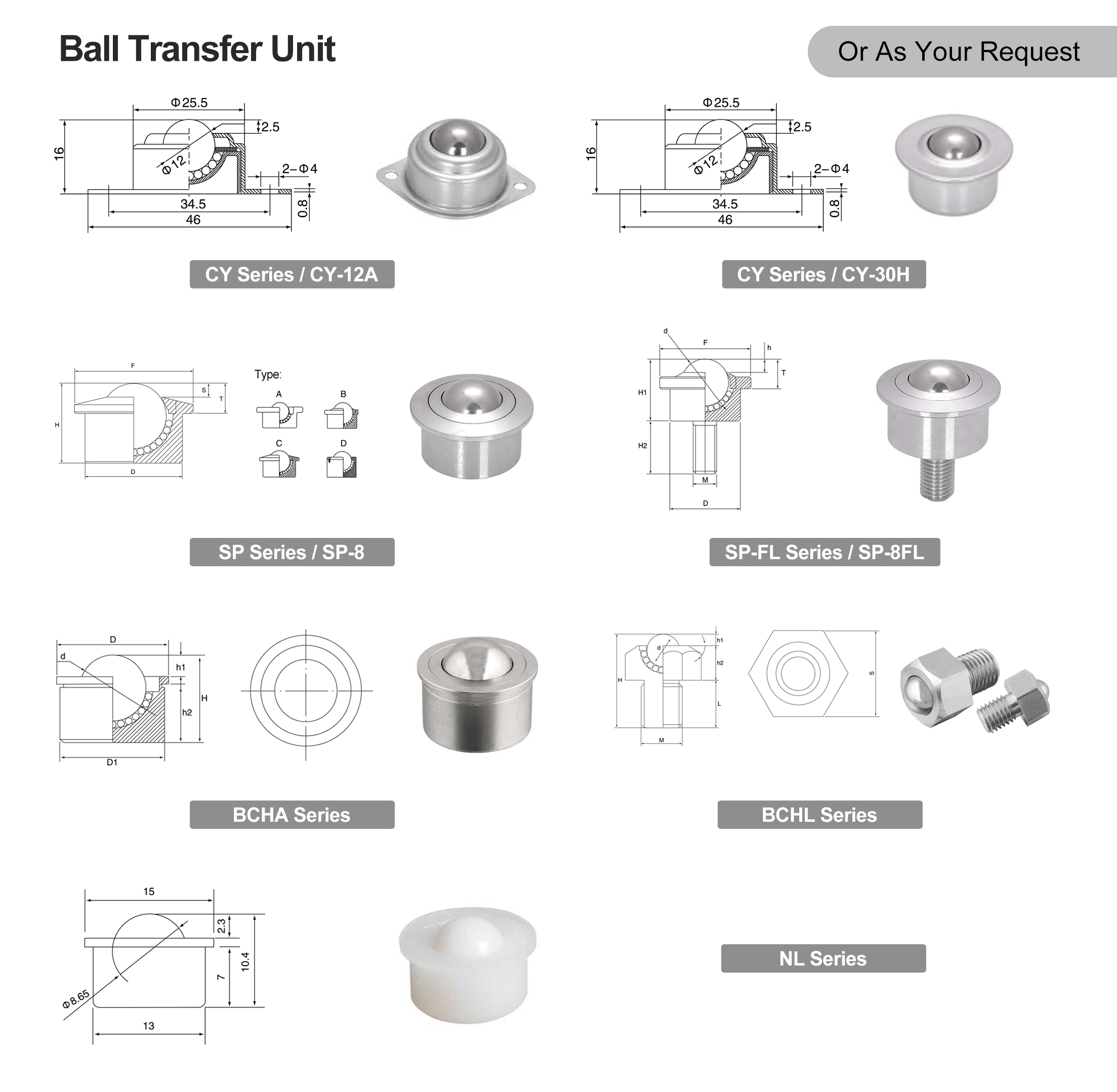

| CY 12A-Stamping Ball Transfer Units | ||||
| Model No. | Material | Loading Capacity | Net Weight(Kg) | |
| Suggest | Max. | |||
| CY-12A | CS/CS | 7 | 10 | 0.025 |
| CY-12A | PL/CS | 3 | 5 | 0.021 |
| CY-12A | SS/SS | 5 | 8 | 0.025 |
| CY-12A | PL/SS | 3 | 5 | 0.021 |
| CY 15A-Stamping Ball Transfer Units | ||||
| Model No. | Material | Loading Capacity | Net Weight(Kg) | |
| Suggest | Max. | |||
| CY-15A | CS/CS | 10 | 15 | 0.040 |
| CY-15A | PL/CS | 5 | 10 | 0.030 |
| CY-15A | SS/SS | 8 | 10 | 0.040 |
| CY-15A | PL/SS | 5 | 10 | 0.030 |
| CY 25H-Stamping Ball Transfer Units | ||||
| Model No. | Material | Loading Capacity | Net Weight(Kg) | |
| Suggest | Max. | |||
| CY-25H | CS/CS | 50 | 60 | 0.135 |
| CY-25H | PL/CS | 30 | 35 | 0.100 |
| CY-25H | SS/SS | 40 | 50 | 0.135 |
| CY-25H | PL/SS | 30 | 35 | 0.100 |
| CY 30H-Stamping Ball Transfer Units | ||||
| Model No. | Material | Loading Capacity | Net Weight(Kg) | |
| Suggest | Max. | |||
| CY-30H | CS/CS | 70 | 85 | 0.225 |
| CY-30H | PL/CS | 35 | 40 | 0.135 |
| CY-30H | SS/SS | 40 | 50 | 0.225 |
| CY-30H | PL/SS | 35 | 40 | 0.135 |
Product features of ball transfer roller
High precision: manufactured using precision stamping technology to ensure consistency in the size and shape of the sphere;
Strong durability: Stainless steel or nylon materials have excellent wear resistance and impact resistance;
Flexible movement: The universal ball design supports free rolling from multiple angles and directions;
Easy installation: modular design facilitates integration into existing production lines;
Maintenance and Care
Regularly clean the surface of the sphere to prevent debris accumulation
Check the flexibility of the ball's rotation and add lubricant if necessary
Avoid overloading and prevent sphere deformation
