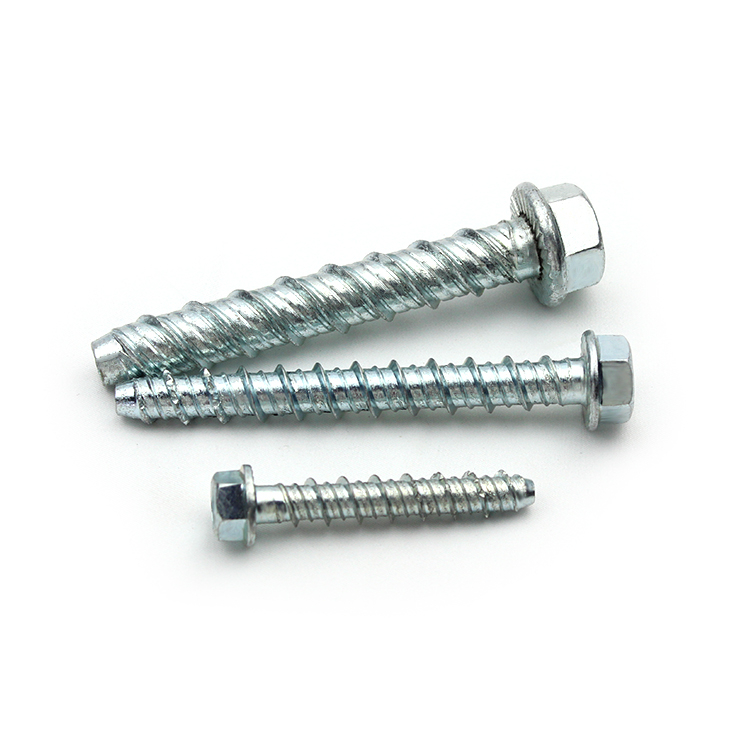

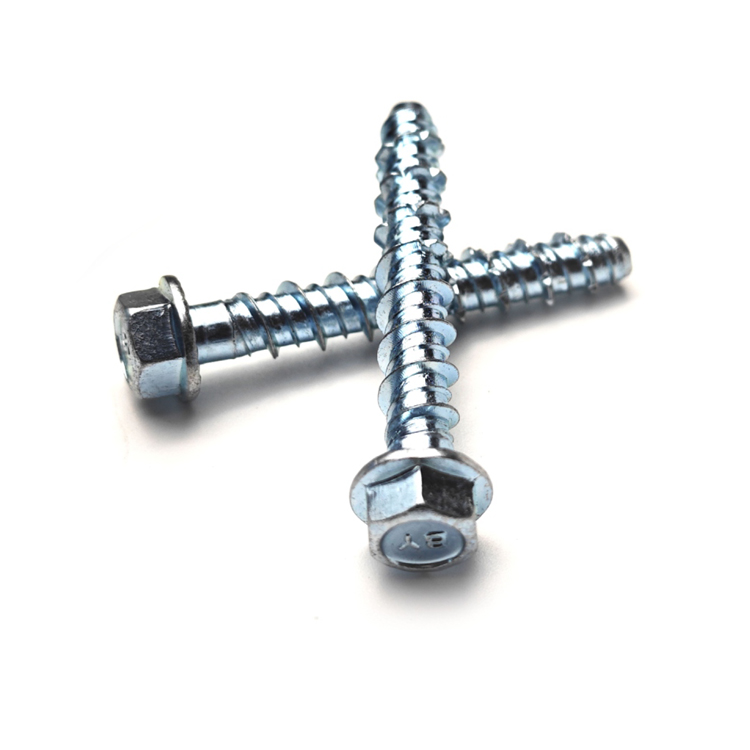

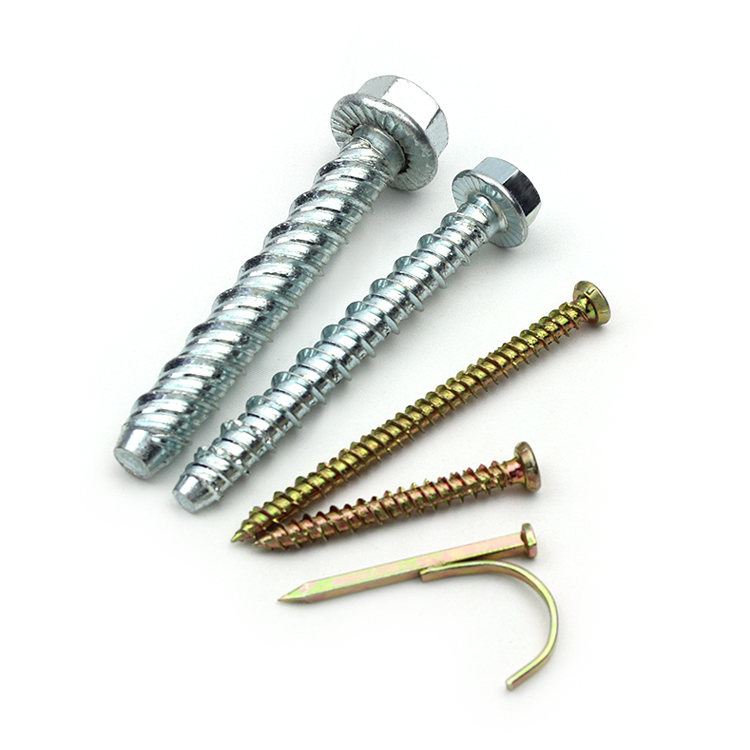

Concrete Anchor Bolt
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of Concrete Anchor Bolt
Concrete Heavy Duty Screw Anchor Title:
4.8 & 8.8&12.9 Grade concrete anchor screw self tapping screw concrete anchor bolt for heavy duty
Core structural characteristics - Head design:
Hex Flange Head: Increases the pressure bearing surface to prevent sinking into the substrate and provide high torque transmission capability.
The material is mainly carbon steel (SAE J429 Gr.5/8.8 grade), with surface galvanized or Dacromet (DAC) anti-corrosion treatment.
Thread technology:
Wide tooth spacing+deep thread: enhances concrete bite strength and reduces screw in torque.
Self Drilling: Some models come with a cutting edge at the end, allowing for simultaneous drilling and tapping (different from regular self tapping screws).

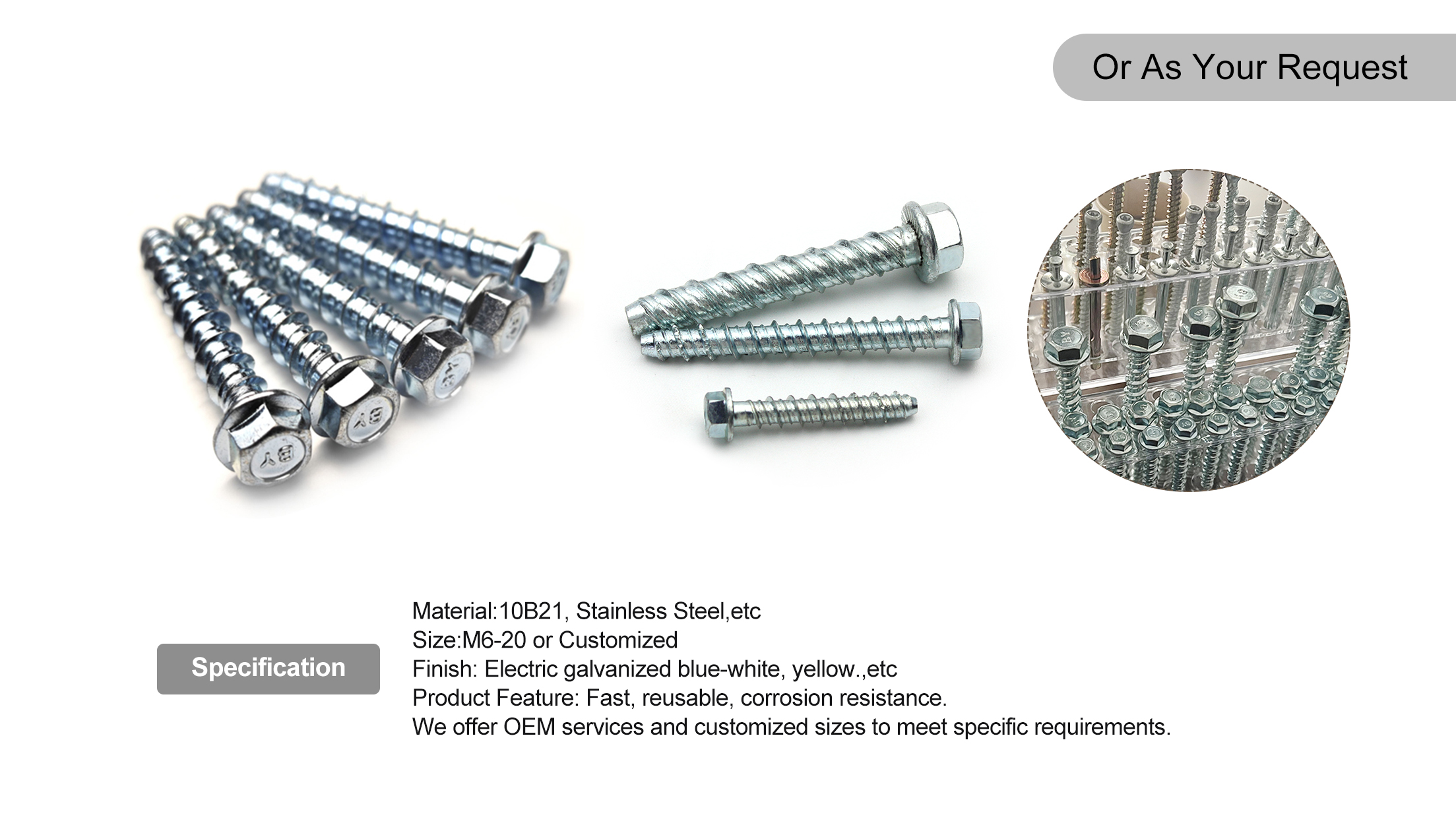

Material:10B21, Stainless Steel,etc
Size:M6-20 or Customized
Grade:10.9Grade (or higher) or as your requirements
Finish: Electric galvanized blue-white, yellow.,etc
Product Feature: Fast, reusable, corrosion resistance.
We offer OEM services and customized sizes to meet specific requirements.

| Item | Concrete Anchor Bolt |
| Size | M6-M20 or Customized |
| Material | 10B21,Stainless Steel,etc |
| Surface Treatment | Electric galvanized blue-white, yellow |
| Product Feature | Fast, reusable, corrosion resistance |
| Application | Concrete, Rock,etc |
Application:
Building structure: connection between color steel plates and concrete purlins, reinforcement of seismic support system.
Industrial equipment: anchoring of heavy machinery bases, installation of pipeline supports.
Infrastructure: Bridge guardrails, fixed traffic signs.

Working principle - dual function integration:
Self Tapping: The tail thread can be self cut or extruded to form a mating female thread without the need for pre drilled threaded holes.
Concrete Anchor: By using special threads to mechanically interlock with concrete, it forms a tensile and tensile anchoring force.
Installation mechanism: Cooperate with electric tools to complete drilling, tapping, and fixing in one go.
