Exhaust Hanger Rod
PDM-Racing
| Availability: | |
|---|---|
| Quantity: | |

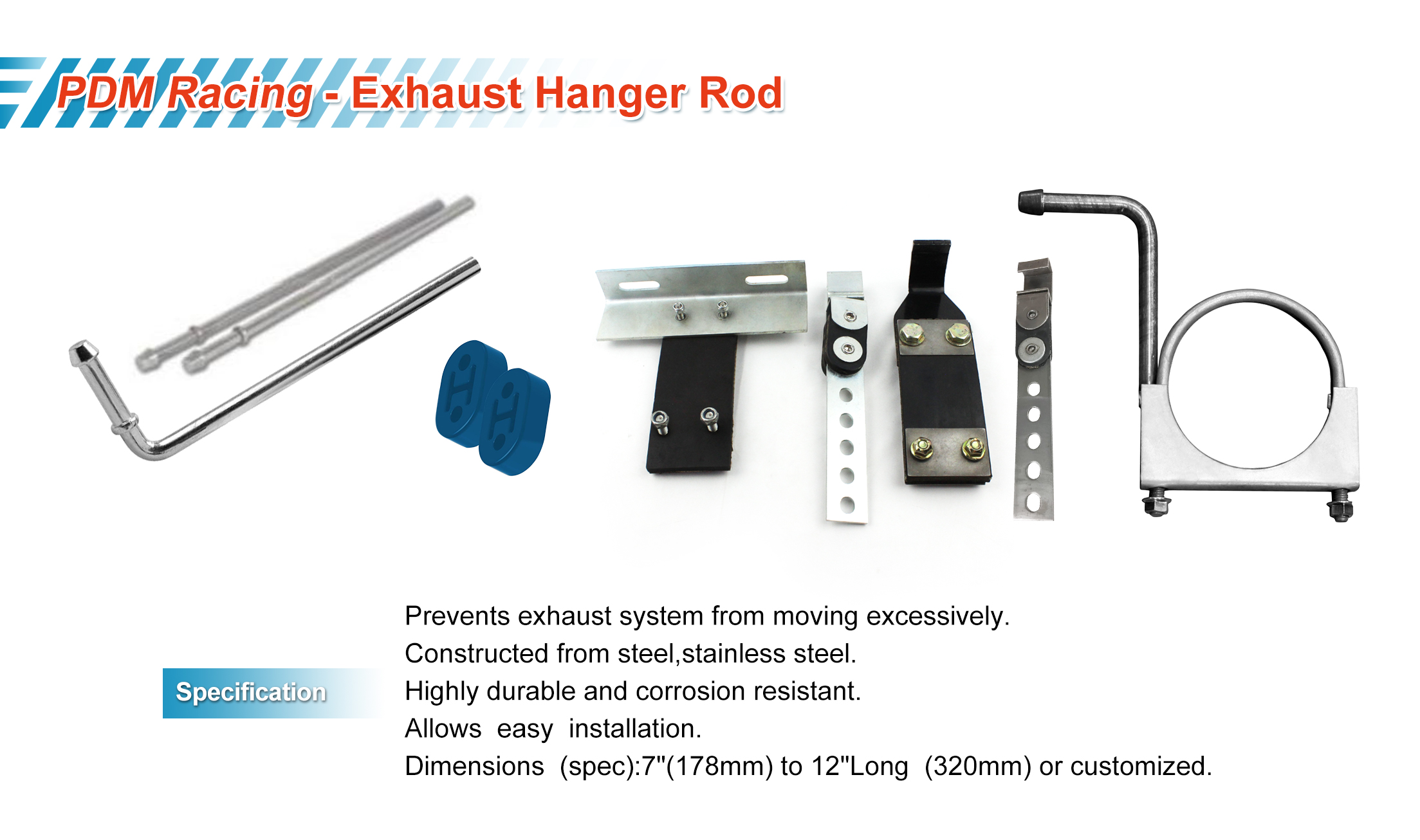

Features of Exhaust Hanger Rod
Adjustable rod hanger Title:
High quality rod hangers Exhaust Hanger Rod for Exhaust Muffler
Hanger Rod Introduction:
Main material: stainless steel rod body (SUS 304/316L); Lightweight aluminum alloy: used for new vehicles;
Prevents exhaust system from moving excessively.
Constructed from steel,stainless steel.
Highly durable and corrosion resistant.
Allows easy installation.
Dimensions (spec):7"(178mm) to 12"Long (320mm) or customized.
Core role:
Vibration isolation: Absorb engine vibration through rubber/silicone bushings to prevent resonance between the exhaust system and the vehicle body;
Displacement compensation: Allow for thermal expansion displacement of the exhaust pipe to avoid deformation and cracking caused by rigid connections;
Typical structure:

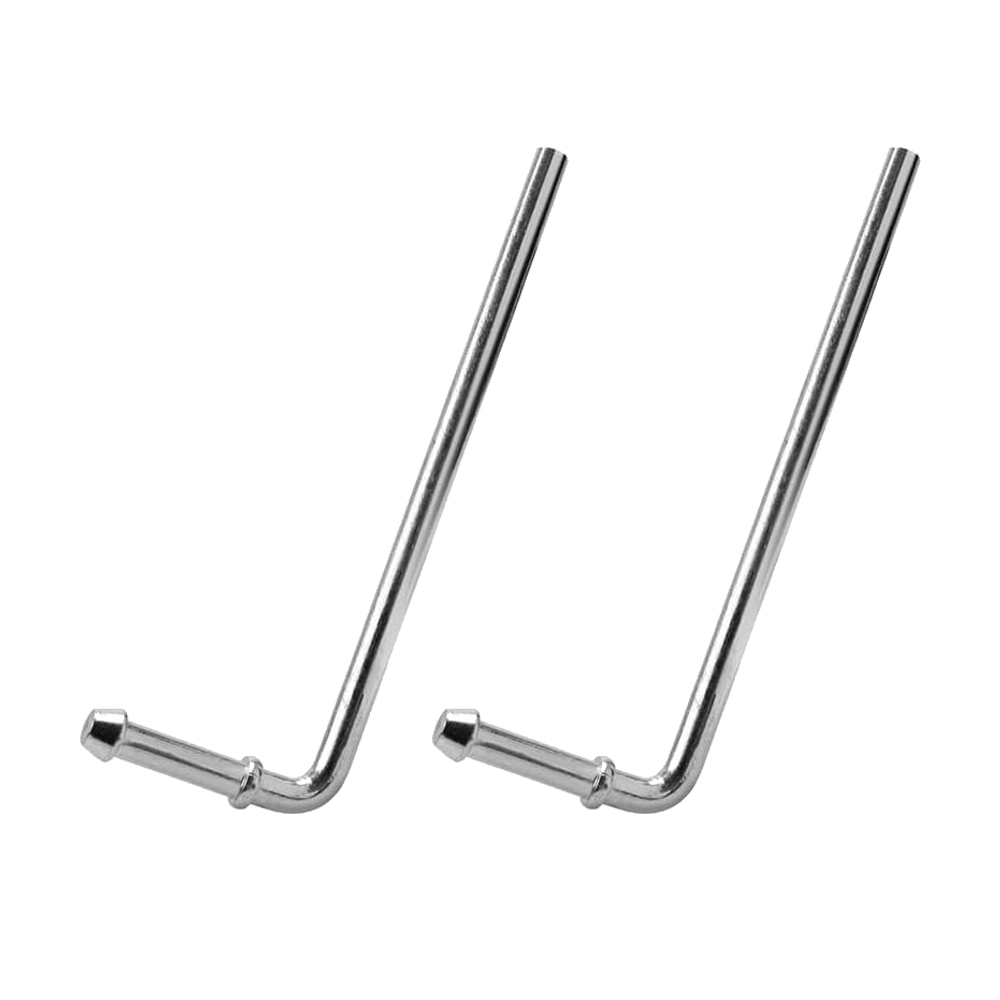

Metal rod body: 304 stainless steel or galvanized carbon steel;

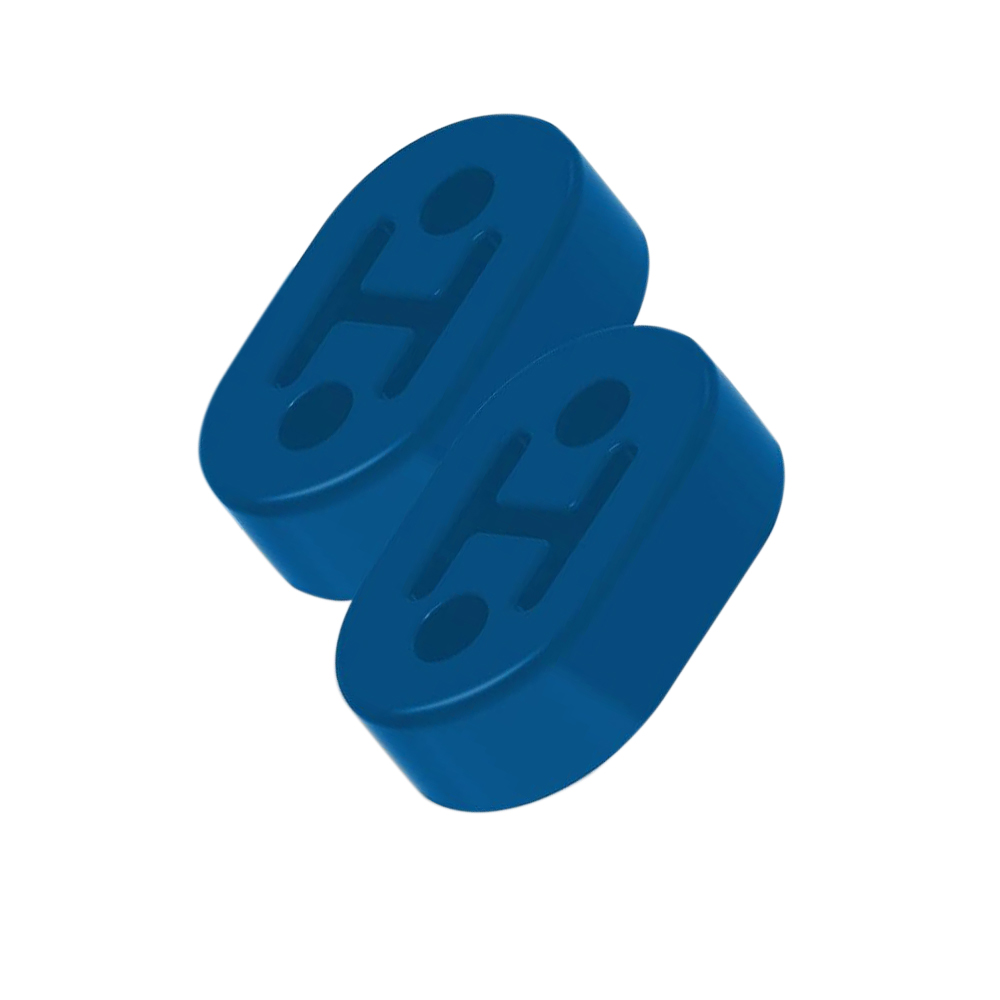

Shock absorber liner: high temperature resistant silicone or fluororubber;
Connection end: threaded rod or quick release buckle structure;

| Part No. | Size |
| PDMEHR3807 | 3/8" x 7" |
| PDMEHR3812 | 3/8" x 12" |
| PDMEHR1207 | 1/2" x 7" |
| PDMEHR1212 | 1/2" x 12" |
Application:
Single point suspension: suitable for light vehicles, with adjustable pole length of 150-300mm;
Double pole parallel type: heavy-duty truck exhaust pipe.
Motorcycle modification: titanium alloy body+colored lining (customized);
Industrial pipeline: equipped with insulation lining to prevent electrochemical corrosion;
Fixed muffler, catalytic converter, etc.

Installation process:
Preliminary fixation: Align one end of the suspension rod with the pre drilled hole on the vehicle chassis, manually tighten the screw until it fits snugly (no need to fully tighten).
Adjust position: Use a jack to assist in supporting the exhaust pipe, ensuring that the suspension rod is aligned with the exhaust pipe lifting ear;
Final tightening: Tighten the bolts in a staggered order in a cross pattern to avoid component deformation caused by over tightening.
