Aluminum HD Clamp is an industrial clamping device made of high-strength aluminum alloys such as 5052 and ALUMEC79. It provides stable clamping force through mechanical structure and is suitable for scenarios such as pipeline fixation, cable support, and equipment assembly.
Aluminium HD Clamp
PDM-Racing
| Quantity: | |
|---|---|
Aluminium Hd Clamp:
HD clamp quick release Title:
hd v-band clamp quick disassembly hd clamp for racing cars
Core features:
High load capacity: capable of withstanding vibrations from heavy equipment;
Lightweight design;
Corrosion resistance: anodized surface treatment, resistant to salt spray and chemical corrosion;
3-Finger Clamp:
The opening and closing range is 12-100mm, suitable for different pipe diameters;
Rubber O-ring, increases friction and protects the surface of the clamped object;
Saddle type base: The curved bottom surface conforms to the curved surface of the pipeline, dispersing stress;
Dual spring energy storage mechanism: quick locking/releasing;

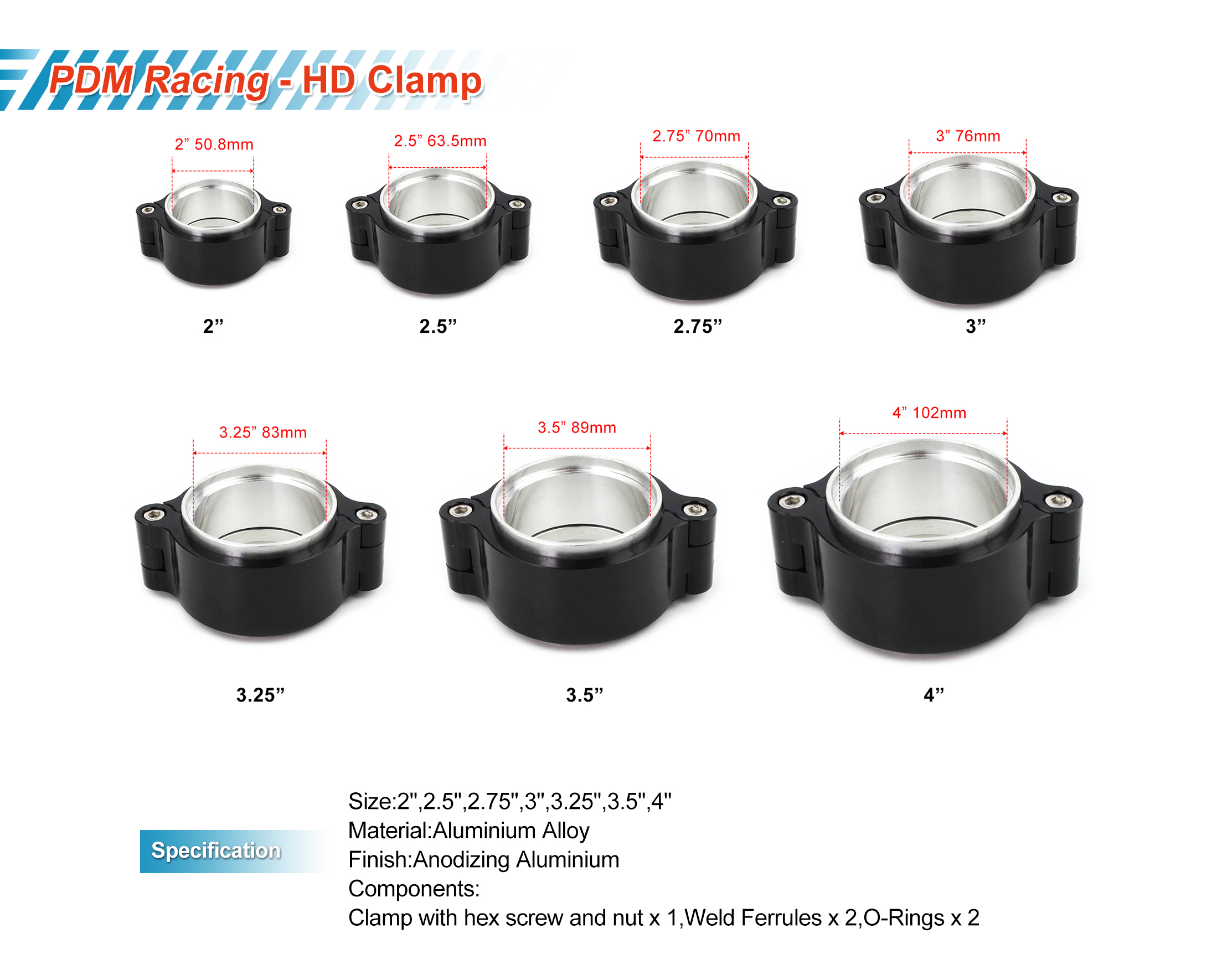

Size:2",2.5",2.75",3",3.25",3.5",4"
Material:Aluminium Alloy
Finish:Anodizing Aluminium

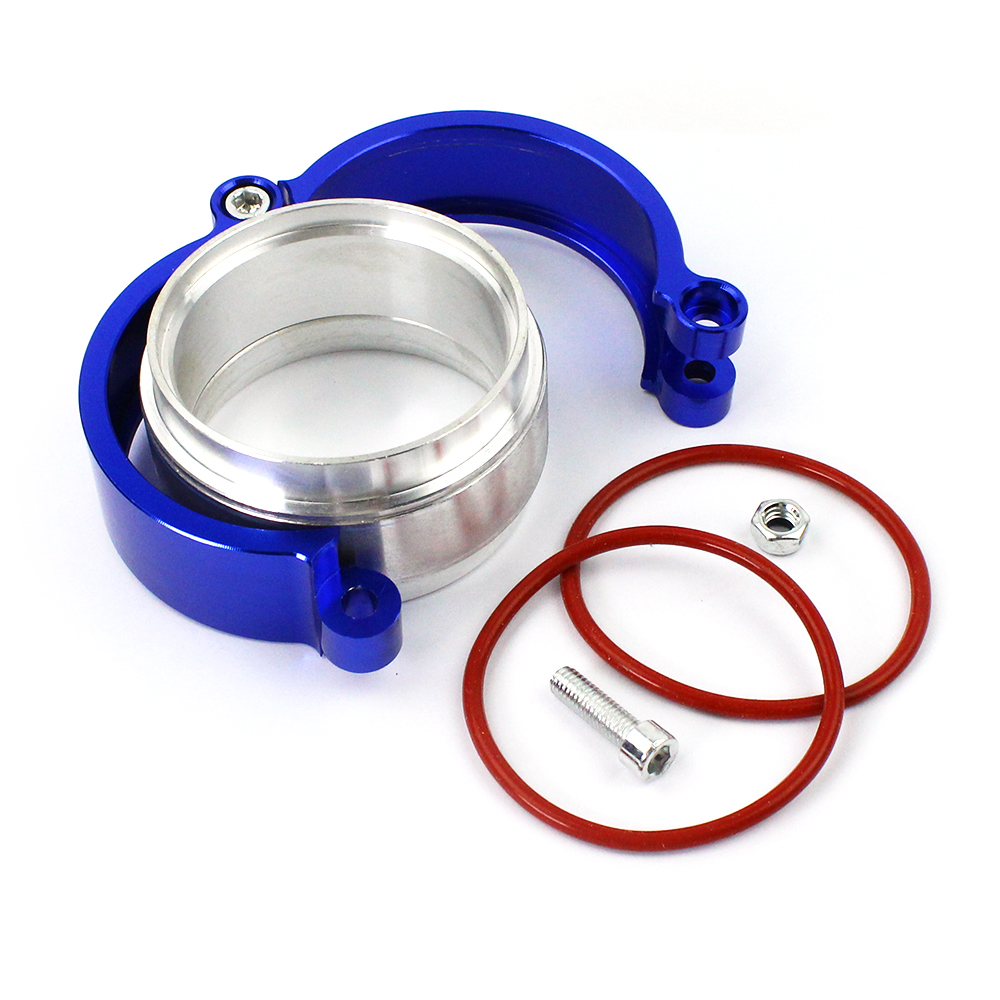

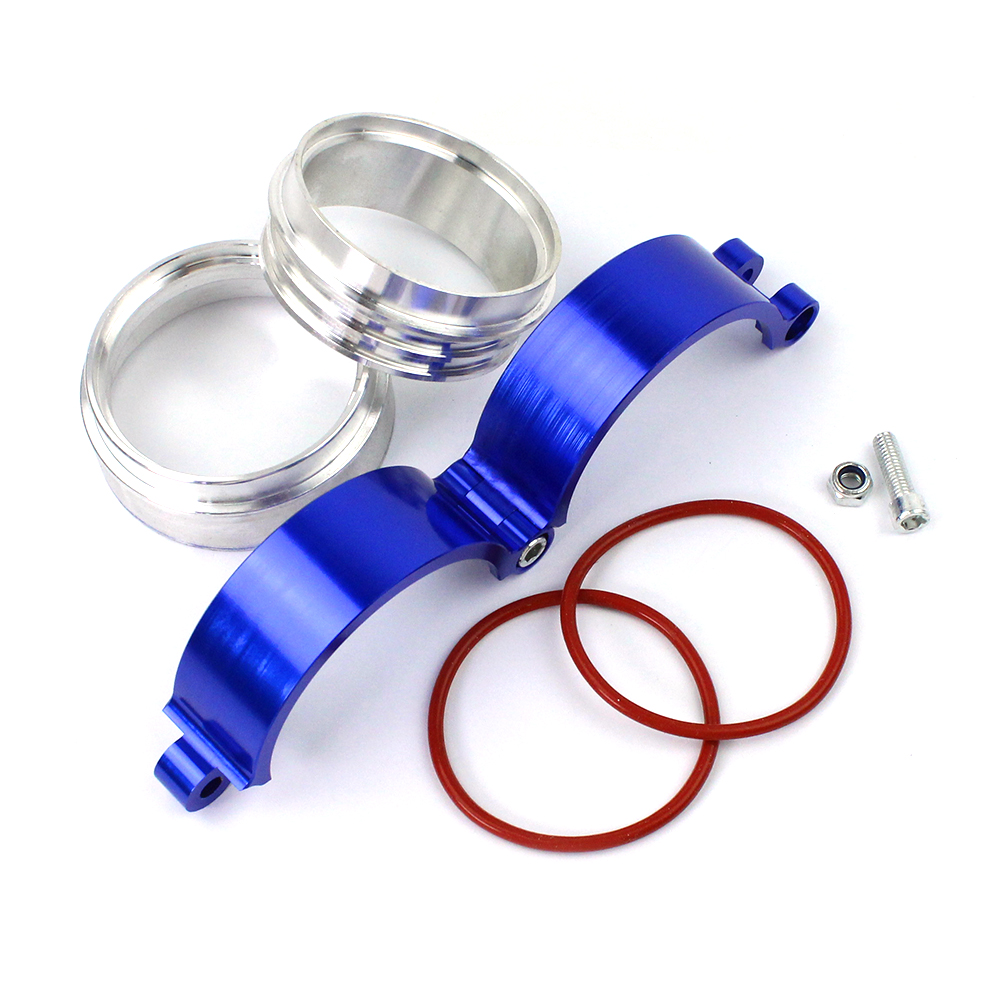

Components:
Clamp with hex screw and nut x 1,Weld Ferrules x 2,O-Rings x 2
| Size | Weight | Volume |
| 2.00" | 0.20kg | 8.5*8*10 cm³ |
| 2.50" | 0.24kg | 10*8*10 cm³ |
| 2.75" | 0.26kg | 11*8*10 cm³ |
| 3.00" | 0.27kg | 12*12*7 cm³ |
| 3.25" | 0.30kg | 12*12*7 cm³ |
| 3.50" | 0.41kg | 13*13*7 cm³ |
| 4.00" | 0.52kg | 16*16*6 cm³ |
Application:
Industrial equipment assembly (fixing of ship pipelines), lightweight assembly of racing cars, fixing of transformer aluminum strips, etc;
Installation steps:
Step 1: Base treatment
Clean the connection surface with acetone to remove oil stains and oxide layers;
Step 2: Fixture positioning
Adopting the three-point pre tightening method: first manually screw in 3 diagonal bolts until they fit, and then reinstall the remaining bolts;
Ensure that the sealing gasket is centered to avoid local compression failure.
Step 3: Graded tightening
