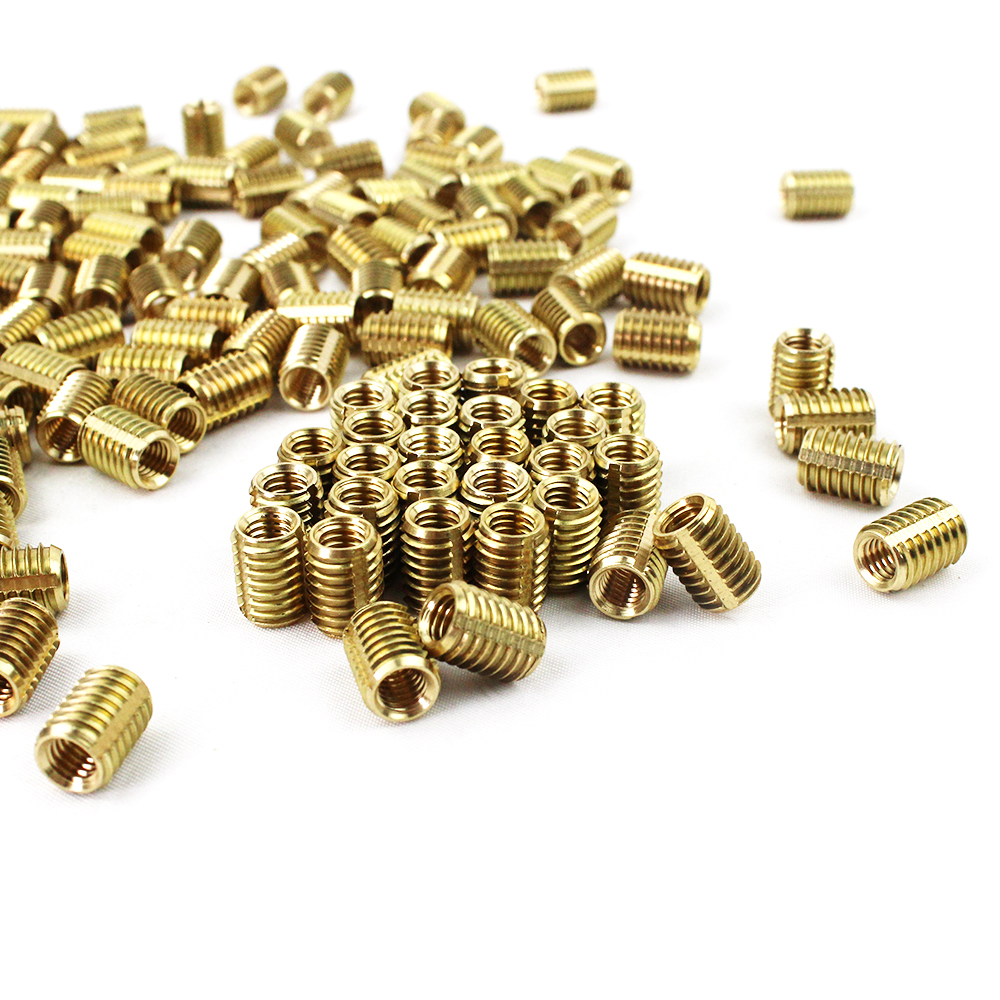

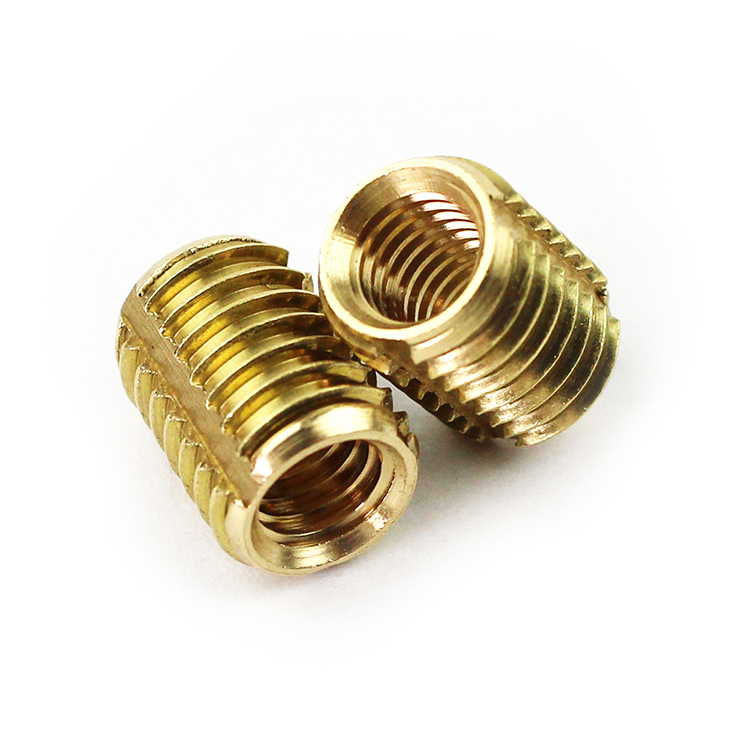

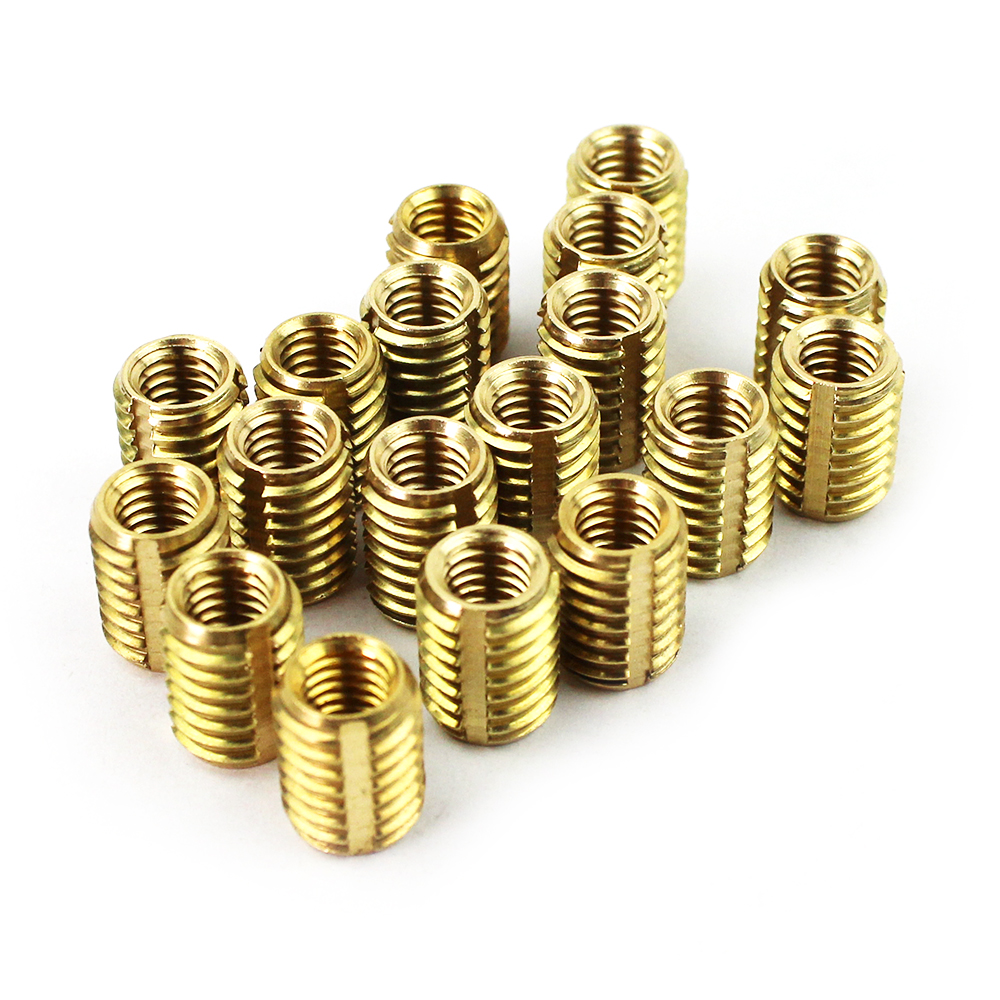

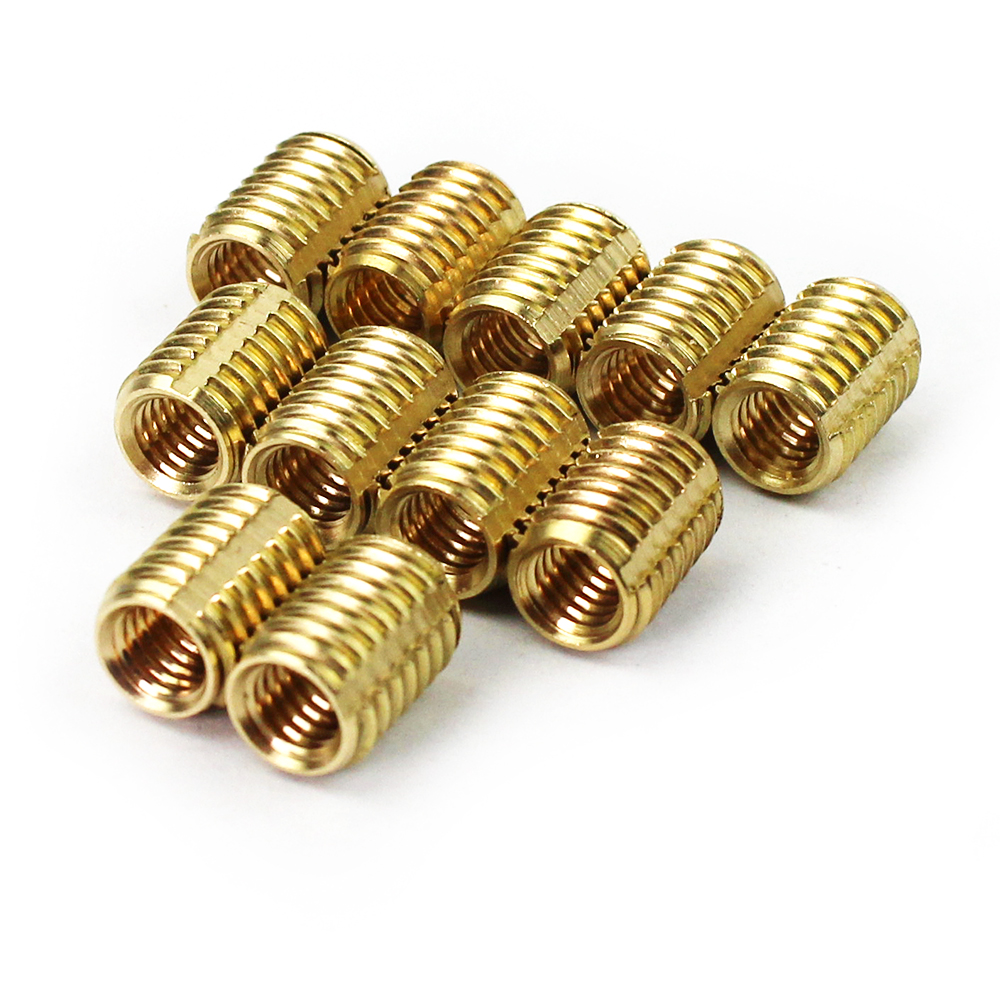

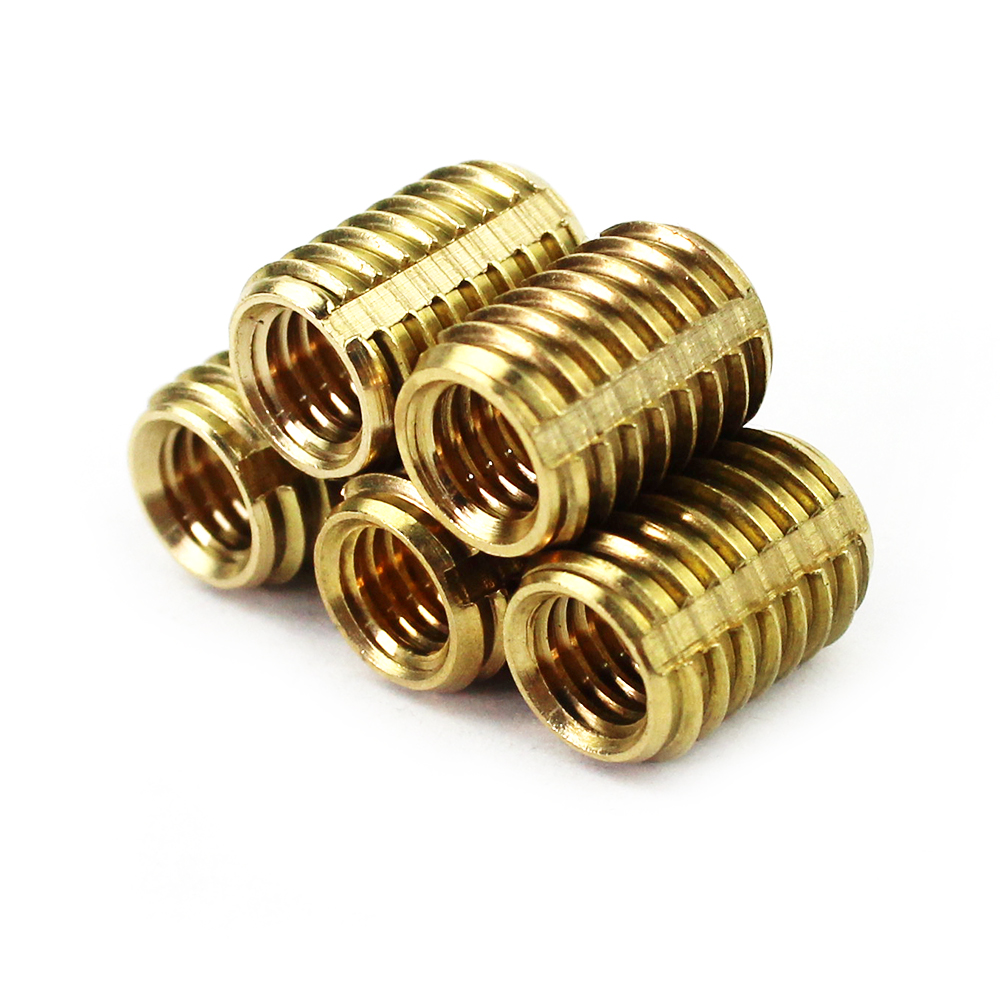

Insert Brass Nut
PDM
| Quantity: | |
|---|---|
Features of Brass Insert Nut
Furniture Insert Nut:
High Strength brass inserts fittings nut threaded inserts nuts for wood
Structural characteristics of Insert Nuts:
Strengthening thread durability: providing wear-resistant metal threads for soft substrates to avoid tooth failure caused by repeated disassembly;
Fixed by pressing, hot melting or ultrasonic embedding, supporting repeated disassembly and assembly;
Roll pattern anti rotation design: straight/cross pattern/diamond roll pattern surface (Knurled), enhancing the bonding force with the substrate;
Blind thread: a bottom closed structure to prevent medium infiltration;
Material composition: H59-H62 brass (mainstream), optional stainless steel/aluminum alloy;
Please refer to the specification table below for details.
Modle Number:
Thread Size:M5–M10 or Customized
Female / Male Thread Size & Length: According to the above specification table.(Special sizes can be customized)
Surface treatment: nickel/tin/silver (enhanced corrosion resistance);
Manufacturing process: precision machining, CNC turning, cold heading forming;
Certification standard: ISO9001:2029
| Internal Thread Size | L | d1 | P/Pitch | Hole Size D | W | D1 | Hole Depth T |
| M5 | 6.4 | 7.5 | 1.41 | 6.9-7.2 | 2.7 | 12.6 | 7.1 |
| M5 | 8.4 | 7.5 | 1.41 | 6.9-7.2 | 2.7 | 12.6 | 9.3 |
| M5 | 10 | 7.5 | 1.41 | 6.9-7.2 | 2.7 | 12.6 | 11 |
| M6 | 7.9 | 8.69 | 1.59 | 8.0-8.4 | 3.15 | 14.7 | 8.7 |
| M6 | 9.8 | 8.69 | 1.59 | 8.0-8.4 | 3.15 | 14.7 | 10.8 |
| M6 | 12 | 8.69 | 1.59 | 8.0-8.4 | 3.15 | 14.7 | 13.2 |
| M8 | 8 | 11.06 | 1.95 | 10.1-10.6 | 4 | 18.6 | 9 |
| M8 | 9.5 | 11.06 | 1.95 | 10.1-10.6 | 4 | 18.6 | 10.5 |
| M8 | 12.4 | 11.06 | 1.95 | 10.1-10.6 | 4 | 18.6 | 13.7 |
| M10 | 12 | 13.95 | 1.95 | 13-13.5 | 5.1 | 23.7 | 13.2 |
| M10 | 16 | 13.95 | 1.95 | 13-13.5 | 5.1 | 23.7 | 17.6 |
Application:
Electronic appliances: fixed terminals on circuit boards, threaded inserts on electrical enclosures;
Mold manufacturing: injection mold inserts;
Automotive components: interior fastening points, sensor bracket mounting base;
Notes: Special customization options
Non standard thread: customized according to British Standard (BSW) and American Standard (ANSI);
Alien structure: flange/conical base design;
Fast delivery: supports sample delivery within 25-35 working days;
