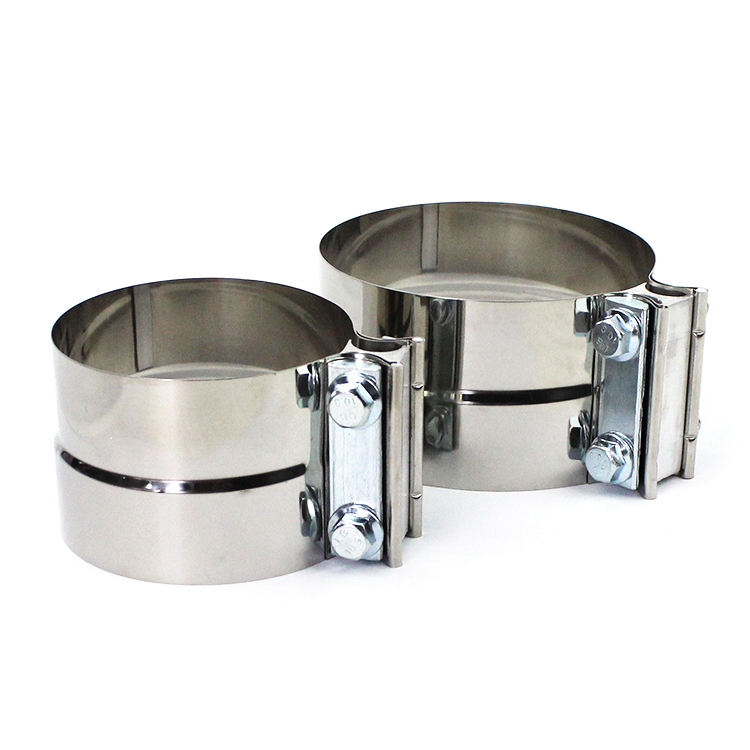

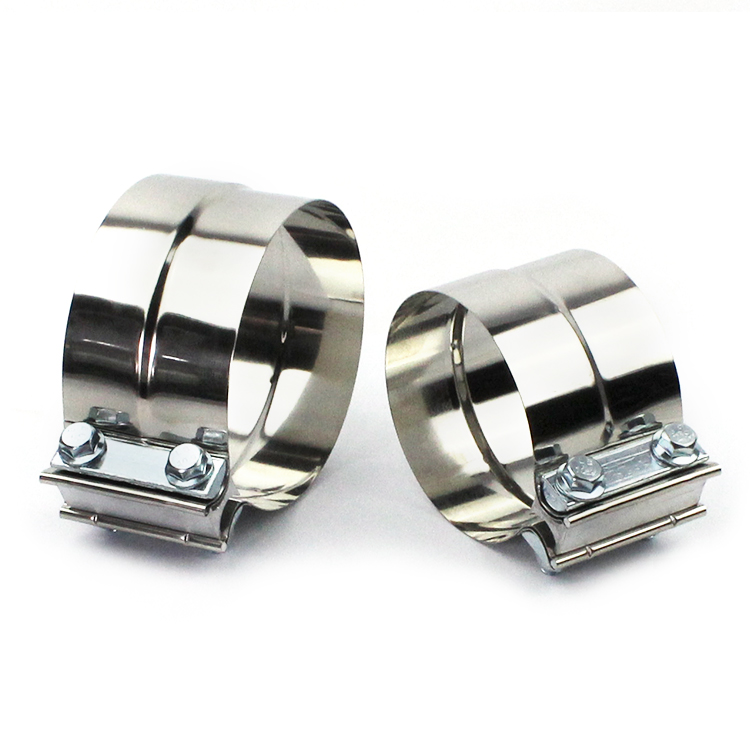

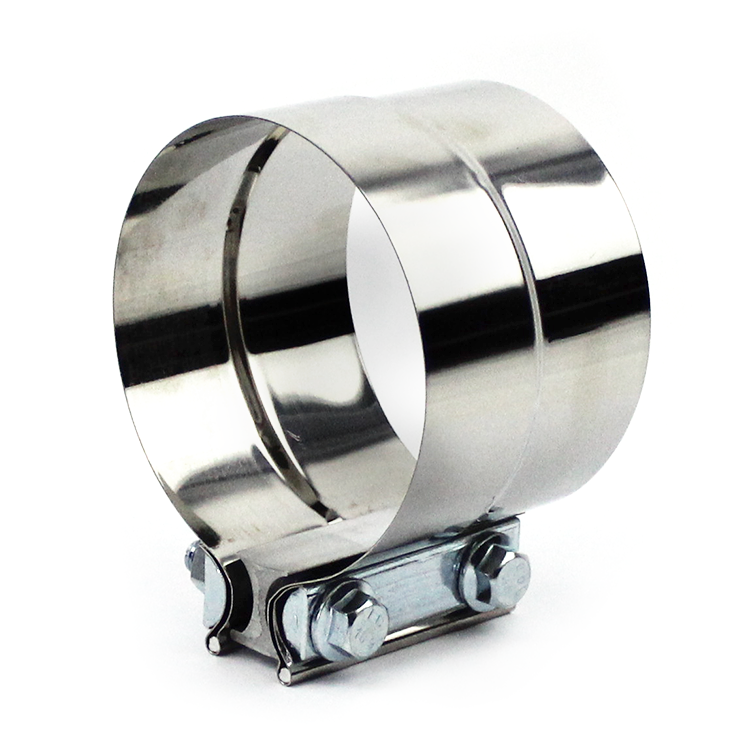

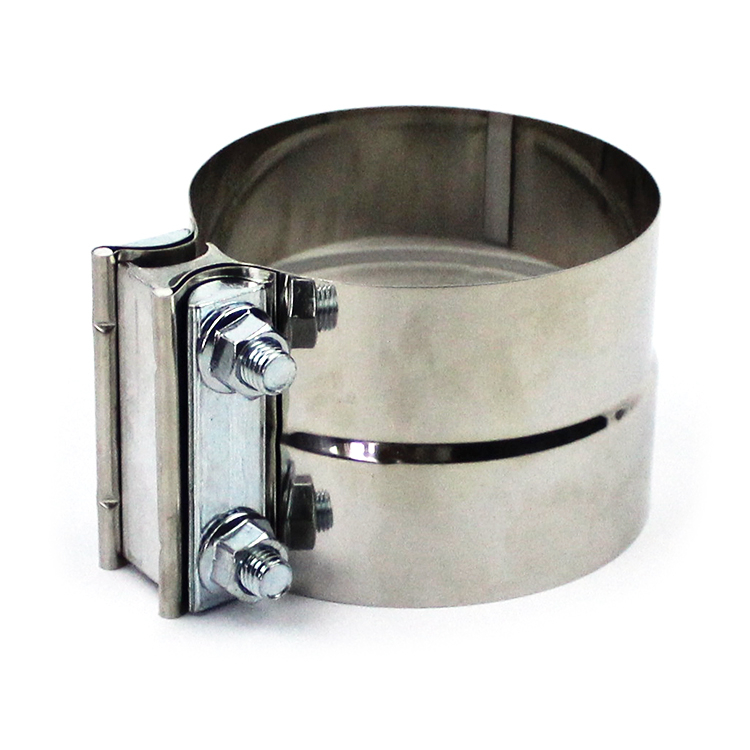

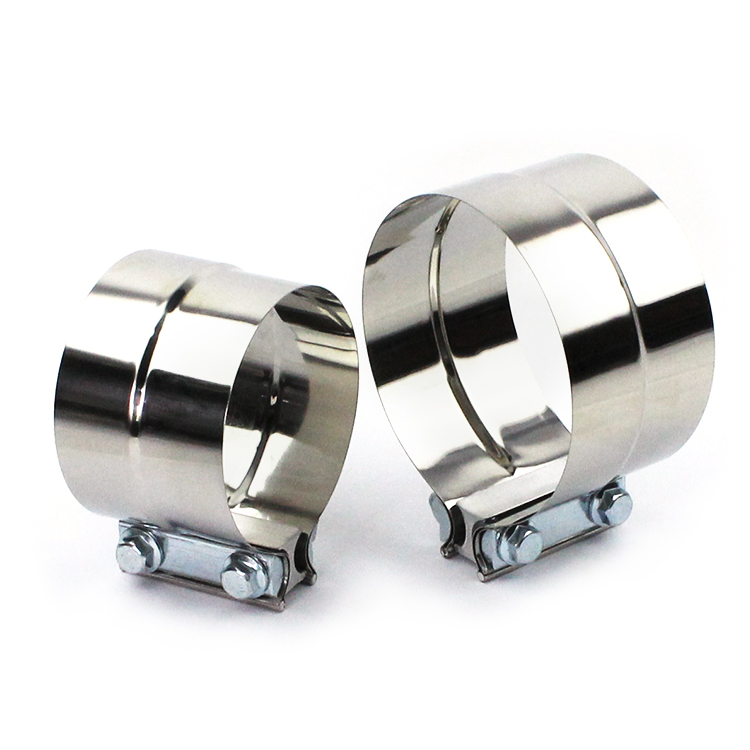

Preformed lap clamp is a stainless steel ring fixture used for connecting exhaust pipes. It wraps around the overlapping part of the pipe with a pre bent saddle structure (Lap Joint) and is tightened with M10 screws to achieve sealing.
Lap Joint Exhaust Band Clamp
PDM-Racing
| Quantity: | |
|---|---|
Lap joint band clamp:
Lap joint band clamp stainless steel Title:
Exhaust muffler clamp stainless steel car exhaut band clamp lap joint clamp
Core functions:
Variable diameter adaptation: It can connect pipes of different diameters (such as 2.0 "and 2.5" exhaust pipes) to solve the problem of mismatched exhaust system dimensions in modified vehicles;
High temperature sealing: SUS 304 stainless steel material is resistant to high temperature exhaust gas, preventing abnormal exhaust back pressure caused by air leakage;
Quick installation: Pre formed design without welding, installation time is shorter than traditional flange connection time;
Core components
Pre formed saddle: Arc shaped stainless steel strip fits the curved surface of the pipeline to avoid local stress concentration;
Strengthening the reinforcement structure: Stamping convex patterns on the surface of the clamp to enhance tensile strength;
M10 high-strength bolt: surface galvanized for rust prevention;

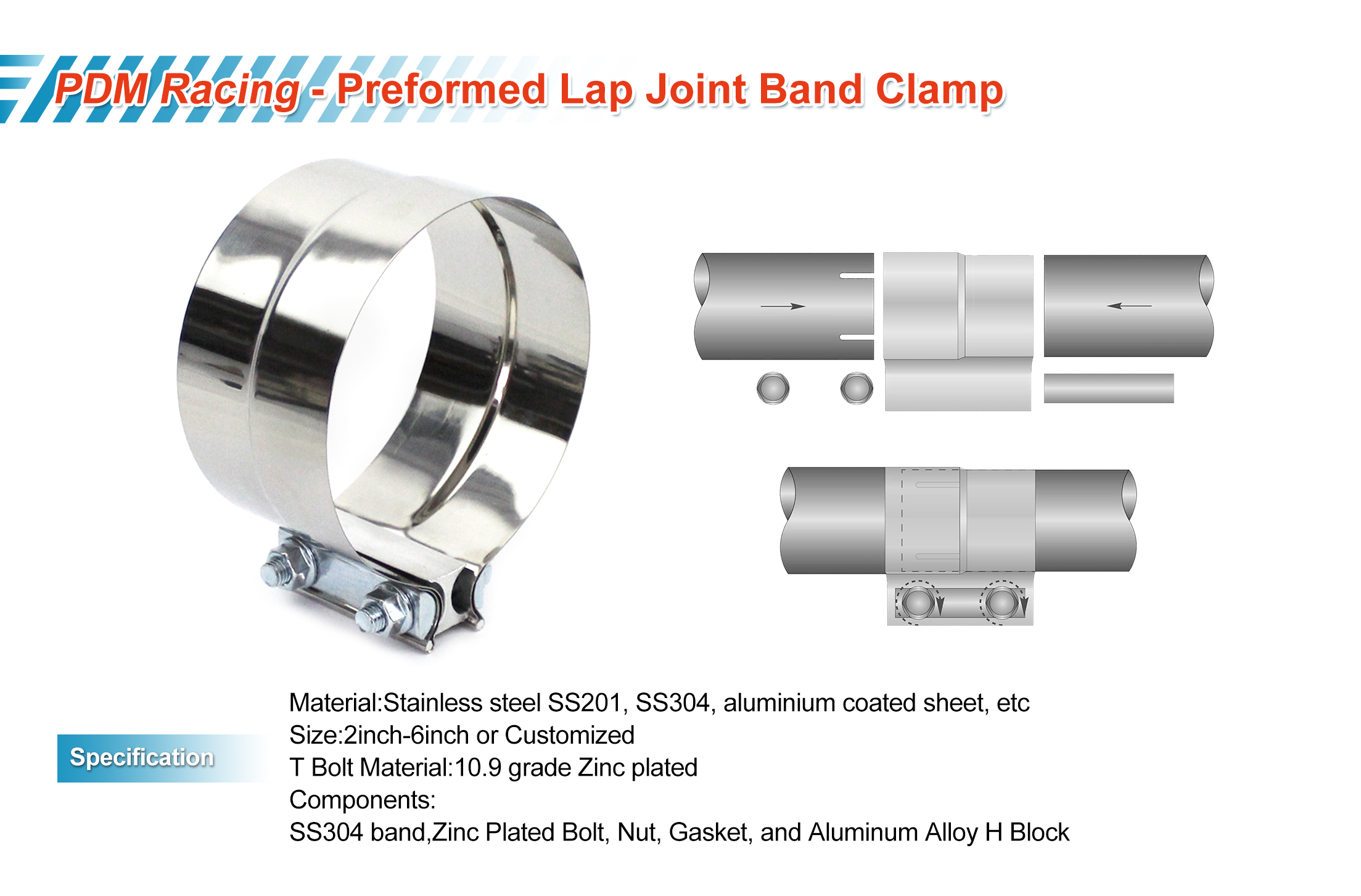

Material:Stainless steel SS201, SS304, aluminium coated sheet, etc
Size:2inch-6inch or Customized
| Size | Aluminied Steel Part No. | Stainless Steel Part No. |
| 2.00" | PBC-AS200 | PBC-SS200 |
| 2.50" | PBC-AS250 | PBC-SS250 |
| 2.75" | PBC-AS275 | PBC-SS275 |
| 3.00" | PBC-AS300 | PBC-SS300 |
| 3.50" | PBC-AS350 | PBC-SS350 |
| 4.00" | PBC-AS400 | PBC-SS400 |
| 4.50" | PBC-AS450 | PBC-SS450 |
| 5.00" | PBC-AS500 | PBC-SS500 |
| 6.00" | PBC-AS600 | PBC-SS600 |
Application:
Upgraded exhaust system for modified cars: When replacing the original muffler with a straight through exhaust system, connect a variable diameter pipe;
Industrial pipeline emergency: Temporary plugging of corrosive gas pipelines in chemical plants, rapid repair in case of vibration and breakage of exhaust pipes in generator sets;
Installation steps:
Clean the oil/rust stains at the pipeline interface to ensure the natural color of the contact surface metal;
Tightening process
Manually pre tighten the bolt until the clamp fits the pipeline;
Tighten twice in diagonal order;
Tighten again after heating up the car to compensate for the thermal expansion gap of the material;
