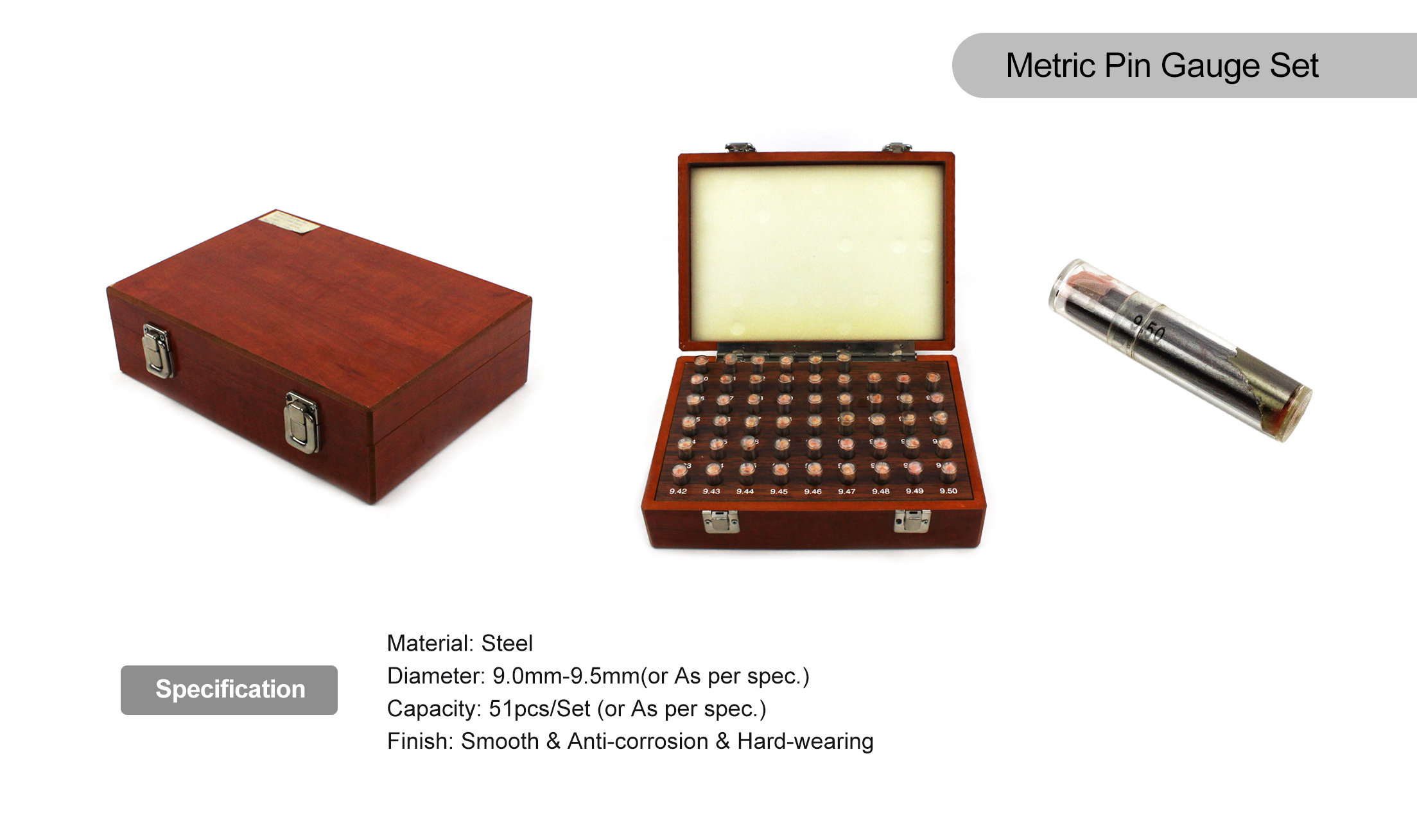

Metric Pin Gauge Set
PDM
| Quantity: | |
|---|---|
Features of Pin Gauge Set Metric
Go no go gauge pin set Title:
China factory pin gauge set mm pin gauge class z metric for measuring
Core functions:
Aperture verification: Determine whether the tolerance range is met by inserting holes (such as through/out gauge testing);
Positioning calibration: Verify the accuracy of mold hole positions and mechanical component assembly;
Interchangeability basis: providing standardized size basis for mass production;
Specifications:
Accuracy level: ± 0.001mm;
Diameter: 9.0mm-9.5mm(or As per spec.)
Set specifications: 20/31/51/101 pieces (segmented as needed);
Surface treatment: mirror polishing (reducing friction errors);
Material: Tool steel/ceramic (wear-resistant and rust proof);
Note: Different size segments correspond to independent sets

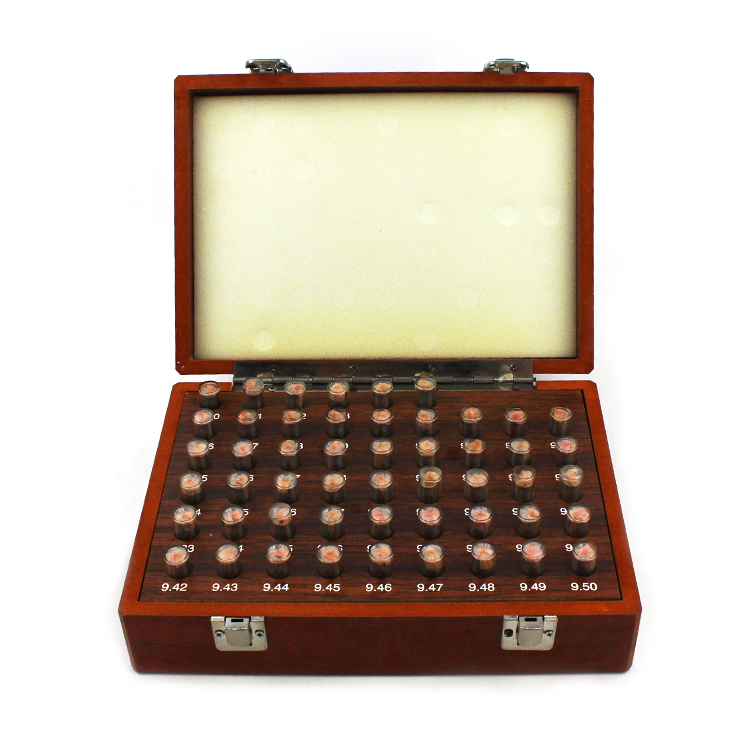

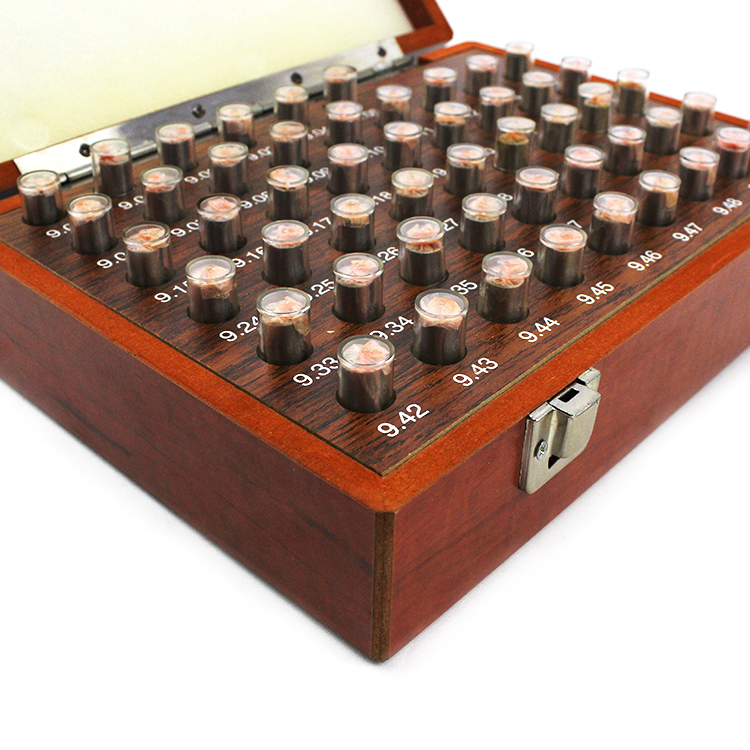

Gage Pin Display

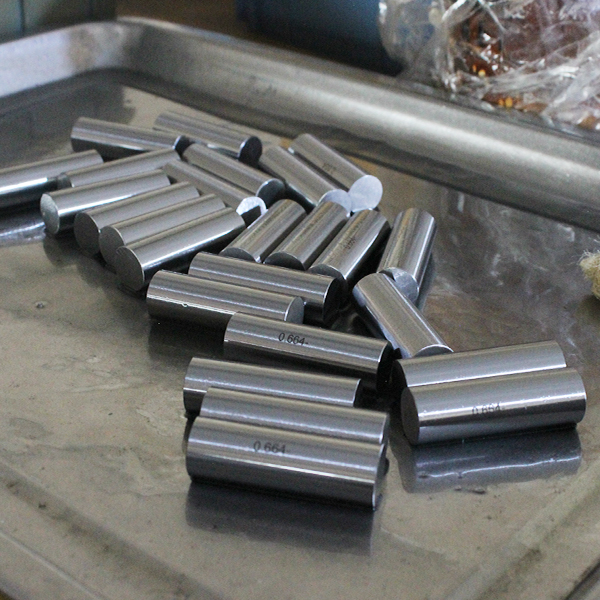

Production Process
| Metric Pin Gauge Set Diameter,mm | ||||
| 9.00 | 9.01 | 9.02 | 9.03 | 9.04 |
| 9.05 | 9.06 | 9.07 | 9.08 | 9.09 |
| 9.10 | 9.11 | 9.12 | 9.13 | 9.14 |
| 9.15 | 9.16 | 9.17 | 9.18 | 9.19 |
| 9.20 | 9.21 | 9.22 | 9.23 | 9.24 |
| 9.25 | 9.26 | 9.27 | 9.28 | 9.29 |
| 9.30 | 9.31 | 9.32 | 9.33 | 9.34 |
| 9.35 | 9.36 | 9.37 | 9.38 | 9.39 |
| 9.40 | 9.41 | 9.42 | 9.43 | 9.44 |
| 9.45 | 9.46 | 9.47 | 9.48 | 9.49 |
| 9.50 | ||||
Application:
Precision manufacturing: verifying mold hole positions and mechanical component assembly clearances;
Electronics industry: Calibrate PCB drilling dimensions to prevent welding defects;
Quality inspection process: Quickly determine the compliance of aperture as a pass stop gauge;
Operation and maintenance standards
Before use: Use a dust-free cloth to remove rust proof oil and dirt;
During measurement: gloves must be worn to prevent hand sweat contamination;
Insert vertically into the hole to avoid friction loss caused by tilting;

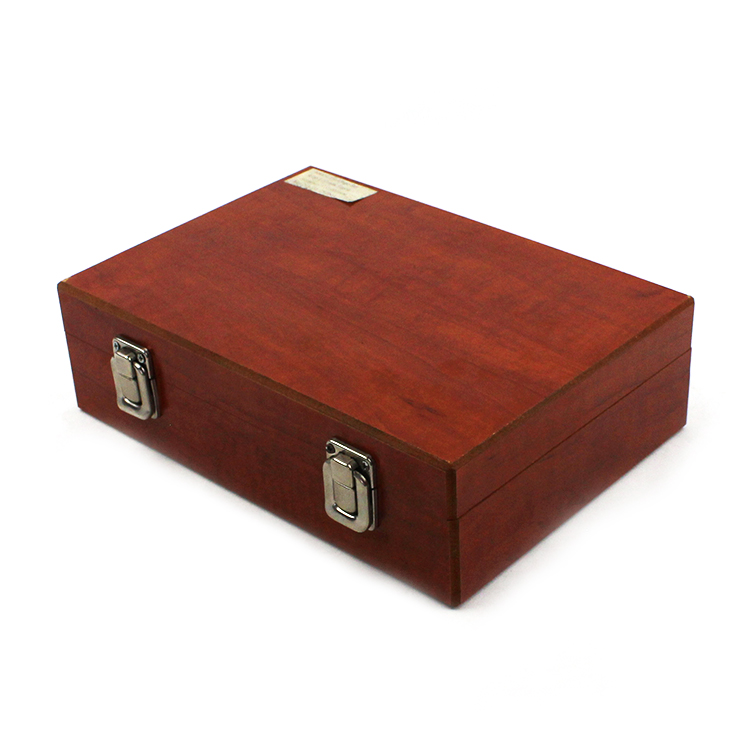

Storage requirements: Store in a dry and rust proof environment, in a custom-made wooden box;
