Pin Gauge Kit M1

Minus Pin Gauge Set is a precision measuring tool set designed to detect the minimum size of holes or gaps (with negative tolerance Minus design). It achieves precise measurement of hole diameter (range 0.011-1 inch), hole depth, or position error through a set of high hardness needle gauges, ensuring that industrial components meet strict tolerance standards.

Model:
Pin Gauge Kit M1
Brand:
PDM

Quantity:
Availability:





Inquire Add to Basket

Product Description

Features of Minus Pin Guage Kit M1

Gauge Pin Title:

M1 pin gauge high precision hardened steel gauge pins set 190pcs .061-.250inch

Core Structure and Components

Pin gauge body: Steel Materials

Tolerance system: "Minus" represents a negative tolerance gauge

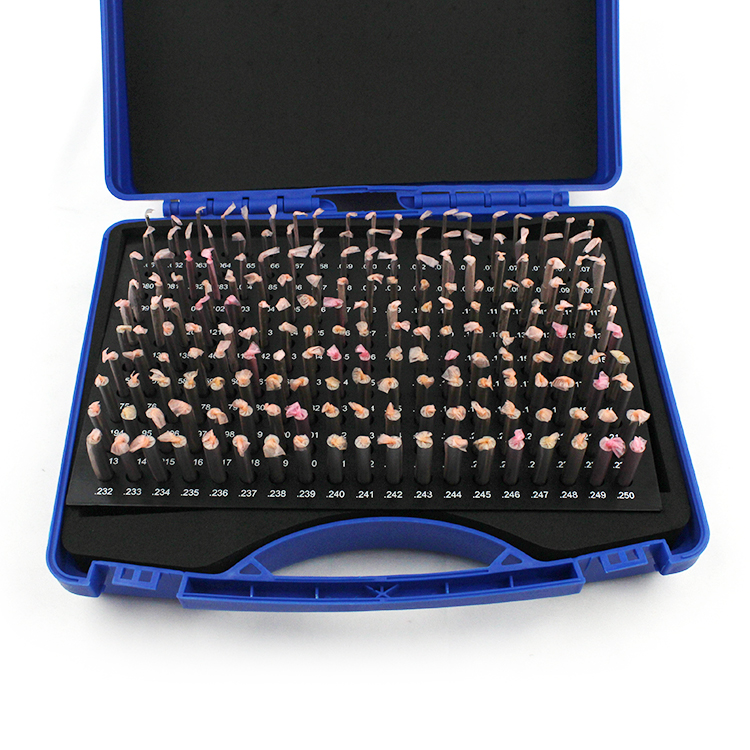

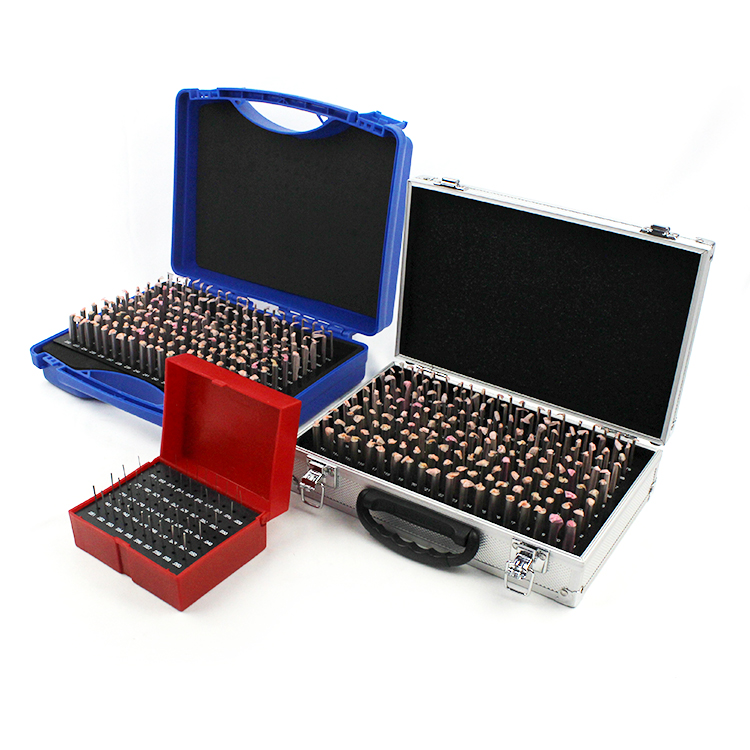

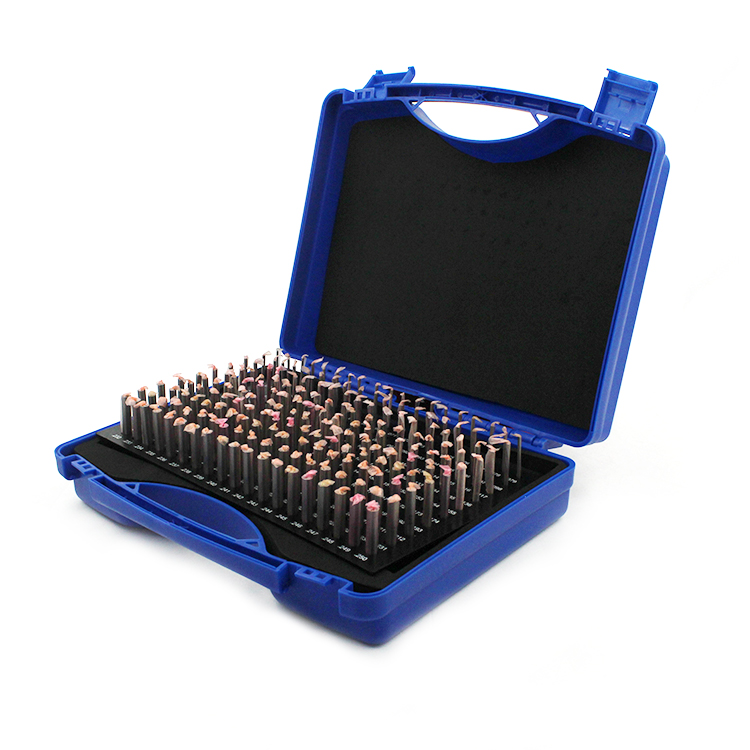

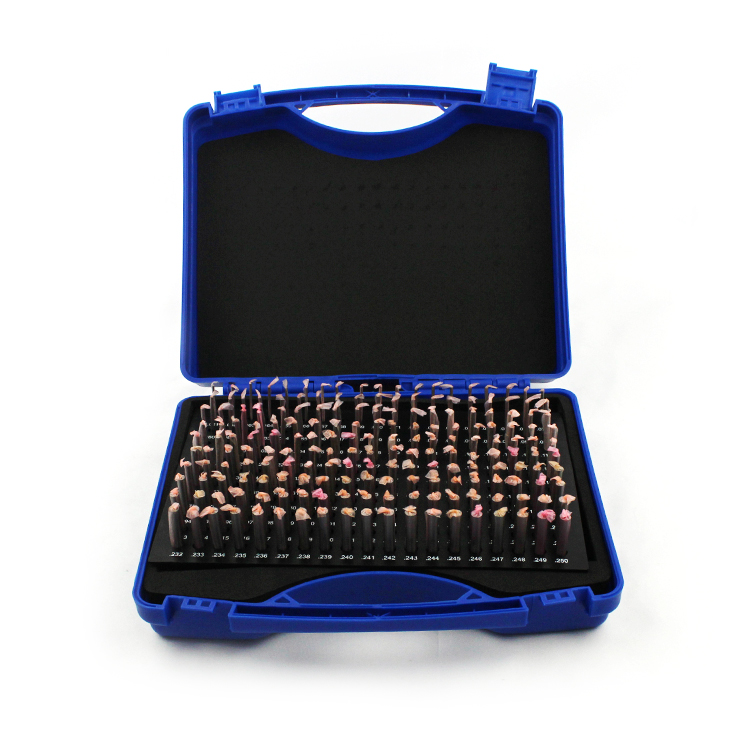

Storage box: (M1 Style) Blue Box or (M1A Style)Aluminum alloy Case

Specifications:

Diameter: 0.061-0.250 inch

Capacity: 190pcs/Set

Finish: Smooth & Anti-corrosion & Hard-wearing

pin gauge set inch

Finished Product Display‌

Outlet

Pin Gauge Set M1 Diameter,Inch,Minus
0.061	0.062	0.063	0.064	0.065	0.066	0.067	0.068	0.069	0.070
0.071	0.072	0.073	0.074	0.075	0.076	0.077	0.078	0.079	0.080
0.081	0.082	0.083	0.084	0.085	0.086	0.087	0.088	0.089	0.090
0.091	0.092	0.093	0.094	0.095	0.096	0.097	0.098	0.099	0.100
0.101	0.102	0.103	0.104	0.105	0.106	0.107	0.108	0.109	0.110
0.111	0.112	0.113	0.114	0.115	0.116	0.117	0.118	0.119	0.120
0.121	0.122	0.123	0.124	0.125	0.126	0.127	0.128	0.129	0.130
0.131	0.132	0.133	0.134	0.135	0.136	0.137	0.138	0.139	0.140
0.141	0.142	0.143	0.144	0.145	0.146	0.147	0.148	0.149	0.150
0.151	0.152	0.153	0.154	0.155	0.156	0.157	0.158	0.159	0.160
0.161	0.162	0.163	0.164	0.165	0.166	0.167	0.168	0.169	0.170
0.171	0.172	0.173	0.174	0.175	0.176	0.177	0.178	0.179	0.180
0.181	0.182	0.183	0.184	0.185	0.186	0.187	0.188	0.189	0.190
0.191	0.192	0.193	0.194	0.195	0.196	0.197	0.198	0.199	0.200
0.201	0.202	0.203	0.204	0.205	0.206	0.207	0.208	0.209	0.210
0.211	0.212	0.213	0.214	0.215	0.216	0.214	0.218	0.219	0.220
0.221	0.222	0.223	0.224	0.225	0.226	0.227	0.228	0.229	0.230
0.231	0.232	0.233	0.234	0.235	0.236	0.237	0.238	0.239	0.240
0.241	0.242	0.243	0.244	0.245	0.246	0.247	0.248	0.249	0.250

Application:

Precision Manufacturing:‌ Verify mold hole position & mechanical part diameter for assembly accuracy；

‌Electronics:‌ Calibrate PCB drilling size to prevent welding defects；

‌Military/Aerospace:‌ Validate dimensions of high-reliability components (e.g. aircraft systems)；

pin gauge high precision

Notes:

The negative deviation needle gauge set consists of a series of precise diameter needle gauges, made of hard and wear-resistant materials. It uses the combination of needle gauge and aperture to determine the size by whether it can be inserted: if it can be inserted, the aperture is larger than the diameter of the needle gauge, otherwise it is less than or equal to.

The needle gauge is designed with negative deviation, and the actual diameter is slightly smaller than the nominal value to ensure the accuracy of measuring the upper limit of the aperture. Match different precision levels (such as ZZ level, Z level, etc.) to adapt to various scenarios. When operating, the axis should be kept aligned, and the hole should be judged for qualification based on insertion resistance.
