Pin Gauge Kit M2
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of M2 Pin Gage
Steel Pin Gauge Title:
M2 accuracy steel pin gauge set minus pin gauge kit 250pcs .251-.500inch
Core Structure and Components
The Pin gauge is designed with negative deviation, and the actual diameter is slightly smaller than the nominal value to ensure the accuracy of measuring the upper limit of the aperture. Covering specifications ranging from 0.001 to 1.000, with increments of 0.001 per level, suitable for various scenarios.
Using wear-resistant alloy materials and precision machining, the accuracy reaches ZZ level, Z level, etc., with tolerances as low as ± 0.0001 inches. By matching the needle gauge with the hole, it can quickly determine whether the workpiece is qualified, which is widely used in precision manufacturing, aerospace and other fields.
Specifications:
Diameter: 0.251-0.500 inch
Capacity: 250pcs/Set
Finish: Smooth & Anti-corrosion & Hard-wearing

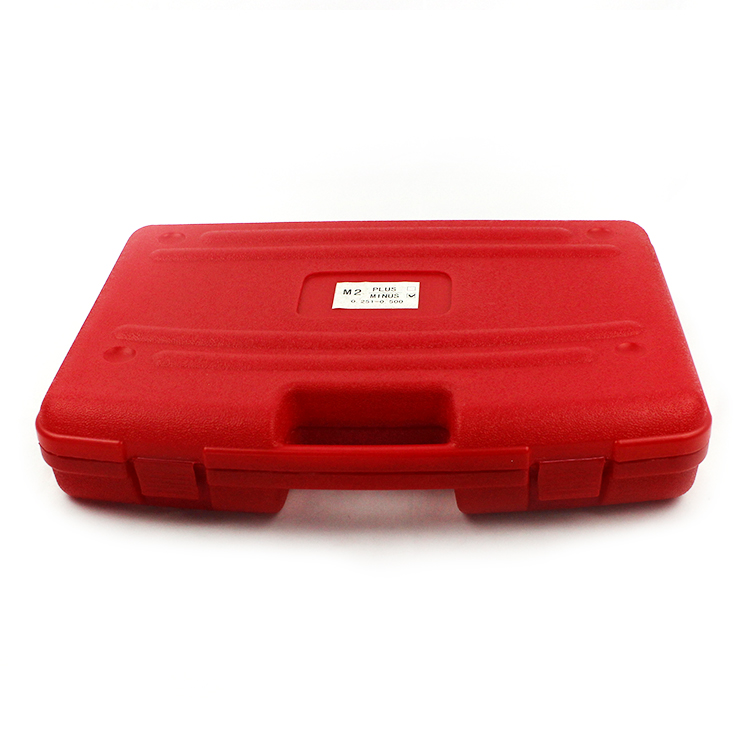

Storage Case: M2 (Red Storage Case)

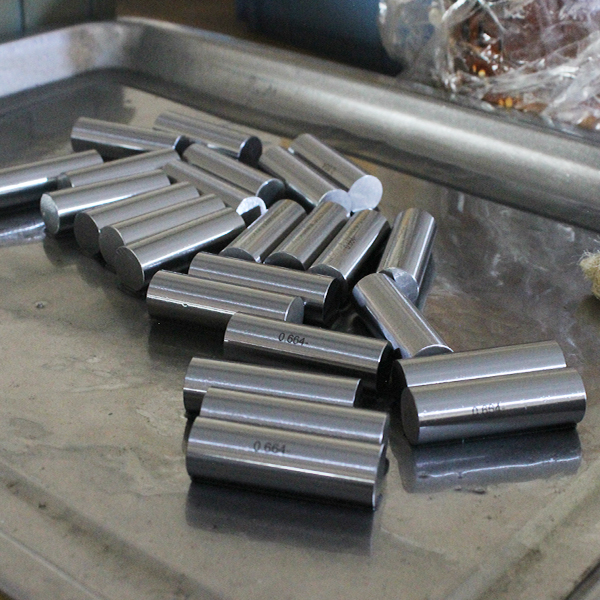

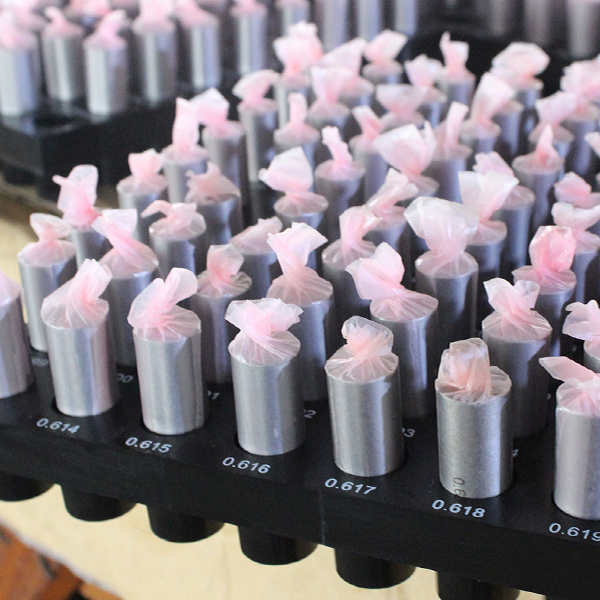

Before packaging

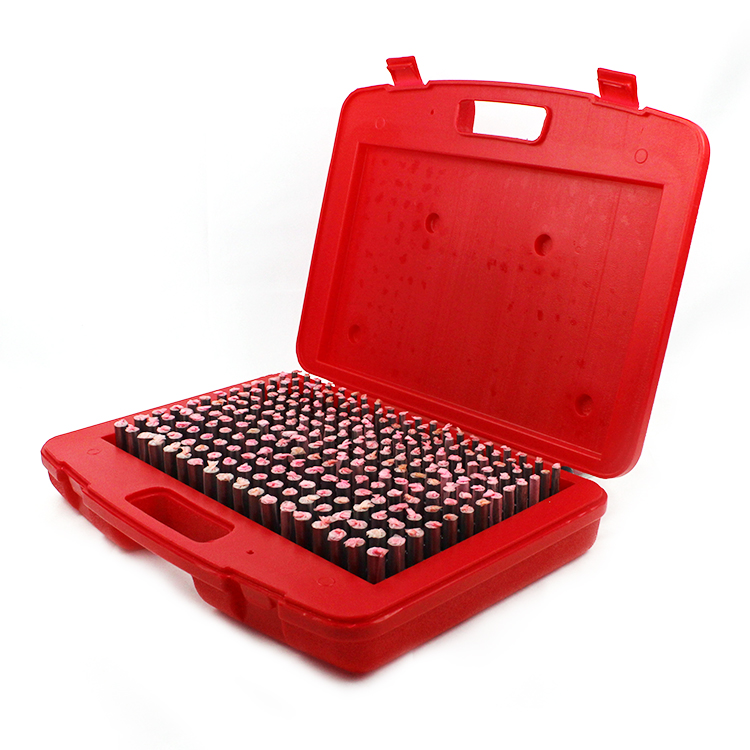

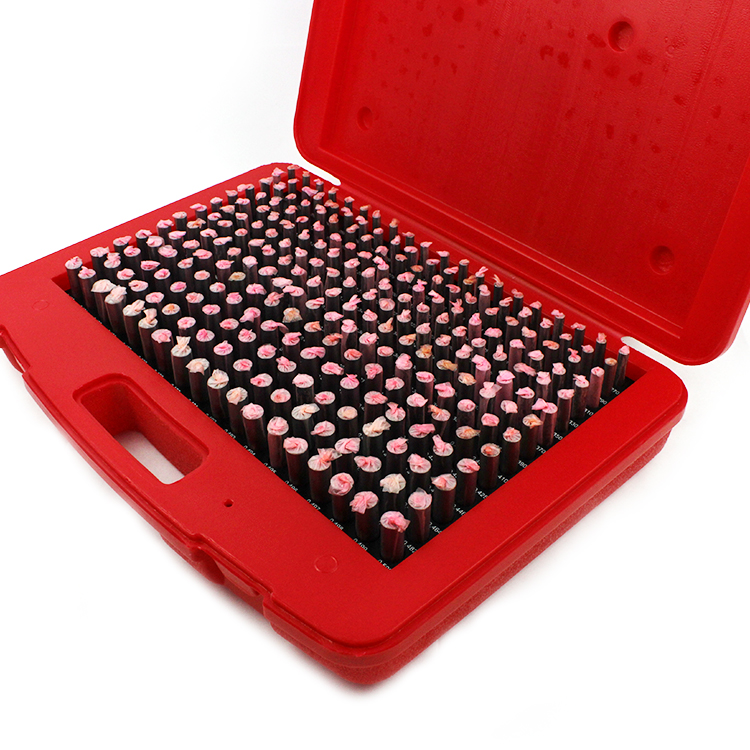

After packaging
| Pin Gauge Set M2 Diameter,Inch,Minus | |||||||||
| 0.251 | 0.252 | 0.253 | 0.254 | 0.255 | 0.256 | 0.257 | 0.258 | 0.259 | 0.260 |
| 0.261 | 0.262 | 0.263 | 0.264 | 0.265 | 0.266 | 0.267 | 0.268 | 0.269 | 0.270 |
| 0.271 | 0.272 | 0.273 | 0.274 | 0.275 | 0.276 | 0.277 | 0.278 | 0.279 | 0.280 |
| 0.281 | 0.282 | 0.283 | 0.284 | 0.285 | 0.286 | 0.287 | 0.288 | 0.289 | 0.290 |
| 0.291 | 0.292 | 0.293 | 0.294 | 0.295 | 0.296 | 0.297 | 0.298 | 0.299 | 0.300 |
| 0.301 | 0.302 | 0.303 | 0.304 | 0.305 | 0.306 | 0.307 | 0.308 | 0.309 | 0.310 |
| 0.311 | 0.312 | 0.313 | 0.314 | 0.315 | 0.316 | 0.317 | 0.318 | 0.319 | 0.320 |
| 0.321 | 0.322 | 0.323 | 0.324 | 0.325 | 0.326 | 0.327 | 0.328 | 0.329 | 0.330 |
| 0.331 | 0.332 | 0.333 | 0.334 | 0.335 | 0.336 | 0.337 | 0.338 | 0.339 | 0.340 |
| 0.341 | 0.342 | 0.343 | 0.344 | 0.345 | 0.346 | 0.347 | 0.348 | 0.349 | 0.350 |
| 0.351 | 0.352 | 0.353 | 0.354 | 0.355 | 0.356 | 0.357 | 0.358 | 0.359 | 0.360 |
| 0.361 | 0.362 | 0.363 | 0.364 | 0.365 | 0.366 | 0.367 | 0.368 | 0.369 | 0.370 |
| 0.371 | 0.372 | 0.373 | 0.374 | 0.375 | 0.376 | 0.377 | 0.378 | 0.379 | 0.380 |
| 0.381 | 0.382 | 0.383 | 0.384 | 0.385 | 0.386 | 0.387 | 0.388 | 0.389 | 0.390 |
| 0.391 | 0.392 | 0.393 | 0.394 | 0.395 | 0.396 | 0.397 | 0.398 | 0.399 | 0.400 |
| 0.401 | 0.402 | 0.403 | 0.404 | 0.405 | 0.406 | 0.407 | 0.408 | 0.409 | 0.410 |
| 0.411 | 0.412 | 0.413 | 0.414 | 0.415 | 0.416 | 0.417 | 0.418 | 0.419 | 0.420 |
| 0.421 | 0.422 | 0.423 | 0.424 | 0.425 | 0.426 | 0.427 | 0.428 | 0.429 | 0.430 |
| 0.431 | 0.432 | 0.433 | 0.434 | 0.435 | 0.436 | 0.437 | 0.438 | 0.439 | 0.440 |
| 0.441 | 0.442 | 0.443 | 0.444 | 0.445 | 0.446 | 0.447 | 0.448 | 0.449 | 0.450 |
| 0.451 | 0.452 | 0.453 | 0.454 | 0.455 | 0.456 | 0.457 | 0.458 | 0.459 | 0.460 |
| 0.461 | 0.462 | 0.463 | 0.464 | 0.465 | 0.466 | 0.467 | 0.468 | 0.469 | 0.470 |
| 0.471 | 0.472 | 0.473 | 0.474 | 0.475 | 0.476 | 0.477 | 0.478 | 0.479 | 0.480 |
| 0.481 | 0.482 | 0.483 | 0.484 | 0.485 | 0.486 | 0.487 | 0.488 | 0.489 | 0.490 |
| 0.491 | 0.492 | 0.493 | 0.494 | 0.495 | 0.496 | 0.497 | 0.498 | 0.499 | 0.500 |
Application:
The High Precision Minus Pin Gauge Set is widely used. In precision manufacturing, it is used to verify the position of mold holes and the diameter of mechanical parts to ensure assembly accuracy; Calibration of PCB drilling dimensions in the electronic field to avoid welding defects; In the field of military aerospace, verify the dimensions of high reliability components, such as critical hole positions in aircraft systems.

Notes:
In addition, the automotive industry tests the aperture of engine valve guides to ensure fuel efficiency; Confirming the precise aperture of surgical instruments in the field of medical equipment, ensuring sterility and operational safety, is a key measurement tool in various high-precision manufacturing fields.
