Pin Gauge Kit M3
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of M3 Pin Gage
Gauge Pins Set Title:
Measuring Tools pin gauge high precision minus pin gauge kit .501-.625" 125pcs from china
Core Structure and Components
Typically made from hardened steel or carbide for durability, the pin gauges are available in incremental sizes for versatile use across tight tolerance ranges.
This tool is widely used in industries such as automotive, aerospace, and machining to verify hole dimensions, assess wear in components, and ensure compliance with engineering specifications. Its applications extend to calibration of fixtures, jigs, and other measurement devices. The compact, cylindrical design allows for easy handling and storage, making it an essential tool for metrology labs and production floors. With excellent wear resistance and consistent accuracy, the Minus Pin Gauge Set enhances efficiency in precision measurement tasks.

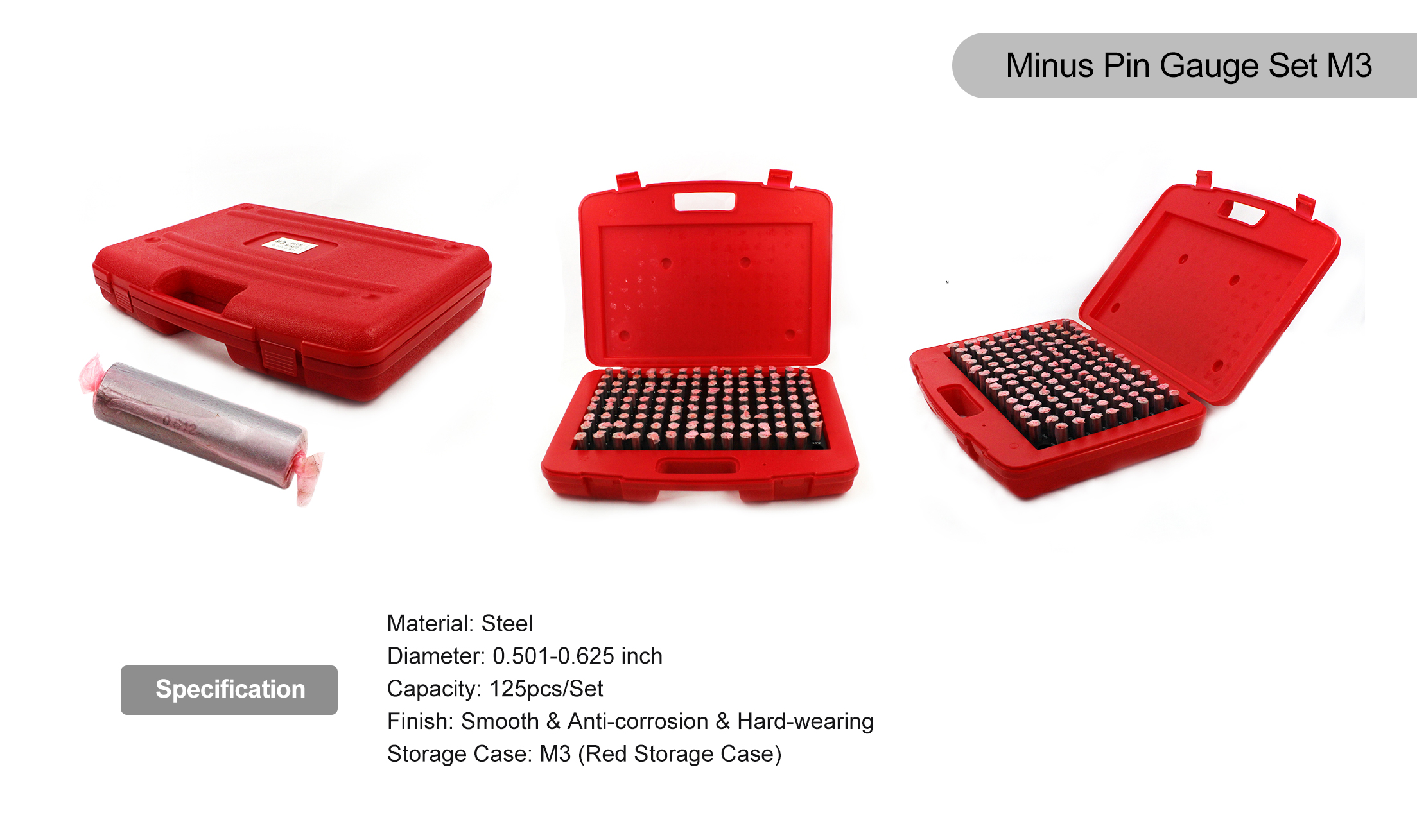

Specifications:
Diameter: 0.501-0.625 inch
Capacity: 125pcs/Set
Finish: Smooth & Anti-corrosion & Hard-wearing
Storage Case: M3 (Red Storage Case)

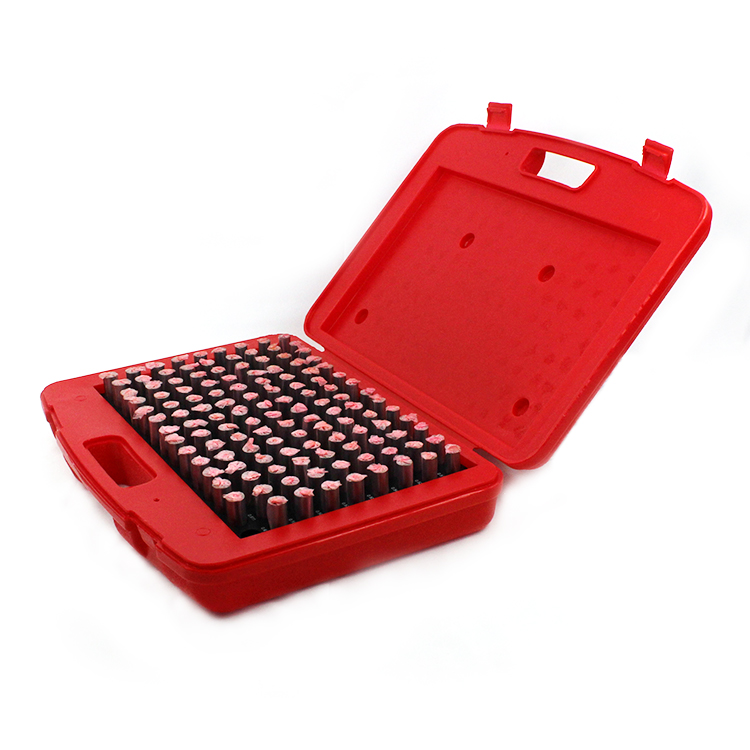

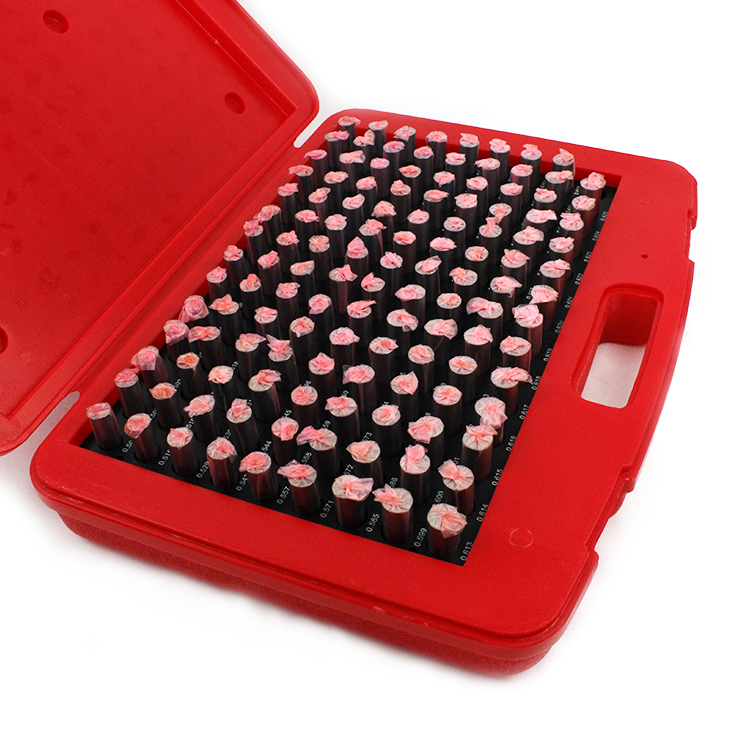

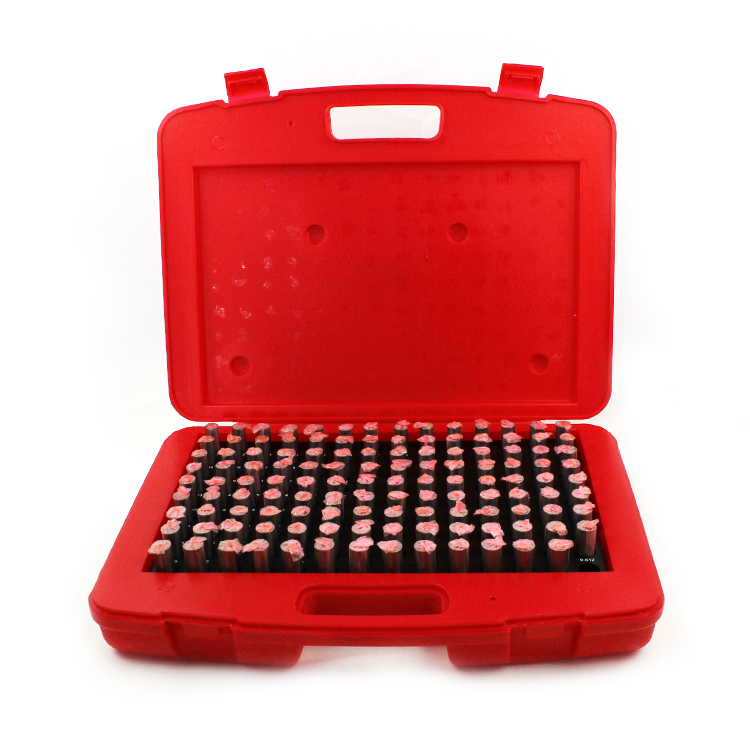

Pin Gage Display

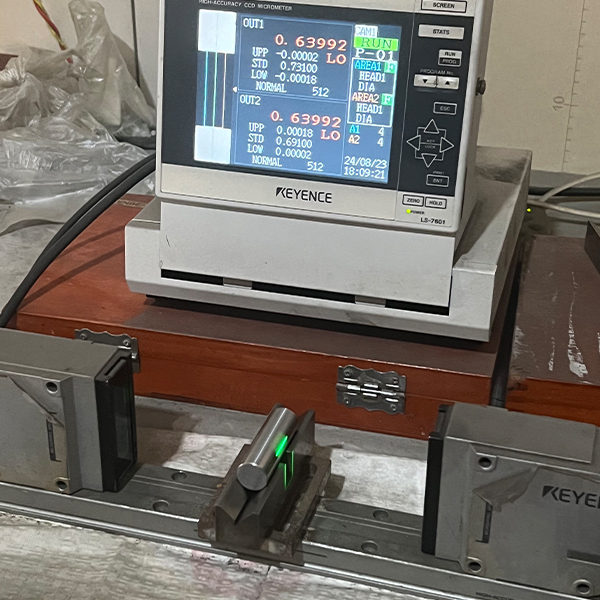

Accuracy Testing
| Pin Gauge Set M3 Diameter,Inch,Minus | |||||||||
| 0.501 | 0.502 | 0.503 | 0.504 | 0.505 | 0.506 | 0.507 | 0.508 | 0.509 | 0.510 |
| 0.511 | 0.512 | 0.513 | 0.514 | 0.515 | 0.516 | 0.517 | 0.518 | 0.519 | 0.520 |
| 0.521 | 0.522 | 0.523 | 0.524 | 0.525 | 0.526 | 0.527 | 0.528 | 0.529 | 0.530 |
| 0.531 | 0.532 | 0.533 | 0.534 | 0.535 | 0.536 | 0.537 | 0.538 | 0.539 | 0.540 |
| 0.541 | 0.542 | 0.543 | 0.544 | 0.545 | 0.546 | 0.547 | 0.548 | 0.549 | 0.550 |
| 0.551 | 0.552 | 0.553 | 0.554 | 0.555 | 0.556 | 0.557 | 0.558 | 0.559 | 0.560 |
| 0.561 | 0.562 | 0.563 | 0.564 | 0.565 | 0.566 | 0.567 | 0.568 | 0.569 | 0.570 |
| 0.571 | 0.572 | 0.573 | 0.574 | 0.575 | 0.576 | 0.577 | 0.578 | 0.579 | 0.580 |
| 0.581 | 0.582 | 0.583 | 0.584 | 0.585 | 0.586 | 0.587 | 0.588 | 0.589 | 0.590 |
| 0.591 | 0.592 | 0.593 | 0.594 | 0.595 | 0.596 | 0.597 | 0.598 | 0.599 | 0.600 |
| 0.601 | 0.602 | 0.603 | 0.604 | 0.605 | 0.606 | 0.607 | 0.608 | 0.609 | 0.610 |
| 0.611 | 0.612 | 0.613 | 0.614 | 0.615 | 0.616 | 0.617 | 0.618 | 0.619 | 0.620 |
| 0.621 | 0.622 | 0.623 | 0.624 | 0.625 | |||||
Application:
Precision mold inspection
Used for verifying the cavity dimensions of precision molds such as injection molds and stamping molds, ensuring that the core aperture matches the micrometer level tolerance on the design drawings and avoiding burrs or dimensional deviations in the molded parts.
Hydraulic component quality inspection
Used to detect the channel aperture and fitting size of hydraulic valve blocks, cylinder liners and other components, verify whether they comply with hydraulic standards such as ISO 4400, and ensure system sealing and flow stability.

Notes:
Ultra high precision, strict tolerance control
Adopting precision grinding and calibration technology, it can accurately match the strict tolerance requirements of small apertures, ensuring reliable measurement results.
Super hard and wear-resistant, long-lasting stability
The core components are made of high-quality high carbon tool steel, which has undergone vacuum quenching or nitriding treatment on the surface. Its wear resistance is stronger than that of ordinary steel measuring tools, and long-term use is less likely to cause dimensional deviation due to contact wear. It is suitable for high-frequency and high-strength testing scenarios.
