Pin Gauge Kit M4
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of M4 Gauge Pin Set
Pin Gage Title:

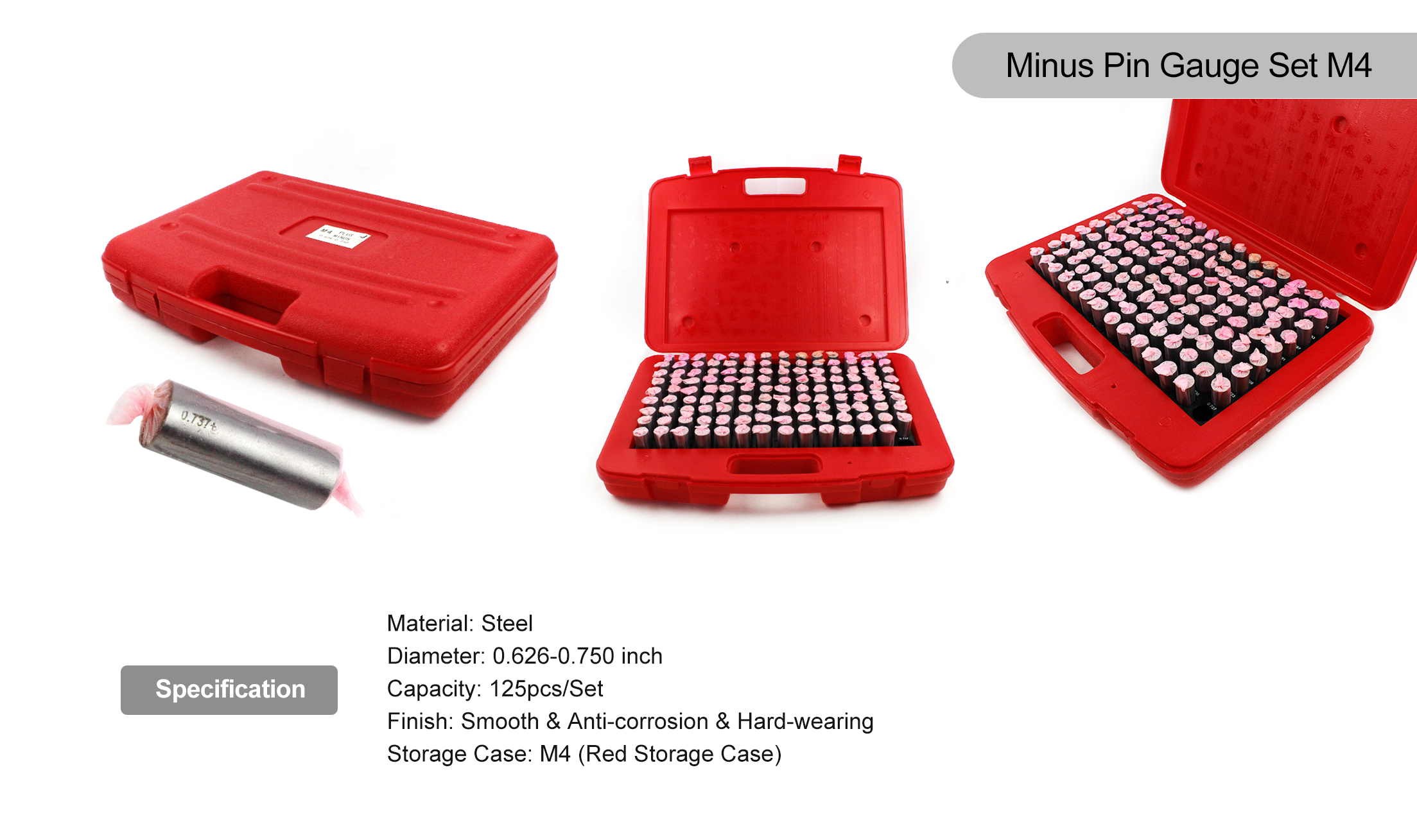

High Precision Pin Gauge Kit M4 125pcs .626 .750inch steel pin gage for Measuring Hole Depth
Core Structure and Components
This unique design approach allows for smooth, resistance-free access to the measured features without compromising the accuracy of the dimensional assessment. The set serves as an essential solution for verifying hole sizes, confirming component tolerances, and maintaining quality standards in precision engineering environments where exacting measurements are critical.
Specifications:
Diameter: 0.626-0.750 inch
Capacity: 125pcs/Set
Finish: Smooth & Anti-corrosion & Hard-wearing

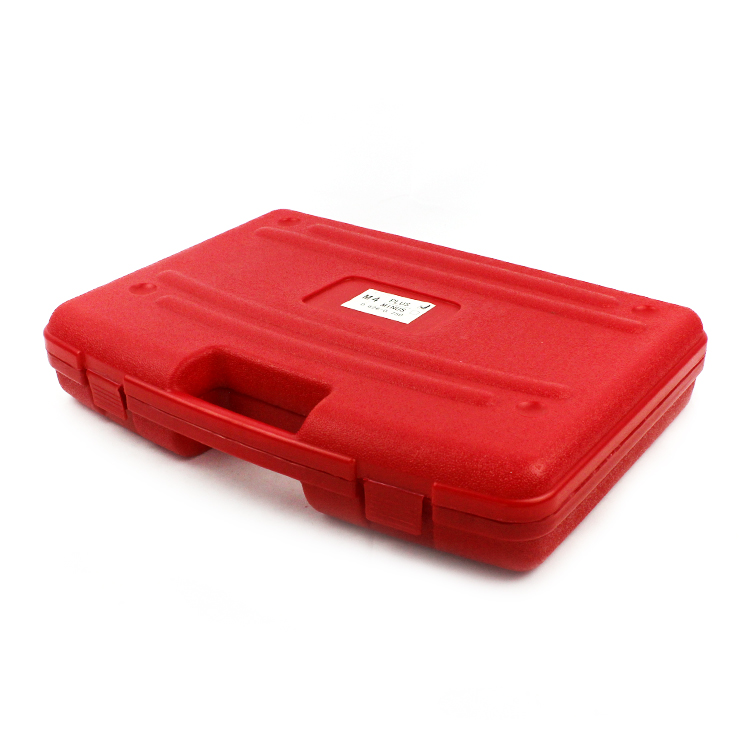

Storage Case: M4 (Red Storage Case)

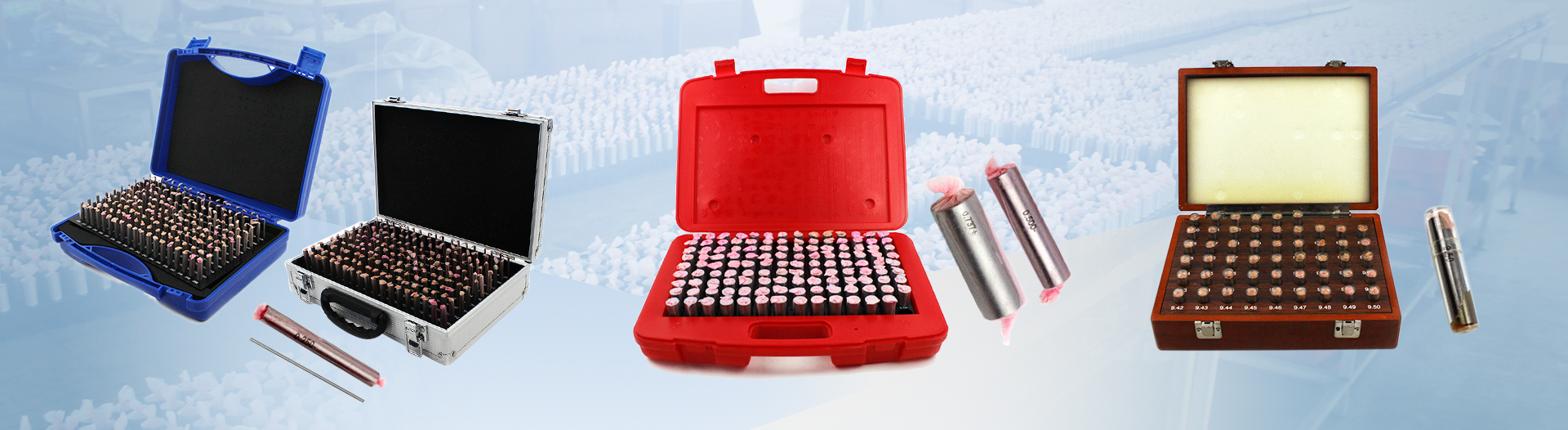

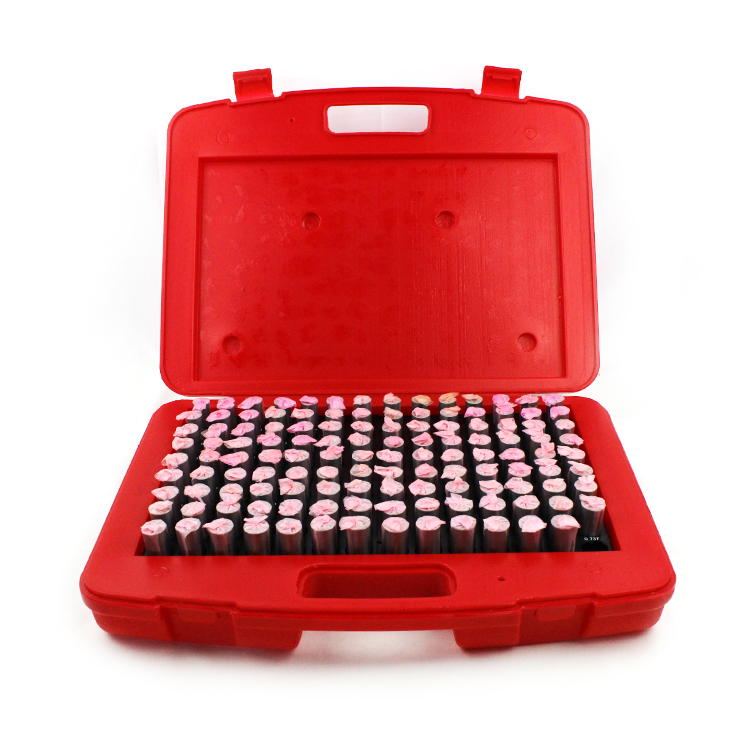

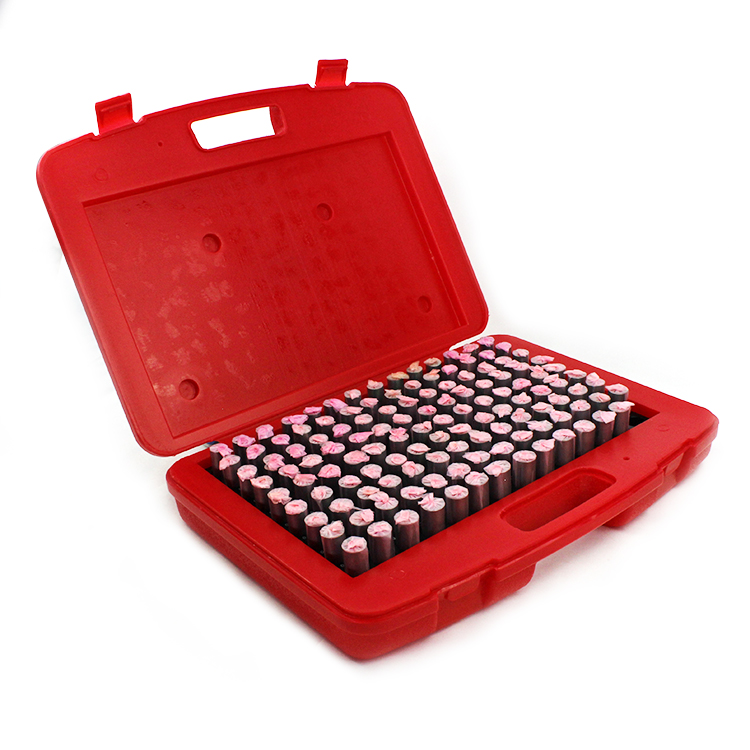

Pin Gage Display
Accuracy Testing
| Pin Gauge Set M4 Diameter,Inch,Minus | |||||||||
| 0.626 | 0.627 | 0.628 | 0.629 | 0.630 | 0.631 | 0.632 | 0.633 | 0.634 | 0.635 |
| 0.636 | 0.637 | 0.638 | 0.639 | 0.640 | 0.641 | 0.642 | 0.643 | 0.644 | 0.645 |
| 0.646 | 0.647 | 0.648 | 0.649 | 0.650 | 0.651 | 0.652 | 0.653 | 0.654 | 0.655 |
| 0.656 | 0.657 | 0.658 | 0.659 | 0.660 | 0.661 | 0.662 | 0.663 | 0.664 | 0.665 |
| 0.666 | 0.667 | 0.668 | 0.669 | 0.670 | 0.671 | 0.672 | 0.673 | 0.674 | 0.675 |
| 0.676 | 0.677 | 0.678 | 0.679 | 0.680 | 0.681 | 0.682 | 0.683 | 0.684 | 0.685 |
| 0.686 | 0.687 | 0.688 | 0.689 | 0.690 | 0.691 | 0.692 | 0.693 | 0.694 | 0.695 |
| 0.696 | 0.697 | 0.698 | 0.699 | 0.700 | 0.701 | 0.702 | 0.703 | 0.704 | 0.705 |
| 0.706 | 0.707 | 0.708 | 0.709 | 0.710 | 0.711 | 0.712 | 0.713 | 0.714 | 0.715 |
| 0.716 | 0.717 | 0.718 | 0.719 | 0.720 | 0.721 | 0.722 | 0.723 | 0.724 | 0.725 |
| 0.726 | 0.727 | 0.728 | 0.729 | 0.730 | 0.731 | 0.732 | 0.733 | 0.734 | 0.735 |
| 0.736 | 0.737 | 0.738 | 0.739 | 0.740 | 0.741 | 0.742 | 0.743 | 0.744 | 0.745 |
| 0.746 | 0.747 | 0.748 | 0.749 | 0.750 | |||||
Application:
Aperture size measurement
Purpose: Accurately measure the actual size of small holes and inner diameters to determine whether they meet design requirements.
Applicable scenarios: mechanical processing, mold manufacturing, precision parts inspection.
Verification of aperture tolerance
Purpose: To check whether the aperture is within the specified tolerance range (such as H7, H8, and other standard tolerances).
Applicable scenarios: Quality inspection of automotive components and aerospace precision parts.

Notes:
Instant testing and judgment, doubling efficiency
Support for "Go/No Go" fast detection logic - if the go gauge can be successfully inserted, it indicates that the aperture is ≥ the minimum limit size, and if the no go gauge cannot be inserted, it confirms that the aperture is ≤ the maximum limit size, without the need for complex readings or calculations. A single measurement only takes a few seconds, significantly improving batch detection efficiency.
Flexible adaptation
Provide a complete specification gradient from 0.011 to 1.000 inches (common increments of 0.001 inches), and some sets can also be customized with non-standard sizes to meet the needs of multiple industries and scenarios.
