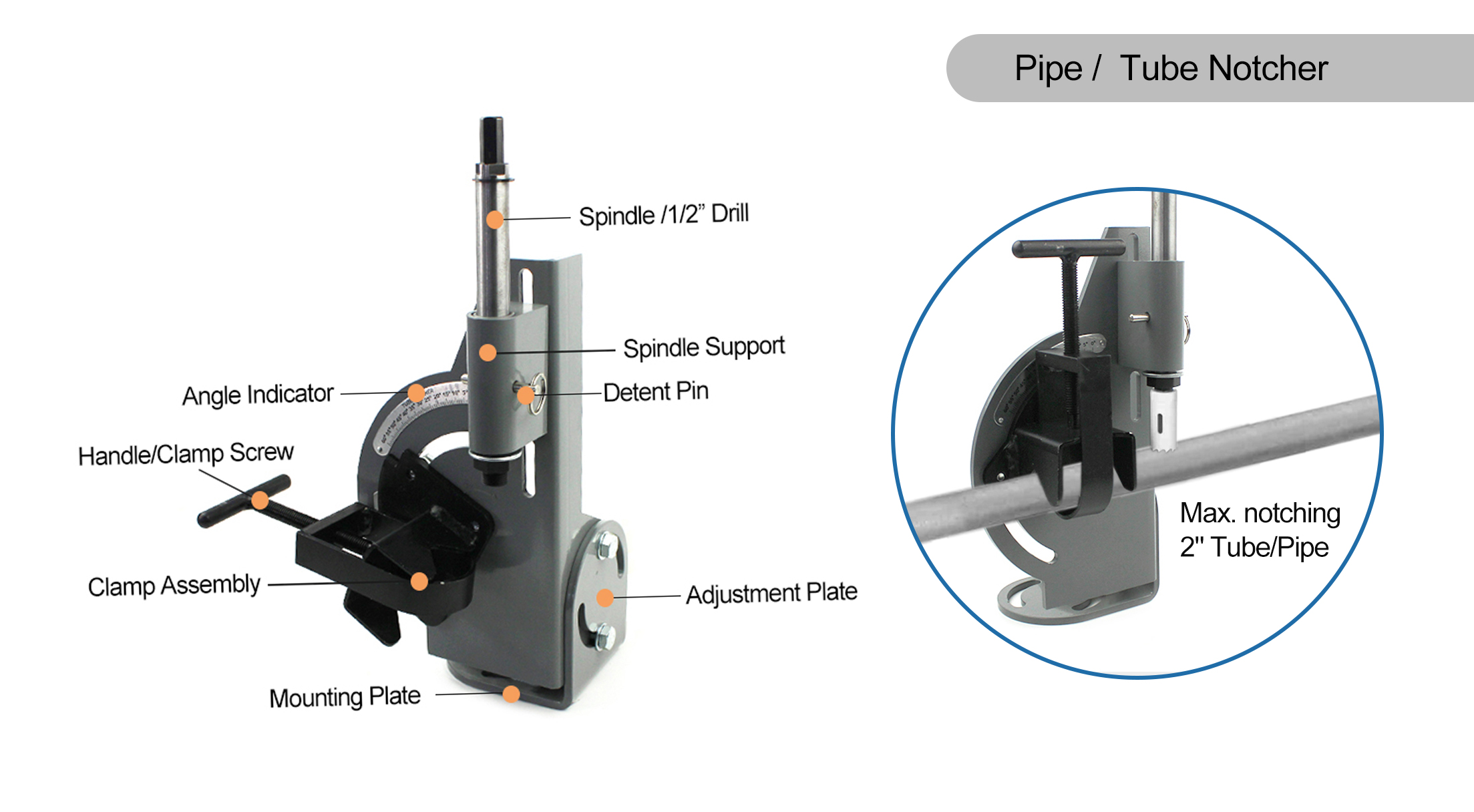

Pipe Notcher
PDM
| Quantity: | |
|---|---|
Features of Manual Tube Notcher
Steel Tube Notcher Title:
Metal Fabrication Parts pipe notcher tool powder coated tube notcher manual for pipes
Core component functionality
Slotting blade:
Manual type: Hard alloy notch milling cutter, suitable for 2-inch (50mm) pipe diameter;
Clamping system:
Manual type: bolt tightened vise, preventing pipe rotation and deviation;
Security protection:
Emergency power-off switch+fully enclosed cover for rotating parts (mandatory requirement for electric type);
Specifications:
Coordinated Use:Use with your 1/2" chuck,electric drill or drill press (not included)Pipe/Tube Capacity: 50mm / 2inch

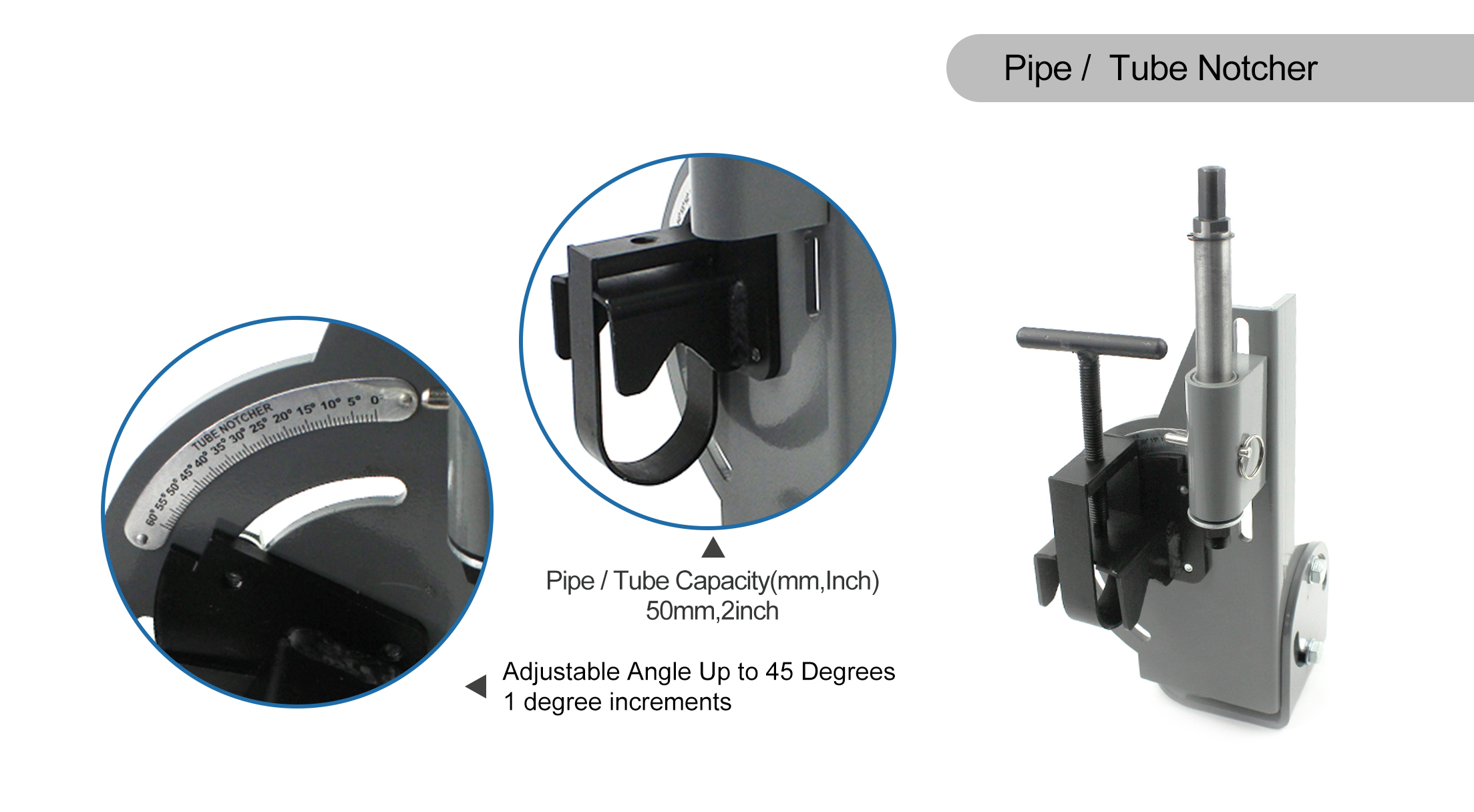

Adjustment Degree Range/Increments: 0°-45°/1°
Chuck Dimension:13mm / 1/2inchSpindle Threads for Mounting Hole Saw:13mm,16mm / 1/2inch,5/8inch
Clearance between Chuck & Table:356mm / 14inch
| Item | Pipe Notcher |
| Material | Steel (Heat-treated and hardened) |
| Finish | Powder Coated |
| Process | Stamping, bending, Welding,etc. |
| Coordinated Use: | Use with your 1/2" chuck,electric drill or drill press (not included) |
| Pipe/Tube Capacity: | 50mm / 2inch |
| Adjustment Degree Range/Increments: | 0°-45°/1° |
| Chuck Dimension: | 13mm / 1/2inch |
| Spindle Threads for Mounting Hole Saw: | 13mm,16mm / 1/2inch,5/8inch |
| Clearance between Chuck & Table: | Clearance between Chuck & Table:356mm / 14inch |
| Type | Sheet Metal Fabricaton Components |
| Application | Welding seam production joint,make round cuts in pipe and tube of various shapes |
Application:
Steel structure welding nodes (such as shelves, canopy supports);
Production of multi-directional interfaces for automobile exhaust pipes;
Hydraulic piping system;
Standardization operation stage:
Pipe positioning: Insert the pipe into the fixture, adjust it to the target angle (such as 45 °), and lock it;
Tool head engagement: manually move the handle to advance the tool head/start the motor to drive the milling cutter to contact the pipe wall;
Groove forming: Cutting force penetrates the pipe wall to form a semi-circular or V-shaped notch;
Debris cleaning: The electric type needs to remove metal residue after stopping the machine (to prevent the blade from getting stuck);
