Push Button Hood Pin Lock Kit
PDM-Racing
| Quantity: | |
|---|---|
Features of Hood Pin Lock Kit

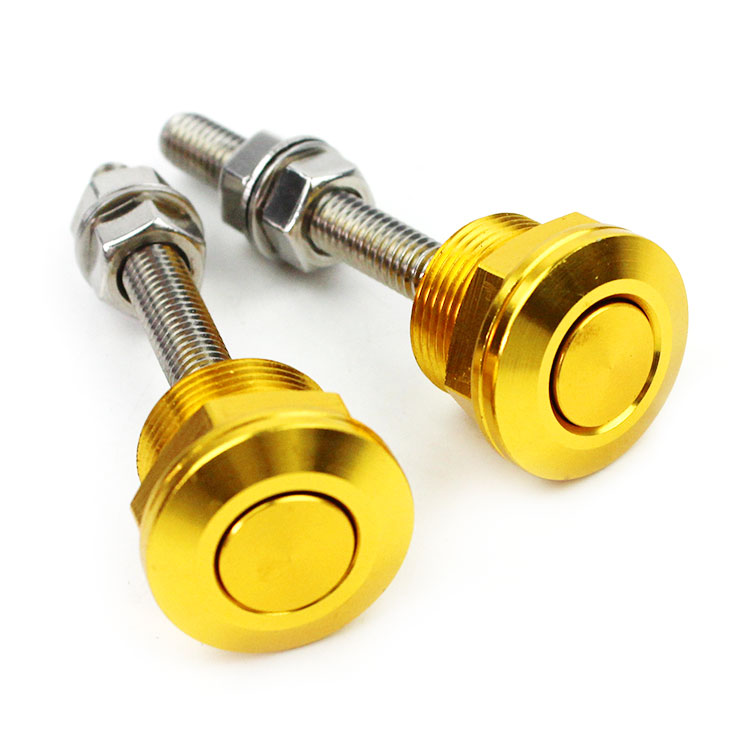

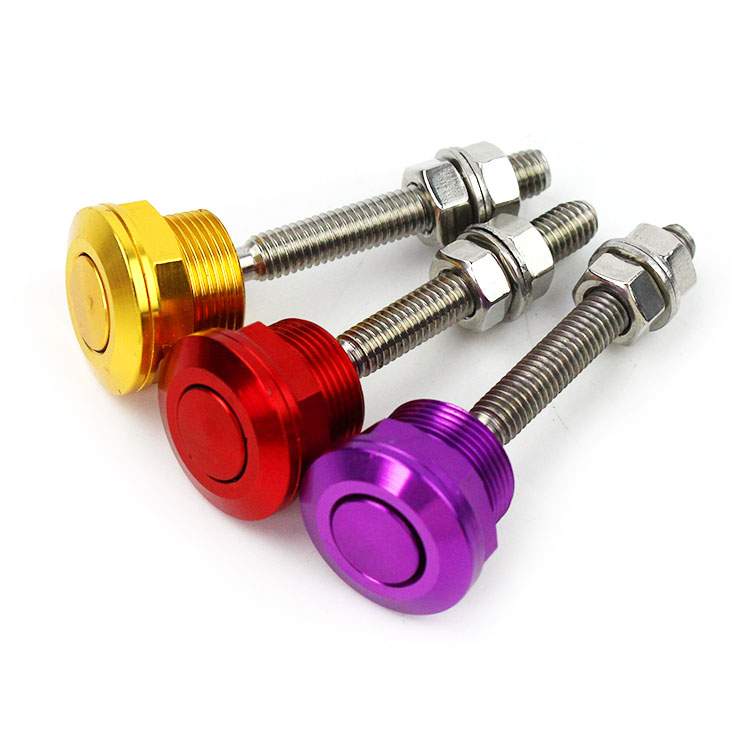

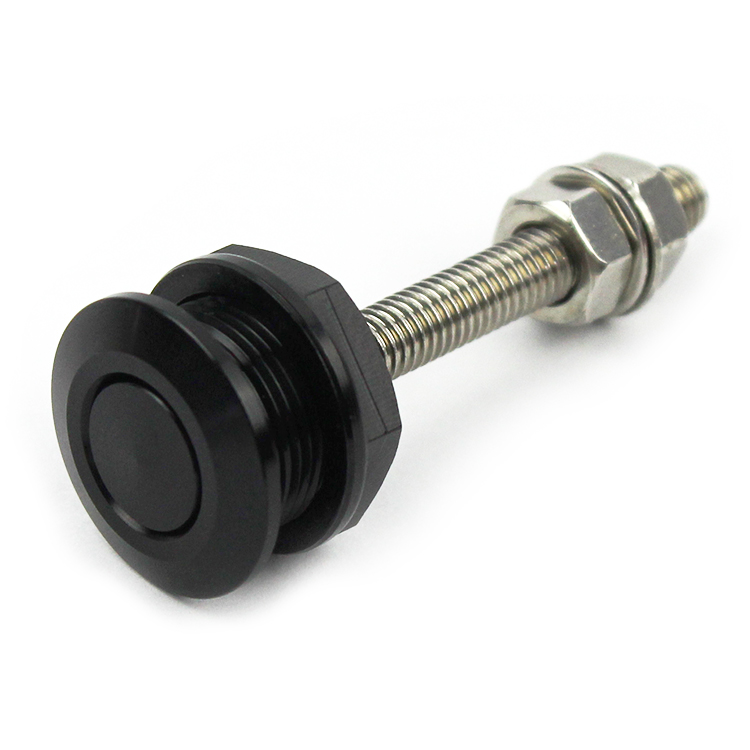

Push Button Hood Pin Lock Fastener
quick release hood pin aluminium alloy bumper hood pin lock for heavy duty
Core Functions and Structure
Anti vibration locking
Waterproof design
The main body is made of stainless steel/aluminum alloy material, with surface electroplating treatment (such as chrome plating/anodizing), resistant to corrosion and rainwater erosion.
Sealing ring to prevent mud and sand from entering the lock cylinder (applicable to off-road vehicles);
Material:Made with premium quality aluminum alloy.
Stud Material: Stainless Steel
Head Dia.: 22mm,26mm,30mm

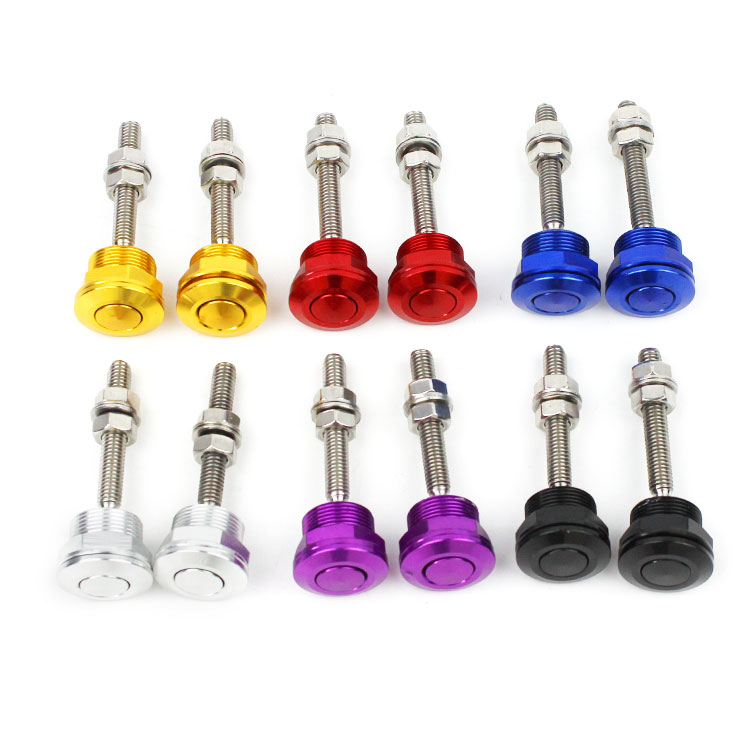

Color:Anodizing Aluminum (Blue,Black,Red,Purple,Green,Colorful,etc)

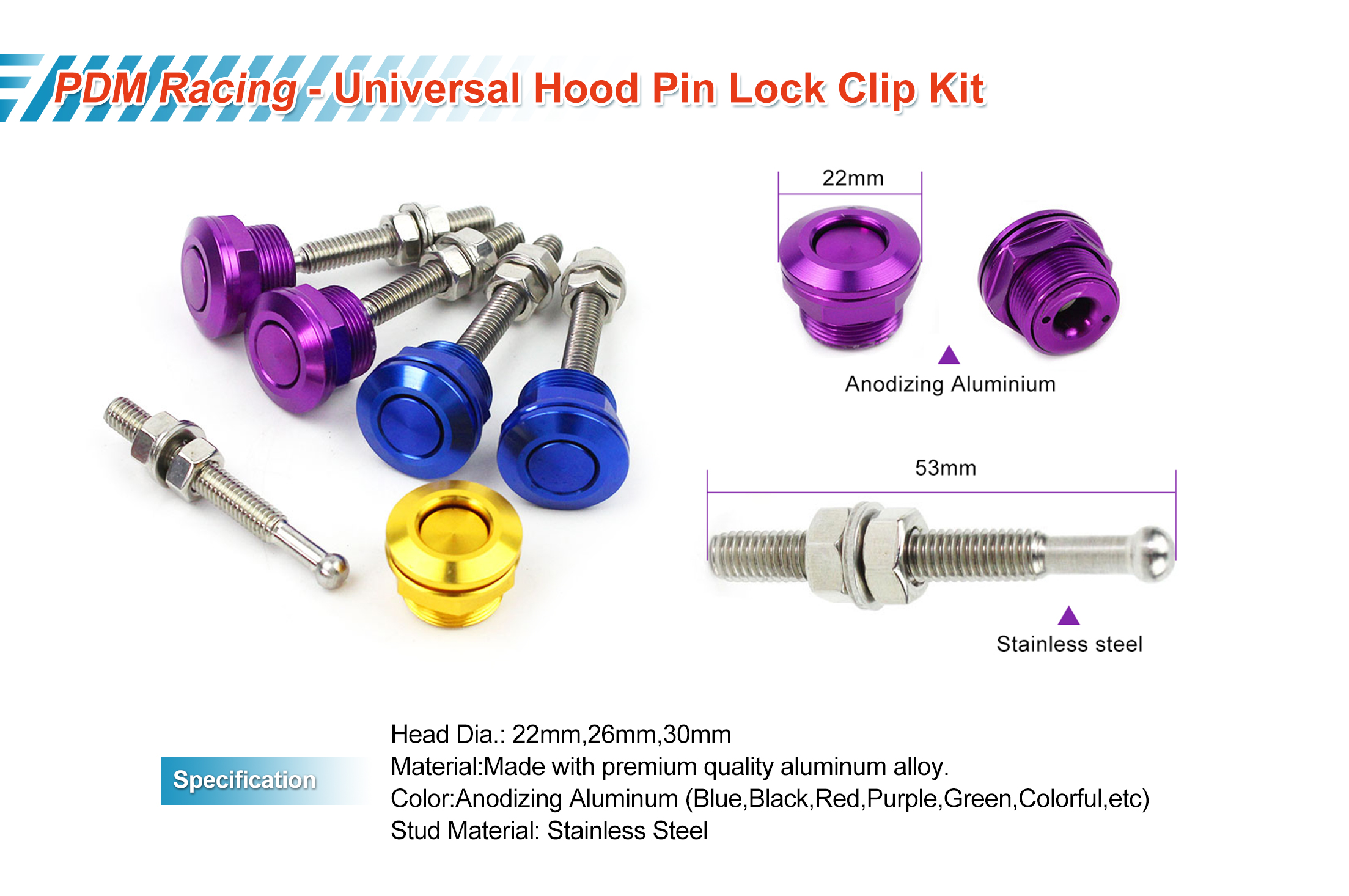

| Item | Universal Hood Pin Lock Clip Kit |
| Head Dia. | 22mm,26mm,30mm |
| Color | Red,Green,Gold,PurpleSilver,Blue,Black,etc. |
| Material | Made with Premium Quality Aluminium alloy |
| Stud Material | Stainless Steel |
| Finish | Anodizing Aluminium |
Application:
Lightweight modification of racing cars
Neon color scheme (Neo Chrome) meets personalized needs, preventing sand, dust, and jamming in desert off-road vehicles;
Installation steps:
Positioning and Opening
Close the engine hood and draw a longitudinal reference line with the front logo as the center axis;
Symmetrically measure the distance between the locking point and the windshield.
Precise drilling - mark the drilling point with a center punch and drill vertically with a drill bit;

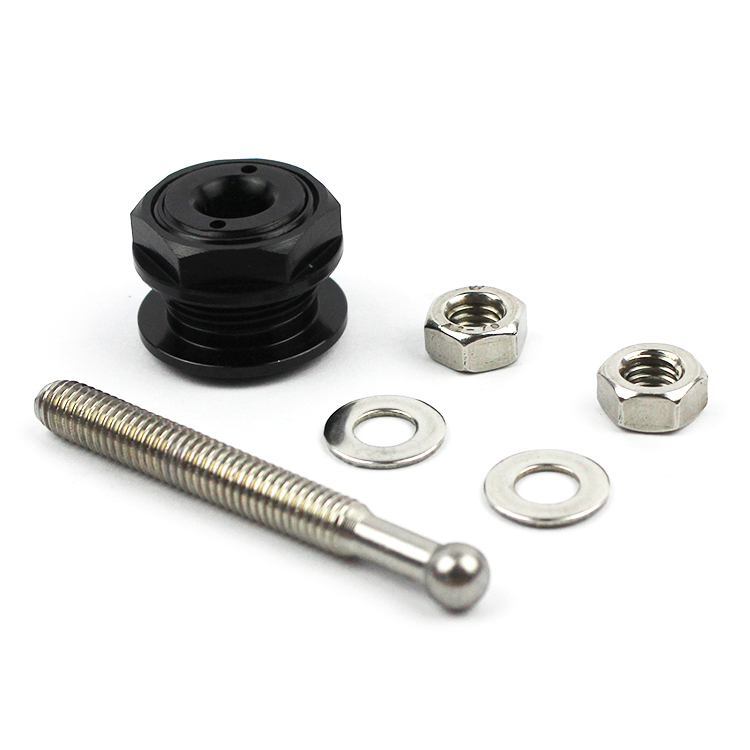

Lock body installation - base fixation
The bolt passes through the engine hood hole and a spring washer is installed below;
Cross tighten the torque wrench.
Assembly of locking components
Press the button towards the front of the car to ensure that there is no interference in the travel;
Insert the quick release pin and check the rebound force of the locking spring;
