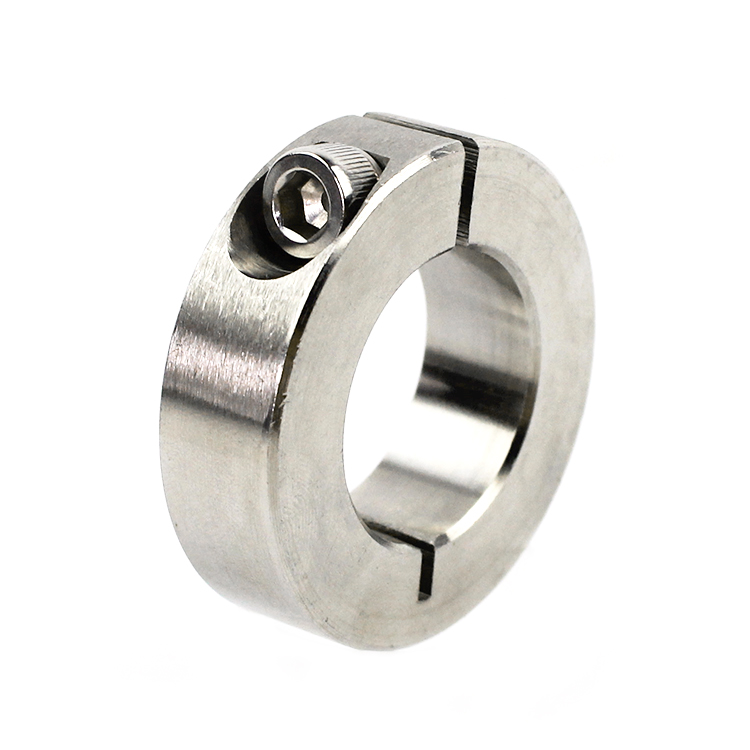

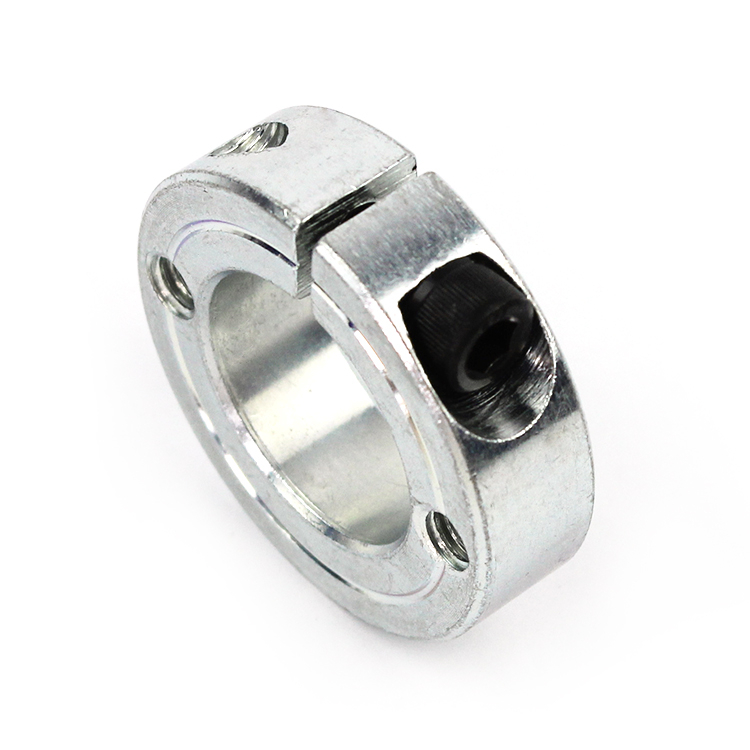

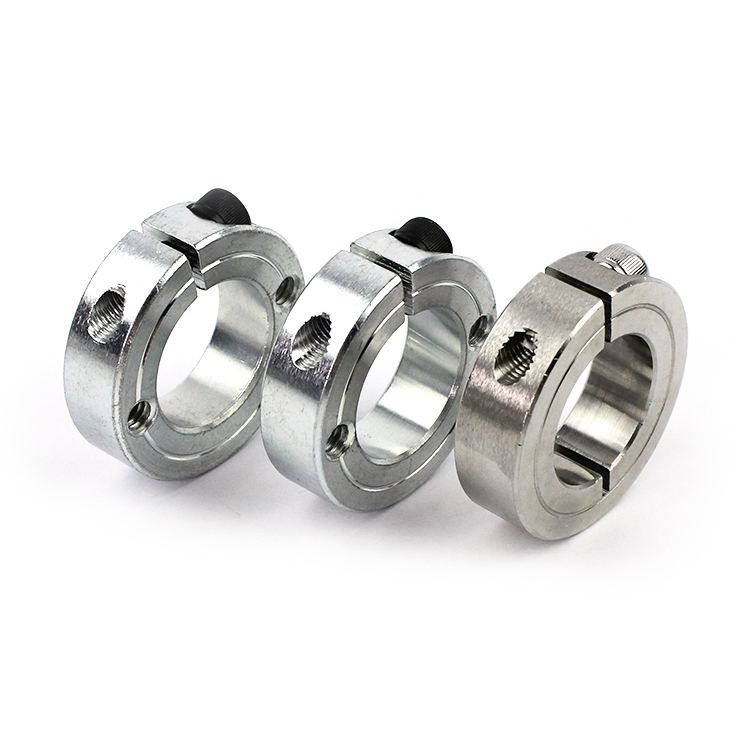

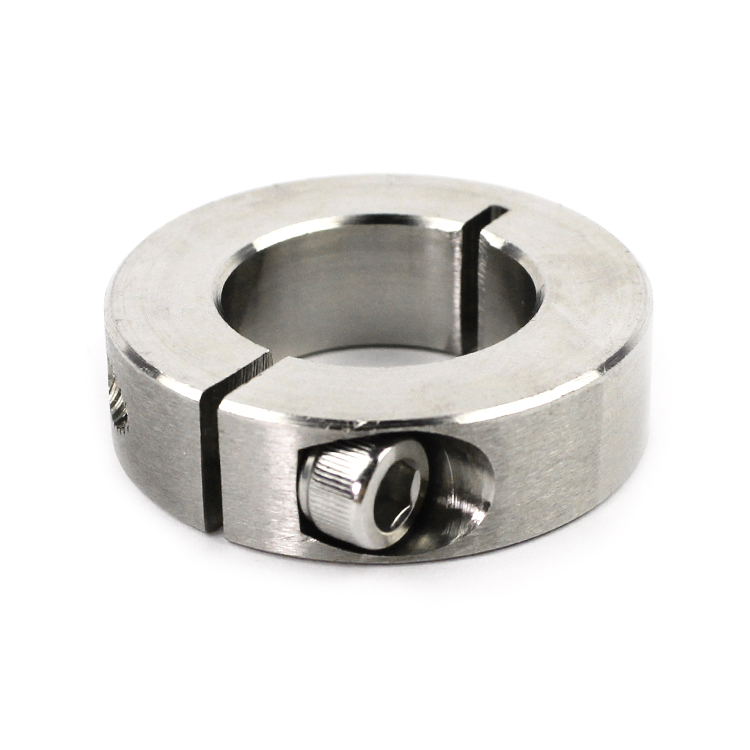

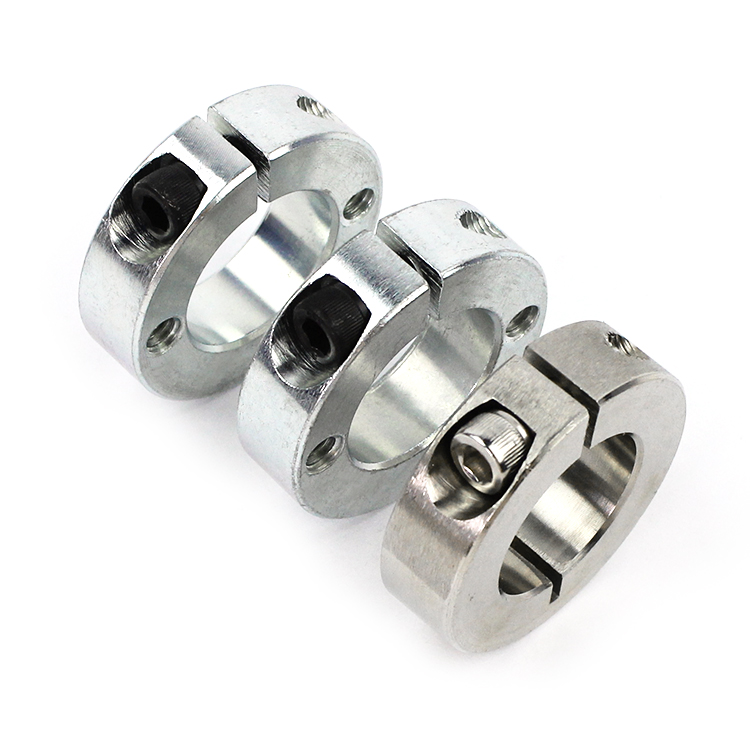

Single Split Shaft Collars
PDM
| Quantity: | |
|---|---|
Features of Split Shaft Collar
One Piece Split Shaft Collar Title:
Heavy Duty shaft collar clamp steel & stainless steel split shaft collar 5/16" or customized
Compared to solid collars, the clamping shaft collars product eliminates the typical risk of wear caused by screw fixation, providing unlimited adjustability and ease of removal.
Core features and advantages
Structural design: The single split ring utilizes friction to provide excellent grip, suitable for hard or soft standard circular shafts, thin-walled tubes, or split hubs, ensuring more stable and reliable performance.
Materials and specifications: Stainless steel, black oxide, aluminum or carbon steel materials can be selected, and aperture specifications include 0.5 ", 18mm, 25mm, etc., to meet different industrial needs.
Functional advantages: Provides enormous axial force, reduces shaft deformation and wear, and extends equipment life; Easy to operate, simply slide into position and tighten the screws to lock.
Certification and Quality: Compliant with international standards such as ISO9001, ensuring durability and cost-effectiveness.

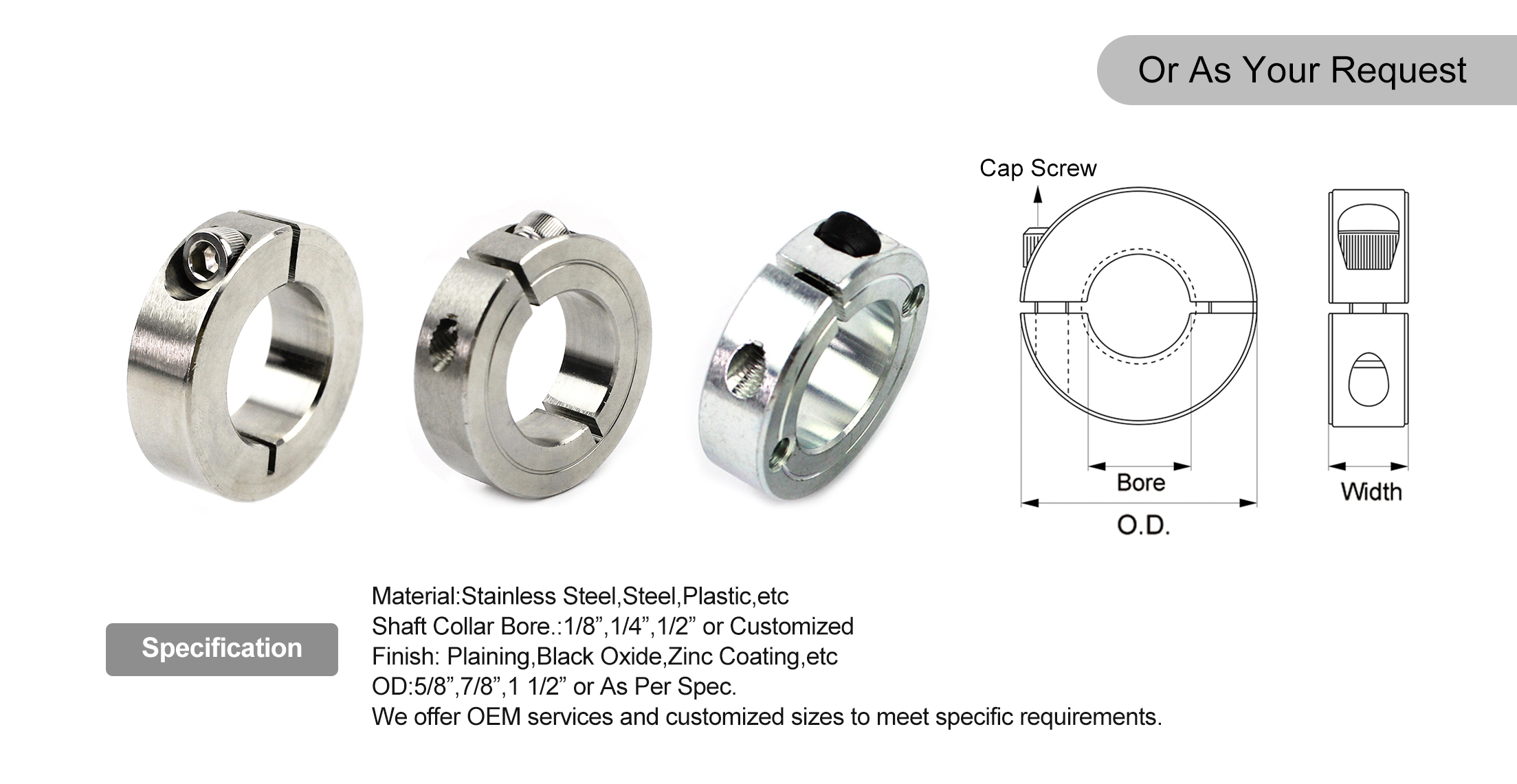

| Inch-Set Screw Shaft Collar |
 |
| Bore | O.D. | Width | Cap Screw |
| 1/8" | 5/8" | 5/16" | 4-40 x 3/8 |
| 3/16" | 5/8" | 5/16" | 4-40 x 3/8 |
| 1/4" | 11/16" | 5/16" | 4-40 x 3/8 |
| 5/16" | 11/16" | 5/16" | 4-40 x 3/8 |
| 3/8" | 7/8" | 3/8" | 6-32 x 3/8 |
| 7/16" | 15/16" | 3/8" | 6-32 x 3/8 |
| 1/2" | 1 1/8" | 13/32" | 8-32 x 1/2 |
| 9/16" | 1 5/16" | 7/16" | 10-32 x 1/2 |
| 5/8" | 1 5/16" | 7/16" | 10-32 x 1/2 |
| 11/16" | 1 1/2" | 1/2" | 10-32 x 1/2 |
| 3/4" | 1 1/2" | 1/2" | 1/4-28 x 5/8 |
| 13/16" | 1 5/8" | 1/2" | 1/4-28 x 5/8 |
| 7/8" | 1 5/8" | 1/2" | 1/4-28 x 5/8 |
| 15/16" | 1 3/4" | 1/2" | 1/4-28 x 5/8 |
| 1" | 1 3/4" | 1/2" | 1/4-28 x 5/8 |
| 1 1/16" | 1 7/8" | 1/2" | 1/4-28 x 5/8 |
| 1 1/8" | 1 7/8" | 1/2" | 1/4-28 x 5/8 |
| 1 3/16" | 2 1/16" | 1/2" | 1/4-28 x 3/4 |
| 1 1/4" | 2 1/16" | 1/2" | 1/4-28 x 3/4 |
| 1 5/16" | 2 1/4" | 9/16" | 1/4-28 x 3/4 |
| 1 3/8" | 2 1/4" | 9/16" | 1/4-28 x 3/4 |
| 1 7/16" | 2 1/4" | 9/16" | 1/4-28 x 3/4 |
| 1 1/2" | 2 3/8" | 9/16" | 1/4-28 x 3/4 |
| 1 9/16" | 2 3/8" | 9/16" | 1/4-28 x 3/4 |
| 1 5/8" | 2 5/8" | 11/16" | 5/16-24 x 1 |
| 1 11/16" | 2 3/4" | 11/16" | 5/16-24 x 1 |
| 1 3/4" | 2 3/4" | 11/16" | 5/16-24 x 1 |
| 1 13/16" | 2 7/8" | 11/16" | 5/16-24 x 1 |
| 1 7/8" | 2 7/8" | 11/16" | 5/16-24 x 1 |
| 1 15/16" | 3" | 11/16" | 5/16-24 x 1 |
| 2" | 3" | 11/16" | 5/16-24 x 1 |
| 2 1/16" | 3 1/4" | 3/4" | 5/16-24 x 1 |
| 2 1/8" | 3 1/4" | 3/4" | 5/16-24 x 1 |
| 2 3/16" | 3 1/4" | 3/4" | 5/16-24 x 1 |
| 2 1/4" | 3 1/4" | 3/4" | 5/16-24 x 1 |
| 2 5/16" | 3 1/2" | 3/4" | 5/16-24 x 1 |
| 2 3/8" | 3 1/2" | 3/4" | 5/16-24 x 1 |
| 2 7/16" | 3 1/2" | 3/4" | 5/16-24 x 1 |
| 2 1/2" | 3 3/4" | 7/8" | 3/8-24 x 1 |
| 2 9/16" | 3 7/8" | 7/8" | 3/8-24 x 1 |
| 2 5/8" | 3 7/8" | 7/8" | 3/8-24 x 1 |
| 2 11/16" | 4" | 7/8" | 3/8-24 x 1 |
| 2 3/4" | 4" | 7/8" | 3/8-24 x 1 |
| 2 7/8" | 4 1/4" | 7/8" | 3/8-24 x 1 |
| 2 15/16" | 4 1/4" | 7/8" | 3/8-24 x 1 |
| 3" | 4 1/4" | 7/8" | 3/8-24 x 1 |
| Metric-Single Split Shaft Collar |
|
| Bore | O.D. | Width | Set Screw |
| 3mm | 16mm | 9mm | M3 x 8 |
| 4mm | 16mm | 9mm | M3 x 8 |
| 5mm | 16mm | 9mm | M3 x 8 |
| 6mm | 16mm | 9mm | M3 x 8 |
| 7mm | 18mm | 9mm | M3 x 8 |
| 8mm | 18mm | 9mm | M3 x 10 |
| 9mm | 24mm | 9mm | M3 x 10 |
| 10mm | 24mm | 9mm | M3 x 10 |
| 11mm | 28mm | 11mm | M4 x 12 |
| 12mm | 28mm | 11mm | M4 x 12 |
| 13mm | 30mm | 11mm | M4 x 12 |
| 14mm | 30mm | 11mm | M4 x 12 |
| 15mm | 34mm | 13mm | M5 x 16 |
| 16mm | 34mm | 13mm | M5 x 16 |
| 17mm | 36mm | 13mm | M5 x 16 |
| 18mm | 36mm | 13mm | M5 x 16 |
| 19mm | 40mm | 15mm | M6 x 16 |
| 20mm | 40mm | 15mm | M6 x 16 |
| 21mm | 42mm | 15mm | M6 x 16 |
| 22mm | 42mm | 15mm | M6 x 16 |
| 23mm | 45mm | 15mm | M6 x 16 |
| 24mm | 45mm | 15mm | M6 x 16 |
| 25mm | 45mm | 15mm | M6 x 16 |
| 26mm | 48mm | 15mm | M6 x 16 |
| 27mm | 48mm | 15mm | M6 x 16 |
| 28mm | 48mm | 15mm | M6 x 16 |
| 30mm | 54mm | 15mm | M6 x 16 |
| 32mm | 54mm | 15mm | M6 x 16 |
| 34mm | 57mm | 15mm | M6 x 16 |
| 35mm | 57mm | 15mm | M6 x 16 |
| 36mm | 57mm | 15mm | M6 x 16 |
| 38mm | 60mm | 15mm | M6 x 16 |
| 40mm | 60mm | 15mm | M6 x 16 |
| 42mm | 73mm | 19mm | M8 x 25 |
| 45mm | 73mm | 19mm | M8 x 25 |
| 48mm | 78mm | 19mm | M8 x 25 |
| 50mm | 78mm | 19mm | M8 x 25 |
| 54mm | 82mm | 19mm | M8 x 25 |
| 55mm | 82mm | 19mm | M8 x 25 |
| 60mm | 88mm | 19mm | M8 x 25 |
| 65mm | 93mm | 19mm | M8 x 25 |
| 70mm | 98mm | 19mm | M8 x 25 |
| 75mm | 103mm | 19mm | M8 x 25 |
| 80mm | 108mm | 19mm | M8 x 25 |
Applicable Areas:
Widely used in metal processing machinery, including metal recycling machines, cutting machines, straightening equipment, spinning machines, forging machines, engraving machines, drawing machines, coating equipment, and casting machine components.
Overall, Single Split Shaft Collars are key components for improving the efficiency and lifespan of industrial equipment, particularly suitable for scenarios that require high precision and low maintenance;
Core Technology:
Our shaft collars are manufactured through a precision-controlled process integrating CNC machining, heat treatment, and surface finishing technologies. Utilizing ISO-certified production systems, we apply advanced turning and milling techniques to achieve ±0.01mm dimensional accuracy. Critical components undergo case hardening and zinc-nickel plating for enhanced wear/corrosion resistance.
