Features of Welded Concentric Reducer
Exhaust reducer pipe Title:

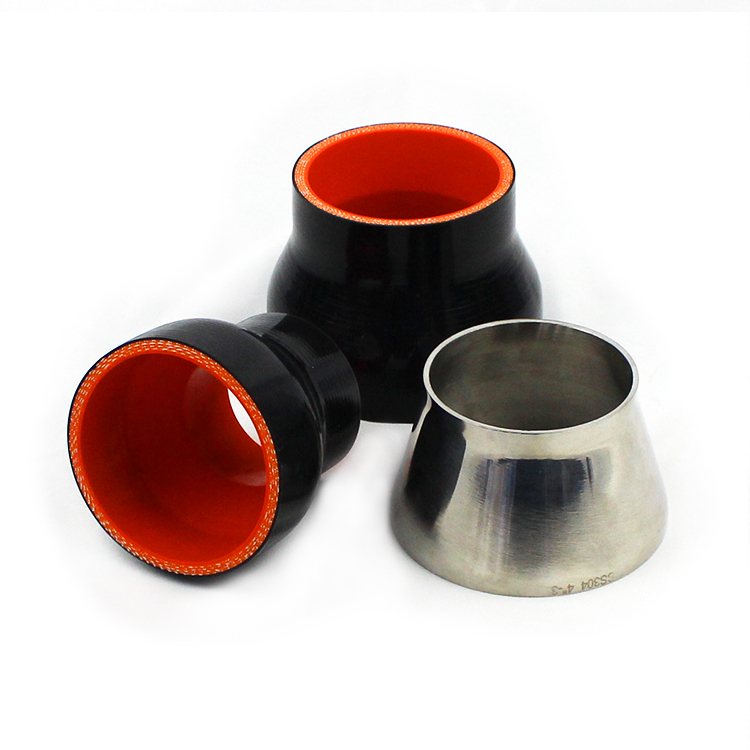

welded concentric reducer SS304 & silicone reducer pipe stainless for motorcycle
Elbow Reducer Hose Infrastructure

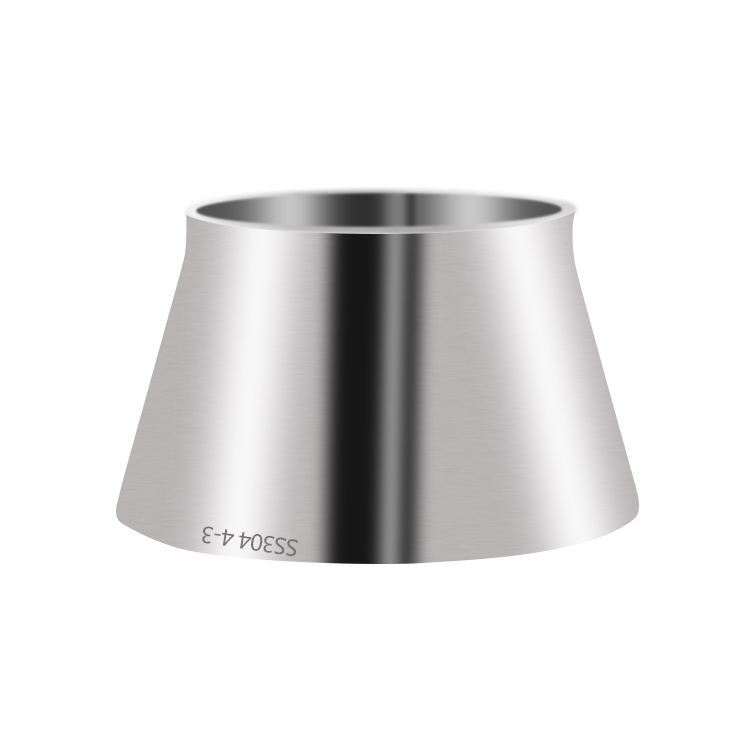

The Core function of Stainless Steel Reducers:
Multi layer design: Sanitary grade products use inner wall electrolytic polishing to reduce fluid resistance and meet aseptic requirements;
Material:304/304L/316L, special alloys, etc;
Forming process: hot pressing, stamping and welding, etc;

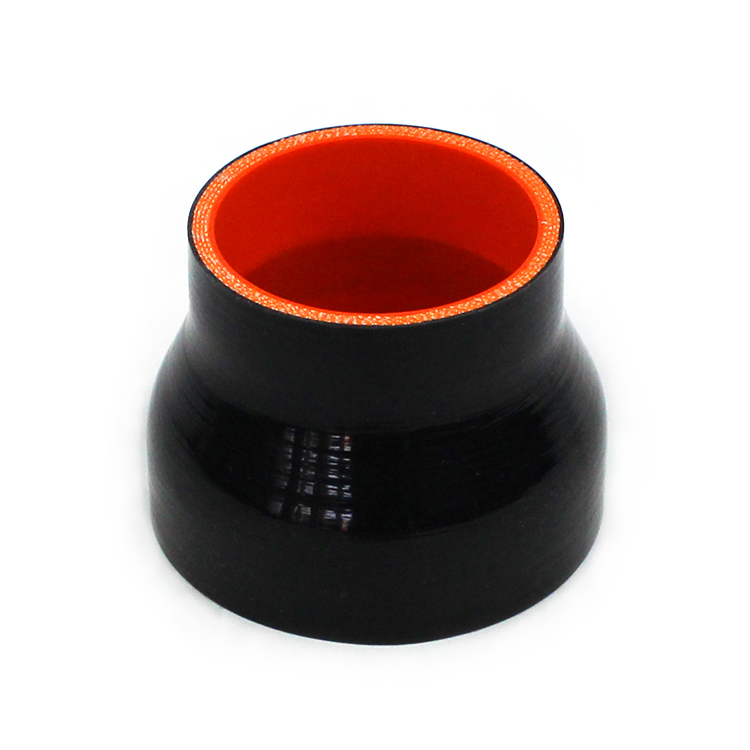

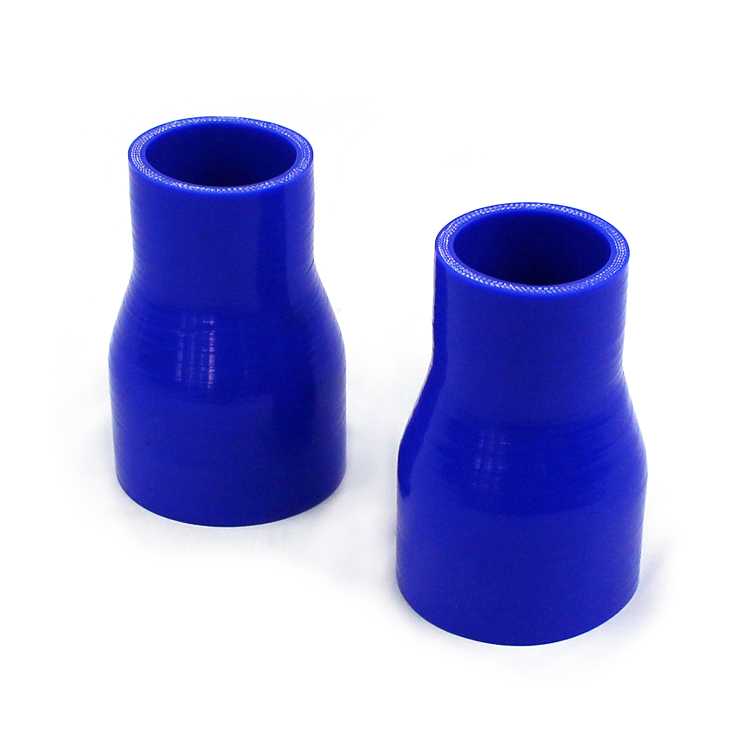

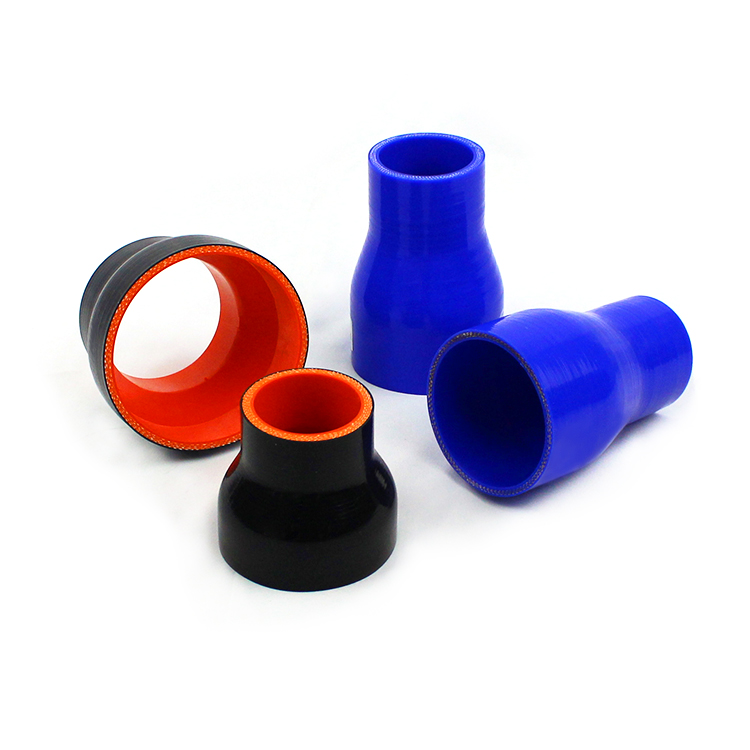

Core Structure of Silicone Reducers:
Straight type: axis concentric variable diameter, suitable for conventional fluid (such as coolant, air) transmission;
Offset: Asymmetric variable diameter design, used for granular media (such as lubricating oil) to prevent sedimentation and blockage;
Process: Integrated molding by compression molding - seamless, uniform wall thickness;
Wrapping vulcanization - low cost, but weak fatigue resistance;
Standards: American Standard (ASME), National Standard (GB/T), Sanitary Grade (DIN/3A), etc;
| 3A Standard Reducers |
 |
| Size | A | D | D2 |
| 1"/0.5" | 50.8 | 25.4 | 12.7 |
| 1.5"/0.75" | 76.2 | 38.1 | 19 |
| 1.5"/1.0" | 50.8 | 38.1 | 25.4 |
| 2.0"/1.0" | 101.6 | 50.8 | 25.4 |
| 2.0"/1.5" | 50.8 | 50.8 | 38.1 |
| 2.5"/1.0" | 152.4 | 63.5 | 25.4 |
| 2.5"/1.5" | 101.6 | 63.5 | 38.1 |
| 2.5"/2.0" | 50.8 | 63.5 | 50.8 |
| 3.0"/1.0" | 203.2 | 76.2 | 25.4 |
| 3.0"/1.5" | 152.4 | 76.2 | 38.1 |
| 3.0"/2.0" | 101.6 | 76.2 | 50.8 |
| 3.0"/2.5" | 50.8 | 76.2 | 63.5 |
| 4.0"/1.0" | 304.8 | 101.6 | 25.4 |
| 4.0"/1.5" | 254 | 101.6 | 38.1 |
| 4.0"/2.0" | 203.2 | 101.6 | 50.8 |
| 4.0"/2.5" | 152.4 | 101.6 | 63.5 |
| 4.0"/3.0" | 101.6 | 101.6 | 76.2 |
| 5.0"/3.0" | 127.0 | 127.0 | 76.2 |
| 5.0"/4.0" | 127.0 | 127.0 | 101.6 |
| 6.0"/2.0" | 140.0 | 152.4 | 50.8 |
| 6.0"/2.5" | 140.0 | 152.4 | 63.5 |
| 6.0"/3.0" | 140.0 | 152.4 | 76.2 |
| 6.0"/4.0" | 140.0 | 152.4 | 101.6 |
| 8.0"/3.0" | 152.4 | 203.2 | 76.2 |
| 8.0"/4.0" | 152.4 | 203.2 | 101.6 |
| 8.0"/6.0" | 152.4 | 203.2 | 152.4 |
| 10.0"/6.0" | 177.8 | 254.0 | 152.4 |
| 10.0"/8.0" | 177.8 | 254.0 | 203.2 |
| 12.0"/6.0" | 203.2 | 304.8 | 152.4 |
| 12.0"/8.0" | 203.2 | 304.8 | 203.2 |
| ISO Standard Reducers |
|
| Size | A | D | D2 |
| 2"/2.5" | 76 | 51 | 63 |
| 2.5"/3" | 89 | 63 | 76 |
| 2"/3" | 89 | 51 | 76 |
| 3.0"/3.5" | 89 | 76 | 9 |
| 3.5"/4" | 102 | 89 | 102 |
| 3"/4" | 102 | 76 | 102 |
Application:
Chemical pipeline: 316L material+PTFE lining, resistant to acid and alkali corrosion;
Food and medicine: electrolytic polishing of inner walls;
Marine engineering: Dual phase steel reducer resistant to seawater erosion;
Chemical transmission: Fluorosilicone gel+PTFE lining, resistant to strong solvent penetration;
Automotive industry: turbocharger intake pipeline;
Installation steps:
Positioning control: The axial deviation between the reducer and the pipeline is ≤ 1mm, and the low point of the eccentric reducer is aligned with the drainage outlet;
Silicone layer connection: clamp installation
The clamp should be aligned with the position of the stainless steel reinforcement ring, and it is forbidden to compress the pure silicone area;
Symmetrical tightening of bolts;
