T Bolt Clamp & Hose Clamp

T-Bolt Clamp is an industrial fastener that achieves rapid locking by fitting a T-shaped head bolt with a flange nut. It is widely used in mechanical manufacturing, construction engineering, and fluid pipeline connection fields.

Model:
T Bolt Clamp & Hose Clamp
Brand:
PDM-Racing

Quantity:
Availability:





Inquire Add to Basket

Product Description

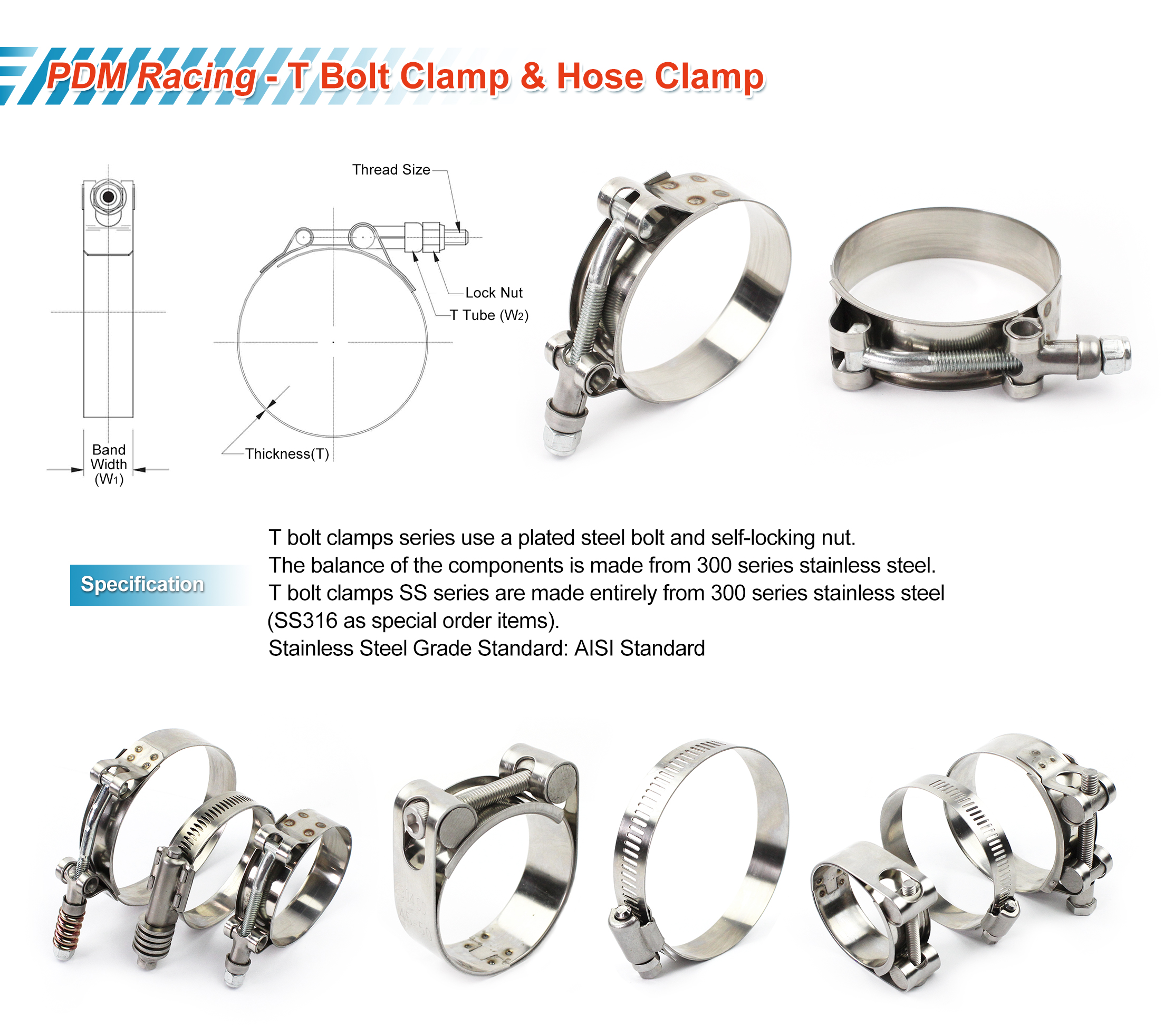

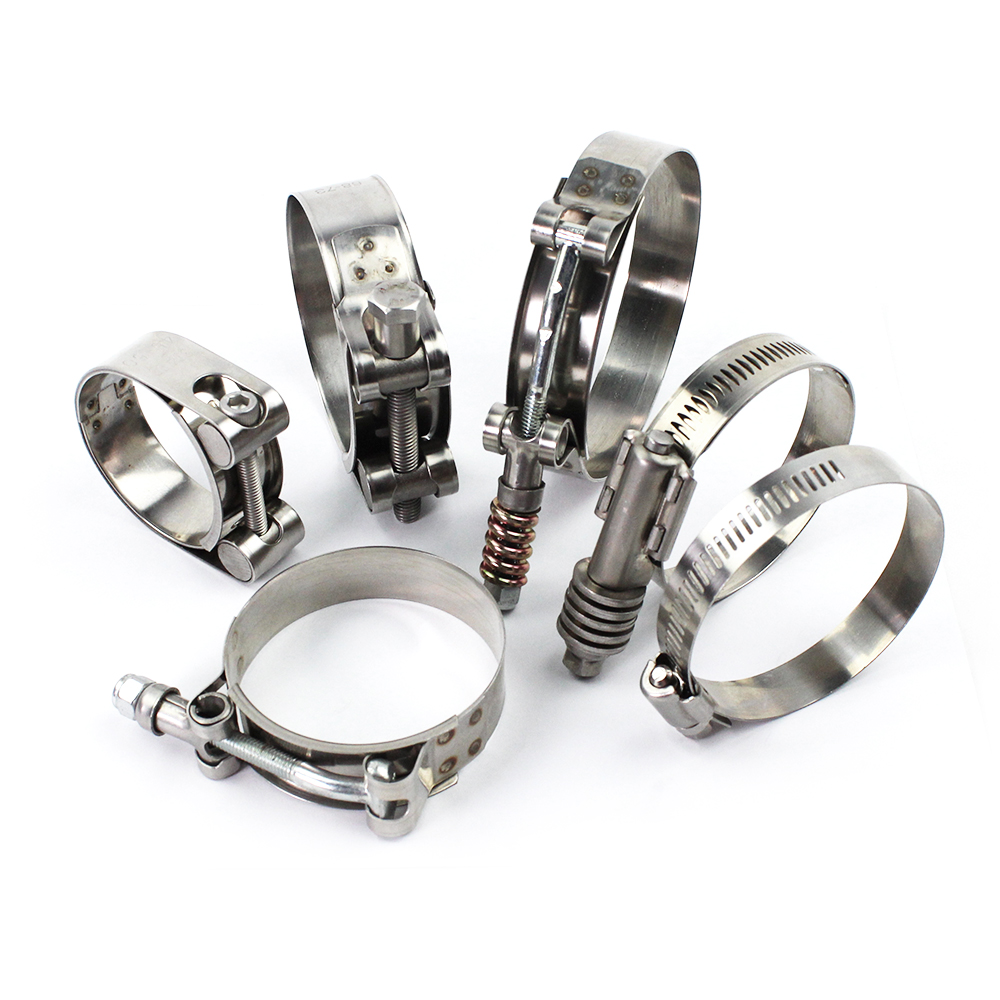

Features of T Bolt Clamp & Hose Clamp

Hose clamp t bolt Title:

Heavy duty stainless steel t-bolt hose clamp 19mm width t bolt hose clamp

T-bolt hose clamps 304 stainless steel Introduction:

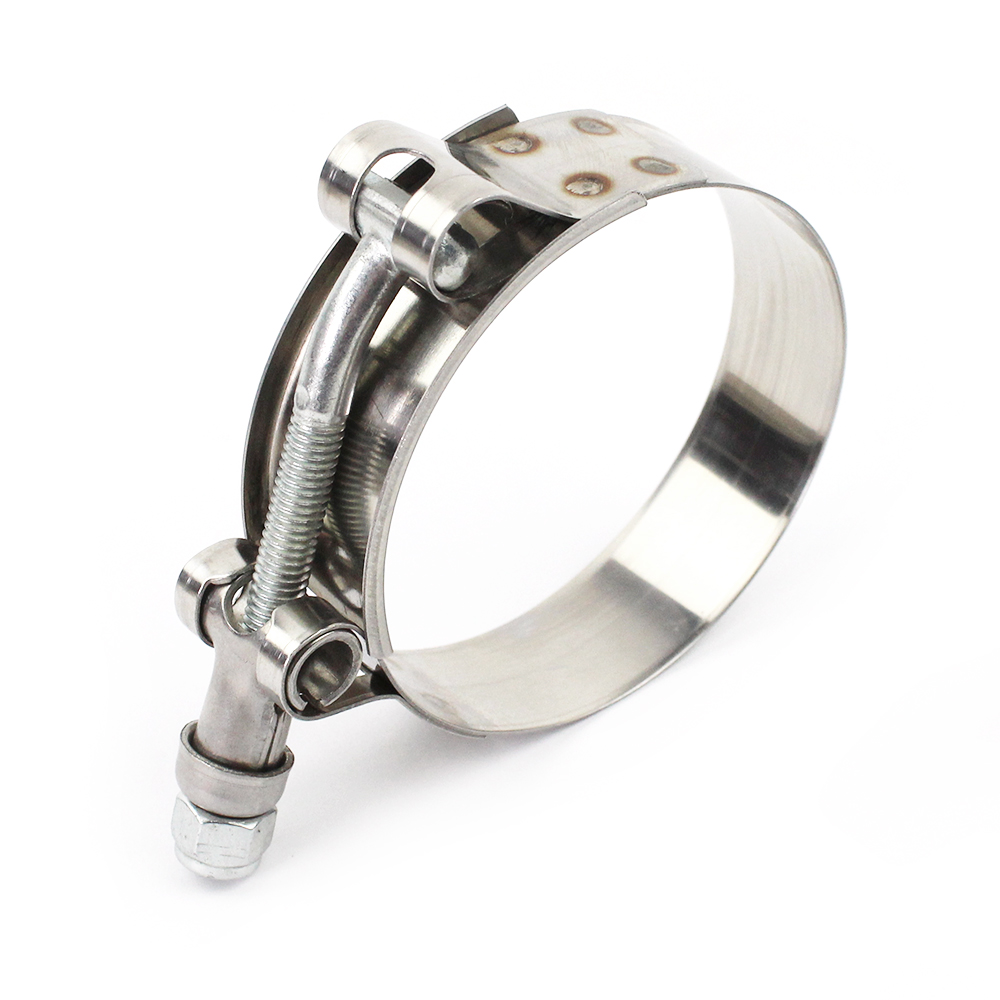

T-bolt design:

The bolt head is T-shaped and can be directly embedded into the profile groove for automatic positioning and locking, used in conjunction with flange nuts;

The material is mainly made of stainless steel SUS304 (corrosion-resistant) or 1045 medium carbon steel (with a strength of 8.8 grade after heat treatment).

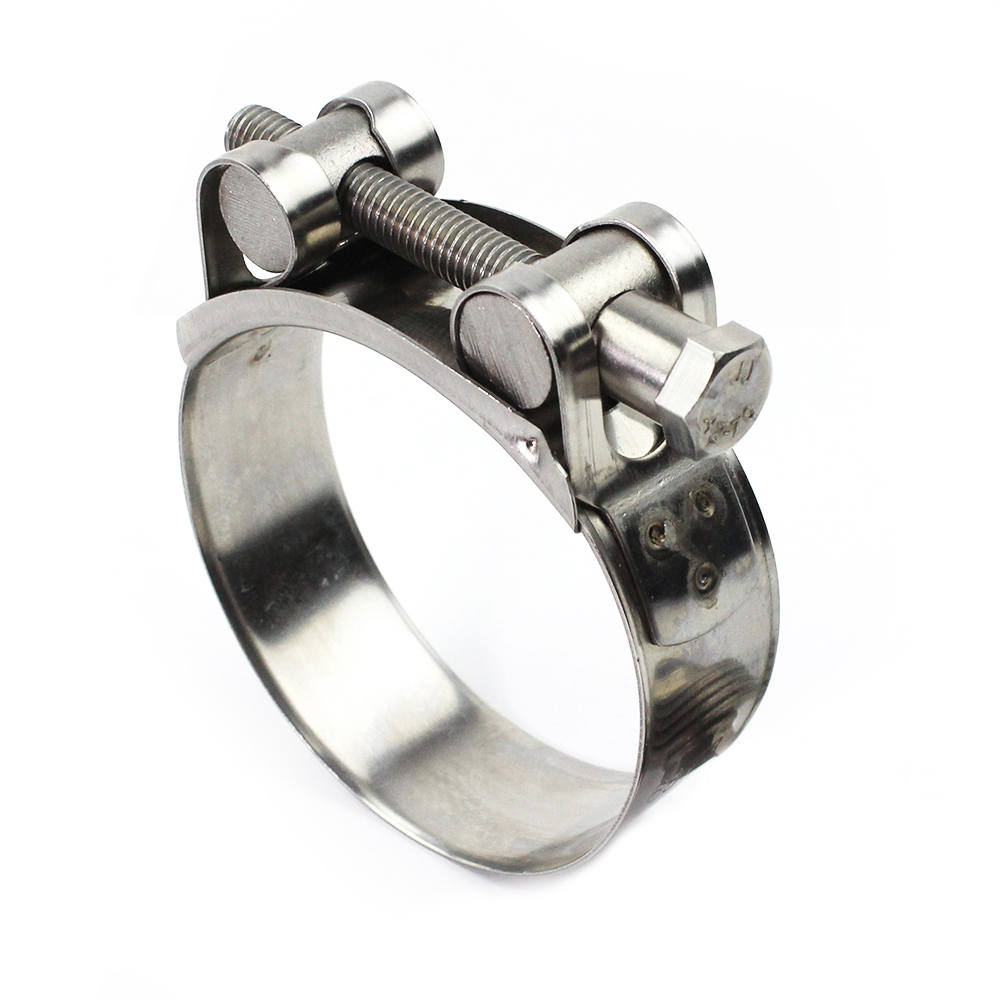

Clamp body:

Heavy duty design, with a bandwidth of 19mm (3/4 inch), a thickness of 0.6mm/0.8mm/1.0mm, and a surface galvanized/nickel plated for rust prevention;

Adopting a three finger locking mechanism to ensure even pressure distribution;

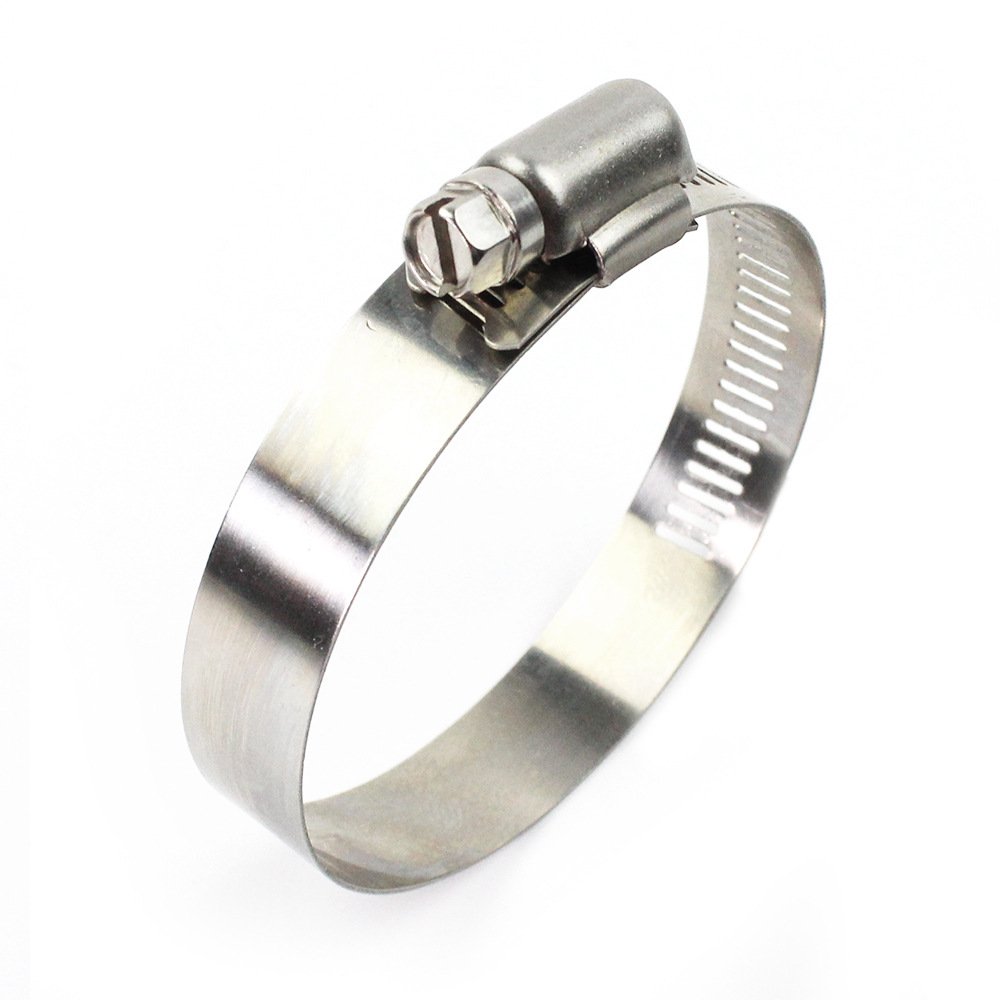

Hose Clamp:

Iron belt body plated with colored zinc, surface treated for rust prevention, spiral clamping structure;

Applicable pipe diameter range 17-252mm.

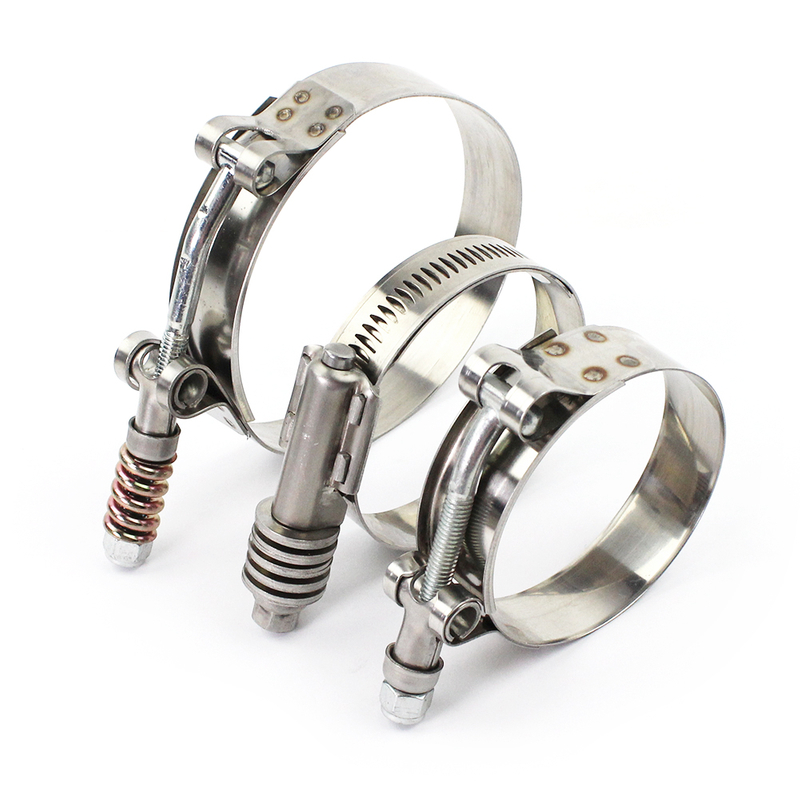

Heavy duty T-bolt hose clamp:

Made of 304 stainless steel material, with a width of 19mm and a thickness of 0.6-1.5mm (graded according to pipe diameter);

Uniform sealing pressure and superior anti vibration performance compared to ordinary throat clamps; ‌

Hose clamp t bolt

PN#	OD Range(mm)	W1x T(mm)	T Tube W2 (mm)	Fasten Torque
PDM3237	32-37	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM3540	35-40	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM3843	38-43	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM4146	41-46	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM4349	43-49	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM4652	46-52	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM5157	51-57	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM5462	54-62	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM5765	57-65	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM6068	60-68	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM6371	63-71	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM6472	64-72	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM6775	67-75	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM7078	70-78	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM7381	73-81	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM7684	76-84	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM8088	80-88	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM8391	83-91	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM8694	86-94	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM8997	89-97	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM95103	95-103	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM102110	102-110	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM108116	108-116	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM110118	110-118	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM114122	114-122	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM121129	121-129	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM127135	127-135	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM133141	133-141	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM140148	140-148	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM146154	146-154	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM152160	152-160	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM159167	159-167	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM165173	165-173	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM171179	171-179	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM178186	178-186	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM184192	184-192	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM191199	191-199	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM197205	197-205	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm
PDM203211	203-211	19x0.6/0.8/1.0 mm	1.2/1.5 mm	9Nm

Item

Material

Band

Housing

Screw

T Bolt Clamp

Hose Clamp

AISI SS301/SS304

Zinc Plated Steel

AISI SS301/SS304

Application:

Heavy duty industrial equipment (large diesel engine turbocharging pipelines, hydraulic oil pipes for construction machinery), marine seawater cooling systems, chemical pipelines, etc;

T Bolt Clamp 304

Installation steps:

Step 1: T-bolt pre positioning

Insert the bolt head horizontally into the profile groove and rotate it 90 ° to clamp the wing against the groove wall (lock it with a "click" sound);

Step 2: Align the sealing ring with the pipeline

The inclined surface of the sealing ring faces the inside of the clamp, and the outer edge protrudes from the port after being inserted into the pipeline;

Step 3: Clamp assembly and initial tightening

Step 4: Graded torque tightening
