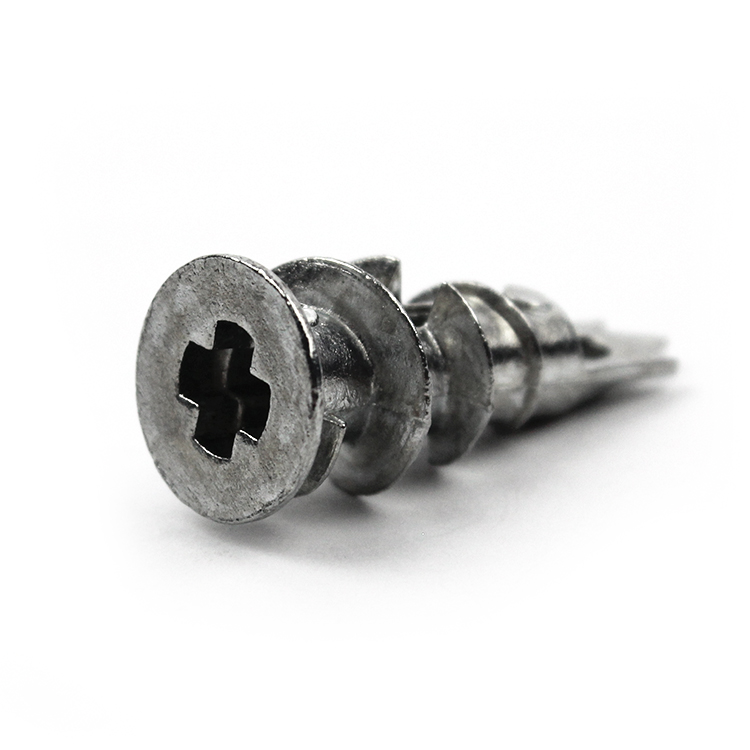

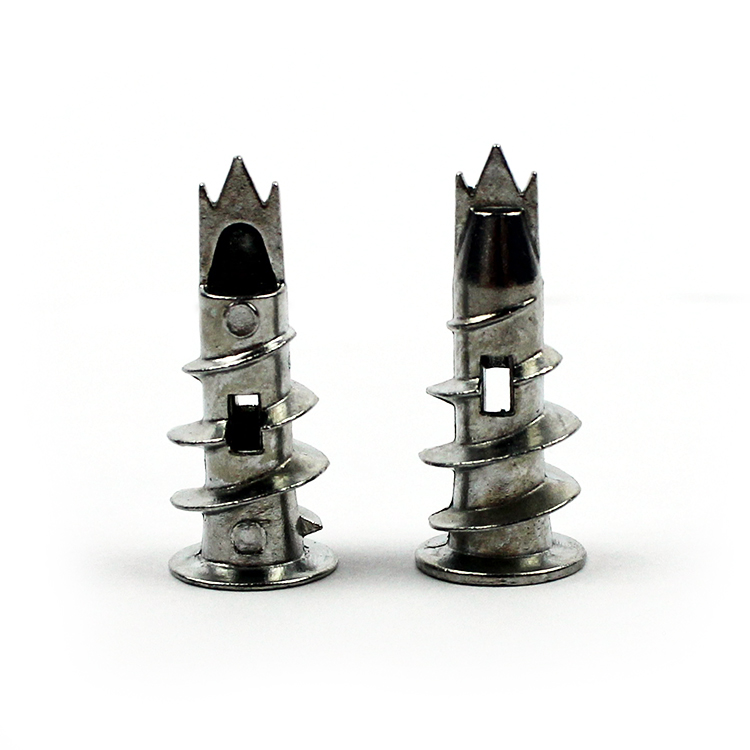

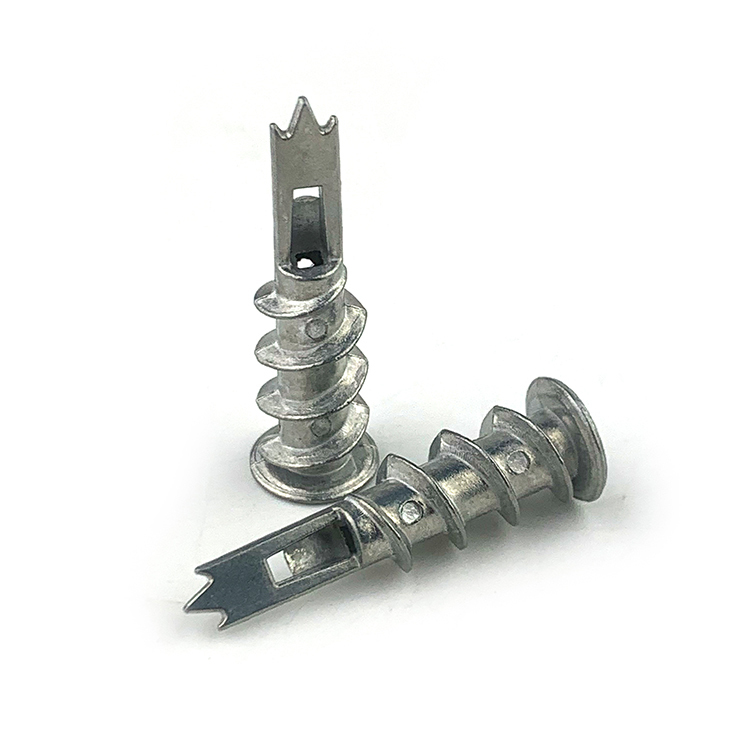

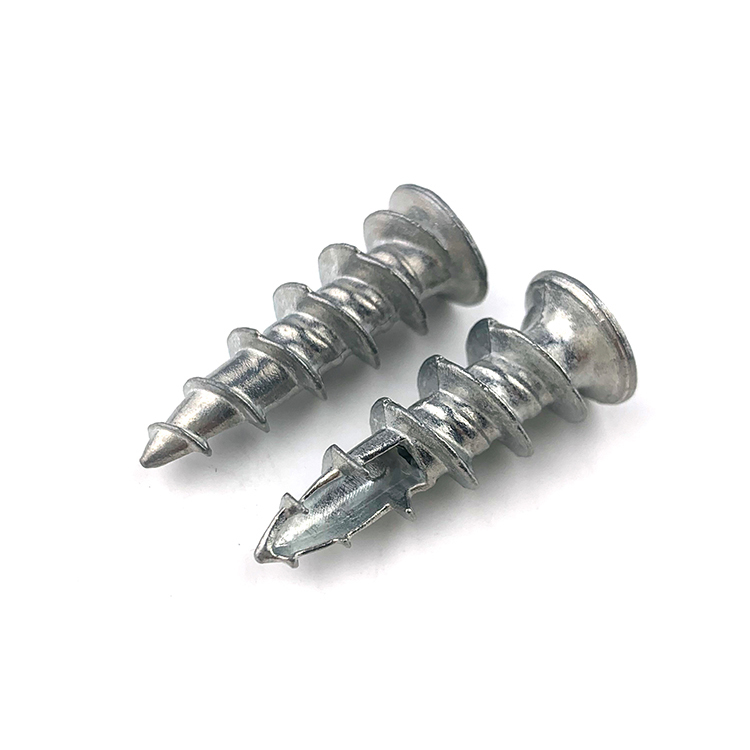

Zinc Alloy Drywall Anchors
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of Metal Drywall Anchors
Zinc Alloy Drywall Anchor Title:
Heavy duty drywall anchors zinc alloy self drill anchor for hollow gypsum board

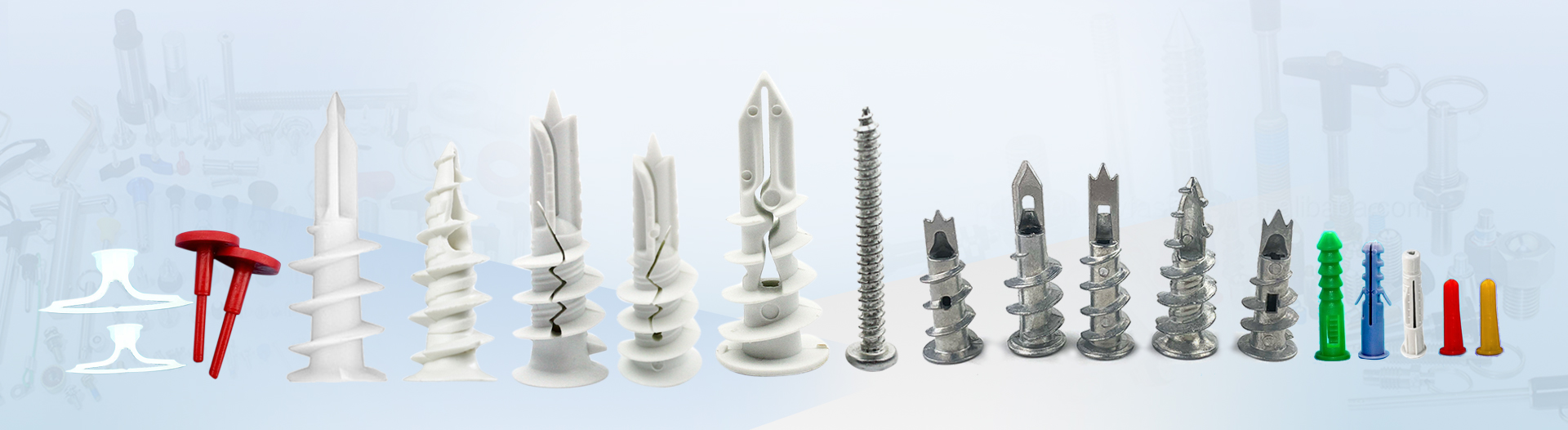

Steel Drywall Anchor:
Zinc Alloy Drill Anchor is compatible with No.6 or No.8 screws and suitable for wall panels with thicknesses ranging from 3/8 "to 1". It has the advantage of quick self drilling installation;
Material: Zinc Alloy

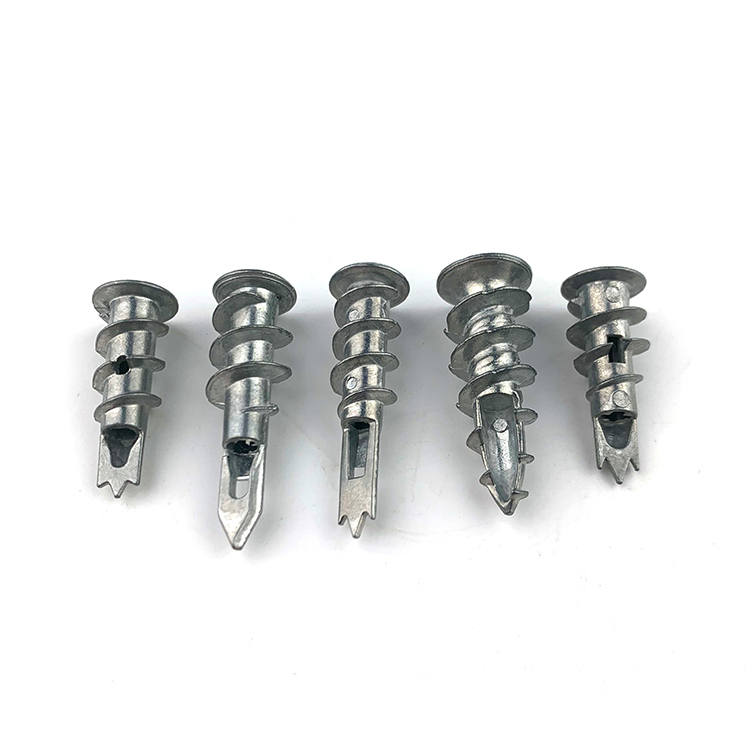

Size:13*40mm,13*42mm,15*38mm,13*31mm,13*32mm
Fit Screw Size:4.2*30mm,3.5*30mm
The key features include:
High corrosion resistance ensures long-term stability in indoor environments.
Simplify the installation process and reduce additional damage to the wall panels.
Widely applicable to hardware fixed scenarios in home decoration and light commercial facilities.

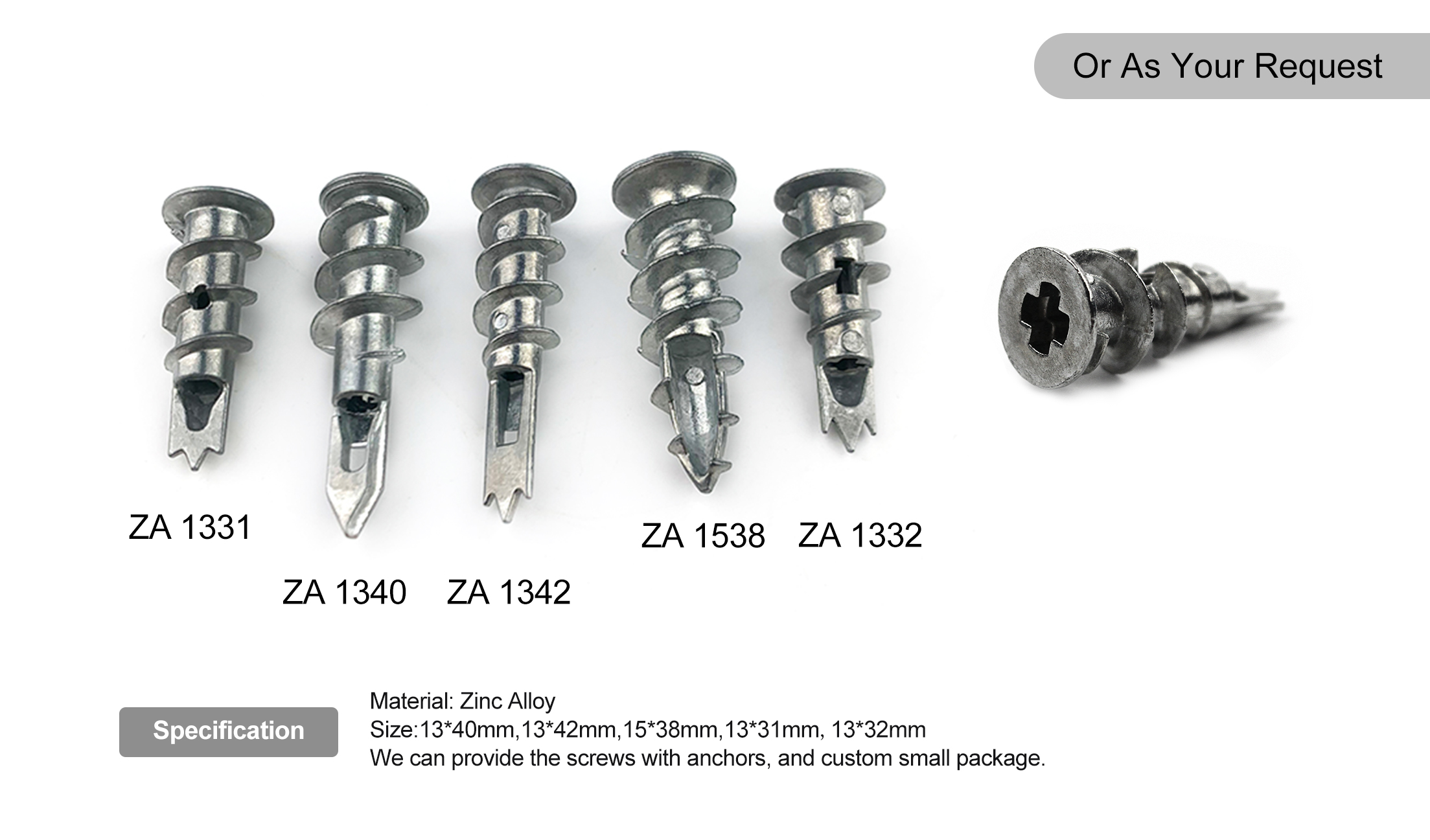

| PN# | Size D x L | Material | N.W g | Fit Screw Size | Pcs/Bag | Pcs/Carton | Carton Size |
| ZA1340 | 13 x 40mm | Zinc Alloy | 5.5 | 4.2 x 30mm | 1000 | 3000 | 48x34x21cm |
| ZA1342 | 13 x 42mm | Zinc Alloy | 5.3 | 4.2 x 30mm | 1000 | 3000 | 48x34x21cm |
| ZA1538 | 15 x 38mm | Zinc Alloy | 7.5 | 4.2 x 30mm | 1000 | 2000 | 48x34x21cm |
| ZA1331 | 13 x 31mm | Zinc Alloy | 4 | 4.2 x 30mm 3.5 x 30mm | 1000 | 3000 | 48x34x21cm |
| ZA1332 | 13 x 32mm | Zinc Alloy | 4.4 | 4.2 x 30mm 3.5 x 30mm | 1000 | 3000 | 48x34x21cm |
Application:
Only used for hollow gypsum board (thickness 3/8 "-1"), suitable for light loads such as lamps, curtain rods, small storage racks, etc;
Zinc alloy anchor bolts have strong corrosion resistance, but cannot be used in humid environments such as bathrooms; Engineering nylon is more suitable for thin walls;

Installation steps:
Select location
Avoid areas with electrical wires or pipelines and use detectors to confirm that there are no obstacles inside the wall. If heavy objects need to be hung, priority should be given to the Stud position; If there are no wall studs, ensure that the anchor bolts are installed in the complete gypsum board area.
Marking and Drilling
Mark the installation points with a pencil to ensure horizontal alignment.
No need for pre drilling: Zinc alloy anchor bolts are designed for self tapping and can be directly screwed into the wall using a screwdriver (some models require specialized installation tools).
Embedded anchor bolt
Align the tip of the anchor bolt vertically with the marked point, and use a screwdriver to rotate clockwise until the anchor bolt base is flush with the wall.
Fixed items
Select the matching screw (recommended size No.6 or No.8), thread it through the fixed object and screw it into the anchor bolt until the screw head is tightly attached to the surface of the object.
Notes:
Loose anchor bolt: The screw is not fully screwed in or the gypsum board is broken inside, and the installation position needs to be changed.
Insufficient load-bearing capacity:
Check if the load exceeds the limit, or use multiple anchor bolts to distribute the force.
