Metric Brass Tip Set Screw
PDM
| Material: | |
|---|---|
| Quantity: | |
Features of Metric Brass Tip Set Screw
Soft Tip Set Screw Title:
Socket nylon tip set screw colorful Brass tip set screw
Round Tip Set Screw Introduction:
Brass tip set screw is a fastener with non-metallic or brass ends, used to provide non-destructive clamping in precision assembly, avoiding scratches or crushing on the surface of fixed components.

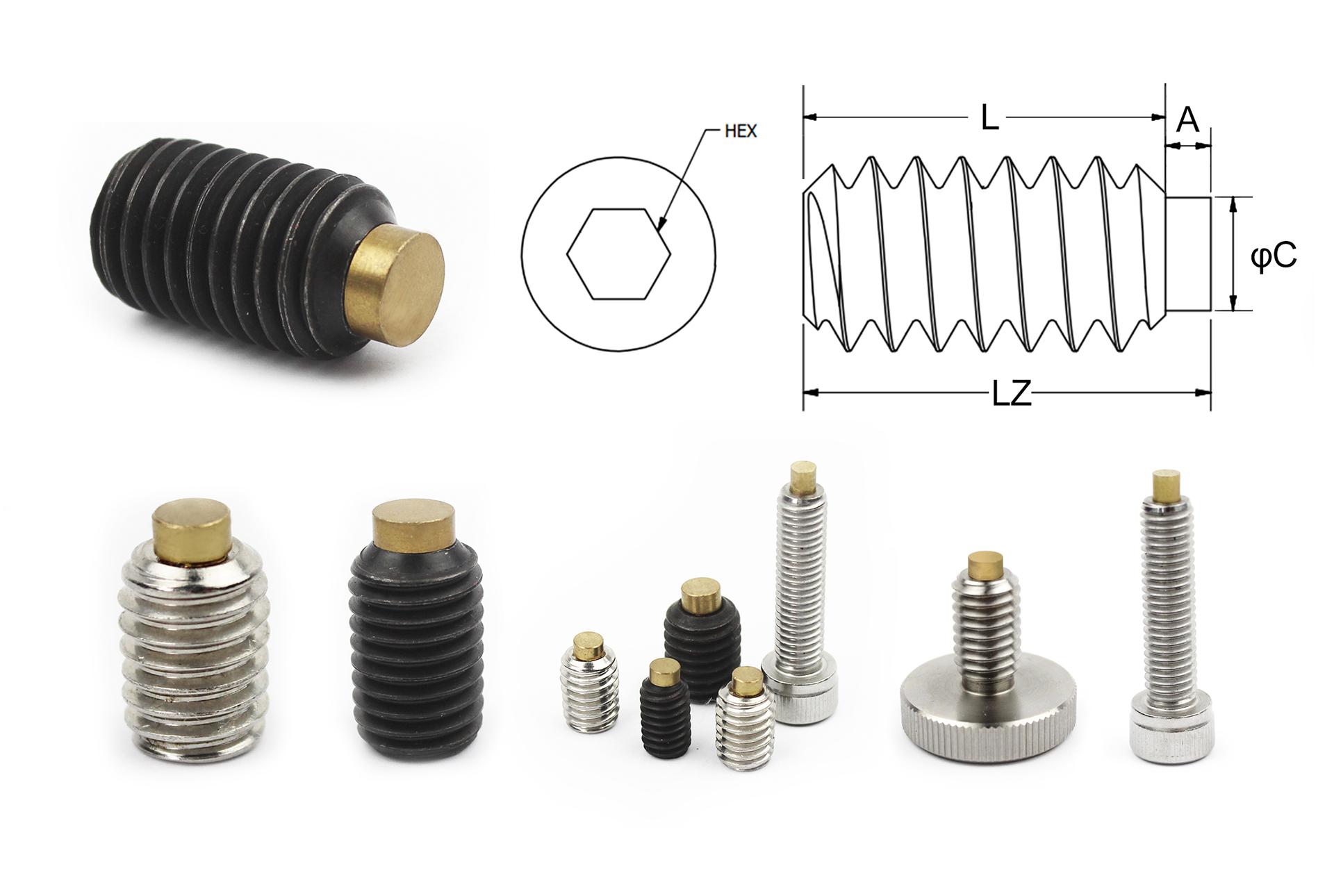

| Thread Size | Screw Length (L) | Tip Length (A) | Tip Dia. (C) | Total Length (LZ) |
| M2 | Standard Length | 0.8/1.0 | 0.8 | LZ=L+A |
| M2.5 | 0.8/1.0 | 0.8 | LZ=L+A | |
| M3 | 1.6/1.7 | 0.8 | LZ=L+A | |
| M4 | 2.0/2.4 | 0.8 | LZ=L+A | |
| M5 | 2.0/2.4 | 0.8 | LZ=L+A | |
| M6 | 3.0/3.3 | 0.8 | LZ=L+A | |
| M8 | 4.8/5.0 | 0.8 | LZ=L+A | |
| M10 | 4.8/5.0 | 0.8 | LZ=L+A | |
| M12 | 6.0/6.4 | 0.8 | LZ=L+A | |
| M14 | 6.0/6.4 | 0.8 | LZ=L+A | |
| M16 | 9.5 | 0.8 | LZ=L+A | |
| M20 | 12.7 | 0.8 | LZ=L+A | |
| M24 | 14.3 | 0.8 | LZ=L+A |
The common types of Soft Tipped Set Screw are as follows:
Set Screw with Nylon and Brass Tip
Socket Cap Head with Nylon and Brass Tip
Spade Thumb Screw with Nylon and Brass Tip
Thread Size:Metric-M2-M24 or according to the product
Inch:#2/#3/#4/1/4inch/5/16inch or according to the product
Screw Material:Carbon Steel (Black Oxide), Stainless Steel (Such as SS304/SS316), Brass or plastic (POM/PP/Nylon)
Tip Material:Plastic,Nylon6/6,Brass,etc
Tip Color:Nylon Tipped Green/Red/Blue,etc
Screw Head Type:Flat Head,Pan Head,Round Head,etc.
Screw Drive Style:Slotted Type,Phillips,Hex Socket,etc.
Finish:Zinc-plated,Nickel-plated,Black Oxide,etc.
Application:
Furniture Assembly, PCB Board Fixation, Precision Instruments, etc.
The Function of Socket Set Screw Brass Tip:
Soft end material reduces wear on the surface of the workpiece;
Some models of anti loosening design integrate Threadlocker or groove structure to enhance seismic and anti loosening performance;
Standard hex socket or slot driver, suitable for conventional tool operation;
Rubber Tipped Set Screws Advatage:
The soft head design has protective contact characteristics, maintaining the appearance and integrity of the workpiece;
High precision clamping, uniform fastening and pressure application, avoiding local deformation;
Brass ends are resistant to oil stains and insulation, while copper alloy ends are conductive and corrosion-resistant;
