Their simple circular cross-section delivers reliable static and dynamic sealing, making them indispensable for preventing fluid/gas leakage and maintaining system stability. This article systematically explains O-ring working principles, material selection, hardness matching, groove design, typical applications, and international standards—providing a professional reference for precision manufacturing and engineering design.

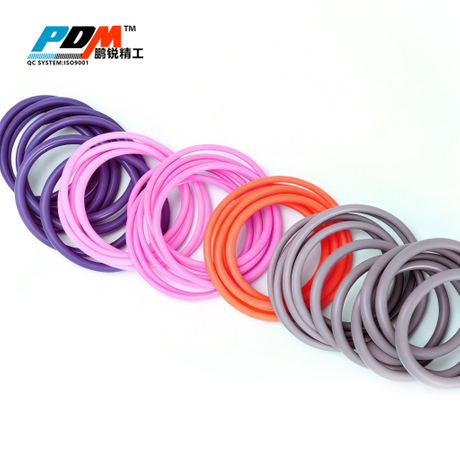

O-rings are elastomeric rings with a circular cross-section, defined by two core dimensions: inner diameter (ID) and cross-sectional diameter (CS). Their sealing mechanism relies on elastic compression deformation and self-tightening effect:
Initial pre-compression: When installed in a groove, the O-ring is compressed (10–30% compression rate) to fill gaps between mating surfaces, forming an initial seal.

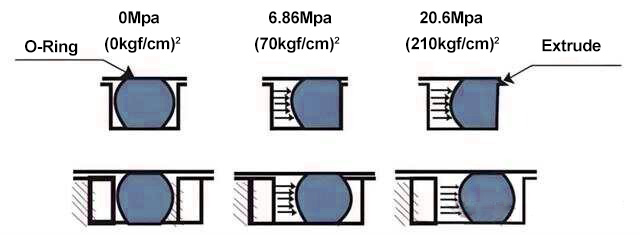

Pressure self-enhancement: Under system pressure, the O-ring is pushed tighter against the sealing surfaces—higher pressure increases contact force, boosting sealing reliability.
This dual mechanism enables O-rings to seal effectively in static (non-moving) and dynamic (reciprocating/rotating) conditions, operating across 0–300MPa pressure, -55°C to 250°C temperature, and speeds ≤15m/s.
Material selection directly determines O-ring performance, lifespan, and adaptability. Four major categories are widely used in precision engineering:
NBR (Nitrile Rubber): -40°C to 100°C; excellent oil resistance (hydraulic/mineral oils), low cost, good elasticity. Standard for hydraulic/pneumatic systems.
EPDM (Ethylene Propylene Diene): -50°C to 150°C; outstanding ozone/steam/weather resistance; ideal for outdoor, water, and high-temperature steam applications.
FKM (Fluoroelastomer/Viton): -20°C to 240°C; exceptional heat, oil, acid, and solvent resistance; preferred for automotive engines, high-pressure hydraulics, and chemical equipment.
HNBR (Hydrogenated Nitrile): -40°C to 150°C; enhanced NBR with superior wear/ozone resistance; suited for heavy-duty dynamic seals.
VMQ (Silicone): -60°C to 200°C; food-grade (FDA), medical compatibility, excellent low-temperature flexibility; used in food processing, pharmaceuticals, and high-temperature static seals.
PU (Polyurethane): -30°C to 80°C; ultra-high wear resistance and pressure capacity (up to 60MPa); ideal for high-pressure dynamic seals (hydraulic cylinders).
FFKM (Perfluoroelastomer): -20°C to 320°C; full chemical resistance; for extreme aerospace/chemical processing conditions.
Hardness (Shore A) directly impacts compression, wear, and pressure resistance:
Low hardness (50–60 Shore A): High elasticity, good gap-filling; for low-pressure static/dynamic seals, rough surfaces, or low temperatures.
Medium hardness (70 Shore A): Balanced elasticity and rigidity; universal for general hydraulic/pneumatic systems (most common).
High hardness (80–90 Shore A): Excellent anti-extrusion, high-pressure stability; for high-pressure static seals (>20MPa) with minimal clearance.
Temperature-Material-Hardness Matching:
Low-temperature (-40°C): NBR (60–70 Shore A) or silicone.
Medium-temperature (-10°C to 120°C): NBR/FKM (70 Shore A).
High-temperature (150–240°C): FKM/HNBR (70–80 Shore A).
Groove geometry is critical—poor design causes leakage, extrusion, or premature wear. Follow GB/T 3452.3 (China), ISO 3601-3 (international), and AS568 (US) standards.
Groove width (W): ~1.3×CS (static); ~1.2×CS (dynamic) to accommodate deformation.
Groove depth (H): CS×(1–compression rate) — static: 15–25% compression; dynamic: 10–20%.
Edge radius (r): 0.1–0.2mm to prevent O-ring damage during installation.
Typical Dimension Example (CS=1.8mm):
Static seal: Width=2.4mm, Depth=1.3mm.
Dynamic seal: Width=2.2mm, Depth=1.4mm.

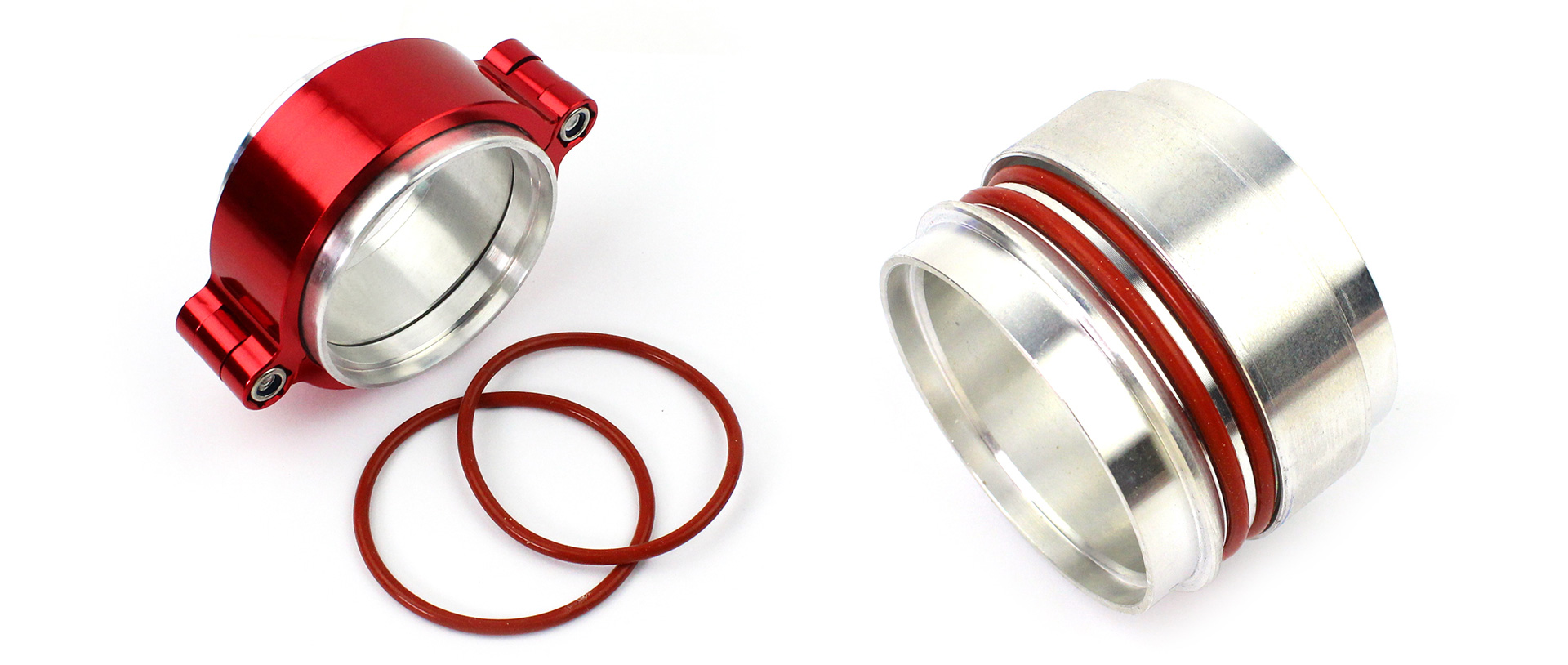

Radial seal (piston/rod): Groove on outer/inner diameter; compression perpendicular to axis.
Axial seal (flange/end cover): Groove on end face; compression parallel to axis.
High pressure (>10MPa): Add backup rings to prevent extrusion.
Surface finish: Ra ≤0.8μm for sealing surfaces to avoid abrasion.
O-rings adapt to diverse precision engineering applications:
Hydraulic cylinders: Piston/rod seals (20–40MPa); NBR/FKM with backup rings.
Pneumatic valves/cylinders: Low-pressure air sealing; NBR/EPDM
Engine seals: Valve covers, oil pans, fuel injectors; FKM/HNBR (150–200°C).
Gearboxes/pumps: Rotating/reciprocating seals; medium-hardness NBR/FKM.
Pipe flanges/valves: Static end-face seals; EPDM (water/steam) or FKM (chemicals).
Instrument housings: Dust/water proofing; silicone/NBR
Food/pharmaceuticals: FDA-grade silicone; hygienic, high-temperature resistance.
Aerospace: FFKM/FKM; extreme temperature/chemical stability
Global standards ensure interchangeability and quality:
GB/T 3452 (China): Hydraulic/pneumatic O-rings—dimensions, materials, grooves.
ISO 3601: International standard—dimensions, material properties, testing.
AS568 (US): Universal size standard—fixed CS diameters (1.78, 2.62, 3.53mm).
JIS B 2401 (Japan): Metric sizes for automotive/industrial equipment.
