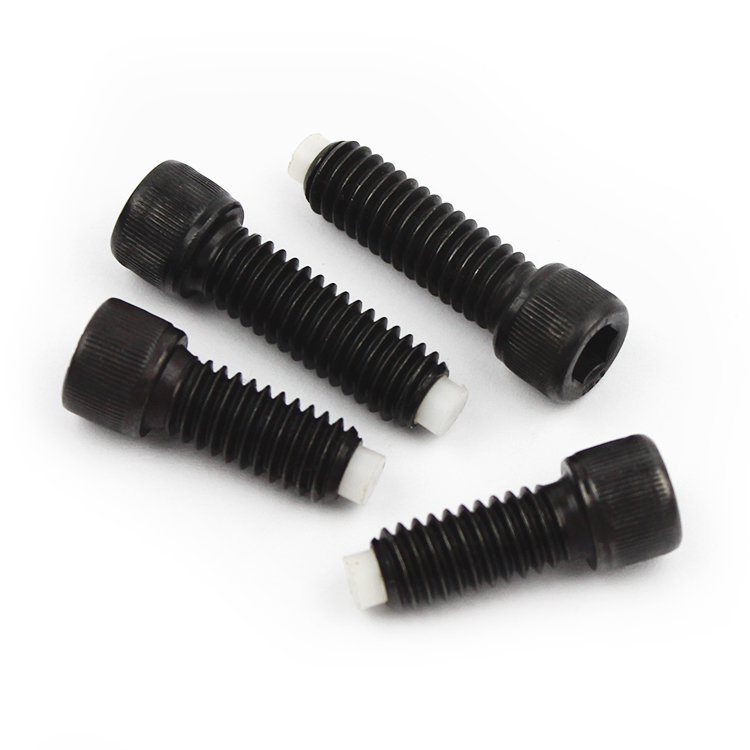

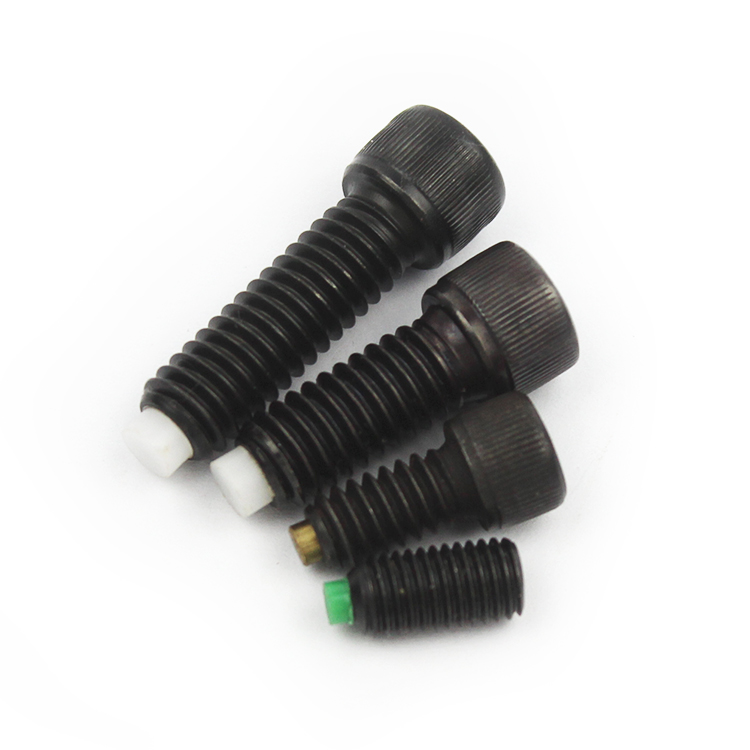

Metric Nylon Tip Socket Cap Screw
PDM
| Material: | |
|---|---|
| Quantity: | |

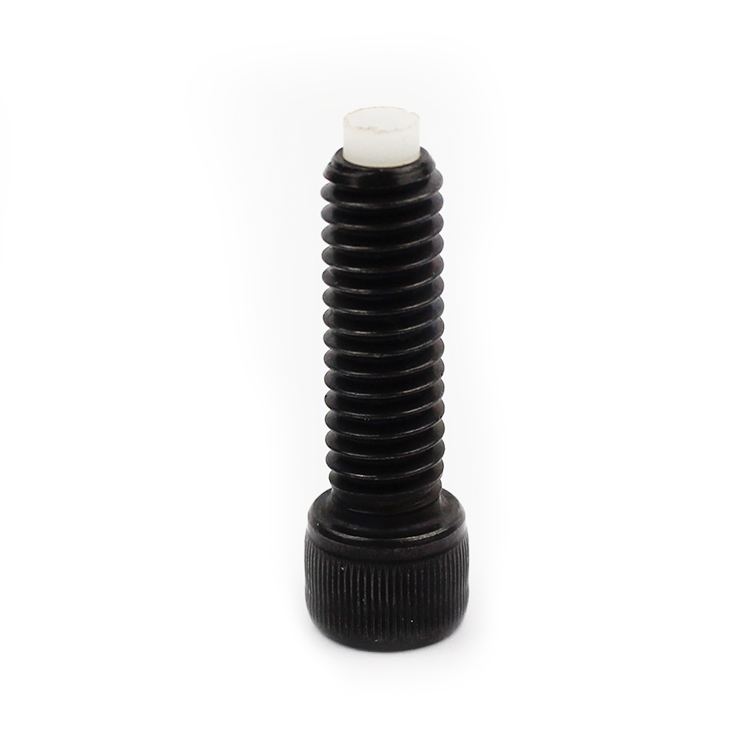

Features of Metric Nylon Tip Socket Cap Screw
Soft Tip Set Screw Title:
Socket nylon tip set screw colorful soft tip set screw
Round Tip Set Screw Introduction:

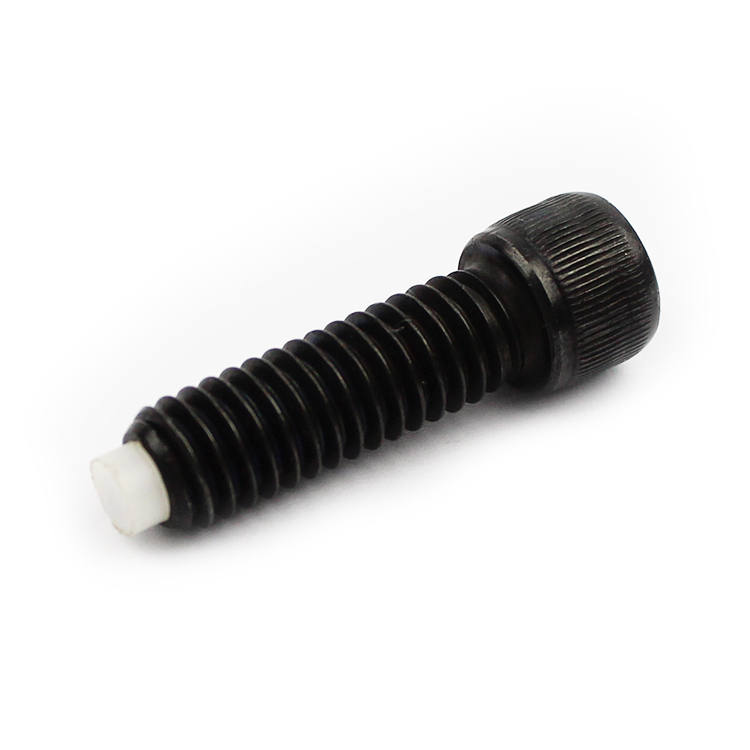

Nylon Tip: The screw head is embedded with nylon material (Nylon PA66) to provide cushioning and anti loosening performance;
Hex Socket: Designed with hexagonal grooves and compatible with standard hex wrenches, it is easy to install in small spaces;

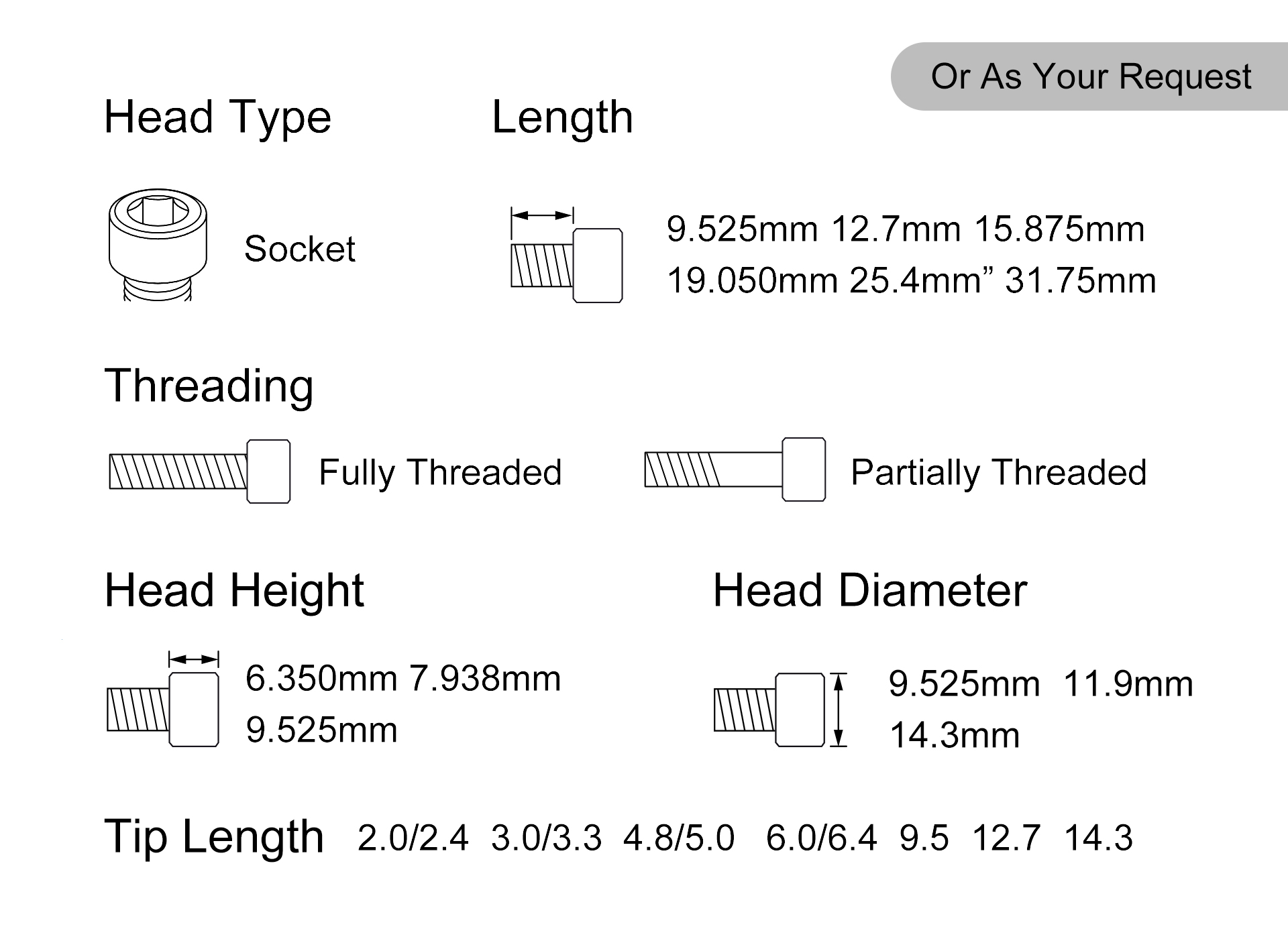

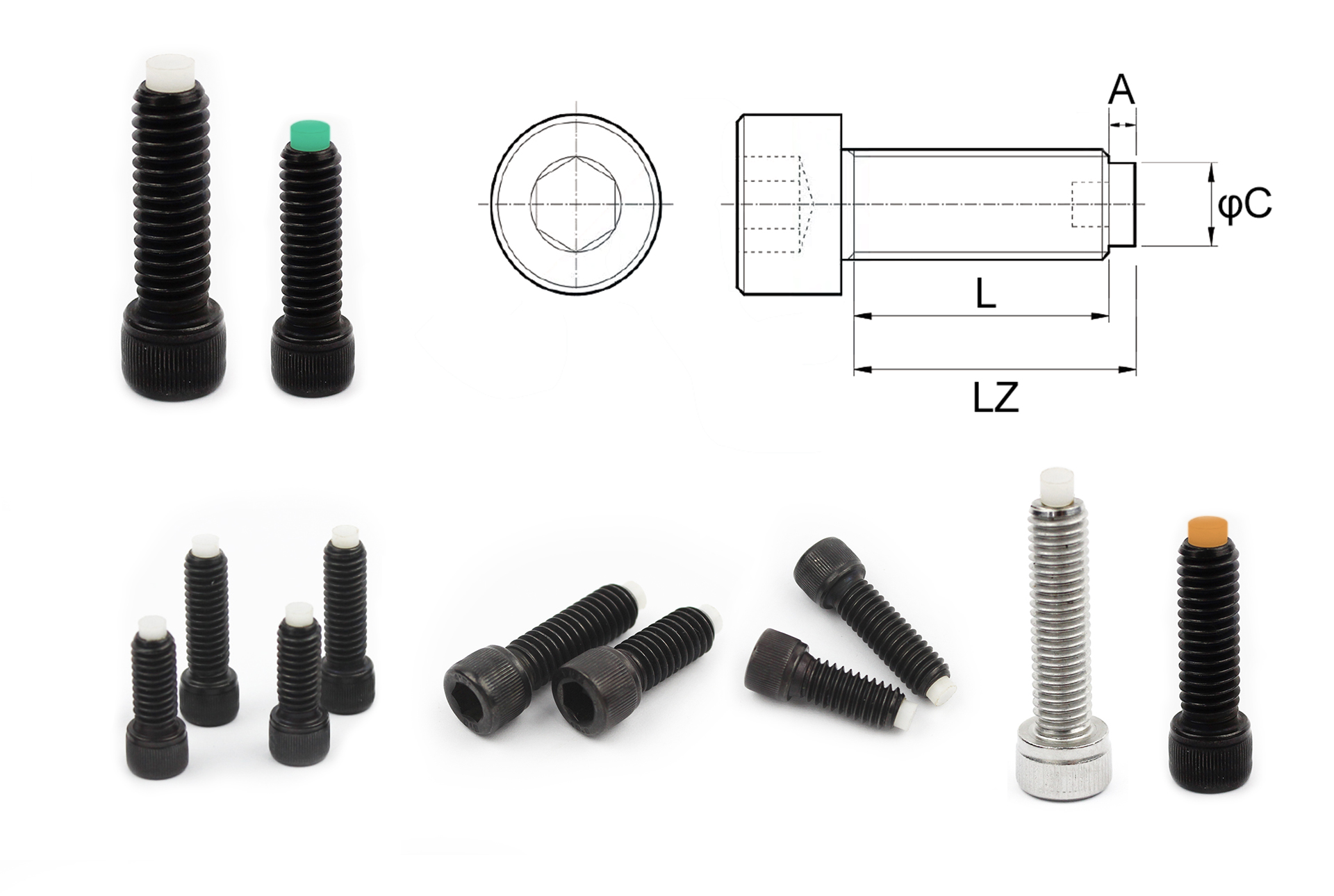

| Thread Size | Screw Length (L) | Tip Length (A) | Tip Dia. (C) | Total Length (LZ) |
| M4 | Standard Length | 2.0/2.4 | 1.2 | LZ=L+A |
| M5 | 2.0/2.4 | 1.2 | LZ=L+A | |
| M6 | 3.0/3.3 | 1.6 | LZ=L+A | |
| M8 | 4.8/5.0 | 2.4 | LZ=L+A | |
| M10 | 4.8/5.0 | 2.4 | LZ=L+A | |
| M12 | 6.0/6.4 | 3.2 | LZ=L+A | |
| M14 | 6.0/6.4 | 3.2 | LZ=L+A | |
| M16 | 9.5 | 3.6 | LZ=L+A | |
| M20 | 12.7 | 4.4 | LZ=L+A | |
| M24 | 14.3 | 6.4 | LZ=L+A |

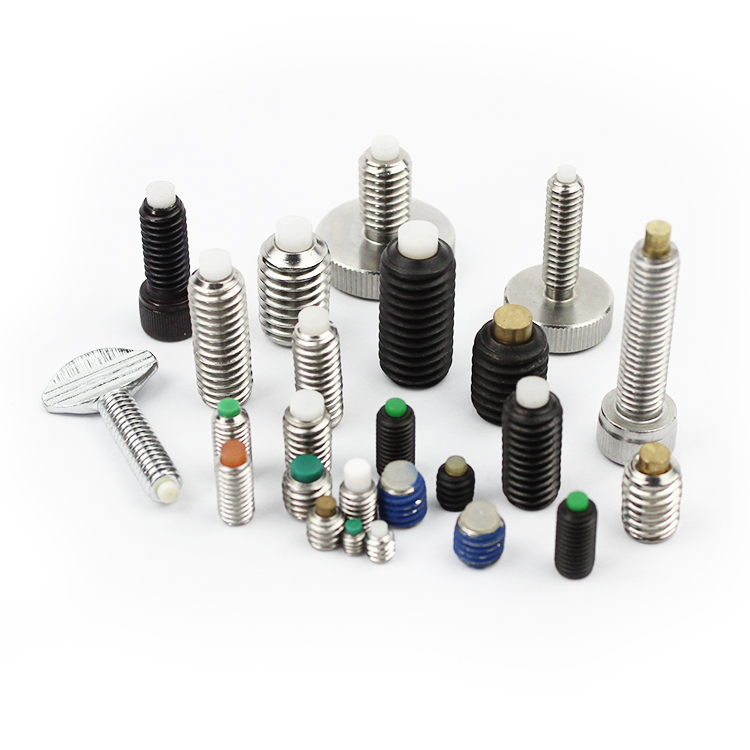

The common types of Soft Tipped Set Screw are as follows:

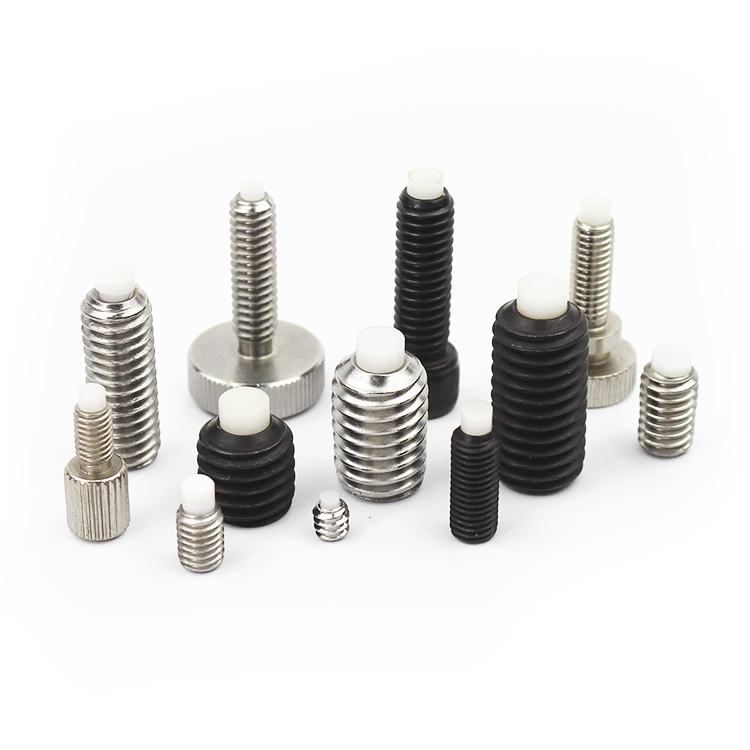

Set Screw with Nylon and Brass Tip
Socket Cap Head with Nylon and Brass Tip
Spade Thumb Screw with Nylon and Brass Tip
Thread Size:Metric-M2-M24 or according to the product
Inch:#2/#3/#4/1/4inch/5/16inch or according to the product
Screw Material:Carbon Steel (Black Oxide), Stainless Steel (Such as SS304/SS316), Brass or plastic (POM/PP/Nylon)
Tip Material:Plastic,Nylon6/6,Brass,etc
Tip Color:Nylon Tipped Green/Red/Blue,etc
Screw Head Type:Flat Head,Pan Head,Round Head,etc.
Screw Drive Style:Slotted Type,Phillips,Hex Socket,etc.
Finish:Zinc-plated,Nickel-plated,Black Oxide,etc.
Application:
Furniture Assembly, PCB Board Fixation, Precision Instruments, etc
The Function of Socket Set Screw Nylon Tip:
Soft end material reduces wear on the surface of the workpiece;
Some models of anti loosening design integrate Threadlocker or groove structure to enhance seismic and anti loosening performance;
Standard hex socket or slot driver, suitable for conventional tool operation;
Rubber Tipped Set Screws Advatage:
The soft head design has protective contact characteristics, maintaining the appearance and integrity of the workpiece;
High precision clamping, uniform fastening and pressure application, avoiding local deformation;
Nylon ends are resistant to oil stains and insulation, while copper alloy ends are conductive and corrosion-resistant;
How to install Nylon Tip Socket Cap Screw correctly?
1. Drill holes on the target material (with a diameter slightly smaller than the screw diameter)
2. Hold the screw and screw it into the pre cut threaded hole until the thread "clamps" and begins to automatically pull in;
3. Use an Allen wrench that matches the size of the screw socket, insert it into the drive slot and rotate it clockwise until the screw head is flush or slightly below the installation surface (countersunk type needs to be fully embedded).
