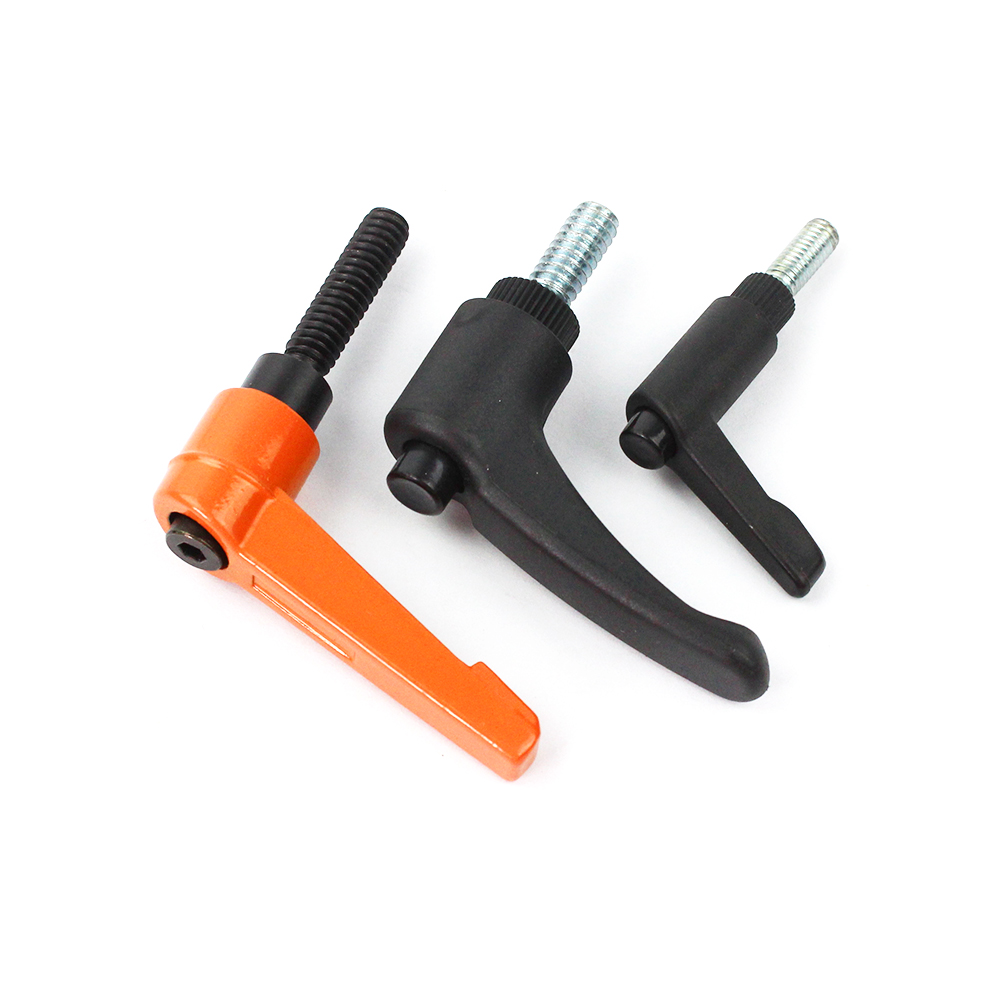

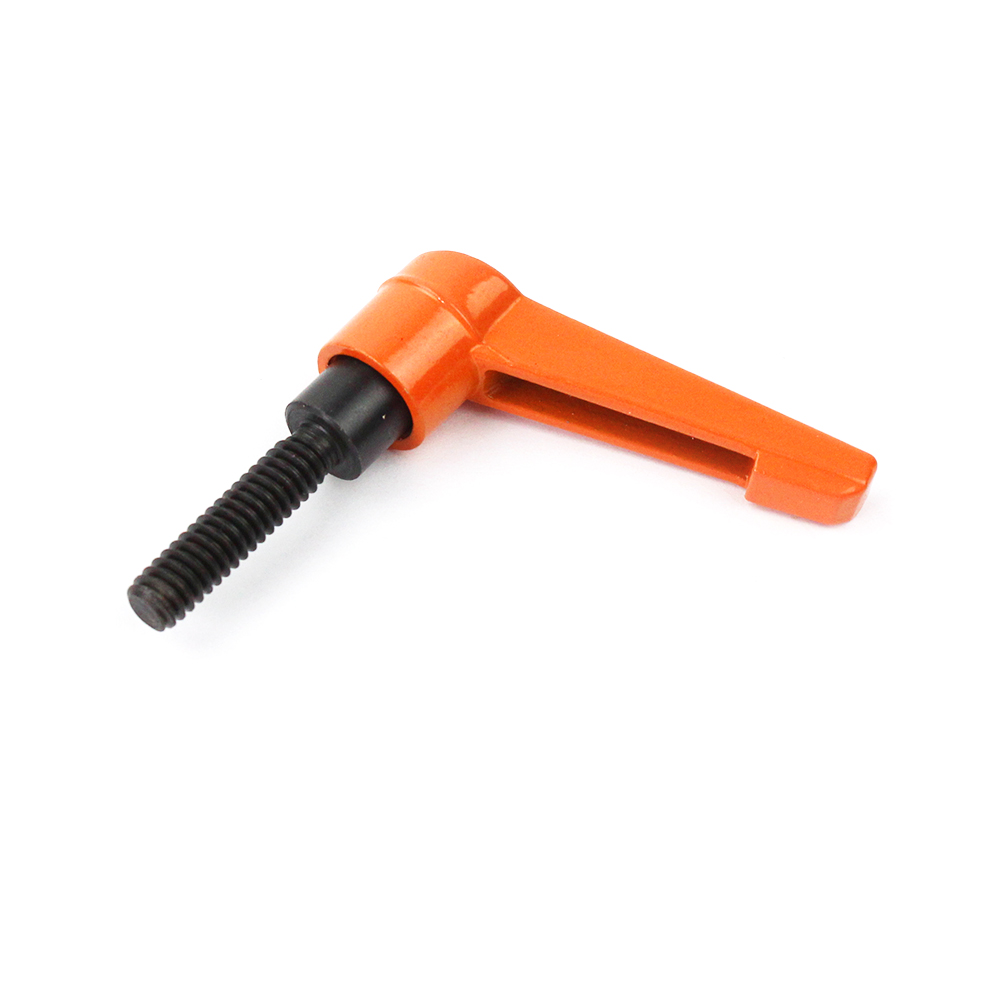

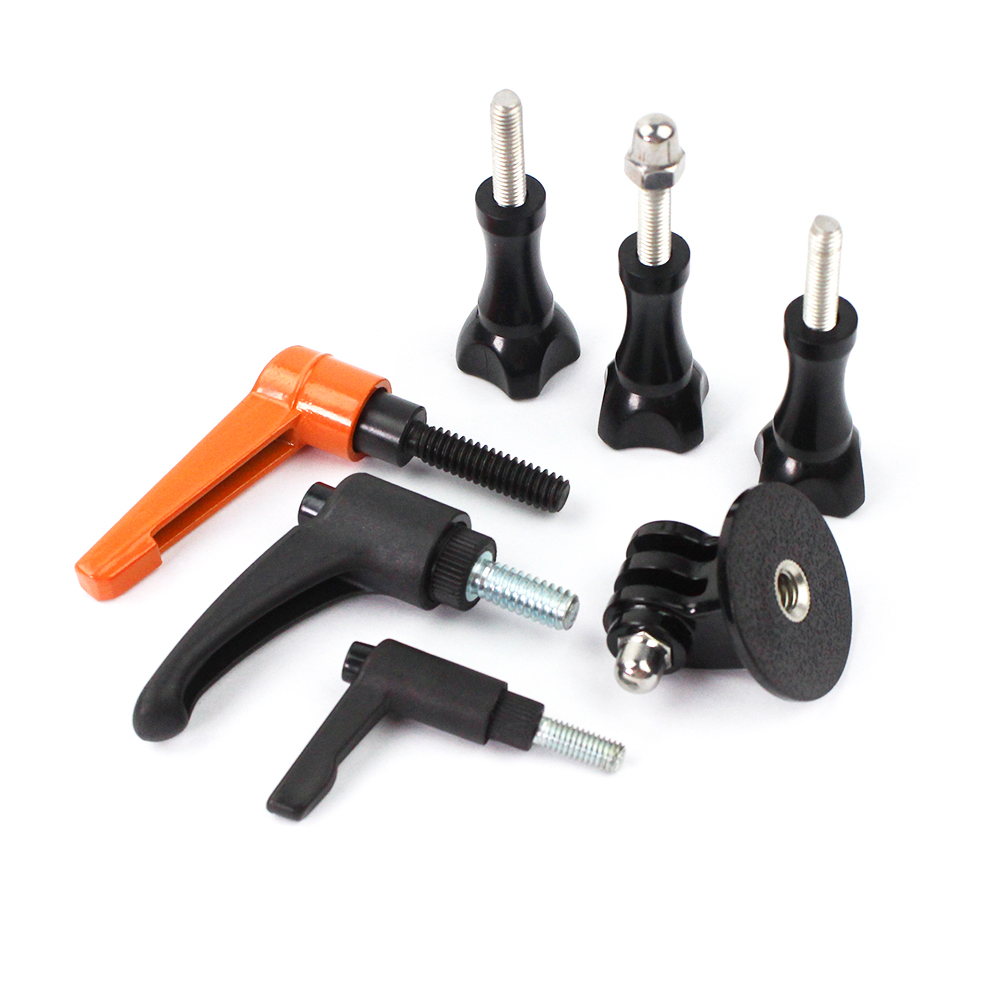

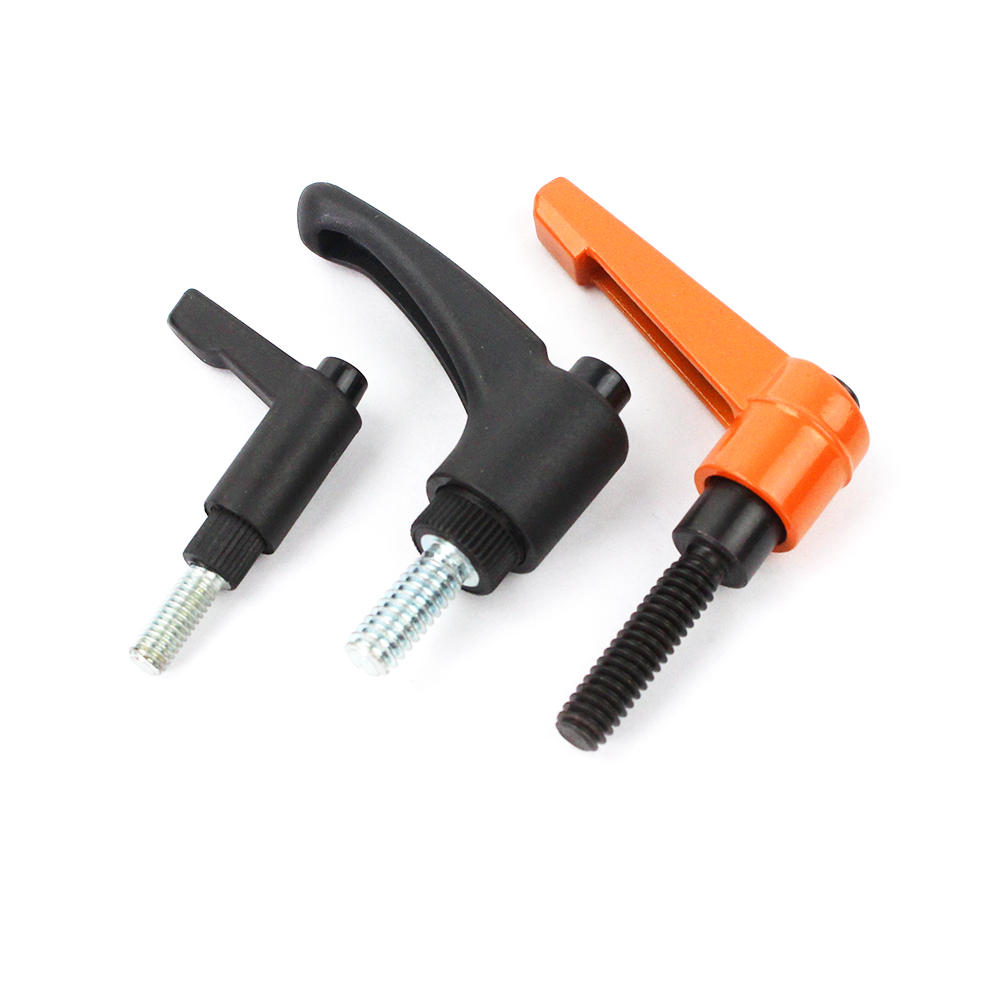

Adjustable Clamping Lever Handle
PDM
| Material: | |
|---|---|
| Quantity: | |
Features of Adjustable Handle Clamps
Adjustable Clamping Lever Handle Title:
High Strength adjustable clamping lever handles m8 m10 die cast zinc adjustable handles with threaded stud
Adjustable Handles with Threaded Hole Introduction:
it is widely used in mechanical equipment, instruments, and other occasions that require manual force application and position adjustment.
Core positioning: A multifunctional manual force application accessory that adapts to complex operating spaces, with the core advantage of "L-shaped labor-saving+adjustable adaptation", balancing strength and ease of operation, and solving the problem of limited operating space for conventional straight handle handles.
L-shaped joystick: designed at a right angle (90 °), with customizable length (conventional 50-200mm); The material options include plastic (insulation, lightweight), stainless steel/carbon steel (high-strength, wear-resistant), and the surface can be treated with electroplating and spray coating (anti-corrosion); The end of the handle rod can be used as a circular or oval grip head, and some parts can be covered with anti slip rubber sleeves.
Connection base (adjustment core): connected to the device body, with built-in adjustment structure, and three core adjustment methods:
Length adjustment (handle rod can be extended and retracted to adapt to different operating distances);
Angle adjustment (the handle can rotate 0-90 ° around the base, suitable for narrow spaces);
Position adjustment (the base can slide on the guide rail to achieve multi position force application); The base connection methods include threaded connection, bolt fixation, and welding (depending on equipment requirements).
L -shaped Handle Materials: Plastic,ABS,SS304/316,Carbon Steel,etc.
Insert Stud Materials: Stainless Steel,Carbon Steel,etc.
Handle length: conventional 50mm-200mm, customizable; Adjustment range: conventional 10mm-50mm (can be expanded as needed).
Handle diameter: conventional 8mm-20mm (suitable for grip feel).
Adjustment angle: 0-90 ° (can be fixed at any angle).
Connection specifications: base thread (M4-M16), bolt fixation (φ 4- φ 16), customizable connection method.
Material combination: plastic handle+metal base, all metal (stainless steel/carbon steel), plastic handle+plastic base (light load scenario).
| Thread Size | H1 | Length of Steel Stud | Length of Stainless Stud |
| M5 | 4 | 10/15/20/25/30/35/40/50 | 15/20/25 |
| M6 | 4 | 10/15/20/25/30/35/40/50 | 10/15/20/25/30/40/50 |
| M8 | 6.5 | 15/20/25/30/35/40/50/60 | 15/20/25/30/40/50/60 |
| M10 | 6.5 | 15/20/25/30/35/40/50/60 | 20/25/30/40/50/60 |
| M10 | 10 | 15/20/25/30/35/40/50/60 | 20/25/30/40/50/60 |
| M10 | 10 | 20/25/30/35/40/50/60 | / |
| M12 | 10 | 20/25/30/35/40/50/60 | 25/30/40/50/60 |
| M12 | 12 | 25/30/35/40/50/60 | / |
| M16 | 12 | 25/30/35/40/50/60 | 30/40/50/60 |
Manufacturing Process & Customization）Color customization: The color knob can be matched with Pantone color codes, and the L-shaped handle can be customized with surface colors (spray painted, electroplated).
Size customization: Customize knob diameter, height, handle length, adjustment range, and connection specifications based on customer drawings.
Structural customization: The knob can be customized with grip patterns, indicator lines, and logo embedding; The L-shaped handle can be customized with adjustable methods and connection structures.
Material customization: Customize material combinations based on customer scenario requirements (such as high-strength metal handles, high-temperature resistant plastic knobs).
Packaging customization: Neutral packaging and customer brand packaging can be customized to meet export needs;
Adjustable Clamping Lever Handle Application:
Mechanical equipment: machine tools, milling machines, drilling machines (adjusting worktable position, locking and fixing).
Automation equipment: assembly line, conveyor (speed adjustment, positioning components).
Outdoor equipment: construction machinery, agricultural machinery (suitable for operating in narrow spaces, resistant to outdoor environments).
Adjustable Clamp Lever Black Handle Advantages & Features
L-shaped design, labor-saving and efficient: 90 ° right angle structure, ergonomic, more uniform force application;
Adjustable and adaptable, flexible and practical: supports length, angle, and position adjustment;
Strong environmental resistance: Metal models can be treated with electroplating, spray painting, and rust prevention, while plastic models are acid and alkali resistant, suitable for complex environments such as humidity, outdoor environments, and chemical industries, and are not easily corroded or damaged.
Strong customization: The handle length, diameter, adjustment range, and connection specifications can be customized to meet the installation and operation needs of different devices.
Clamping Lever Machinery Adjustable Handle-FAQ
Will the color of the color knob fade?
Using an integrated injection molding coloring process instead of surface spraying, the color penetrates the interior of the material and is not easily faded or peeled off under normal use. It can pass the wear resistance test.
Can the adjustment range of the 02-L adjustable handle be customized?
Sure, the regular adjustment range is 10mm-50mm, which can be expanded or reduced according to customer needs. The angle adjustment can be customized with a fixed gear.
Do the two products support insulation requirements?
Support, default plastic material (insulation) for color knobs; The L-shaped handle can be selected from plastic handle models, with insulation that meets electronic device safety standards.
What is the minimum order quantity (MOQ) for 04?
MOQ for regular styles is 1000, MOQ for customized styles is 5000, and small batch trial orders (100-500) can be negotiated.
Do you provide samples?
Support, regular samples are free (1-5 pieces), customized samples require a small mold fee, which can be deducted for bulk orders.
