How Do The Mechanics of Push‑Button Quick‑Release Ball Pin Lock Fasteners Function?

In modern manufacturing, aerospace and automated robotics workshops, repeated assembly and fixture change over demand fastening hardware that trades away slow wrenches and threaded bolts. That is where ball lock quick release pin 12mm, also widely referenced as a quick release ball pin lock, become indispensable workhorses on production floors. Among the most popular variants, push button ball lock pins deliver positive, tool free locking with just one handed operation. This article unpacks their inner workings, available configurations like t handle ball lock pins and heavy duty ball lock pins, material performance and real world selection guidance.

Core Takeaways:

Ball lock pin quick release pin utilize a positive locking mechanism (detent balls) offering superior safety over passive standard pins.

· Understanding how quick release ball locking pin work reveals their necessity for high-frequency operations and vibration-heavy environments.

· Stainless steel ball lock pins are mandatory for marine, aerospace, and corrosive settings to prevent catastrophic failure.

· Push-button actuation ensures instantaneous engagement and disengagement, drastically reducing downtime.

The Engineering Dilemma: Speed vs. Secure Fastening

Every minute spent wrestling with traditional fasteners drains productivity. Standard cotter pins or wire lock pins rely on manual bending and tension. They function passively, holding parts together only under static conditions. However, they lack active locking mechanisms. Under heavy vibration, they loosen or drop, causing foreign object debris (FOD) and safety hazards.

For reliable positive‑locking performance, modern manufacturing turns to the quick release ball pin lock. As a core member of this product family, the Spring Loaded Ball Lock Pin cannot be removed without intentional button actuation. This design effectively eliminates accidental dislodging, ensuring your heavy equipment stays together reliably, even under sudden shear force and dynamic motion.

Technical Breakdown: How Do Quick Release Spring Pin Ball Work?

Understanding the internal architecture helps you specify the correct fastener. The core question—how do ball locking release pins work—lies in their precision spindle and detent balls.

Standard Safety Pins: Passive Limitations

A basic safety pin relies on simple physics. A wire loop secures around a shaft via tension or bending. Their strength lies in extreme simplicity and low cost. However, vulnerabilities appear in harsh environments. Operators repeatedly bend and unbend these wires, causing metal fatigue. In busy months, this slow process severely impacts production line efficiency.

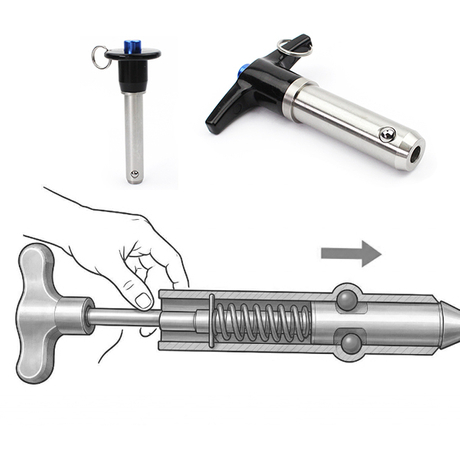

The Push Button Ball Lock Pins Architecture

Engineered pins operate differently inside. Push-button actuation depresses the internal spindle. This precise action retracts the small detent balls located near the tip. You can then insert or remove the shaft smoothly. Upon releasing the button, the spindle springs back instantly, forcing the balls outward. This locks the pin securely against the receiver wall.

The strengths are undeniable for complex assemblies. You get instantaneous engagement. They provide a fail-safe positive lock every single time. A stainless steel ball lock pin thrives here, resisting corrosion while delivering thousands of cycles safely without wear.

Locked Default State

When no force presses the button, the built‑in coil spring holds the plunger toward the handle end. The wider‑diameter body section of the plunger sits directly behind locking balls, forcing 2‑4 high‑hardness steel balls to push outward through radial holes on the pin shaft. These protruding balls bite into the wall of the mating receiver hole.

In this native locked condition, you cannot pull the pin free from assembled workpieces. Any outward pulling force transfers through the steel balls onto the robust plunger structure, creating mechanical resistance against accidental dislodging.

Unlocking By Button Depression

To disengage the lock, users depress the integrated button on the pin’s handle. This action compresses the internal spring and shifts the plunger forward toward the pin tip.

A narrow, precision‑machined recess (ball drop groove) on the plunger aligns exactly with locking ball positions. This carved‑out clearance space removes the outward support behind each steel ball.

Ball Retraction & Free Insert‑Remove

Freed from the wide plunger shoulder, locking balls slide inward until they sit flush or fully inside the outer diameter of pin shank. With all balls retracted, the outer shaft size clears the receiver opening completely. Operators may slide the entire fastener in or out of aligned assembly holes with zero hand‑tools — this is the core advantage of ball lock pins quick release pins.

Re‑Engaging The Positive Lock

Once you release finger pressure from the push button, compressed coil spring rebounds and drives the plunger back to its home position. The thick plunger shoulder once more cams steel balls outward through shaft openings.

If the shank sits within a correctly aligned receiver hole, balls snap outward with a tangible click. Operators gain both tactile and audible confirmation that the quick release ball pin lock has fully re‑locked. If holes are misaligned during release, balls rest against receiver inner walls and will pop out automatically once rotational adjustment brings holes into alignment.

Major Operating Categories of Quick Release Spring Ball Lock Pin

Engineers can select ball‑lock fasteners based on actuation logic, with three primary families covering light‑duty tooling up to extreme lifting applications.

Single‑Acting Stainless Steel Quick Release Pins

Single‑acting ball lock pin designs incorporate just one ball‑recess cutout machined into the central spindle. Retraction of the locking balls can only happen when an operator actuates the push‑button on the handle. Upon insertion into matching receiver bores, the locking balls spring outward of their own accord to complete engagement without extra manual input.

This configuration shines for moderate‑load jigs and fixtures that go through frequent part‑swap cycles. It supports convenient single‑hand operation: users only need to activate the release mechanism to pull out the pin. No separate manual locking action is required after installation.

Double‑Acting Ball Lock Pins Stainless Steel 17-4 SUS 630

For double‑acting models, the central spindle carries two separate ball‑recess cutouts positioned on opposite sides of the locking balls. This setup allows the spindle to slide in either axial direction, generating enough clearance for the steel balls to draw inward.

A key practical advantage emerges under heavy lateral shear loading. Operators can trigger unlocking either by pushing or pulling the handle, rather than struggling to counteract existing load forces during disassembly. This characteristic makes double‑acting ball lock pins a preferred choice for safety‑focused assemblies and high‑load tooling setups, helping to mitigate risks brought on by unintended locking or accidental release.

Heavy Duty Ball Lock Pins (Lifting‑Grade Ball‑Lock Pins)

Built for hoisting and high‑tension load transfer, heavy duty ball lock pins adopt one‑piece reinforced bodies and multi‑ball locking layouts. They maintain positive locking status until deliberate button depression.

Unlike standard‑size pins, these lifting‑optimized fasteners support secure attachment for moving heavy components without complex rigging setups, widely deployed in material‑handling and heavy equipment workshops.

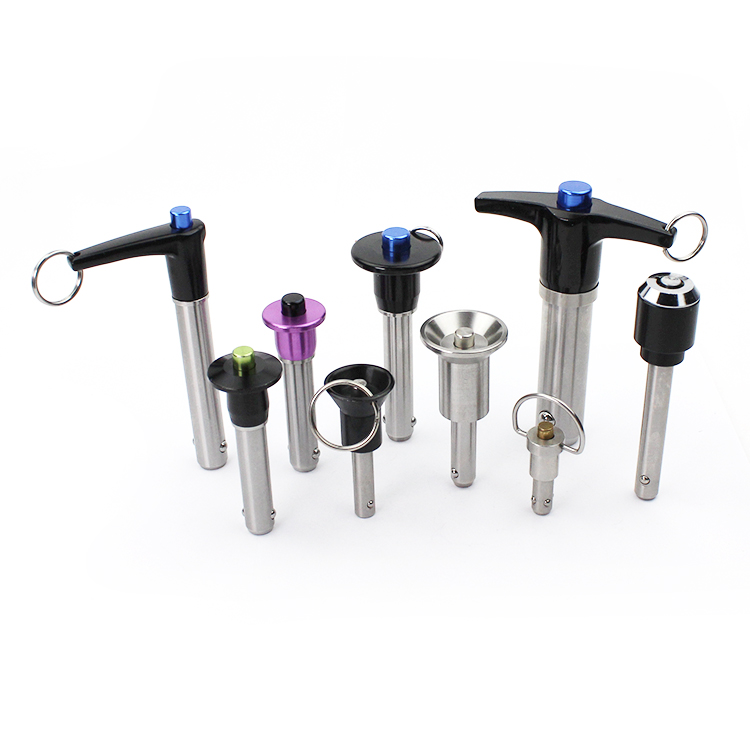

Handle Style Selection: T Handle Ball Lock Pins, Ring and L‑Handle Options

Handle geometry directly impacts ergonomics, installation‑space requirements and pulling leverage. t handle ball lock pins represent the most widely‑specified option, while ring‑style and L‑handle designs fill niche space‑constrained scenarios.

T handle quick release pin：The most common quick‑release pin handle solution. Its cross‑bar grip creates large contact surface and superior mechanical leverage. When pins bind under side‑load friction, technicians can apply strong pulling force comfortably. This makes t handle ball lock pins the first pick for production‑line fixtures requiring frequent disassembly.

Ring‑style handles：Compact circular pull‑ring occupies minimal footprint. It fits tight‑clearance installations where bulky T‑shaped structures cannot fit. Many ring‑handle pins include a safety lanyard loop to prevent lost parts.

L‑shaped handles：A middle‑ground compromise. The angled short grip delivers usable leverage while taking up less space than T‑handle designs, suited for semi‑confined assembly positions.

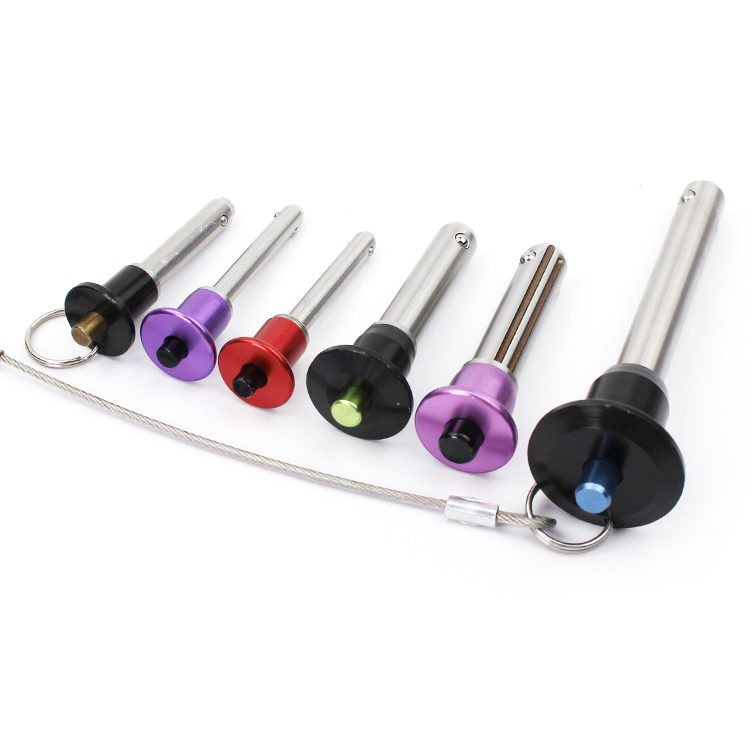

Material Choices for Stainless Steel 304 Quick Release Ball Lock Pins

Manufacturers build ball‑lock release pins from two dominant material families, matched against working‑environment stress and corrosion risks.

Custom Grip Length Ball Lock Pins: Excellent corrosion resistance against moisture, salt spray and mild chemicals. Marine hardware, food‑processing stations and medical equipment assemblies frequently select stainless‑steel grades to sustain long‑term service under damp conditions.

Alloy‑steel ball lock pins: Offers superior tensile strength and shear performance for heavy‑duty jobs. To counter rust risk, alloy‑steel pins often receive trivalent zinc passivate electroplating, complying with RoHS and REACH regulations. Zinc plating works both as physical barrier and sacrificial anode: even surface scratches will still protect underlying steel via galvanic effect.

Core Benefits of Ball‑Lock Quick‑Release Fasteners

Fail‑Safe Positive Locking: Locked is the default passive state. Even if buttons face contamination or minor wear, spring force defaults to ball‑extended locked position; the fastener will not spontaneously unlock.

Instant Engagement Feedback: Audible click plus tactile button movement lets operators verify full locking without visual inspection, lowering human‑error risk on production lines.

High Contamination Tolerance: Mechanism contains a small set of moving components: button, spring, plunger and hardened balls. Fine‑threaded parts are absent, so metal chips and cutting coolant from factory floors rarely jam operation.

Tool‑free, one‑hand workflow: Eliminates torque‑wrench operations and drastically cuts fixture change‑over cycle time.

Real‑World Industrial Use‑Cases

Aerospace tooling jigs: precision positioning of aircraft sub‑components;

Automotive production lines: fast fixture swap for different‑model workpieces;

Robotics & automation equipment: modular end‑effector replacement;

Heavy‑load lifting rigs: heavy duty ball lock pins for safe component hoisting;

Marine and food‑grade machinery: corrosion‑resistant stainless‑steel push‑button variants;

Workshop‑level tooling stations: mass adoption of t handle ball lock pins for repetitive manual handling.

Tips To Select The Right Ball Locking Release Pin

Match load rating: Choose Detent Ball Lock Pins for lifting or high‑shear applications; use standard‑grade pins for light‑to‑medium fixture positioning.

Select proper handle: Prefer handle quick release ball lock pin when high pulling leverage is required; ring‑handle for tight installation envelopes; L‑handle for intermediate‑space scenarios.

Pick actuation type: Single‑acting for simple, frequent swap tasks; double‑acting for safety‑critical assemblies with large side‑loads.

Choose material by environment: Stainless‑steel for humid/corrosive settings; coated alloy‑steel for dry high‑strength industrial environments.

Confirm receiver‑hole dimension match: Verify hole size and edge distance for mating parts to ensure locking balls achieve full engagement.

Notes:

Fighting FOD Hazards: How Lanyard‑Equipped Pins Prevent Lost Hardware

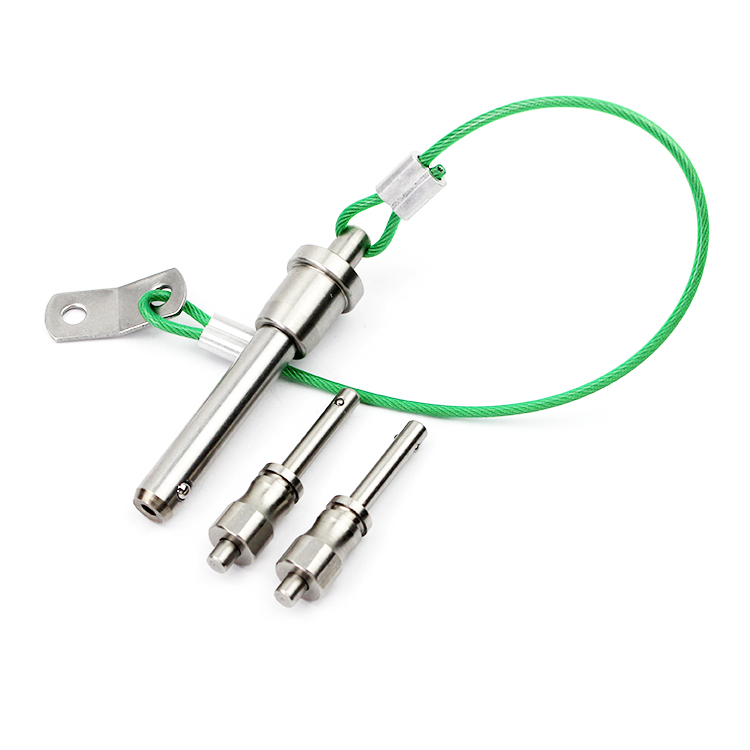

Heavy machinery sectors mandate strict compliance. Dropped fasteners cause severe damage. Incorporating a quick release ball lock pin with lanyard keeps the fastener attached securely. The lanyard tethers the pin to the main equipment frame permanently. Field technicians never lose a critical pin in tall grass or dark corners, preventing scratches and safety risks.

Real‑World Field Challenges: Risks, Failure Modes and Practical Implementation

Deploying new hardware reveals practical field challenges. Prepare your team for real‑world mechanical realities.

Vibration‑Induced Loosening: Why Positive‑Lock Pins Stay Secure

Standard pins frequently vibrate loose in dynamic assemblies. Automated lathes and spinning lift chucks create constant tension. Ball locking release pins stay engaged regardless of frequency. The detent balls physically block accidental extraction. The internal spring keeps the spindle locked down tight.

Wear, Hole Tolerance and Practical Maintenance Tips

Acknowledge technical installation requirements. Ball lock pins require precision‑drilled receiver holes. If the hole tolerance is too loose, shear loads transfer unevenly. Routine inspections prevent unexpected jamming. Light application of dry lubricant keeps internal springs operating smoothly.

Frequently Asked Questions

Q：What holds a self-locking quick release pins securely in position?

A：Spring‑driven plunger pushes hardened steel balls outward into receiver holes, creating a mechanical positive‑lock against withdrawal.

Q：How strong are heavy‑duty Ball Lock Quick Release Pins?

A：Strength depends on shank diameter, material grade and ball quantity; engineering reference catalogs publish shear‑load ratings for inch‑size and metric quick release ball pin lock variants.

Q：Will vibration unlock ball‑lock release pins?

A：Genuine ball‑lock pins (not simple detent pins) maintain mechanical positive‑lock; vibration cannot push balls inward unless the push‑button is intentionally actuated.

Q：Where can I source replacement release ball lock pins spare components?

A：Leading fastener manufacturers provide spare parts and full‑size assemblies for ball lock pins quick release pins, including replacement springs and locking‑ball kits.
