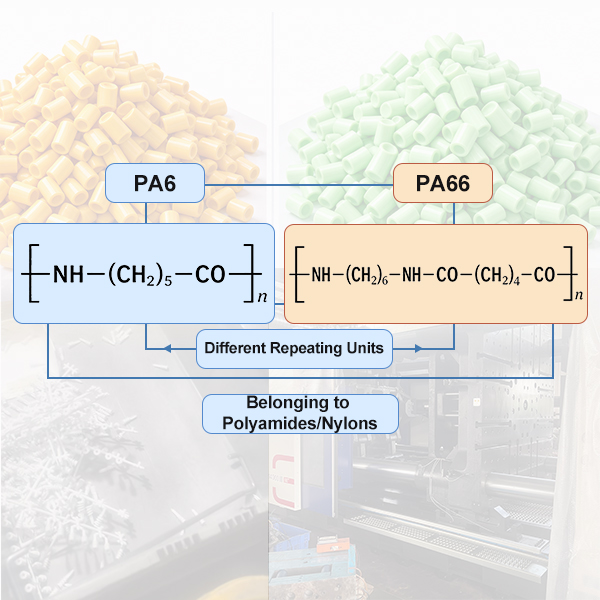

Nylon is not a single material; it is a broad family of polyamides defined by amide-linked polymer chains. The number suffix after PA indicates carbon atoms within the repeating unit of the polymer backbone, and this molecular architecture dictates nearly every core performance trait. Short-chain grades PA6 and PA66 pack dense amide groups along the chain, delivering strong mechanical performance and heat resistance, yet they readily absorb moisture from ambient air. Long-chain polyamides PA11 and PA12 contain far fewer amide groups, trading some raw tensile strength for ultra-low moisture uptake and superior chemical resistance. PA6/66 copolymer (CoPA) is formulated to disrupt regular crystallization, designed specifically to reduce shrinkage and warpage. High-temperature aromatic polyamides like PPA introduce rigid ring structures to push thermal limits far beyond standard aliphatic nylon. Whether you are prototyping via 3D printing or locking a resin for millions of injection-molded fasteners, understanding these fundamental differences is the foundation of reliable material selection.
Thermal performance separates the core nylon grades clearly. Unfilled PA6 melts around 220°C, while PA66 melts roughly 40°C higher at 260°C. After 30% glass fiber reinforcement, PA6 GF30 reaches an HDT of 200–210°C under 1.82 MPa load, while PA66 GF30 hits 245–255°C. PA66 GF30 retains clamping force and stiffness better under long-term elevated temperature and thermal cycling, which is critical for static loaded fasteners near heat sources.
PA6 or PA66 for injection molding copolymer sits in the middle range, with moderate heat resistance and a lower melting point than PA66. Long-chain PA11 and PA12 have lower heat deflection limits around 90°C, making them unsuitable for high-temperature continuous service. PPA-CF stands at the top of thermal performance, with heat resistance above 200°C for under-hood, motor-side and hot-fluid adjacent components. For your wall plug product line: standard indoor room-temperature expansion plugs work reliably with PA6 GF30, but plugs mounted near HVAC ducts, water heaters or solar brackets must use PA66 GF30 to avoid slow creep and gradual screw loosening.
Dimension 1 — Melting Point vs Real Heat Resistance
Property | PA6 | PA66 | PA6 GF30 | PA66 GF30 |
|---|---|---|---|---|
Melting point | ~220 °C | ~260 °C | ~220 °C | ~260 °C |
HDT @ 1.8 MPa | ~65 °C | ~75 °C | 200–215 °C | 240–250 °C |
Continuous use (typical) | 80–100 °C | 100–120 °C | ~120–150 °C* | ~120–140 °C* |
Static tensile strength and modulus favor PA66 and its GF30 variant. PA66 GF30 delivers 180–210 MPa tensile strength versus 160–190 MPa for PA6 GF30, with stronger fiber-matrix adhesion that preserves stiffness under permanent preload. This makes PA66 GF30 the standard choice for static locking inserts that hold consistent bolt torque over years of service.
Where PA6 excels is intrinsic toughness and fatigue resistance. Even after glass filling, PA6 GF30 retains better ductility and absorbs impact energy better. This is the decisive factor for hammer-driven expansion wall plugs: a PA6 GF30 plug survives hammer impact without splitting, while a direct drop-in PA66 GF30 replacement often cracks during installation. PA11 is the standout choice for low-temperature ductility; it remains flexible and impact-resistant in cold environments where PA12 turns brittle. PA12 is formulated for precision and chemical resistance rather than high impact or fatigue loading.
Dimension 2 — Strength and Toughness
Property | PA6 GF30 | PA66 GF30 |
|---|---|---|
Tensile strength, dry (ISO 527) | 160–180 MPa | 175–195 MPa |
Tensile modulus, dry | 8,000–9,500 MPa | 9,000–11,000 MPa |
Flexural modulus (ISO 178) | 7,500–8,500 MPa | 8,500–10,500 MPa |
Notched impact (typical) | 8–12 kJ/m² | 6–10 kJ/m² |
Hygroscopic behaviour is the most frequently overlooked failure mode for nylon fasteners and precision inserts. Moisture acts as an internal plasticizer: it increases flexibility, lowers modulus and creates measurable dimensional swelling. The moisture uptake hierarchy runs: PA6 > PA66 > PA6/66 CoPA > PA11 ≈ PA12. PA6 GF30 stabilizes at 1.5–2.0 wt% moisture under standard 50% RH, while PA12’s equilibrium moisture content sits at only roughly one-third of PA6, so its dimensions barely shift between dry winter warehouses and humid ocean freight containers.
This is a major pain point for insert buyers. Many parts pass dimensional inspection immediately after molding when dry, then swell after weeks of sea transit in humid shipping containers, making the insert stuck and impossible to assemble. If your insert requires tight fit clearance and consistent tolerance across variable humidity environments, PA12 or PA12 GF is the safer selection. PA6 and PA66 are acceptable only when tolerance windows are generous, or when you build controlled post-molding moisture conditioning into your production workflow.
Dimension 3 — Moisture, Dimensional Drift, and the "Wet Dimension"
Amide groups are polar. They hydrogen-bond with water. PA6 has more of them per unit chain length, so it absorbs more. At 23 °C / 50% RH, PA6 GF30 typically takes 2.5–3.0%; PA66 GF30 takes 1.8–2.2% . Saturated in water at 23 °C, the gap widens to about 6.3–6.9% versus 5.2–5.8% .
The practical effect is a size change of roughly 0.2–0.6%, depending on glass content and wall thickness . For a 100 mm mating face, that is 0.2–0.6 mm — enough to turn a clip fit into a loose rattle or a tight bind. A real study on an induction cooker base measured the effect directly: under 100 °C heating, the PA6 version shrank more than 1 mm on a hole-pitch dimension and exceeded tolerance, while PA66 stayed controlled; flatness deviation on PA6 exceeded 2 mm in places .
There are four correct responses. Pick at least one:
Change the base resin — PA12 or PPS for low-absorption precision.
Raise the glass content — above 30%, but expect lower impact and more warp.
Pre-condition before inspection — measure at the humidity the part will live in.
Compensate in steel — only viable with long-term shrinkage data from stable production.
For sellers, a blunt honesty point: if your customer will not tell you the assembly humidity, you cannot quote a tight-tolerance part. Say so in writing. It protects both of you.
All nylon grades require dehumidified drying before molding; residual moisture above 0.2% triggers hydrolysis, surface splay and irreversible strength loss. PA6 GF30 runs at 240–275°C barrel temperature with a wider processing window, while PA66 GF30 requires 270–290°C and stricter drying controls, increasing energy consumption per shot. PA66 crystallizes faster, which can shorten cooling cycles for high-volume runs, yet faster crystallization creates higher anisotropic shrinkage and warpage risk on flat, thin geometry.
This is exactly where PA6/66 copolymer shines. Its disrupted crystal structure reduces cooling shrinkage and minimizes warpage, making it the most forgiving nylon grade for large flat plates and wide thin sections that curl heavily in pure PA6 or PA66. Reinforced GF nylon accelerates mold wear; PA66 GF30’s higher melt viscosity and processing temperature abrade gate, slide and core surfaces faster, requiring hardened H13 or S136 mold steel instead of standard P20 tooling. Recycled regrind stability differs too: PA6 GF30 retains mechanical properties more reliably after multiple regrind passes, while PA66 GF30 loses strength faster with repeated thermal cycling.
A critical distinction for product developers: 3D printed nylon prototypes are not equivalent to injection molded production nylon. PA6/66 CoPA is widely used for flat 3D printed parts because of low warpage, but prototype performance will not perfectly match the behaviour of glass-filled PA66 GF30 mass-molded fasteners.
Dimension 4 — Injection Molding: The Shop Floor Is Where Grades Diverge
Parameter | PA6 / PA6 GF30 | PA66 / PA66 GF30 |
|---|---|---|
Melt temperature | 230–280 °C / 250–280 °C | 260–290 °C / 275–300 °C |
Mold temperature | 60–90 °C | 80–100 °C (oil heated above 90 °C) |
Drying | 80 °C, 4–5 h | 80–100 °C, 4–8 h |
Mold window | Wider | Narrower; ±10 °C typical |
Drying is not a department — it is the product. Moisture above 0.2% in PA66 causes splay, voids, and a 15–30% drop in finished-part tensile strength . That single line should be on every quotation pack. The protocol that works: desiccant dryer at −20 °C dew point, regrind capped at 15% on structural parts, and a Karl Fischer check on every incoming lot. If regrind exceeds 20% in a PA66 structural component, experienced molders simply will not release it .
Shrinkage is directional. This is the item that destroys "drop-in" material swaps. GF30 nylon shrinks about 0.3% in the flow direction and 0.9% across it — a 3:1 anisotropy driven by fiber orientation . Moving from PA66 GF30 (roughly 0.5% / 1.1%) to PA6 GF30 (0.3% / 0.75%) shifts a 100 mm dimension by about 0.2 mm along flow and 0.35 mm across it, and it changes the warp pattern at the same time . If the drawing allows ±0.1 mm, the swap fails on paper before the first shot.
Gate and steel decisions follow the fiber. Small pinpoint gates create high shear, break fibers, and produce jetting and surface bloom. Prefer fan, side, or tab gates; gate land at least 0.8–1.2 mm or 60–80% of wall thickness. Exhaust slots of 0.015–0.03 mm are required more aggressively than for neat nylon. And because glass wears steel, cavity and gate inserts should be in hardened tool steel — H13 / 1.2344, or 1.2379 — with hardness at or above HRC 52 .
Surface quality costs cycle time. To suppress fiber bloom, mold temperature must go above 90 °C; below 60 °C a fiber-rich skin forms, looks poor, and locks in stress . PA6 generally gives the better surface and gloss of the two, which matters on visible components.
PA6 resin is typically 10–20% cheaper per kilogram than PA66, and PA11 / PA12 carry an even higher raw material premium. This is why many buyers rush to select PA6 GF30 without full validation. But raw pellet price is only one component of total landed part cost.
Total cost includes drying energy, cycle time output, mold tooling investment, scrap rate, rework, field failure claims and quality control labour. A real fastener case we repeatedly encounter: one importer switched all wall plugs to cheaper PA6 GF30 to reduce material spend, yet 18% of finished plugs swelled during humid container shipment and were rejected by overseas customers. Switching to PA66 GF30 raised pellet cost per kg, but scrap dropped to 2.4%, and the final compliant part unit cost was lower. For ultra-high-volume, loose-tolerance indoor wall plugs with room-temperature service, PA6 GF30 delivers balanced commercial value. For precision, high-temperature or humidity-sensitive inserts, the premium paid for PA66 GF30, PA12 GF or PA11 is justified to avoid expensive re-tooling and product recalls.
Dimension 5 — Total Cost, Not Unit Price
Cost element | PA6 GF30 | PA66 GF30 |
|---|---|---|
Resin purchase price | Lower, more stable | Higher, more volatile |
Drying energy & cycle | Lower melt, shorter | Higher melt, longer |
Tooling & maintenance | Less abrasive | More wear, harder steel |
Scrap / rework | More warp risk | More thermal sensitivity |
Validation & testing | Same | Same, but often stricter |
Field failure & warranty | Higher if over-heated | Higher if over-specified |
Few product families illustrate these trade-offs better than expansion inserts and plastic wall anchors — the fasteners that turn a drilled hole into a load-bearing point. They are everywhere, which is exactly why buyers treat them as commodities.
Material is a safety parameter, not a cost parameter. Industry standards are explicit: plastic expansion parts and sleeves may be made from polyamide (PA6, PA66), polyethylene, or polypene — and recycled material is not permitted . That last clause eliminates the cheapest quote on the table. Reprocessed PE or PP anchors creep and crack under sustained load, heat, and humidity. For a kitchen cabinet, water heater, or curtain rail, only nylon is defensible, and PA66 is the honest choice where sustained load matters .
Geometry is load-bearing too. On solid concrete or brick, the ribbed "fish-shape" anchor with anti-rotation lugs expands evenly and grips. On hollow block, plasterboard, or aerated concrete, that same anchor cannot anchor at all — you need a butterfly or toggling type whose wings fold open inside the cavity . I have seen an entire batch rejected not because the nylon was wrong, but because the purchaser matched diameter to screw and ignored the substrate entirely.
Marking decides the listing. Expansion anchors are marked with a format such as M8 × 40 — an 8 mm screw and 40 mm length. A 10 mm anchor on an M6–M8 screw in concrete delivers roughly 80–120 kg pull-out, suitable for TVs and water heaters . Install them between 5 °C and 35 °C; below that, plasticizers stiffen and the sleeve can shatter on driving .
Assembly torque beats raw strength. The modern instruction is not "tighten harder." It is torque-controlled driving, because over-driving cracks the expansion skirts and under-driving leaves the sleeve unopened . This is a selling point you can put on the package.
Notes:Beyond the five core comparison pillars, these overlooked details define long-term production success:
Chemical and hydrolysis resistance: Stabilized PA66 GF30 outperforms PA6 under hot water and glycol exposure; PA11 and PA12 deliver superior resistance to fuels, lubricants and industrial cleaning agents.
Surface aesthetics and colourability: PA6 accepts pigmentation more uniformly and delivers better surface gloss; PA66 GF30 and CF-filled nylon are prone to visible fiber bloom on cosmetic surfaces.
Compliance certification: UL94 flame retardancy, REACH, RoHS and food-contact approvals are grade-specific, not automatically guaranteed by the PA family name.
RF performance: Carbon fiber filled nylon blocks radio signals, making it unsuitable for antenna housings; glass-filled nylon remains RF-transparent.
Bio-based requirements: PA11 is derived from castor oil, the primary renewable nylon grade for customers targeting sustainable content.
PA6, PA66, PA6/66 CoPA, PA11 and PA12 are all legitimate nylon grades, each engineered for distinct operating environments and load types. GF30 glass fiber and carbon fiber reinforcement amplify strength and heat resistance, but they also trade away ductility and flexibility. For high-volume fasteners, wall plugs and locking inserts, choosing nylon based only on material name or raw pellet price is a risky shortcut that creates expensive batch failures.
Smart nylon selection balances thermal limits, load type (impact vs static creep), humidity-driven dimensional drift, molding feasibility and full total manufacturing cost. Always partner with your compounder and injection moulder to run humidity conditioning, thermal aging and functional load tests before locking a grade for mass production.
