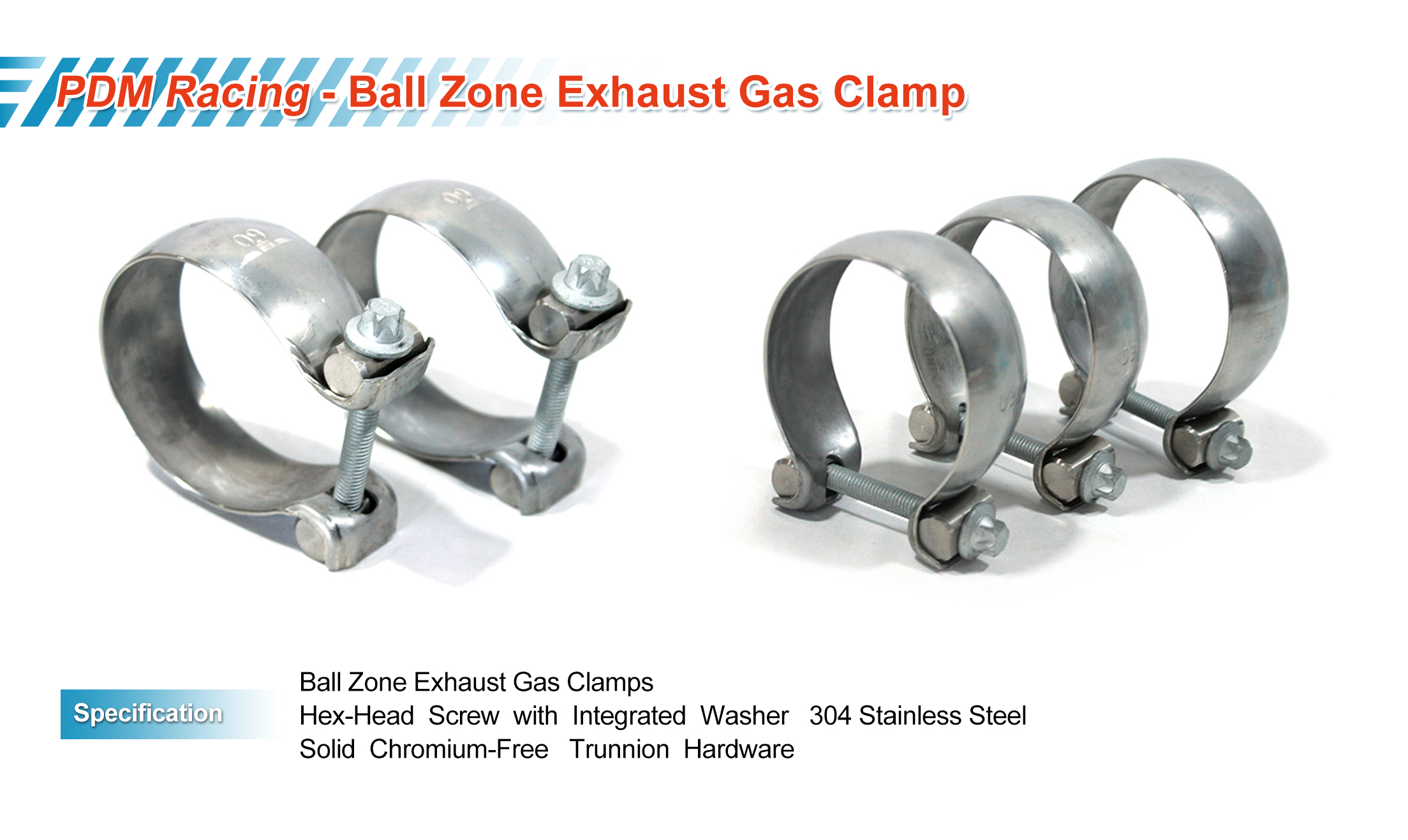

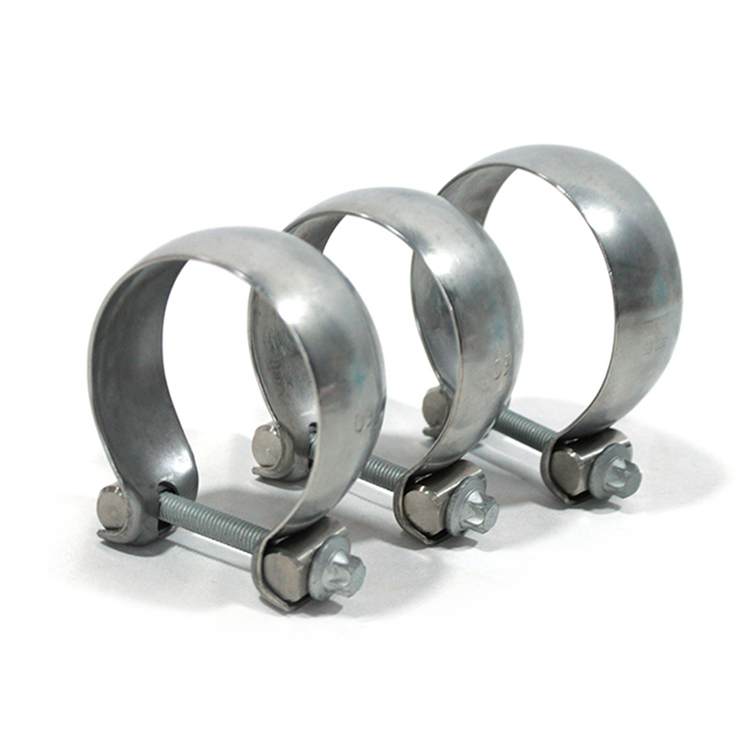

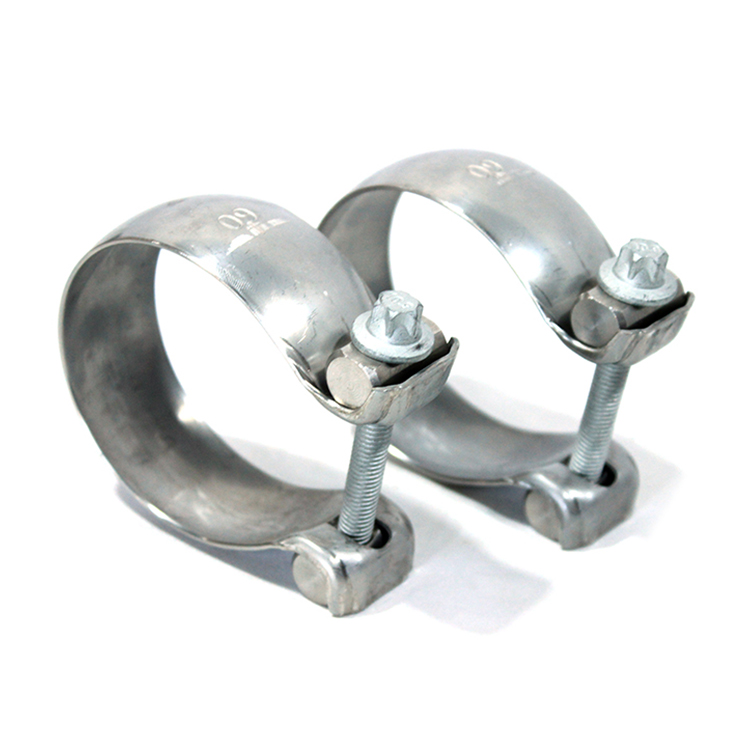

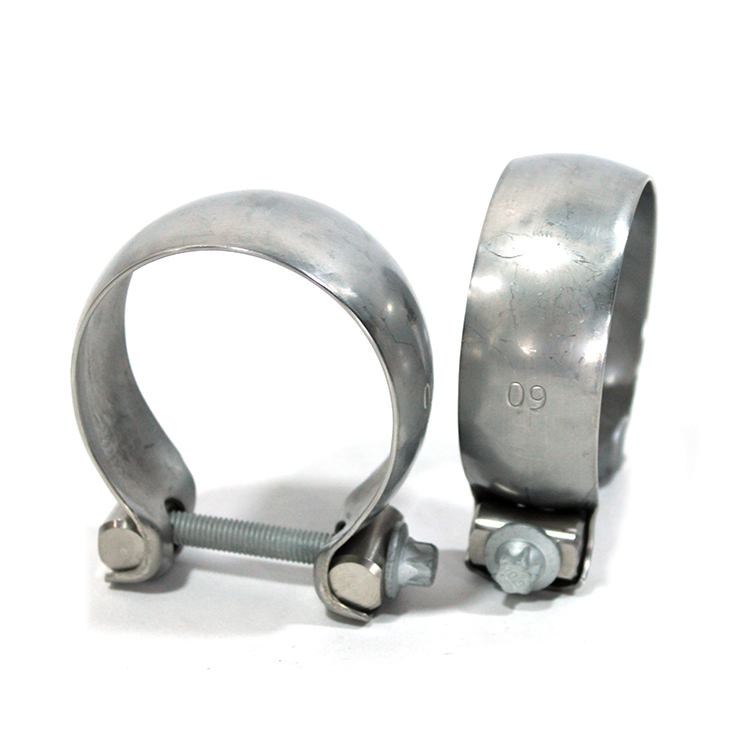

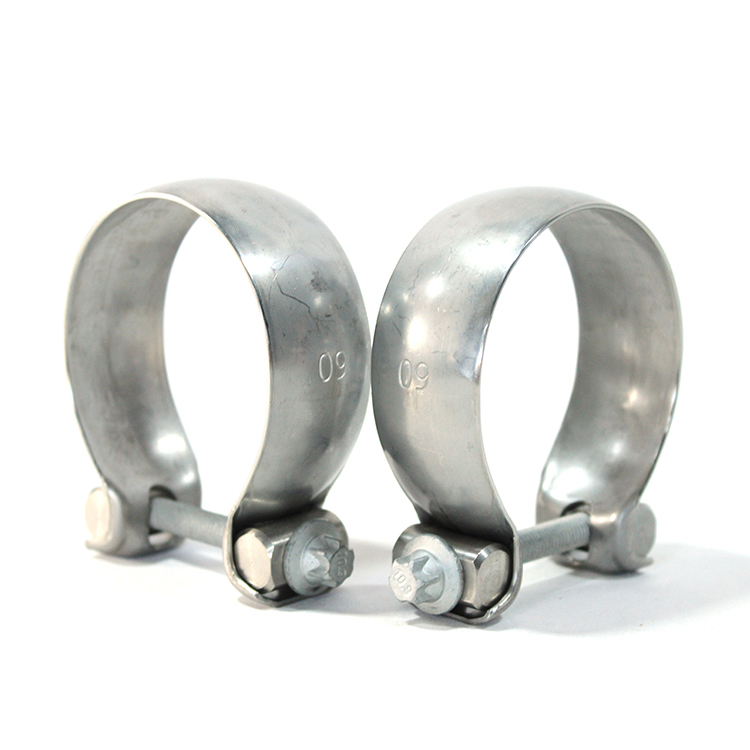

Ball Zone Exhaust Gas Clamp is a specialized fixture used to connect two sections of pipes in a car exhaust system, achieving angle compensation and high sealing performance through a spherical sealing structure.
Ball Zone Exhaust Gas Clamp
PDM-Racing
| Quantity: | |
|---|---|
Ball Zone Exhaust Gas Clamp:
Clamp Exhaust Pipe Title:
Exhaust connector muffler clamp natural gas pipe clamps for truck exhaust system
The core functions include:
Dynamic angle compensation: allows the muffler and other components to rotate and adjust the angle during installation, solving the problem of exhaust pipe alignment deviation;
High temperature sealing
Anti vibration design: dispersing high-frequency vibrations through spherical contact to reduce the risk of fatigue cracking at connection points;
Main structure: spherical sealing ring
SUS 304 stainless steel laser welding, 360 ° surround sealing, compensating for pipeline deformation;
Clamp strap: chromium coated ductile iron, maintaining high preload and rust resistance;
Applicable pipe diameter: 69.5-87mm
| PN# | Description | Clamp Dia. In(mm) | W.G Kg/Pcs | |
| SEC60 | 60 | 23/8" | 69.5 | 0.17 |
| SEC65 | 65 | 29/16" | 75 | 0.18 |
| SEC70 | 70 | 23/4" | 81.5 | 0.2 |
| SEC75 | 75 | 220/21" | 87 | 0.22 |
Application:
Upgraded exhaust system for modified cars, mid section connection for turbocharged models, truck exhaust system, hydrogen energy vehicle adaptation, etc.
Installation steps
Surface treatment: Remove rust from the contact surface of the pipeline to ensure proper fit of the spherical surface;
Alignment adjustment: First manually pre tighten the bolts, rotate the muffler to the target angle, and then finally lock it;
Torque control: Tighten in two steps to avoid stress concentration on one side.
