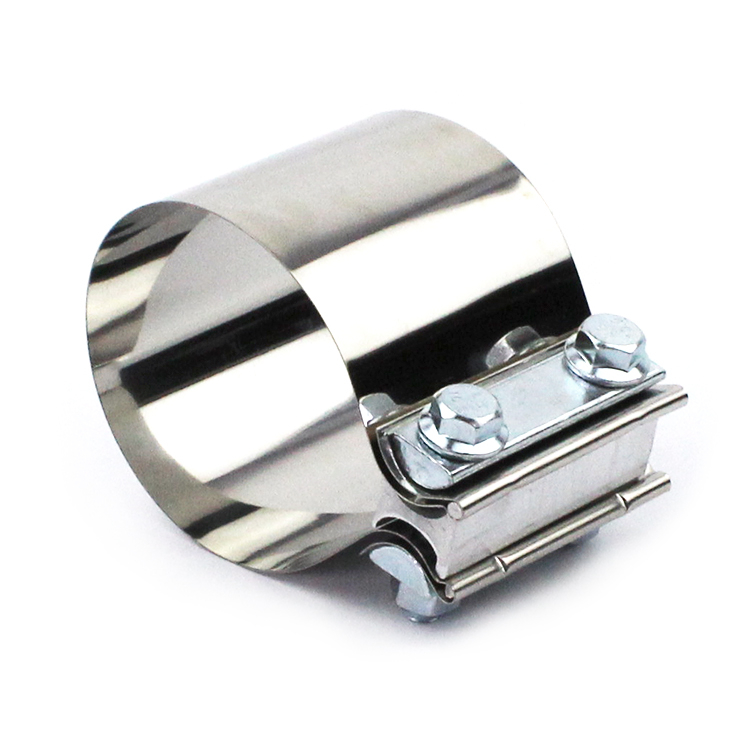

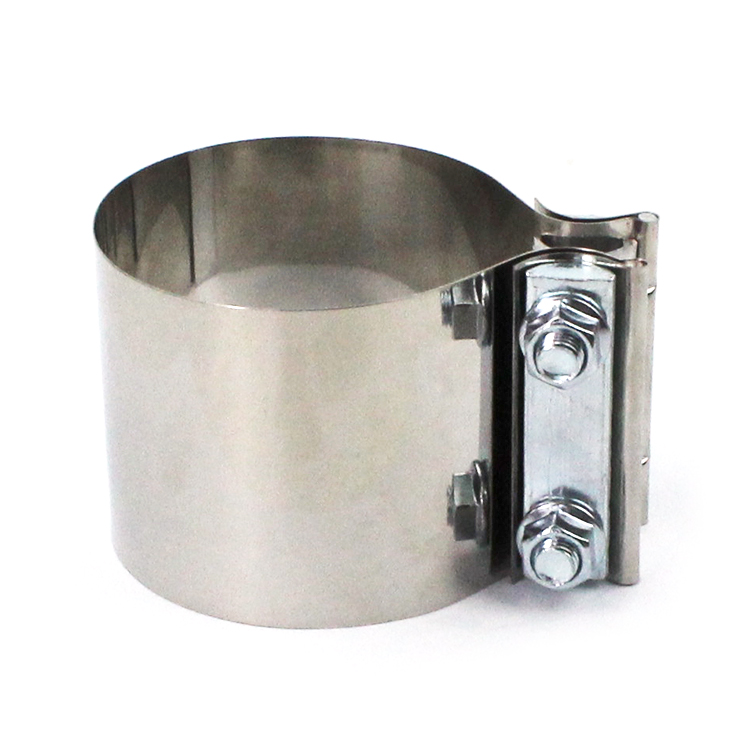

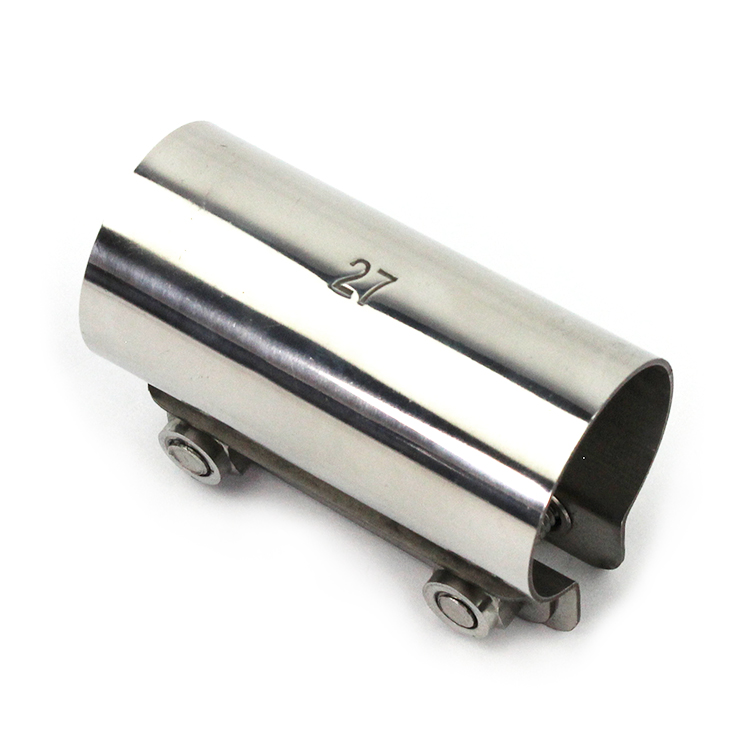

Butt Joint Clamp Sleeve Coupling is a specialized connector used for parallel steel pipe end docking in scaffolding systems. Two steel pipes are fixed axially using high-strength fixtures to form a continuous load-bearing structure;
Butt Joint Clamp Sleeve Coupler
PDM-Racing
| Quantity: | |
|---|---|
Butt Joint Clamp Sleeve Coupler:
Exhaust Sleeve Clamp Title:
Heavy Duty exhaust pipe sleeve clamp Stainless Steel pipe sleeves clamp
Core functions:
Axial force transmission: bear the vertical load of scaffolding poles to ensure structural stability;
Quick assembly: No need for welding or thread tightening, achieve second level installation through bolt clamping mechanism;
Material classification:
Material:Stainless steel SS201, SS304, aluminium coated sheet, etc

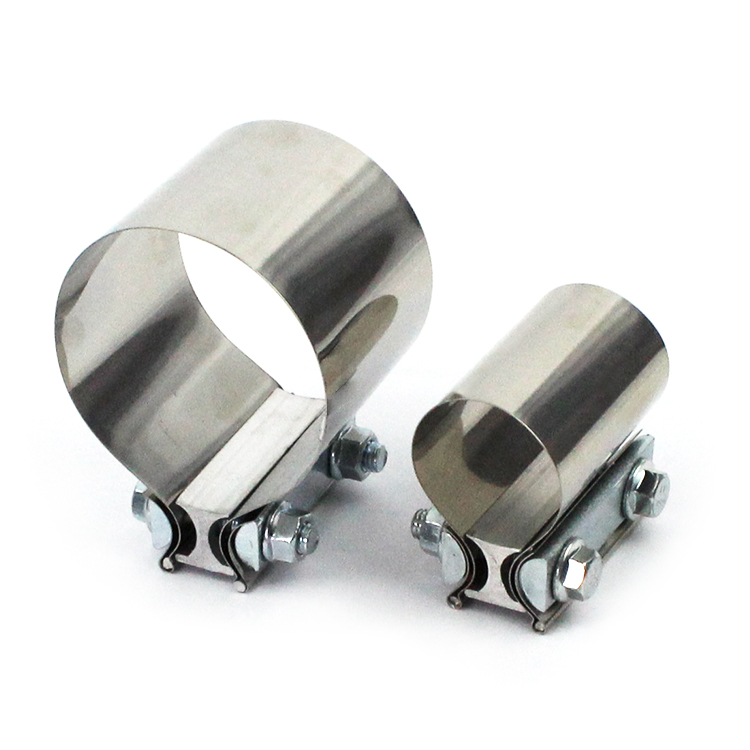

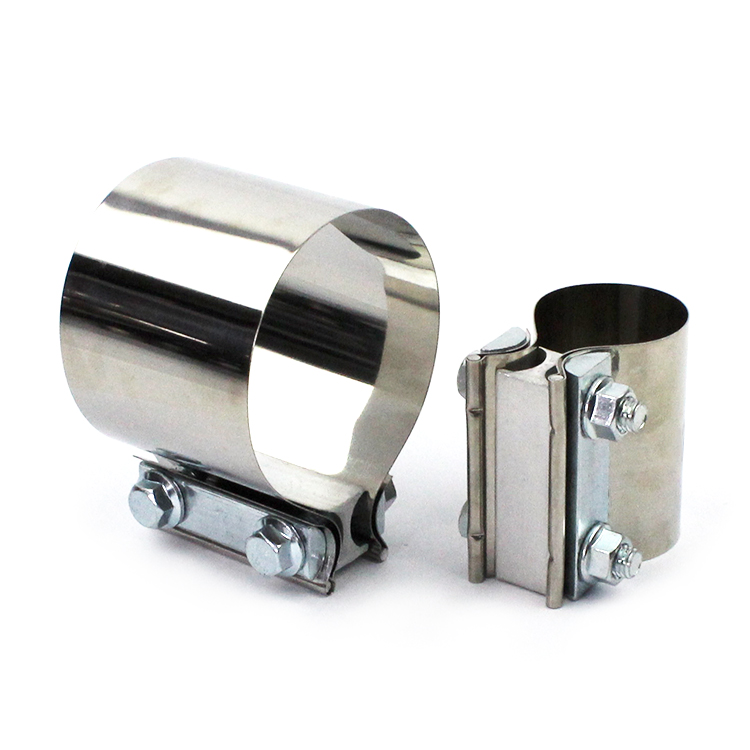

Size:2inch-6inch or Customized
Components:
SS304 band,Zinc Plated Bolt, Nut, Gasket, and Aluminum Alloy H Block
High strength bolts: 8.8 grade or 10.9 grade alloy steel bolts;
Saddle shaped contact surface: increase the contact area of the steel pipe to disperse local stress;
| Size | Aluminied Steel Part No. | Stainless Steel Part No. |
| 2.00" | BJC-AS200 | BJC-SS200 |
| 2.50" | BJC-AS250 | BJC-SS250 |
| 2.75" | BJC-AS275 | BJC-SS275 |
| 3.00" | BJC-AS300 | BJC-SS300 |
| 3.50" | BJC-AS350 | BJC-SS350 |
| 4.00" | BJC-AS400 | BJC-SS400 |
| 4.50" | BJC-AS450 | BJC-SS450 |
| 5.00" | BJC-AS500 | BJC-SS500 |
| 6.00" | BJC-AS600 | BJC-SS600 |
Application:
Bridge support system, equipment maintenance platform, construction industry, etc;
Installation steps:
Clean the end of the steel pipe and remove oil/rust stains;
Insert two steel pipes into the sleeve, ensuring that the end gap is ≤ 3mm;
Symmetrically tighten the bolts in two pre tightening steps to reduce stress concentration;
