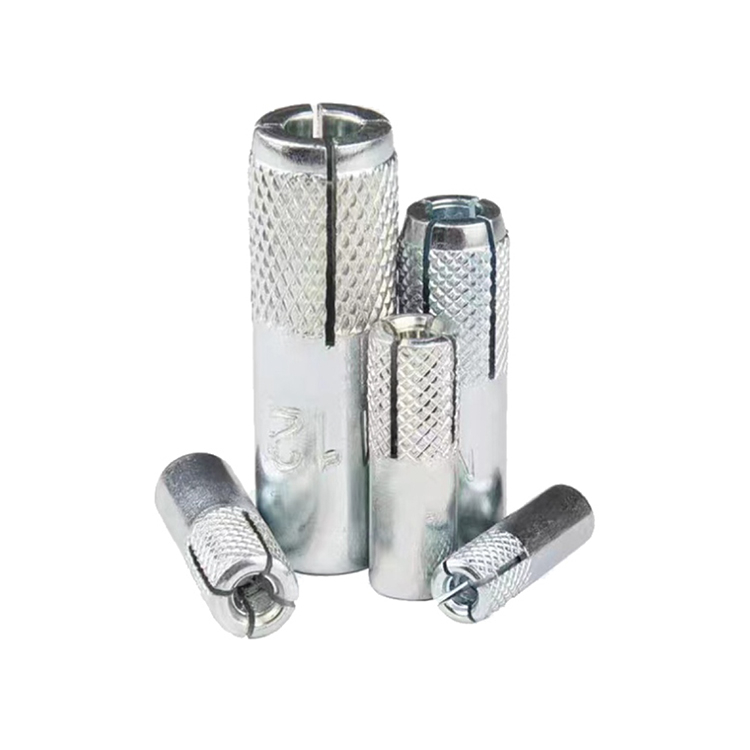

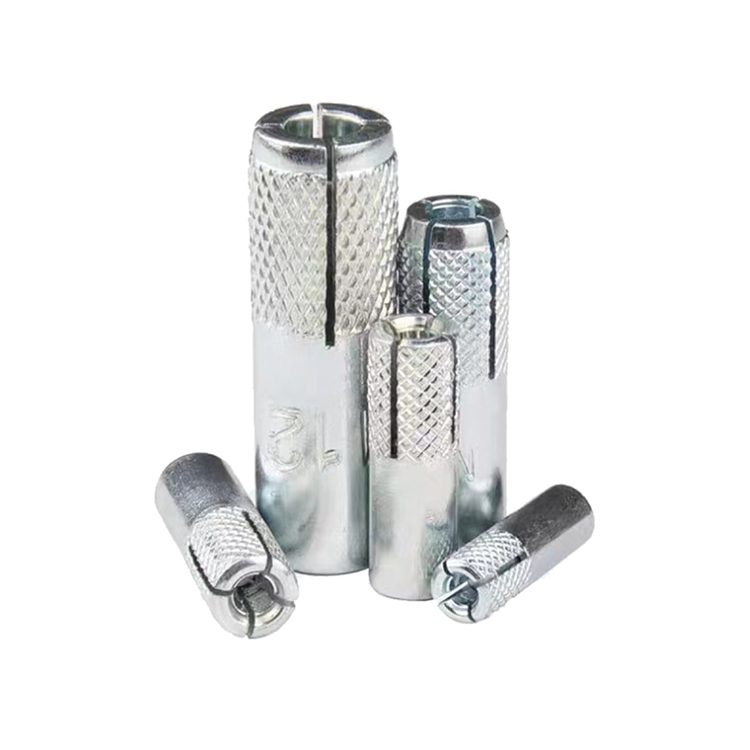

Drop in Anchor
PDM
| Quantity: | |
|---|---|
Features of Drop in Anchors
Hot Dip Galvanized Drop In Anchor Title:
Hot Selling drop in anchors plain surface M8 or custom drop-in anchors into concrete for concrete
Core Features
Low profile design
The anchor body is fully embedded in the substrate, providing a flat surface, suitable for scenarios that require concealed installation;
Double threaded system
Internal anchor body: standard metric/imperial threads (such as 1/4 "-20 or M10);
External: serrated thread reinforcement and substrate biting force;
Anti corrosion treatment
316 stainless steel or galvanized material is optional, and the weather resistance is improved through metallographic passivation treatment;

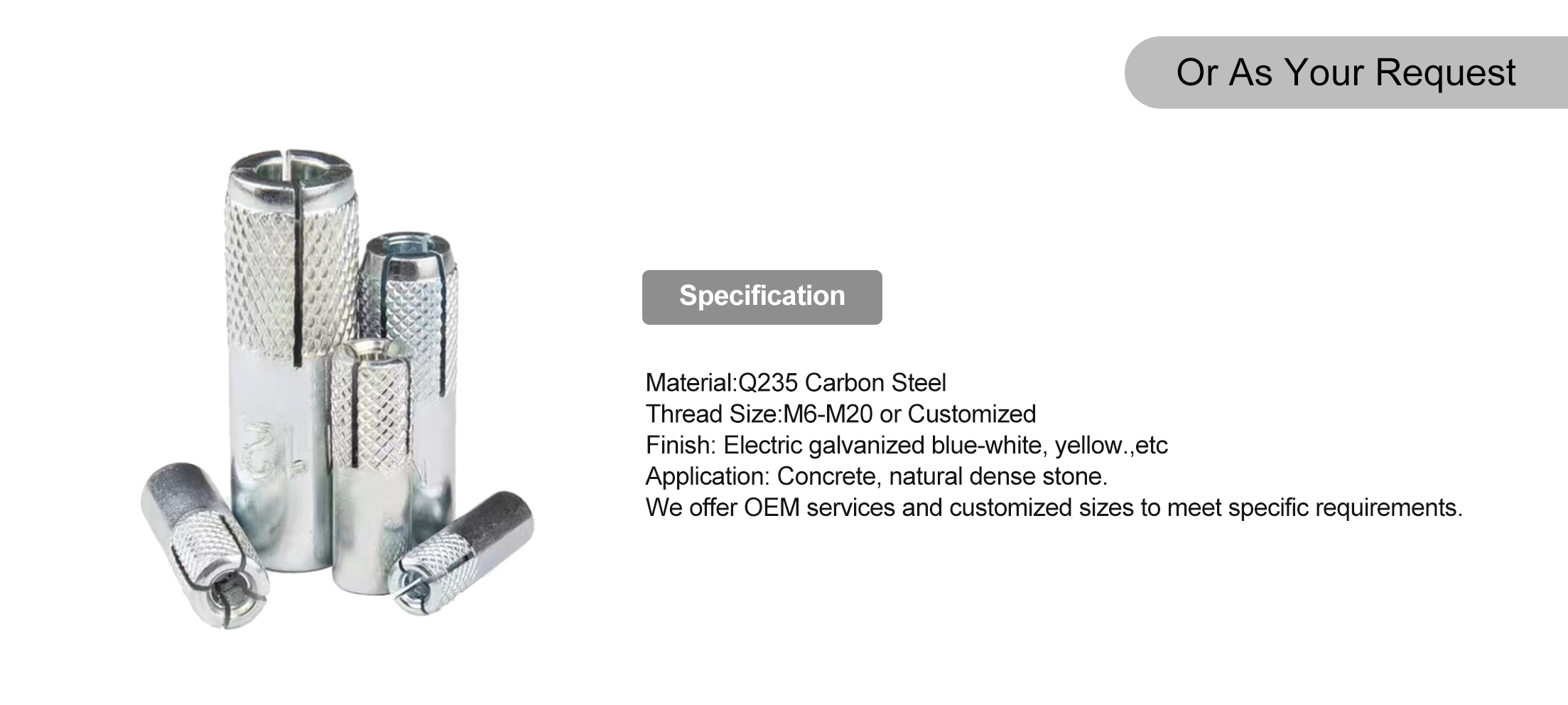

Material:Q235 Carbon Steel
Thread Size:M6/M8/M10/M12/M16 or Customized
(Inch Size:1/4"/5/16"/3/8")
Drilling diameter: 8-25mm (3/8 "-1")
Finish: Electric galvanized blue-white, yellow.,etc
Application: Concrete, natural dense stone.
| Item | Drop in Anchors |
| Thread Size | M6-M20 or Customized |
| Material | Q235 Carbon Steel |
| Surface Treatment | Electric galvanized blue-white, yellow |
| Application | Concrete, Natural dense stone,etc |
Application:
Mechanical and electrical system fixation: air conditioning ducts/fire sprinkler pipes/cable tray suspension;
Building structure: Anchoring of stadium seats/theater equipment;
Industrial equipment: Heavy machinery base connection;
Installation Steps
Drilling: Use a designated drill bit (such as M10 anchor bolt with 12mm drill bit) to drill holes to a length ≥ the length of the anchor body;
Hole cleaning: Thoroughly remove debris from the hole to ensure effective expansion;
Insert anchor bolt: Insert the anchor body flange outward into the hole;
Impact expansion: Use a specialized punch to push the inner plug until it is flush with the anchor body (hearing a "click" sound indicates complete expansion);
