Exhaust Flexible Bellow

Features of Flexible Bellow

China Exhaust Flexible Bellows Title:

Stainless Steel Bellow Flex Tube Flexible Bellows from China

Exhaust Flex Pipe Bellows Introduction:

Flexible connector bellow is a tubular elastic element connected by foldable corrugated sheets that expand and contract along the axial direction. Through its flexible structure, it achieves pressure conversion, displacement compensation, and sealing isolation. It is a flexible, thin-walled, laterally corrugated pipe accessory with elastic properties;

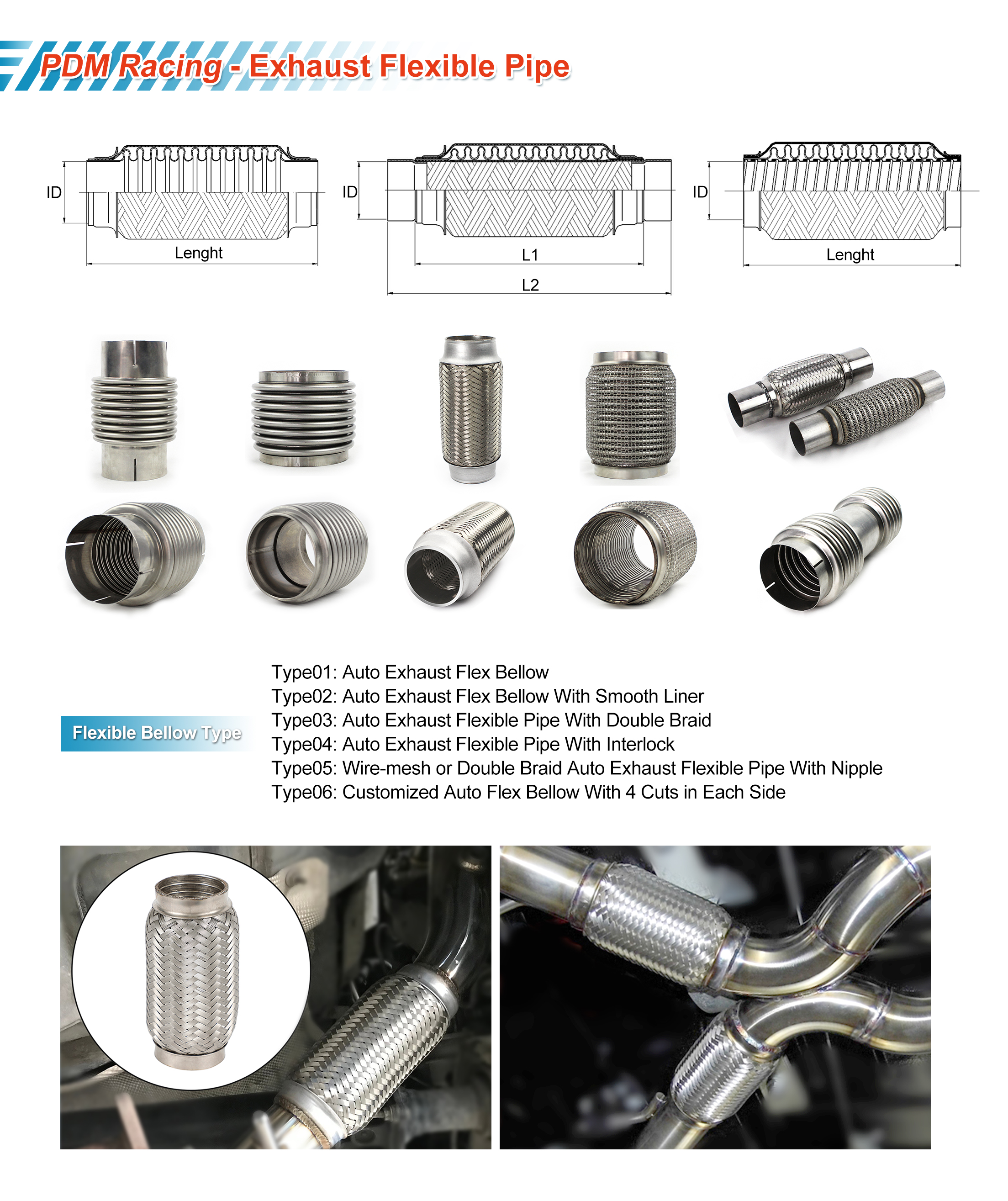

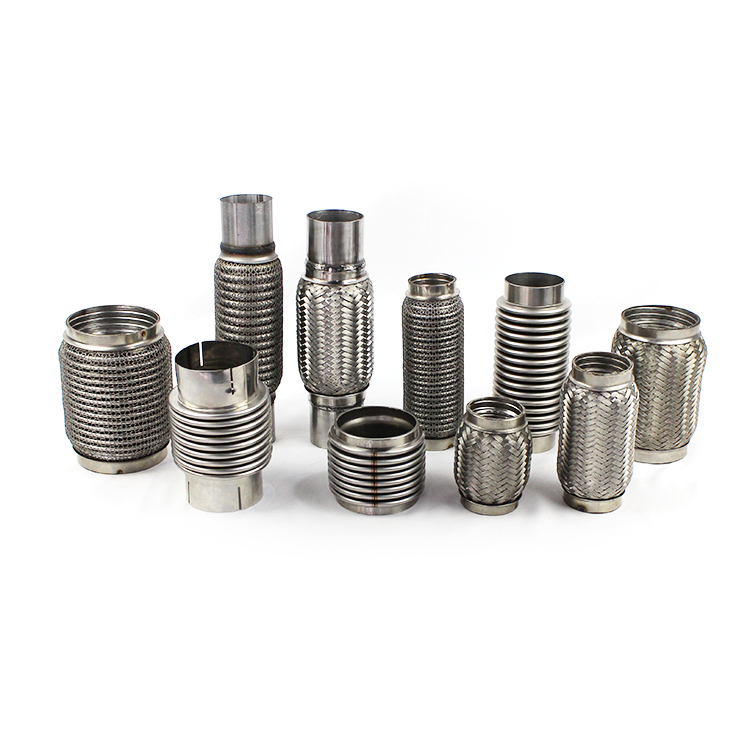

Flexible coupling bellows produced by PDM are generally divided into the following types:

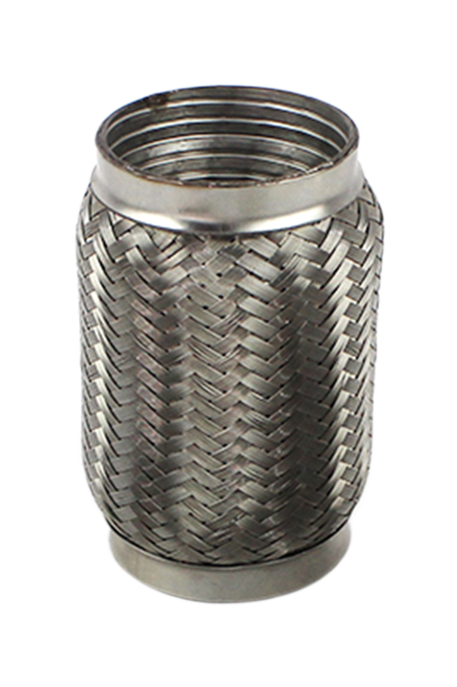

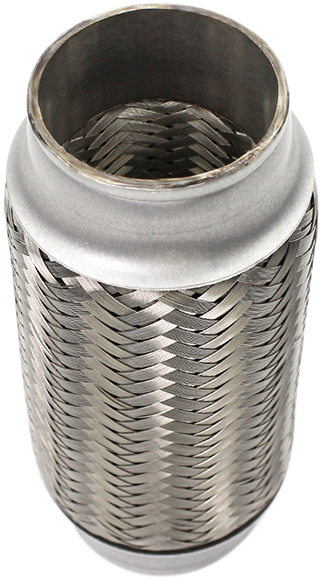

Item1:Auto Exhaust Flexible Pipe with Double Braid

Construction: Outer Braid +Double Layers Bellow+Inner Braid+Collar

Item2:Double Braid Auto Exhaust Flexible Pipe With Nipple

Construction: Outer Braid +Double Layers Below+Inner Braid+Collar+Nipple

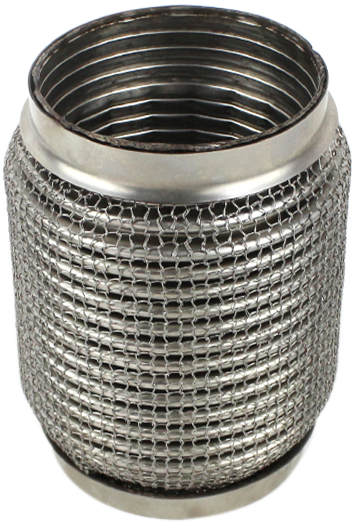

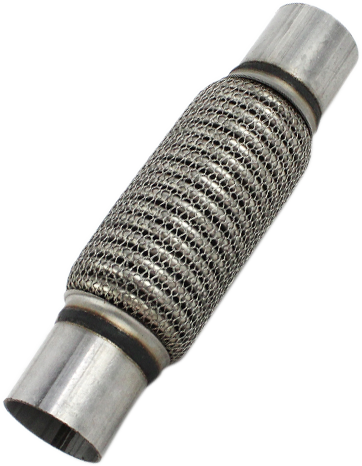

Item3:Wire-mesh Auto Exhaust Flexible Pipe With Nipple

Construction: Wire-mesh+Double Layers Bellow+Interlock+Collar+Nipple

Item4:Auto Exhaust Flexible Pipe with Interlock

Construction: Outer Braid+Double Layers Bellow+Interlock+Collar

Construction: Outer Wire-mesh+Double Layers Bellow+Interlock+Collar

Item5:Auto Exhaust Flexible Pipe without Inner Liner

Construction: Outer Braid+Double Layers Bellow+Collar

Item6:Auto Exhaust Flex Bellow

Construction: Double Layers Bellow

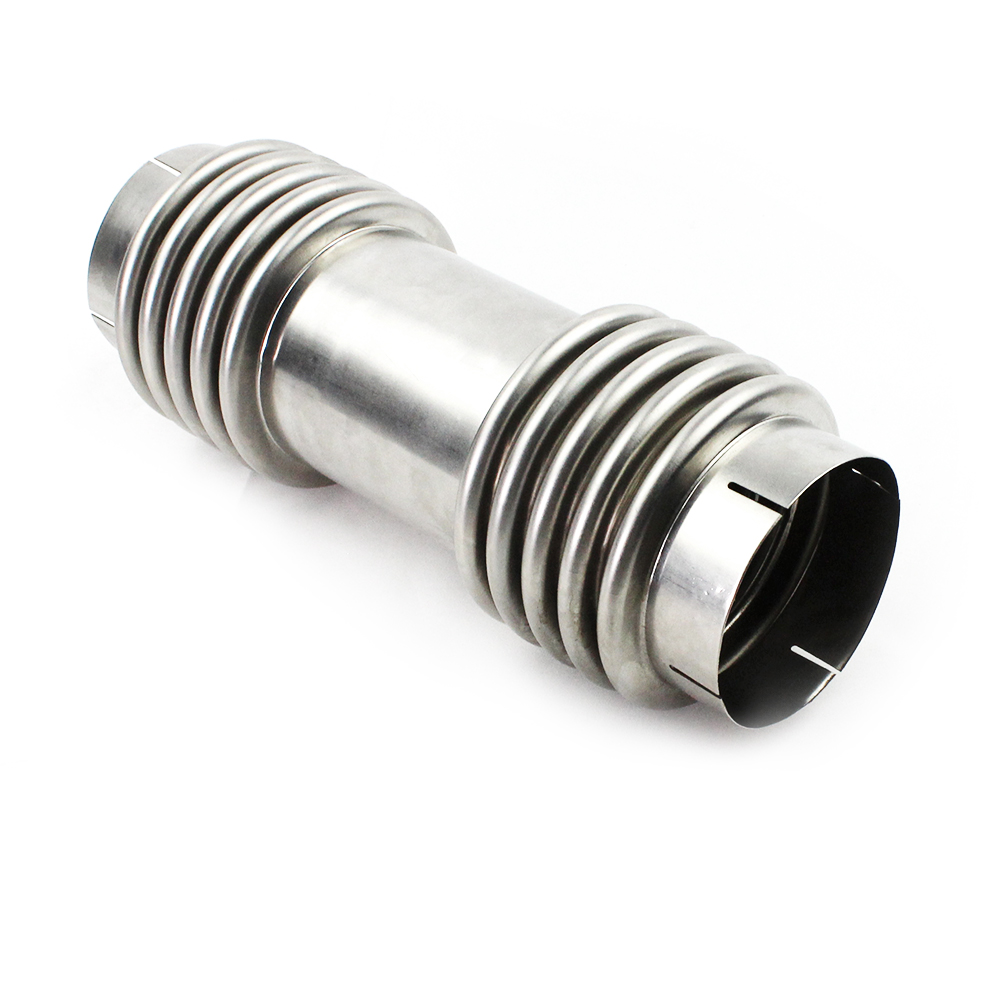

Item7:Auto Exhaust Flex Bellow With Smooth Liner

Construction: Double Layers Bellow+Pipe+Collar

Item8:Custom Auto Exhaust Flex Bellow With 4 Cuts In Each Side

Flex Pipe Inner Diameter:1.5-4inch or Customer’s request

Flex Pipe Length:4-12inch or Customer’s request

Flex Pipe Material:SS201,SS304

Extension Pipe:Material:Stainless iron aluminized tube or 409 material;

Thickness:1.5mm;Normal Length:2.0 inch

Cap Material:SS201,SS304 or 409

Flexible Steel Bellows Steel Function:

High flexibility feature: Stainless steel flexible bellows pipe is a flexible pressure resistant pipe fitting with lightweight, good flexibility, and resistance to high and low temperatures. It has good elasticity, good sealing protection, and prevents corrosive fluid leakage. The connection methods can generally be divided into flange connection, welding, quick joint connection, etc;

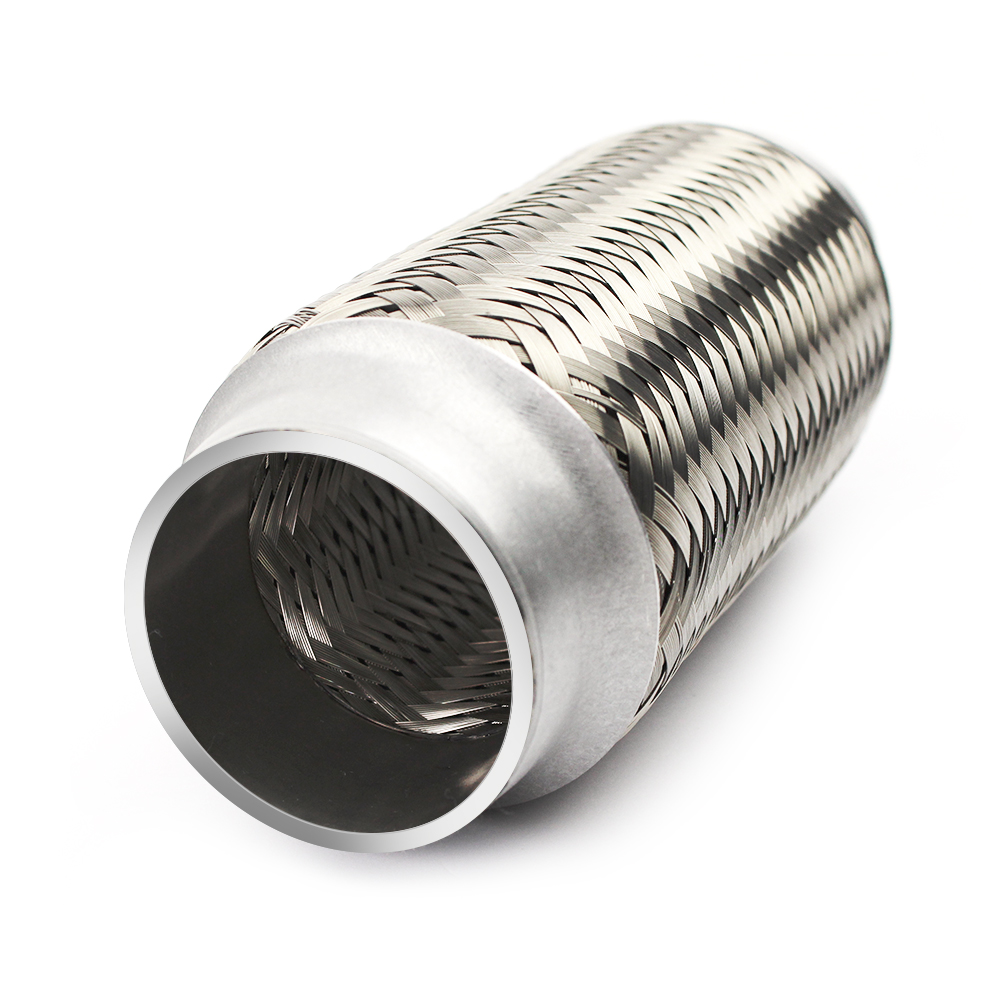

Type01: Auto Exhaust Flexible Pipe With Double Braid

	Item	Auto Exhaust Flexible Pipe with Double Braid
	ID	1.5-5"
	Length	4-12"
	Material	SS201,SS304
	Constraction	Outer Braid +Double Layers Bellow+Inner Braid+Collar
	Cap Material	SS201,SS304

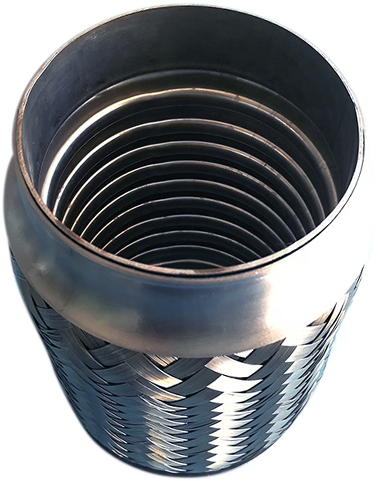

Type02: Auto Exhaust Flexible Pipe Without Inner Liner

	Item	Auto Exhaust Flexible Pipe Without Inner Liner
	ID	1.5-5"
	Length	4-12"
	Material	SS201,SS304
	Constraction	Outer Braid +Double Layers Bellow+Collar
	Cap Material	SS201,SS304

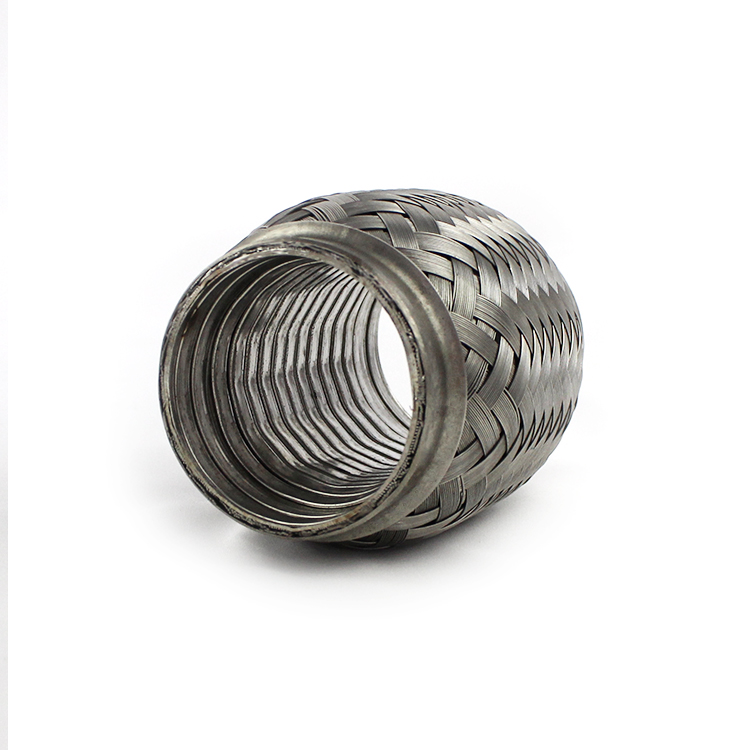

Type03: Auto Exhaust Flexible Pipe With Interlock

	Item	Auto Exhaust Flexible Pipe With Interlock
	ID	1.5-5"
	Length	4-12"
	Material	SS201,SS304
	Constraction	Outer Braid +Double Layers Bellow+Interlock+Collar
	Cap Material	SS201,SS304

Type04: Auto Exhaust Flexible Pipe With Interlock

	Item	Auto Exhaust Flexible Pipe With Interlock
	ID	1.5-5"
	Length	4-12"
	Material	SS201,SS304
	Constraction	Outer Wire-mesh +Double Layers Bellow+Interlock+Collar
	Cap Material	SS201,SS304,409

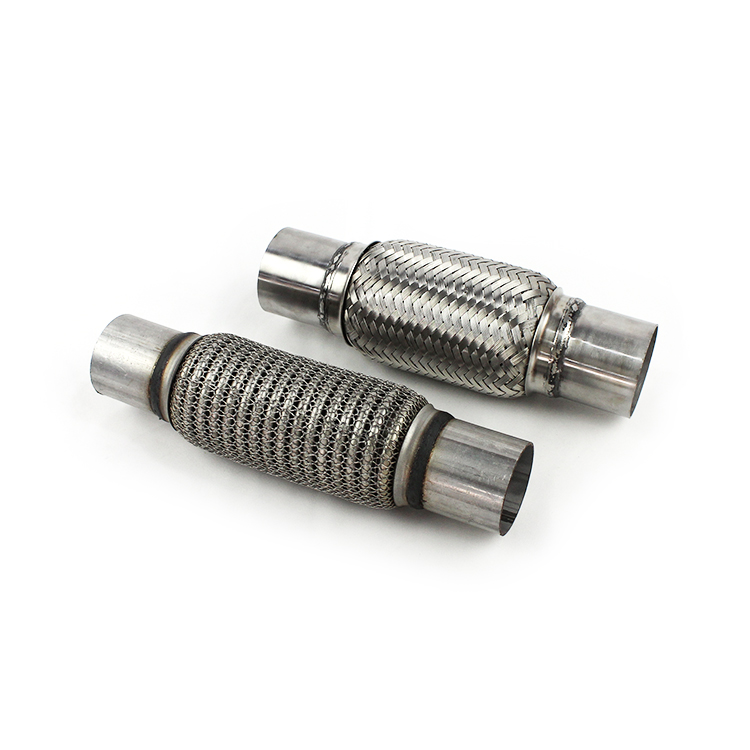

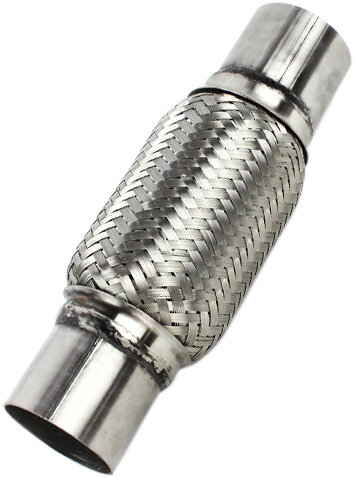

Type05: Double Braid Auto Exhaust Flexible Pipe With Nipple

	Item	Double Braid Auto Exhaust Flexible Pipe With Nipple
	ID	1.5-5"
	Length	4-12"
	Material	SS201,SS304
	Constraction	Outer Braid+Double Layers Bellow+Inner Braid +Collar+Nipple
	Extension Pipe:	Material:Stainless iron aluminized tube or 409 material;                    Thickness:1.5mm, Normal Length: 2.0inch
	Cap Material	SS201,SS304

Type06: Wire-mesh Auto Exhaust Flexible Pipe With Nipple

	Item	Wire-mesh Auto Exhaust Flexible Pipe With Nipple
	ID	1.5-5"
	Length	4-12"
	Material	SS201,SS304
	Constraction	Wire-mesh+Double Layers Bellow+Inrerlock+Collar+Nipple
	Extension Pipe:	Material:Stainless iron aluminized tube or 409 material;                    Thickness:1.5mm, Normal Length: 2.0inch
	Cap Material	SS201,SS304

Type07: Auto Exhaust Flex Bellow

	Item	Auto Exhaust Flex Bellow
	ID	1.5-5"
	Length	4-12"
	Material	SS201,SS304
	Constraction	Double Layers Bellow

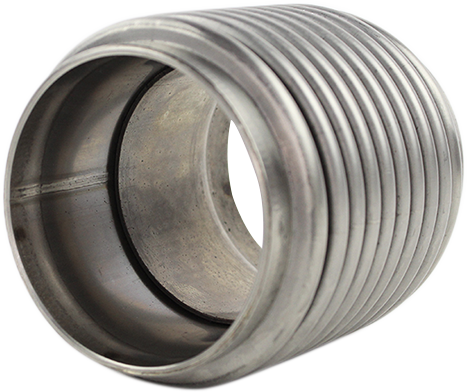

Type08: Auto Exhaust Flex Bellow With Smooth Liner

	Item	Auto Exhaust Flex Bellow with Smooth Liner
	ID	1.5-4"
	Length	4-6"
	Material	SS201,SS304
	Constraction	Double Layers Bellow+Pipe+ Collar
	Cap Material	SS201,SS304

Application:

Automotive exhaust systems, gas turbine exhaust, chemical pipelines, etc;

Flexible Couplings and Bellows Advantage:

Flexible steel bellows steel, based on their elasticity and flexibility, can adapt to different pipelines, easily handle pipeline bending, deflection, and vibration, and improve the durability of pipelines;

Flexible couplings and bellows structure is easy to install and maintain;
