GN617 Indexing Plunger
PDM
| Quantity: | |
|---|---|

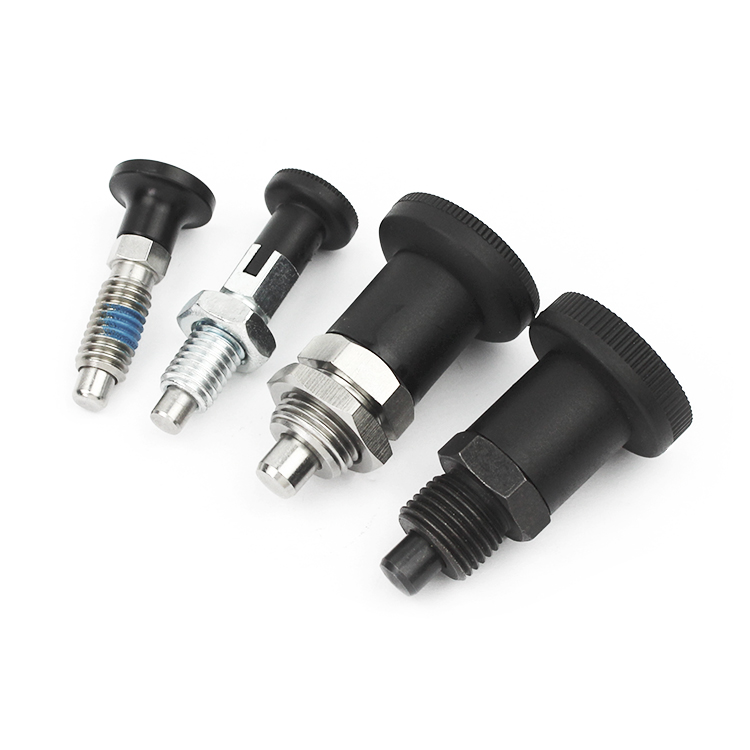

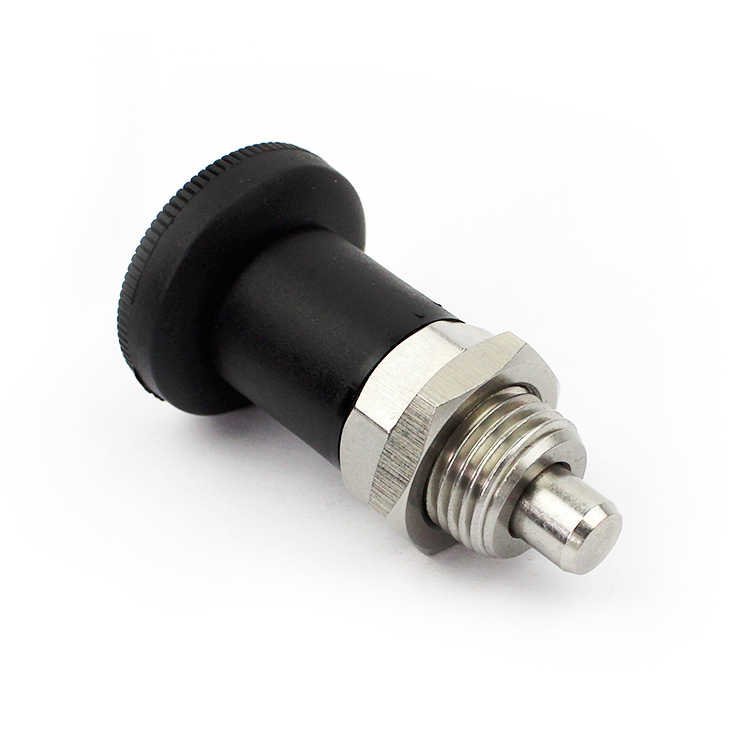

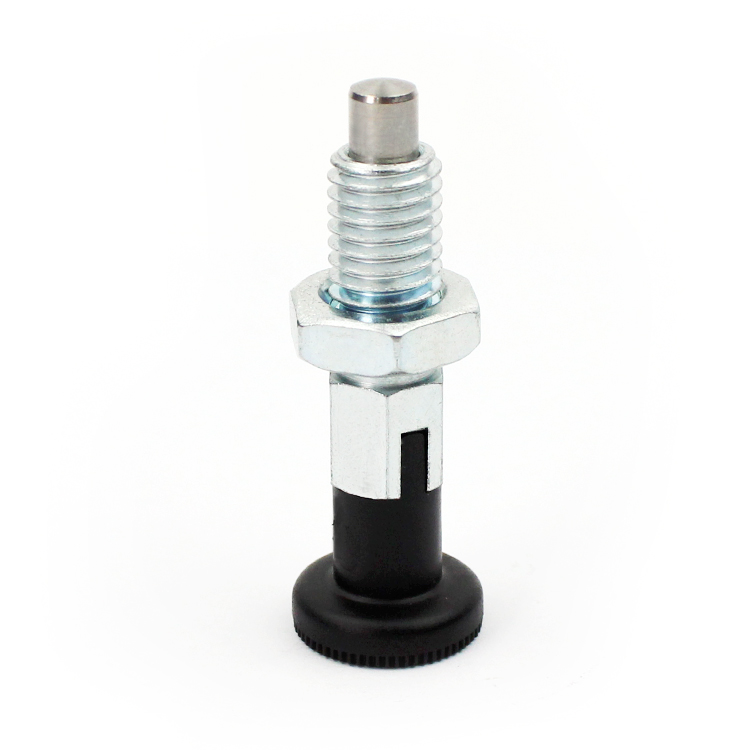

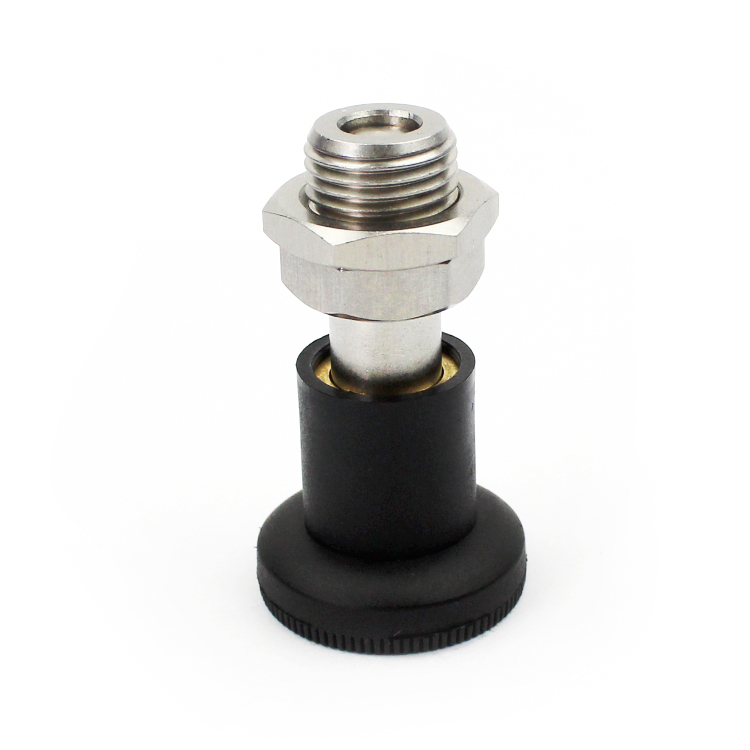

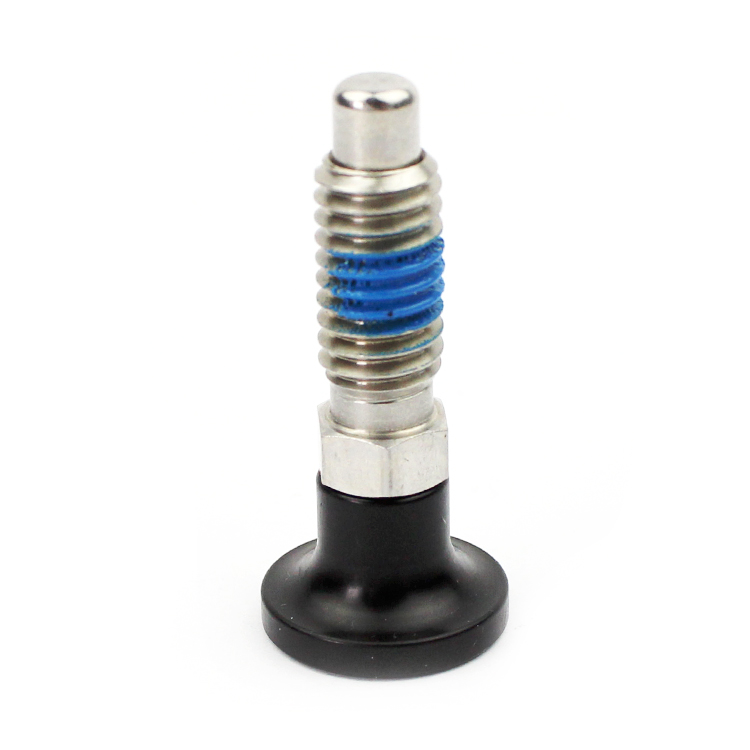

Features of GN617 Indexing Plunger
GN617 Indexing Plungers Retractable Title:
Indexing Plunger Pin Stainless Steel Lock Index Plunger Pin
Lock Index Plunger Pin Introduction:
GN617 is an indexing plunger that supports manual "push/pull" operation, with flexible adjustment and locking achieved through a rolling knob, and quick positioning and retraction locking function achieved through spring loading.
GN617 Model Type:
Steel body (carbon steel or black oxide steel) with plastic knob;
GN617.1: Supports retraction position locking function;
Types
-A with plastic knob, without nut -AN with plastic knob, with nut
-AK with stainless steel knob, without nut -AKN with stainless steel knob, with nut
Thread Size:M10x1,M12x1.5,M16x1.5,M20x1.5 or Customized
Spring Pressure: Preload [N]:6N-17N,Max.load [N]:15N-40N
Knob Diameter:21mm,25mm,31mm or Customized
Threaded Body: AISI 303 stainless steel (NI) Steel with black oxide (ST)
Plunger: AISI 303 stainless steel (NI) Steel with black oxide (ST)
Knob: Stainless Steel Polymide with black matte finish
| d | L | d1 | D | I1 | I2 | I3 | S | Preload(N) | Max.load(N) |
| 5 | 23 | M10*1 | 21 | 17 | 5 | 15 | 12 | 6 | 15 |
| 6 | 28.5 | M12*1.5 | 25 | 20 | 6 | 17 | 14 | 8 | 21 |
| 8 | 35 | M16*1.5 | 31 | 26 | 8 | 23 | 19 | 9 | 26 |
| 10 | 37 | M20*1.5 | 31 | 33 | 10 | 30 | 22 | 17 | 40 |
Application:
Outdoor equipment joints, stamping machines, medical equipment adjustment, etc
Advantage of Retractable Indexing Plunger:
Diversified thread specifications: Supports standard threads such as M10 and M12, suitable for compact or conventional installation needs
Rest Type and safety locking design (with locking nut or plastic knob) reduce the risk of displacement caused by vibration and improve the stability of heavy equipment.
Black zinc coating:
enhances wear resistance and corrosion resistance, suitable for conventional industrial loads;
Stainless steel polishing:
No additional coating required, suitable for clean workshops or food processing equipment;
Non standard customization: supports adjusting spring load, thread specifications (if non-standard), and knob materials;
