Hydraulic Fittings Adapters
PDM-Racing
| Availability: | |
|---|---|
| Quantity: | |
High Pressure Hydraulic Fittings
Stainless Steel Hydraulic Fittings Title:

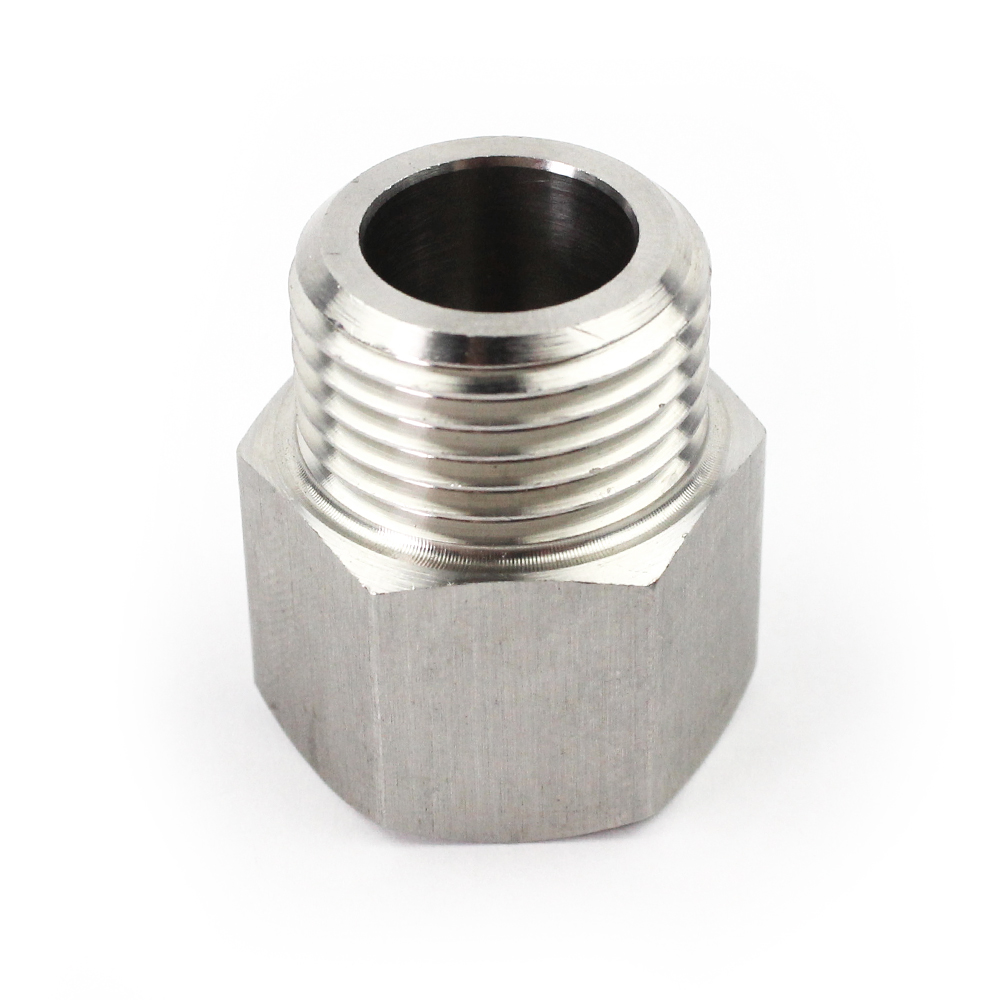

CNC Turning hydraulic fittings quick release hydraulic fittings jic bspp bspt SAE hydraulic ferrul fitting OEM Service
Reusable Hydraulic Fittings:

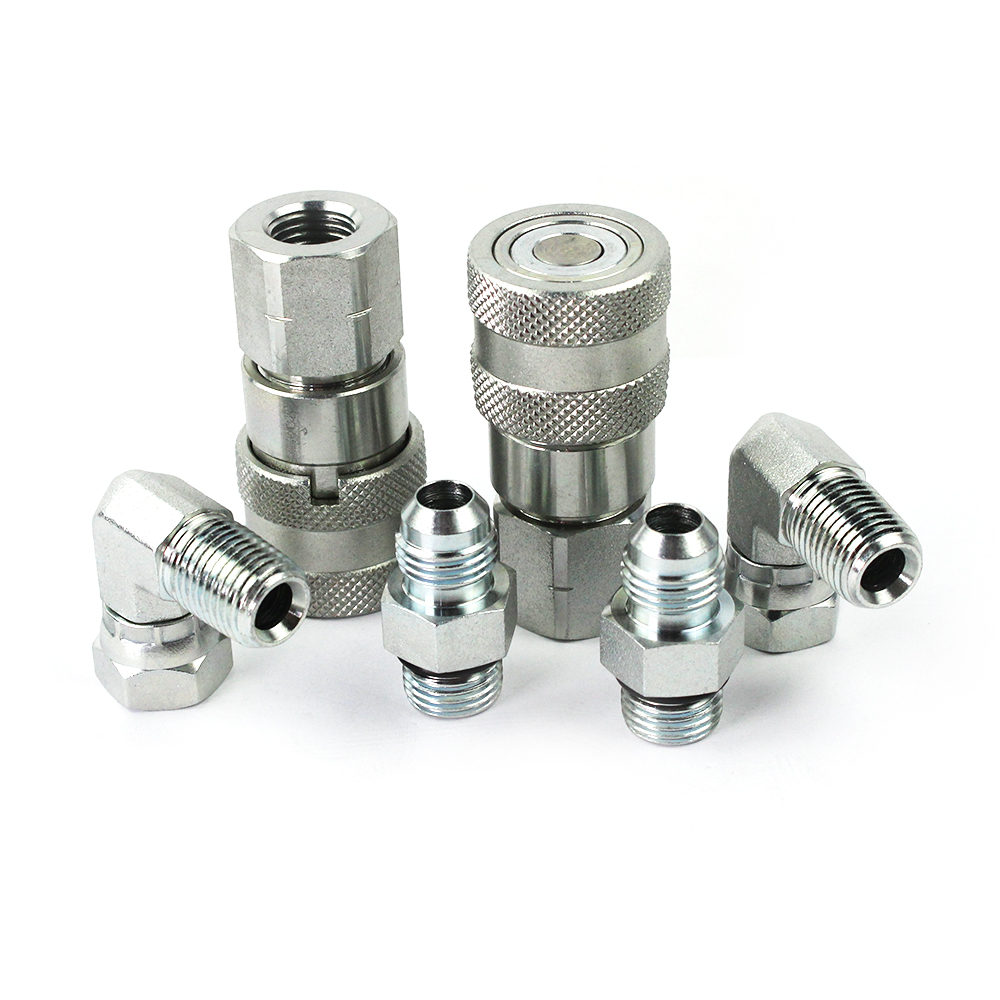

Hydraulic fittings and hose are metal connectors used to connect rubber/plastic hoses to hydraulic components in high-pressure hydraulic circuits. They consist of three parts: core tube, outer sleeve, and threaded end. It has functions such as sealing, pressure bearing, vibration resistance, and leakage prevention.

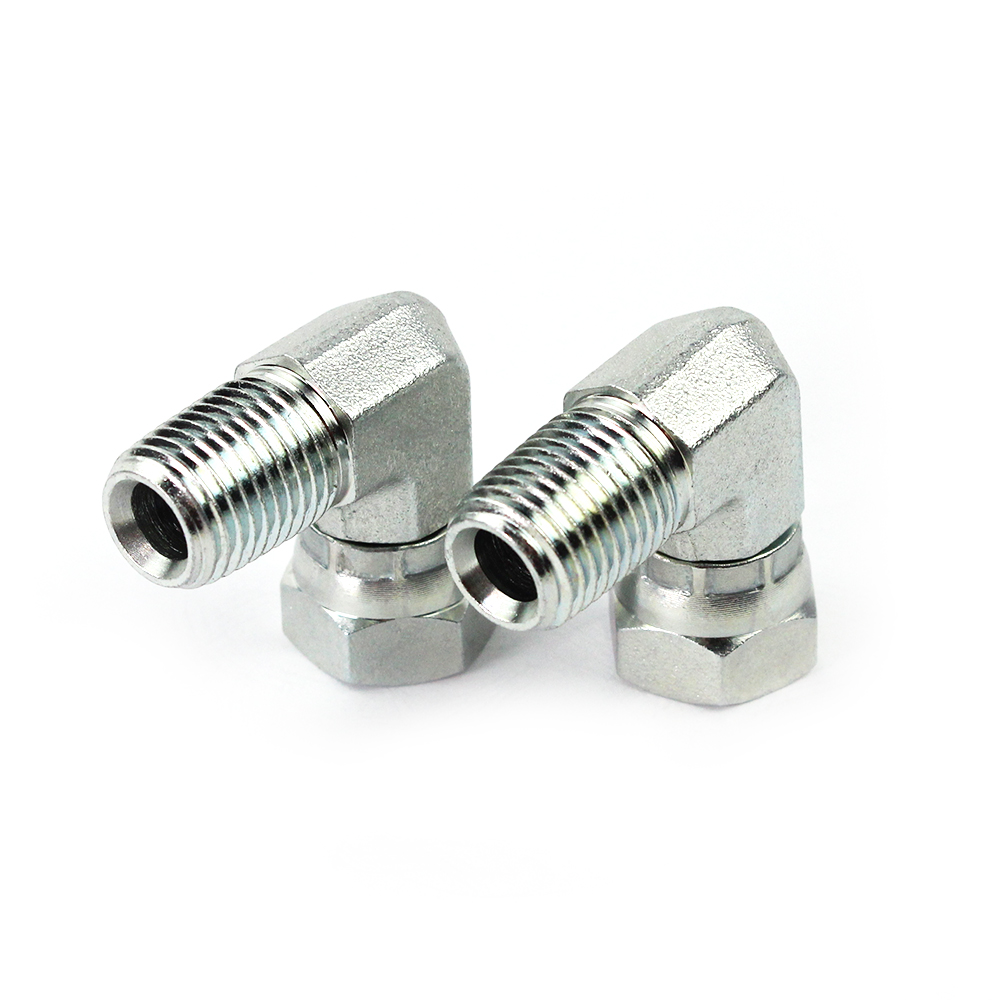

JIC Male x NPT Male Elbow
Male (external thread end): The end of the joint with external threads, used to screw in internal thread interfaces(such as valve blocks, pump ports, female joints). Corresponding: Female (internal thread end, with internal thread).

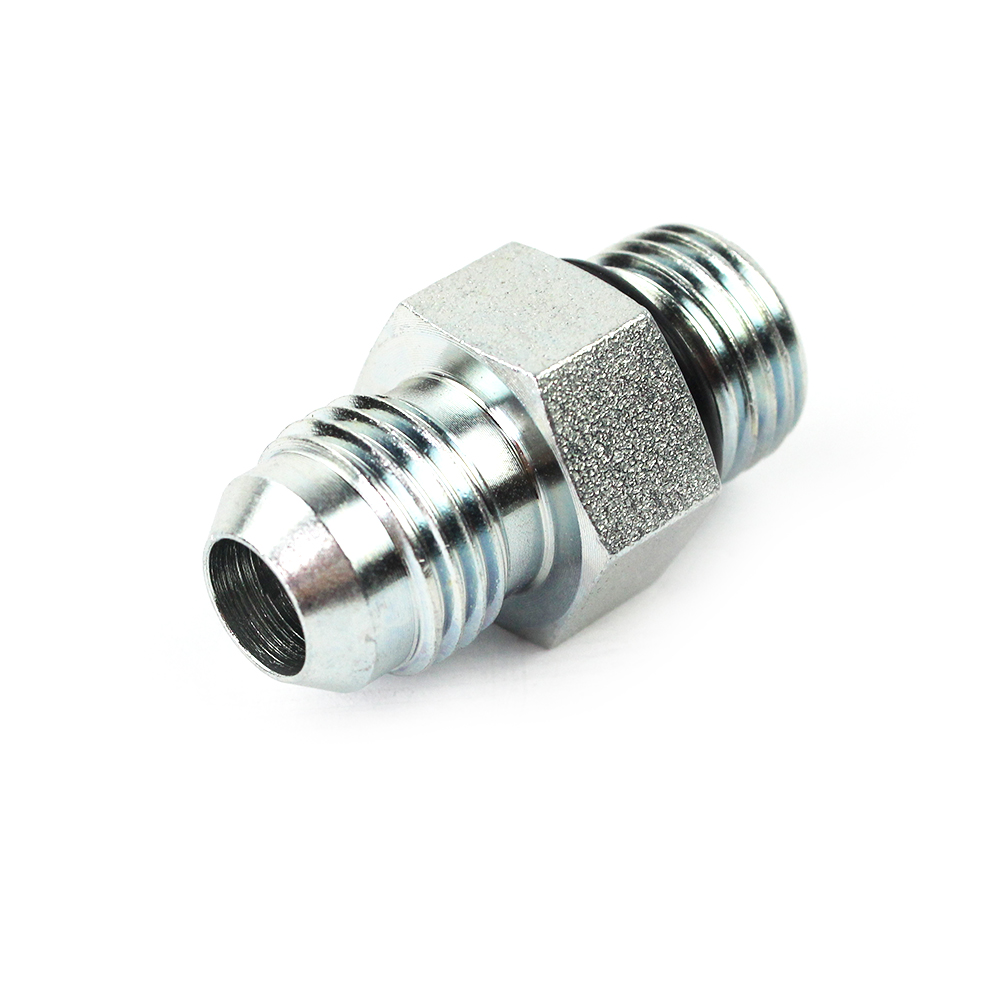

Metric to SAE Hydraulic Hose Adapter Fitting
SAE Flare/JIC (American standard 37 ° expansion)
SAE standards; JIC: SAE J514 is its core specification.
Core: 37 ° metal cone seal+UNF straight thread (American fine tooth), no O-ring, relying on cone metal hard seal.
BSPP Hydraulic Fittings
BSPP British standard straight pipe thread: G-thread, 55 ° profile angle, straight thread (cylindrical), requires O-ring or sealing gasket for auxiliary sealing.
Hydraulic Coupling Pipe Fittings
BSPT British standard taper pipe thread: 55 ° profile angle, 1:16 taper thread, self sealing by thread compression deformation, no additional sealing ring required.

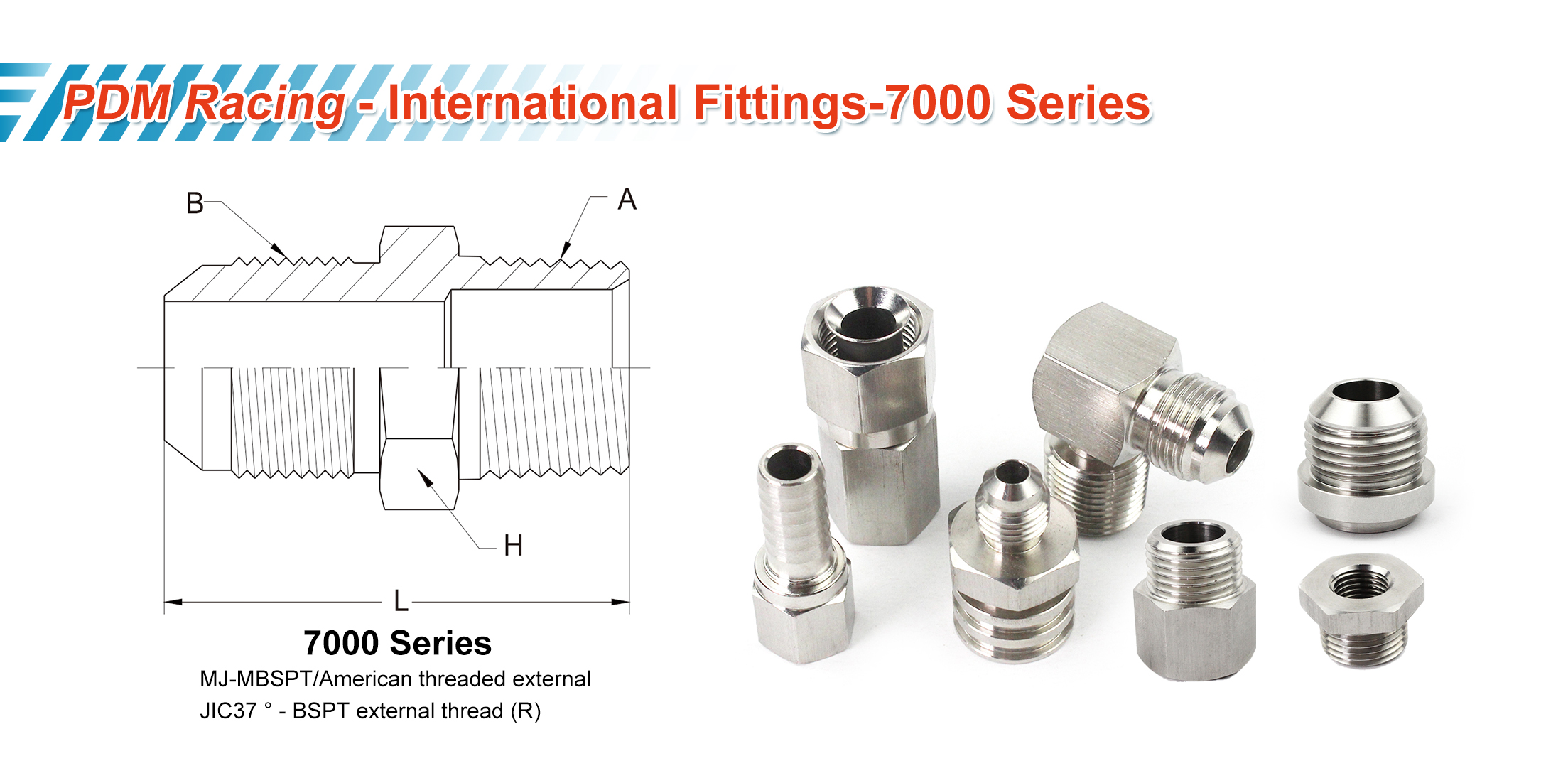

| Part NO. | Tube O.D | Thread Size | Length | Hex | |
| B | A | L | H | ||
| 7000-MH-04-02 | 1/4 | 7/16-20 | R1/8-28 | 30.70 | 13.00 |
| 7000-MH-04-04 | 1/4 | 7/16-20 | R1/4-19 | 35.70 | 14.00 |
| 7000-MH-05-02 | 5/16 | 1/2-20 | R1/8-28 | 31.00 | 14.00 |
| 7000-MH-05-04 | 5/16 | 1/2-20 | R1/4-19 | 35.30 | 14.00 |
| 7000-MH-06-04 | 3/8 | 9/16-18 | R1/4-19 | 35.60 | 17.00 |
| 7000-MH-06-06 | 3/8 | 9/16-18 | R3/8-19 | 35.60 | 19.00 |
| 7000-MH-06-08 | 3/8 | 9/16-18 | R1/2-14 | 42.90 | 22.00 |
| 7000-MH-08-04 | 1/2 | 3/4-16 | R1/4-19 | 38.90 | 19.00 |
| 7000-MH-08-06 | 1/2 | 3/4-16 | R3/8-19 | 38.10 | 19.00 |
| 7000-MH-08-08 | 1/2 | 3/4-16 | R1/2-14 | 43.70 | 22.00 |
| 7000-MH-08-12 | 1/2 | 3/4-16 | R3/4-14 | 47.00 | 27.00 |
| 7000-MH-10-06 | 5/8 | 7/8-14 | R3/8-19 | 41.90 | 24.00 |
| 7000-MH-10-08 | 5/8 | 7/8-14 | R1/2-14 | 46.70 | 24.00 |
| 7000-MH-10-12 | 5/8 | 7/8-14 | R3/4-14 | 49.50 | 27.00 |
| 7000-MH-12-08 | 3/4 | 1-1/16-12 | R1/2-14 | 50.80 | 27.00 |
| 7000-MH-12-12 | 3/4 | 1-1/16-12 | R3/4-14 | 50.80 | 27.00 |
| 7000-MH-12-16 | 3/4 | 1-1/16-12 | R1-11 | 57.20 | 35.00 |
| 7000-MH-16-12 | 1 | 1-5/16-12 | R3/4-14 | 53.60 | 35.00 |
| 7000-MH-16-16 | 1 | 1-5/16-12 | R1-11 | 57.90 | 36.00 |
| 7000-MH-20-16 | 1-1/4 | 1-5/8-12 | R1-11 | 61.50 | 44.00 |
| 7000-MH-20-20 | 1-1/4 | 1-5/8-12 | R1-1/4-11 | 62.20 | 44.00 |
| 7000-MH-24-20 | 1-1/2 | 1-7/8-12 | R1-1/4-11 | 67.30 | 50.00 |
| 7000-MH-24-24 | 1-1/2 | 1-7/8-12 | R1-1/2-11 | 68.10 | 50.00 |

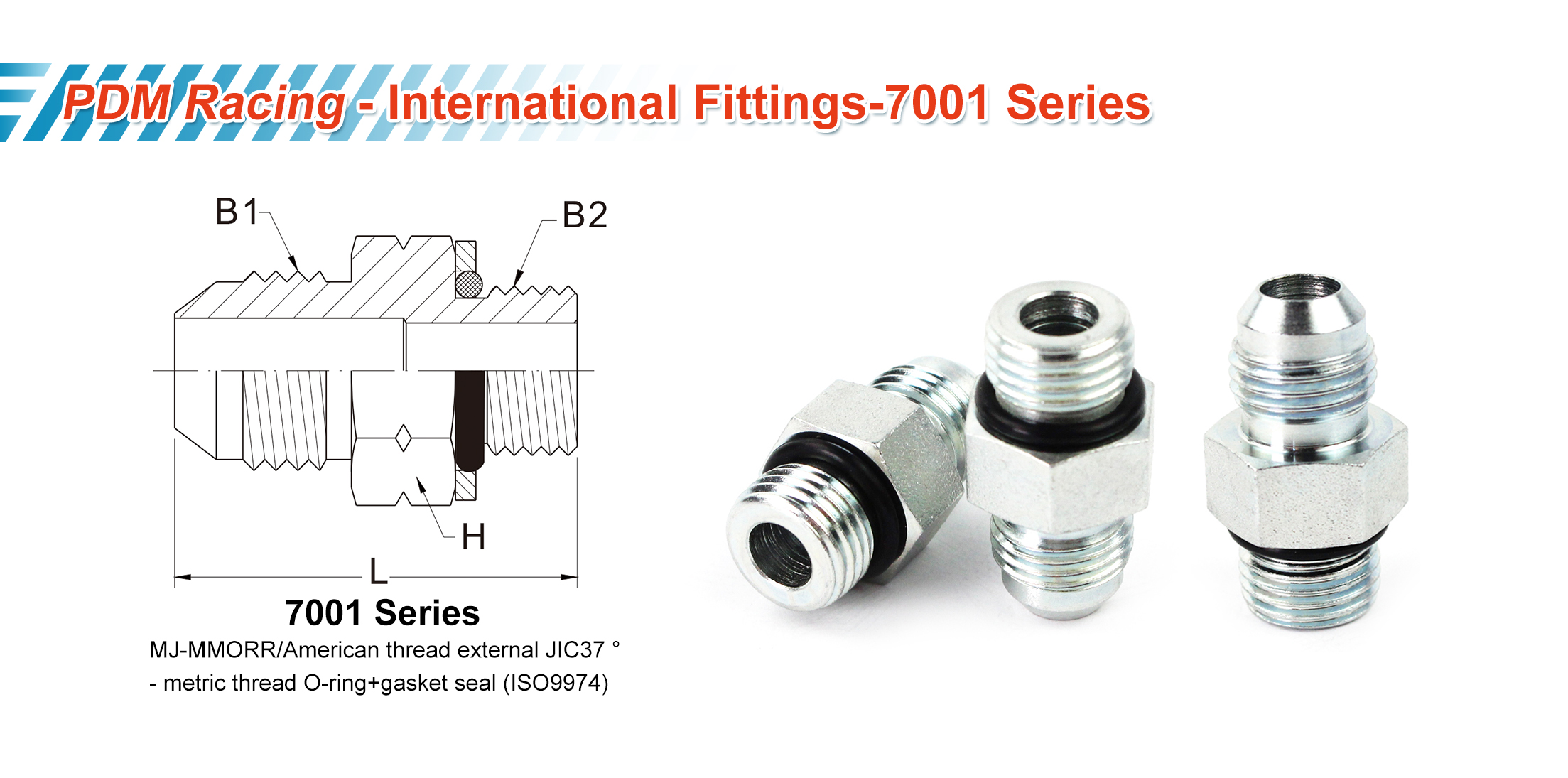

| Part NO. | Tube O.D | Thread Size | Length | Hex | |
| B1 | B2 | L | H | ||
| 7001-04-10-OR | 1/4 | 7/16-20 | M10 x 1 | 30.00 | 14.00 |
| 7001-04-12-OR | 1/4 | 7/16-20 | M12 x 1.5 | 31.00 | 17.00 |
| 7001-04-14-OR | 1/4 | 7/16-20 | M14 x 1.5 | 33.50 | 19.00 |
| 7001-06-10-OR | 3/8 | 9/16-18 | M10 x 1.0 | 29.50 | 17.00 |
| 7001-06-12-OR | 3/8 | 9/16-18 | M12 x 1.5 | 32.00 | 17.00 |
| 7001-06-14-OR | 3/8 | 9/16-18 | M14 x 1.5 | 34.00 | 19.00 |
| 7001-06-16-OR | 3/8 | 9/16-18 | M16 x 1.5 | 36.00 | 22.00 |
| 7001-06-18-OR | 3/8 | 9/16-18 | M18 x 1.5 | 37.00 | 24.00 |
| 7001-08-14-OR | 1/2 | 3/4-16 | M14 x 1.5 | 37.00 | 22.00 |
| 7001-08-16-OR | 1/2 | 3/4-16 | M16 x 1.5 | 38.00 | 22.00 |
| 7001-08-18-OR | 1/2 | 3/4-16 | M18 x 1.5 | 36.50 | 24.00 |
| 7001-08-20-OR | 1/2 | 3/4-16 | M20 x 1.5 | 38.00 | 27.00 |
| 7001-08-22-OR | 1/2 | 3/4-16 | M22 x 1.5 | 37.50 | 27.00 |
| 7001-10-18-OR | 5/8 | 7/8-14 | M18 x 1.5 | 43.00 | 24.00 |
| 7001-10-22-OR | 5/8 | 7/8-14 | M22 x 1.5 | 40.50 | 27.00 |
| 7001-12-22-OR | 3/4 | 1-1/16-12 | M22 x 1.5 | 48.00 | 27.00 |
| 7001-12-26-OR | 3/4 | 1-1/16-12 | M26 x 1.5 | 51.00 | 32.00 |
| 7001-12-27-OR | 3/4 | 1-1/16-12 | M27 x 2 | 51.00 | 32.00 |
| 7001-16-33-OR | 1 | 1-5/16-12 | M33 x 2 | 53.00 | 41.00 |
| 7001-16-42-OR | 1 | 1-5/16-12 | M42 x 2 | 53.00 | 50.00 |
| 7001-20-42-OR | 1-1/4 | 1-5/8-12 | M42 x 2 | 55.00 | 50.00 |

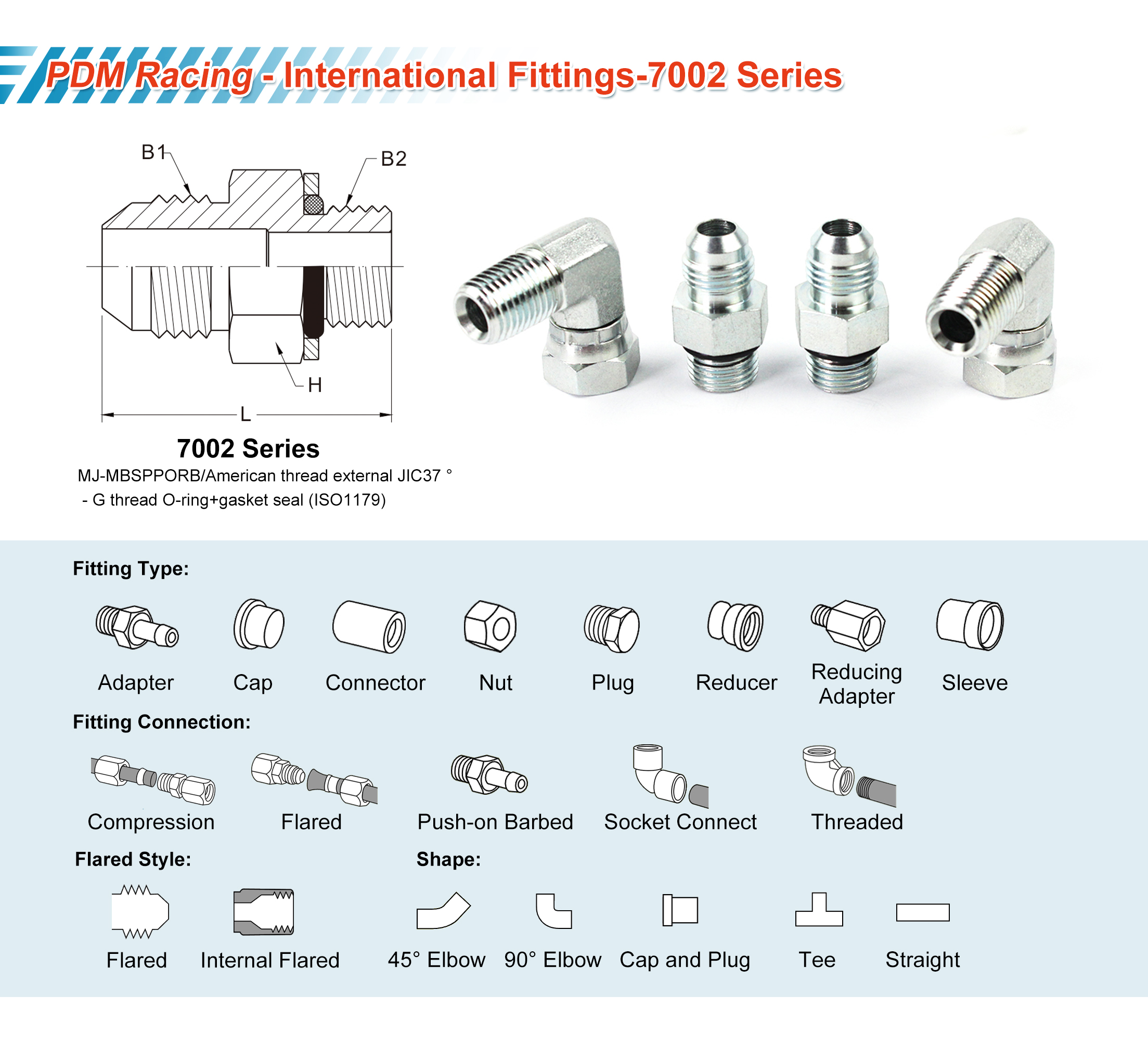

| Part NO. | Tube O.D | Thread Size | Length | Hex | |
| B1 | B2 | L | H | ||
| 70020402 | 1/4 | 7/16-20 | G1/8-28 | 29.00 | 14.00 |
| 70020404 | 1/4 | 7/16-20 | G1/4-19 | 32.00 | 19.00 |
| 70020406 | 1/4 | 7/16-20 | G3/8-19 | 33.00 | 22.00 |
| 70020408 | 1/4 | 7/16-20 | G1/2-19 | 39.00 | 30.00 |
| 70020504 | 5/16 | 1/2-20 | G1/4-19 | 31.00 | 19.00 |
| 70020506 | 5/16 | 1/2-20 | G3/8-19 | 33.00 | 22.00 |
| 7002-06-02 | 3/8 | 9/16-18 | G3/8-19 | 33.00 | 22.00 |
| 70020604 | 3/8 | 9/16-18 | G1/8-28 | 29.00 | 16.00 |
| 70020606 | 3/8 | 9/16-18 | G1/4-19 | 32.00 | 19.00 |
| 70020608 | 3/8 | 9/16-18 | G3/8-19 | 33.34 | 22.00 |
| 7002-06-12 | 3/8 | 9/16-18 | G1/2-14 | 38.90 | 30.00 |
| 7002-08-04 | 1/2 | 3/4-16 | G1/4-19 | 36.00 | 19.00 |
| 70020806 | 1/2 | 3/4-16 | G3/8-19 | 36.00 | 22.00 |
| 70020808 | 1/2 | 3/4-16 | G1/2-14 | 41.40 | 30.00 |
| 70020810 | 1/2 | 3/4-16 | G5/8-14 | 42.00 | 30.00 |
| 7002-08-12 | 1/2 | 3/4-16 | G3/4-14 | 42.20 | 36.00 |
| 7002-08-16 | 1/2 | 3/4-16 | G1-11 | 47.10 | 46.00 |
| 7002-10-04 | 5/8 | 7/8-14 | G1/4-19 | 41.00 | 24.00 |
| 7002-10-06 | 5/8 | 7/8-14 | G3/8-19 | 41.00 | 24.00 |
| 70021008 | 5/8 | 7/8-14 | G1/2-14 | 44.00 | 30.00 |
| 70021010 | 5/8 | 7/8-14 | G5/8-14 | 44.00 | 30.00 |
| 7002-10-12 | 5/8 | 7/8-14 | G3/4-14 | 44.70 | 36.00 |
| 7002-12-06 | 3/4 | 1-1/16-12 | G3/8-19 | 44.00 | 27.00 |
| 7002-12-08 | 3/4 | 1-1/16-12 | G1/2-14 | 47.50 | 32.00 |
| 70021210 | 3/4 | 1-1/16-12 | G5/8-14 | 48.00 | 30.00 |
| 70021212 | 3/4 | 1-1/16-12 | G3/4-14 | 47.50 | 36.00 |
| 70021216 | 3/4 | 1-1/16-12 | G1-11 | 54.70 | 46.00 |
| 7002-16-12 | 1 | 1-5/16--12 | G3/4-14 | 49.40 | 36.00 |
| 70021616 | 1 | 1-5/16--12 | G1-11 | 53.50 | 46.00 |
| 70021620 | 1 | 1-5/16--12 | G1-1/4-11 | 54.50 | 50.00 |
| 70021624 | 1 | 1-5/16--12 | G1-1/2-11 | 58.50 | 55.00 |
| 70022012 | 1-1/4 | 1-5/8-12 | G3/4-14 | 58.00 | 41.00 |
| 70022016 | 1-1/4 | 1-5/8-12 | G1-11 | 55.00 | 46.00 |
| 70022020 | 1-1/4 | 1-5/8-12 | G1-1/4-11 | 57.00 | 50.00 |
| 70022024 | 1-1/4 | 1-5/8-12 | G1-1/2-11 | 59.00 | 55.00 |
| 7002-24-20 | 1-1/2 | 1-7/8-12 | G1-1/4-11 | 61.00 | 55.00 |
| 7002-24-24 | 1-1/2 | 1-7/8-12 | G1-1/2-11 | 61.00 | 55.00 |
| 7002-24-32 | 1-1/2 | 1-7/8-12 | G2-11 | 70.00 | 70.00 |
| 7002-32-32 | 2 | 2-1/2-12 | G2-11 | 76.00 | 70.00 |

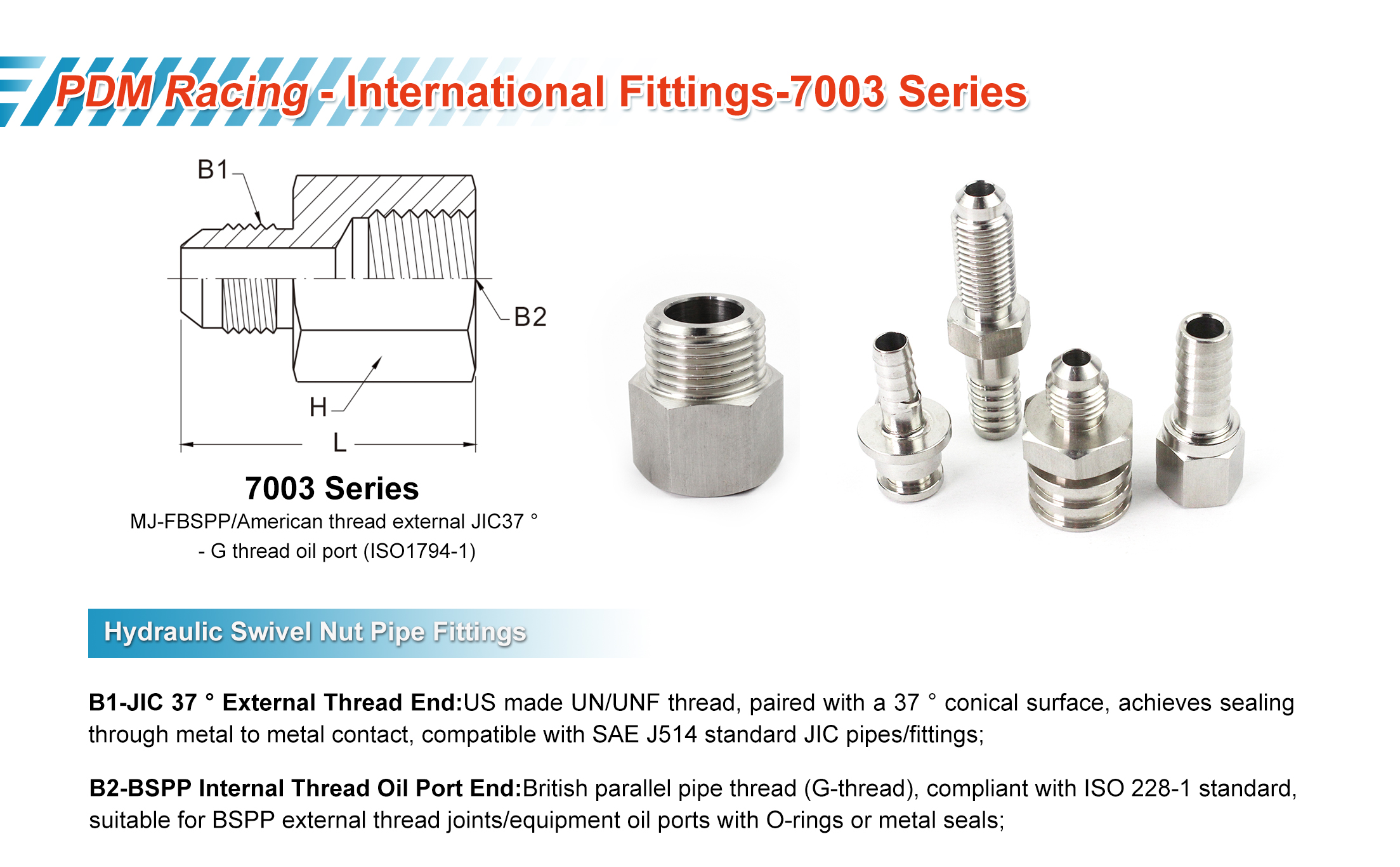

| Part NO. | Tube O.D | Thread Size | Length | Hex | |
| B1 | B2 | L | H | ||
| 7003-04-02 | 1/4 | 7/16-20 | G1/8-28 | 30.20 | 14.00 |
| 7003-04-04 | 1/4 | 7/16-20 | G1/4-19 | 35.30 | 19.00 |
| 7003-05-02 | 5/16 | 1/2-20 | G1/8-28 | 29.70 | 14.00 |
| 7003-05-04 | 5/16 | 1/2-20 | G1/4-19 | 35.30 | 19.00 |
| 7003-06-04 | 3/8 | 9/16-18 | G1/4-19 | 36.00 | 19.00 |
| 7003-06-06 | 3/8 | 9/16-18 | G3/8-19 | 37.10 | 22.00 |
| 7003-06-08 | 3/8 | 9/16-18 | G1/2-14 | 42.00 | 27.00 |
| 7003-08-04 | 1/2 | 3/4-16 | G1/4-19 | 39.00 | 22.00 |
| 7003-08-06 | 1/2 | 3/4-16 | G3/8-19 | 39.60 | 22.00 |
| 7003-08-08 | 1/2 | 3/4-16 | G1/2-14 | 45.50 | 30.00 |
| 7003-08-10 | 1/2 | 3/4-16 | G5/8-14 | 46.00 | 30.00 |
| 7003-08-12 | 1/2 | 3/4-16 | G3/4-14 | 47.50 | 36.00 |
| 7003-10-08 | 5/8 | 7/8-14 | G1/2-14 | 48.00 | 27.00 |
| 7003-10-10 | 5/8 | 7/8-14 | G5/8-14 | 44.30 | 30.00 |
| 7003-10-12 | 5/8 | 7/8-14 | G3/4-14 | 50.00 | 36.00 |
| 7003-12-08 | 3/4 | 1-1/16-12 | G1/2-14 | 50.00 | 27.00 |
| 7003-12-12 | 3/4 | 1-1/16-12 | G3/4-14 | 52.30 | 36.00 |
| 7003-16-16 | 1 | 1-5/16-12 | G1-11 | 59.70 | 41.00 |

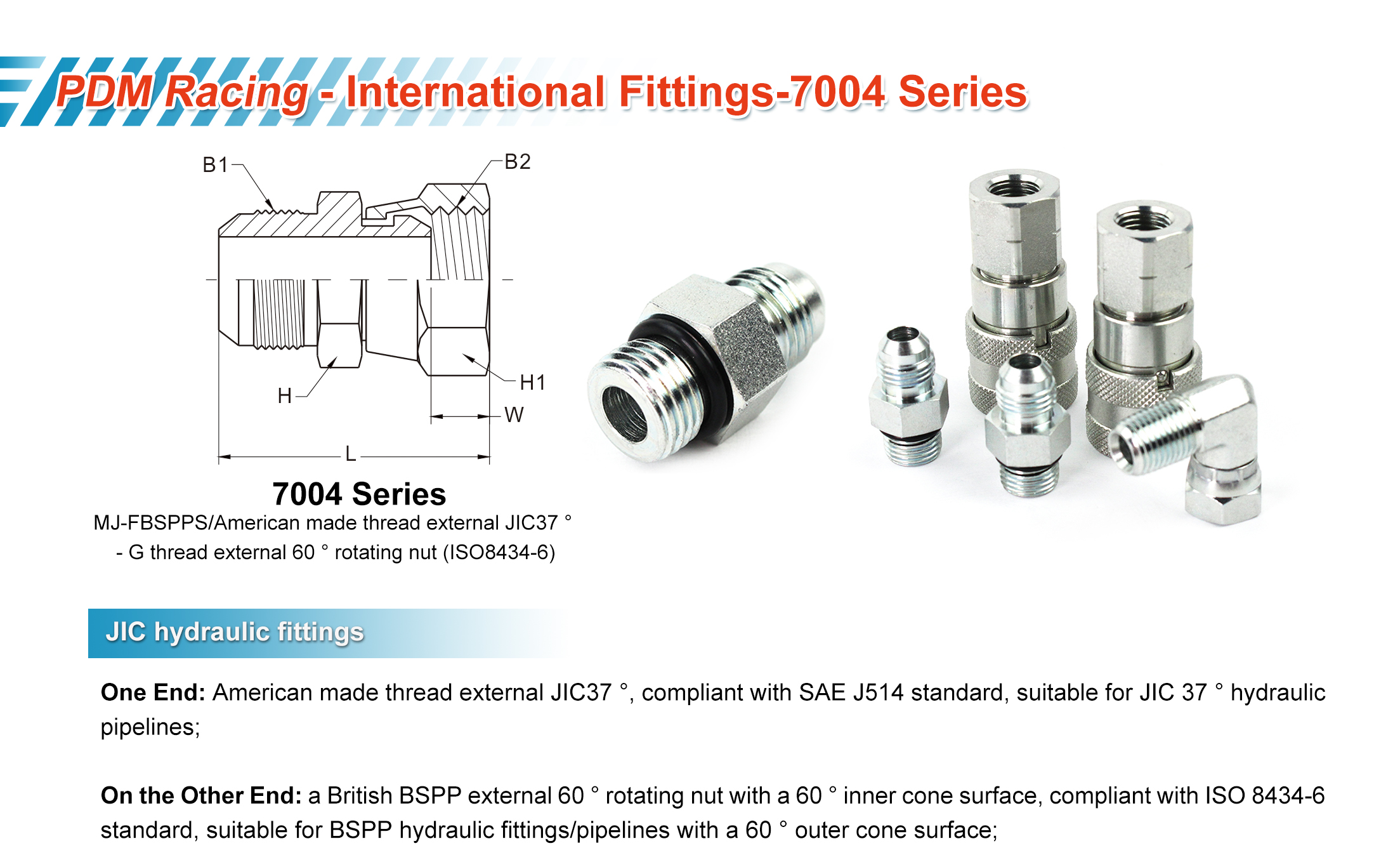

| Part NO. | Tube O.D | Thread Size | Length | Hex | |||
| B1 | B2 | L | W | H | H1 | ||
| 7004-04-02 | 1/4 | 7/16-20 | G1/8-28 | 36.00 | 4.50 | 14.00 | 14.00 |
| 7004-04-04 | 1/4 | 7/16-20 | G1/4-19 | 36.58 | 4.20 | 14.00 | 19.00 |
| 7004-04-06 | 1/4 | 7/16-20 | G3/8-19 | 43.50 | 6.00 | 19.00 | 22.00 |
| 7004-06-04 | 3/8 | 9/16-18 | G1/4-19 | 36.50 | 4.20 | 19.00 | 19.00 |
| 7004-06-06 | 3/8 | 9/16-18 | G3/8-19 | 40.64 | 6.00 | 19.00 | 22.00 |
| 7004-06-08 | 3/8 | 9/16-18 | G1/2-14 | 46.50 | 6.50 | 22.00 | 27.00 |
| 7004-08-06 | 1/2 | 3/4-16 | G3/8-19 | 42.30 | 6.00 | 22.00 | 22.00 |
| 7004-08-08 | 1/2 | 3/4-16 | G1/2-14 | 49.02 | 6.50 | 22.00 | 27.00 |
| 7004-10-10 | 5/8 | 7/8-14 | G5/8-14 | 52.80 | 9.70 | 27.00 | 30.00 |
| 7004-12-12 | 3/4 | 1-1/16-12 | G3/4-14 | 57.15 | 8.70 | 28.58 | 32.00 |
| 7004-12-16 | 3/4 | 1-1/16-12 | G1-11 | 58.80 | 10.50 | 38.00 | 41.00 |
| 7004-16-16 | 1 | 1-5/16-12 | G1-11 | 60.00 | 10.50 | 41.00 | 41.00 |
| 7004-20-20 | 1-1/4 | 1-5/8-12 | G1-1/4-11 | 65.00 | 10.10 | 50.00 | 50.00 |
| 7004-24-24 | 1-1/2 | 1-7/8-12 | G1-1/2-11 | 79.30 | 12.20 | 50.00 | 55.00 |
| 7004-32-32 | 2 | 2-1/2-12 | G2-11 | 92.50 | 16.10 | 65.00 | 70.00 |

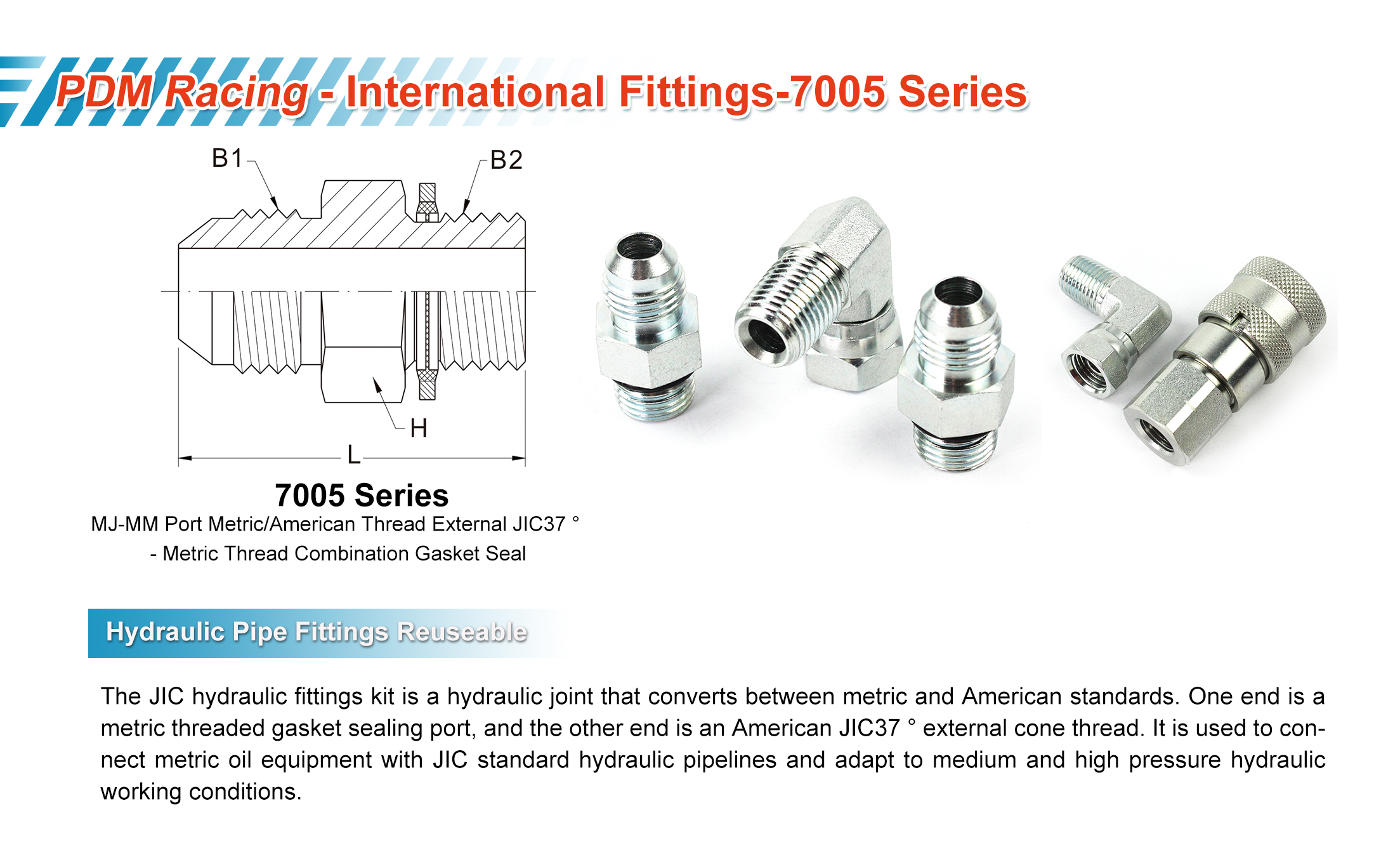

| Part NO. | Tube O.D | Thread Size | Length | Hex | |
| B1 | B2 | L | H | ||
| 7005-04-10 | 1/4 | 7/16-20 | M10 x 1 | 32.00 | 17.00 |
| 7005-04-12 | 1/4 | 7/16-20 | M12 x 1.5 | 34.00 | 17.00 |
| 7005-04-14 | 1/4 | 7/16-20 | M14 x 1.5 | 34.00 | 19.00 |
| 7005-04-18 | 1/4 | 7/16-20 | M18 x 1.5 | 34.50 | 22.00 |
| 7005-05-12 | 5/16 | 1/2-20 | M12 x 1.5 | 33.00 | 17.00 |
| 7005-06-12 | 3/8 | 9/16-18 | M12 x 1.5 | 33.00 | 17.00 |
| 7005-06-14 | 3/8 | 9/16-18 | M14 x 1.5 | 34.00 | 19.00 |
| 7005-06-16 | 3/8 | 9/16-18 | M16 x 1.5 | 34.00 | 22.00 |
| 7005-06-18 | 3/8 | 9/16-18 | M18 x 1.5 | 34.00 | 22.00 |
| 7005-06-20 | 3/8 | 9/16-18 | M20 x 1.5 | 35.00 | 25.40 |
| 7005-08-12 | 1/2 | 3/4-16 | M12 x 1.5 | 37.00 | 20.00 |
| 7005-08-14 | 1/2 | 3/4-16 | M14 x 1.5 | 37.50 | 20.00 |
| 7005-08-16 | 1/2 | 3/4-16 | M16 x 1.5 | 36.90 | 22.00 |
| 7005-08-18 | 1/2 | 3/4-16 | M18 x 1.5 | 37.00 | 22.00 |
| 7005-08-20 | 1/2 | 3/4-16 | M20 x 1.5 | 38.00 | 25.40 |
| 7005-08-22 | 1/2 | 3/4-16 | M22 x 1.5 | 40.50 | 27.00 |
| 7005-10-18 | 5/8 | 7/8-14 | M18 x 1.5 | 41.50 | 24.00 |
| 7005-10-22 | 5/8 | 7/8-14 | M22 x 1.5 | 43.00 | 27.00 |
| 7005-12-24 | 3/4 | 1-1/16-12 | M24 x 1.5 | 47.50 | 32.00 |
| 7005-12-26 | 3/4 | 1-1/16-12 | M26 x 1.5 | 48.00 | 32.00 |
| 7005-16-33 | 1 | 1-5/16-12 | M33 x 2 | 54.00 | 41.00 |
| 7005-20-30 | 1-1/4 | 1-5/8-12 | M30 x 2 | 55.50 | 46.00 |
Notes:

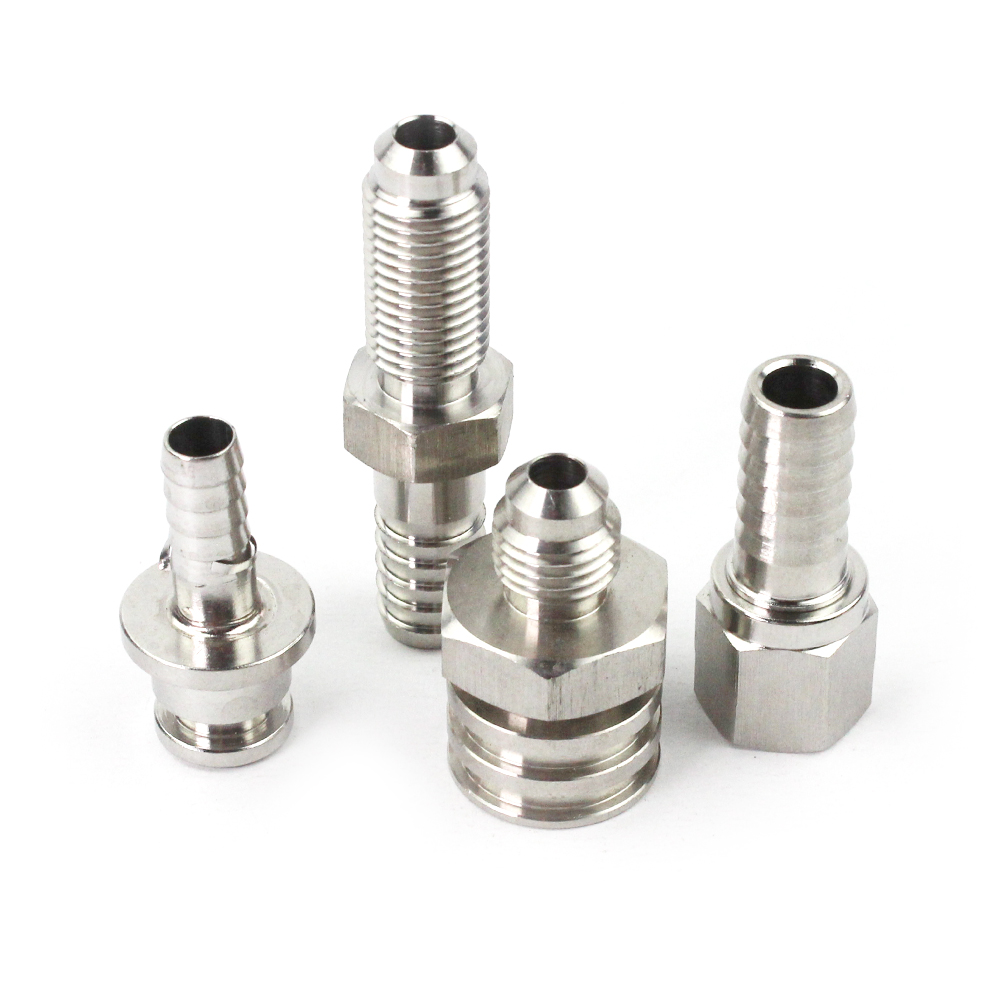

Stainless Steel Hydraulic Hose Fitting

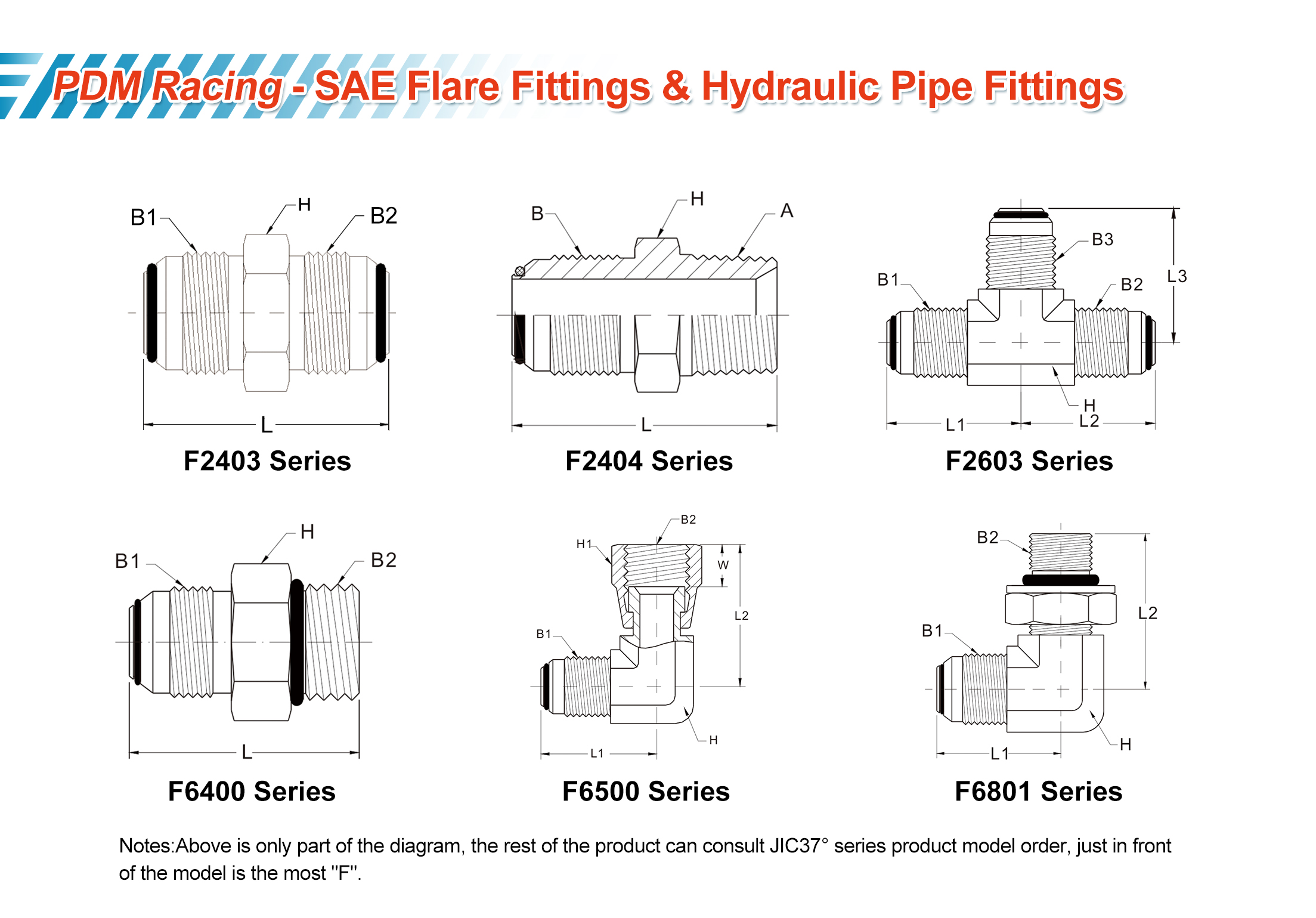

SAE Flare / JIC 37°(SAE J514)
Thread: UNF straight thread (such as 1/4 "-20, 3/8" -18).
Sealing: The 37 ° outer conical surface and the expanded end of the hose are metal to metal sealed, and can be disassembled and reassembled repeatedly.
Pressure: up to 420 bar (6000 psi), preferred for medium and high pressure.
Material: Carbon steel (galvanized), stainless steel 304/316, brass.
Application: North American construction machinery, agricultural machinery, trucks, aviation hydraulics (AN is the military version, same as 37 °).
Advantages: vibration resistance, reusable, easy to inspect; Disadvantages: The conical surface is prone to scratches and requires precision machining.
BSPP (G-thread, ISO 228-1)-BSPP Hydraulic Hose Crimp Fittings
Thread: 55 ° Wyeth straight thread (cylindrical), such as G1/4, G3/8.
Sealing: End face O-ring or metal gasket, thread does not participate in sealing.
Pressure: up to 400 bar, suitable for medium and high pressure, frequent disassembly and assembly scenarios.
Application: European and Asian equipment, such as injection molding machines, machine tools, hydraulic stations.
Advantages: Reliable sealing, anti vibration, easy maintenance; Disadvantage: Additional sealing rings are required.

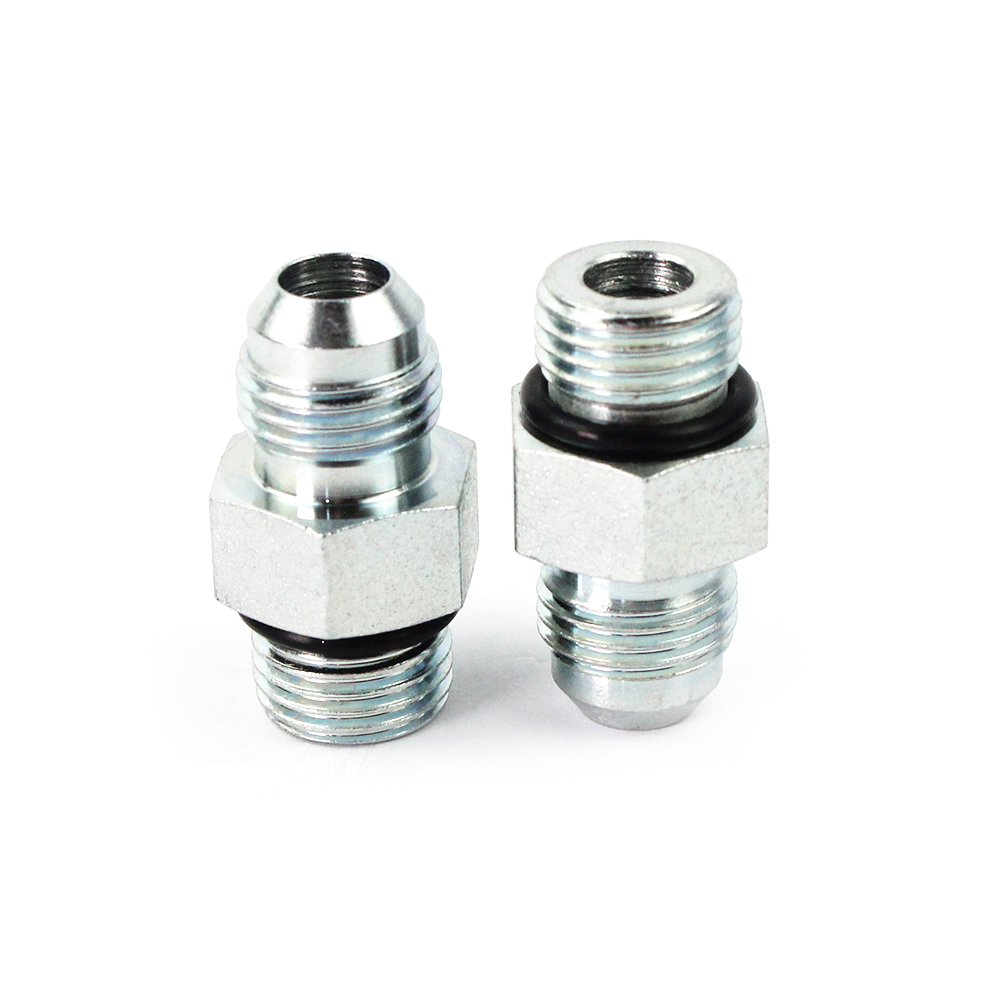

Hydraulic Crimp Fittings Assortment
BSPT(ISO 7/1)
Thread: 55 ° Wyeth taper thread (1:16 taper), such as R1/4, R3/8.
Sealing: Metal extrusion deformation self seals during thread engagement, suitable for low/medium pressure.
Pressure: ≤ 250 bar, commonly used in low-pressure circuits, pneumatic systems, and water/oil pipelines.
Application: Old equipment from the Commonwealth and Asia, ordinary hydraulic and pneumatic systems.
Advantages: No need for sealing rings, easy installation; Disadvantages: Cannot be disassembled repeatedly (threads are prone to damage), high pressure is prone to leakage.

Keywords:
Hydraulic adapter 37 degree flare adapter 90 degree JIC elbow, Forged hydraulic elbow, Adjustable ORB 90 degree fitting, BSPP to JIC 90 adapter JIC hydraulic fitting JIC 37° flare fitting SAE J514 JIC fitting BSPP hydraulic fittings G thread hydraulic fittings BSPP (G) parallel thread Flat Face Hydraulic Couplers Set for Skid Steer Flat Face Quick Connect Set JIC Male x NPT Male Elbow 90 Degree JIC to SAE/ORB Elbow hydraulic crimp fittings wholesale hydraulic crimp fittings assortment JIC hydraulic fittings 90 degree elbow JIC hydraulic fittings kit hydraulic fittings bspp hydraulic fittings bspt bspp hydraulic hose fittings Jlc Fittings |SAE 37° Flared Fittings jic 37 flare sae j514 hydraulic hose fittings hydraulic fittings hydraulic pipe fittings hydraulic hoses and fittings jic hydraulic fittings stainless steel hydraulic fittings hydraulic adapter fitting hydraulic fittings adapters hydraulic fittings quick release reusable hydraulic hose fittings bspp hydraulic fittings jic fitting hydraulics 3/8 jic 90 hydraulic fittings hydraulic fittings bsp hydraulic hose fittings 1/4 hydraulic swivel elbow pipe fittings
