Grease Nipple Assortment
PDM-Racing
| Availability: | |
|---|---|
| Quantity: | |
Hydraulic Zerk Fitting Grease Nipple
Hydraulic Grease Fittings Title:
Hydraulic Grease Nipple stainless steel carbon steel brass 45 degree 90 degree grease nipple 1/4 1/8 NPT BSP
The core functions include:

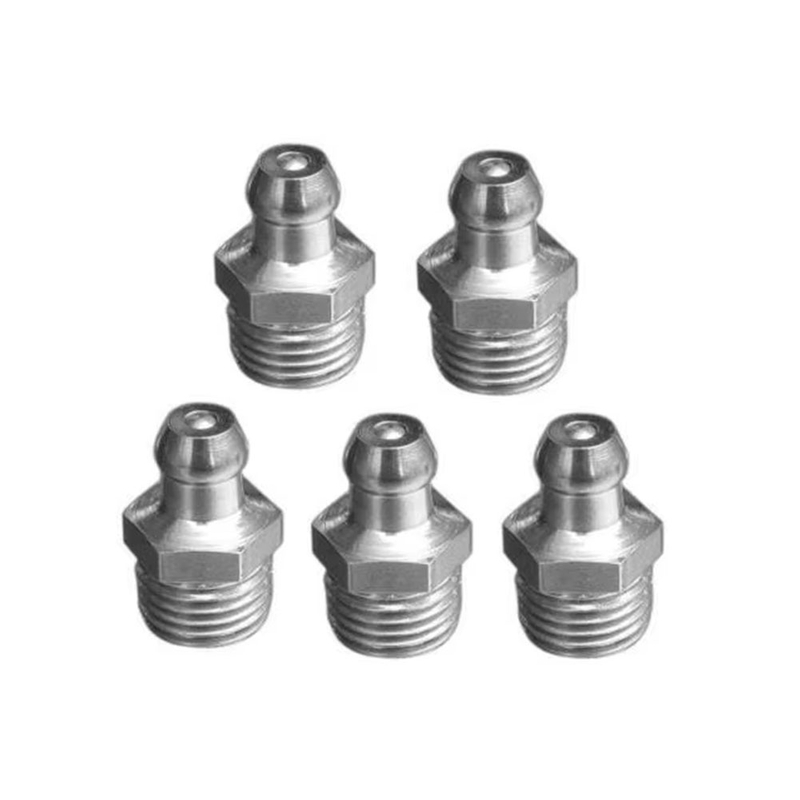

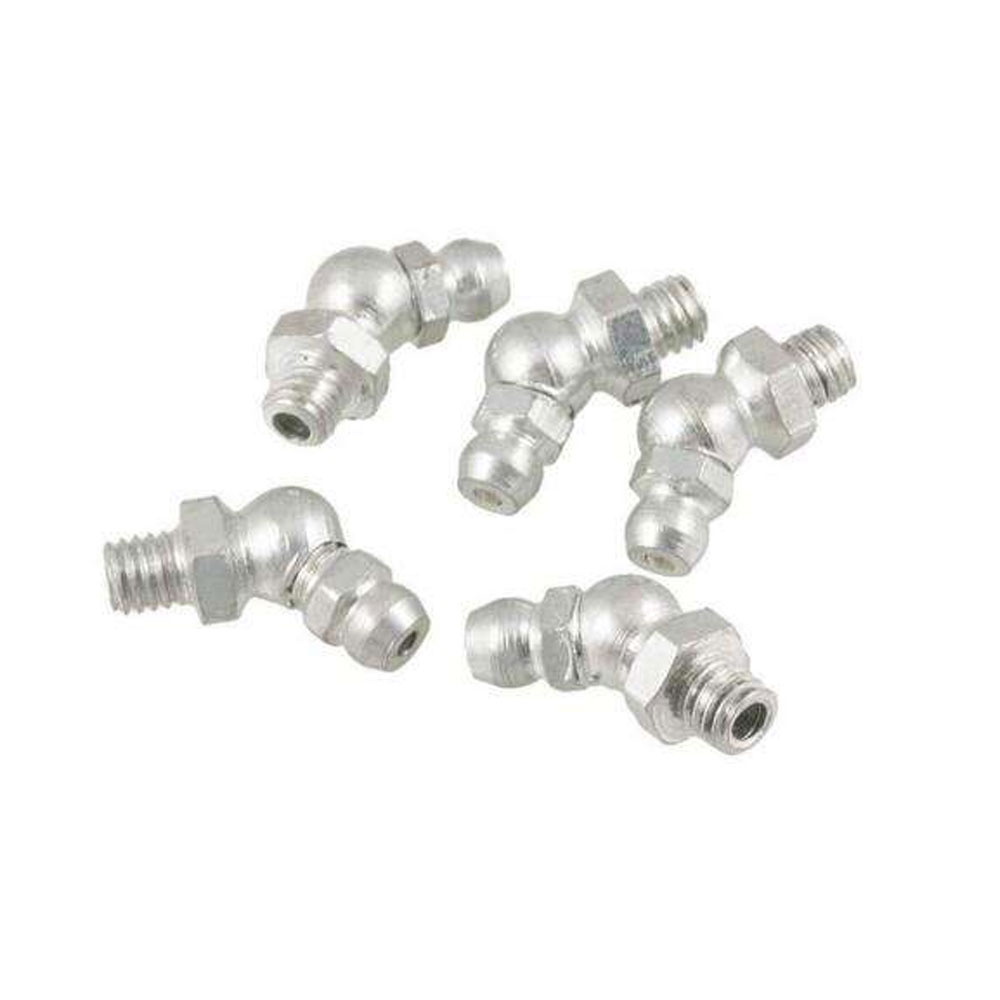

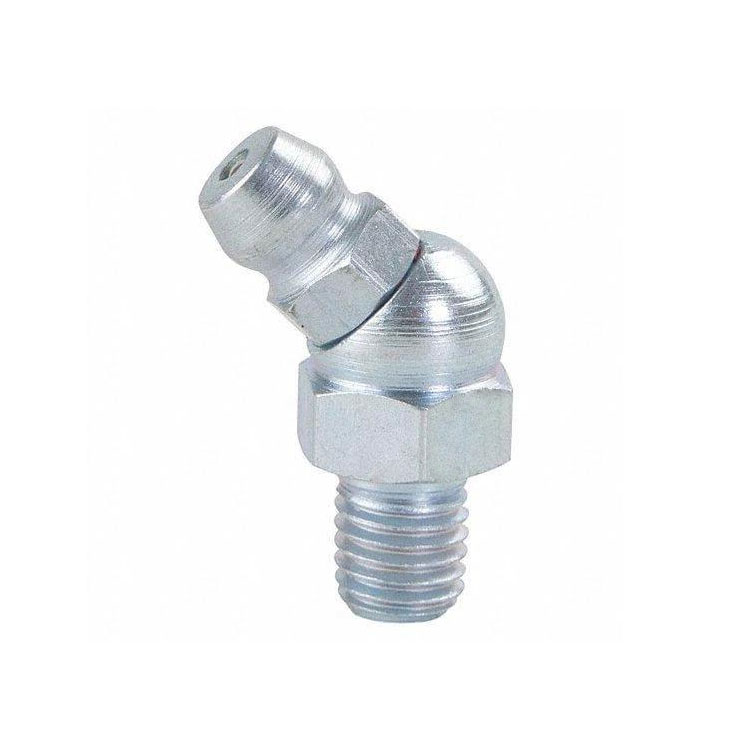

Angles Type: Straight, 45-degree, and 90-degree angles,etc
Thread Sizes:M6, M8, M10, M12, 1/4, 1/8, 5/16, 3/8,etc

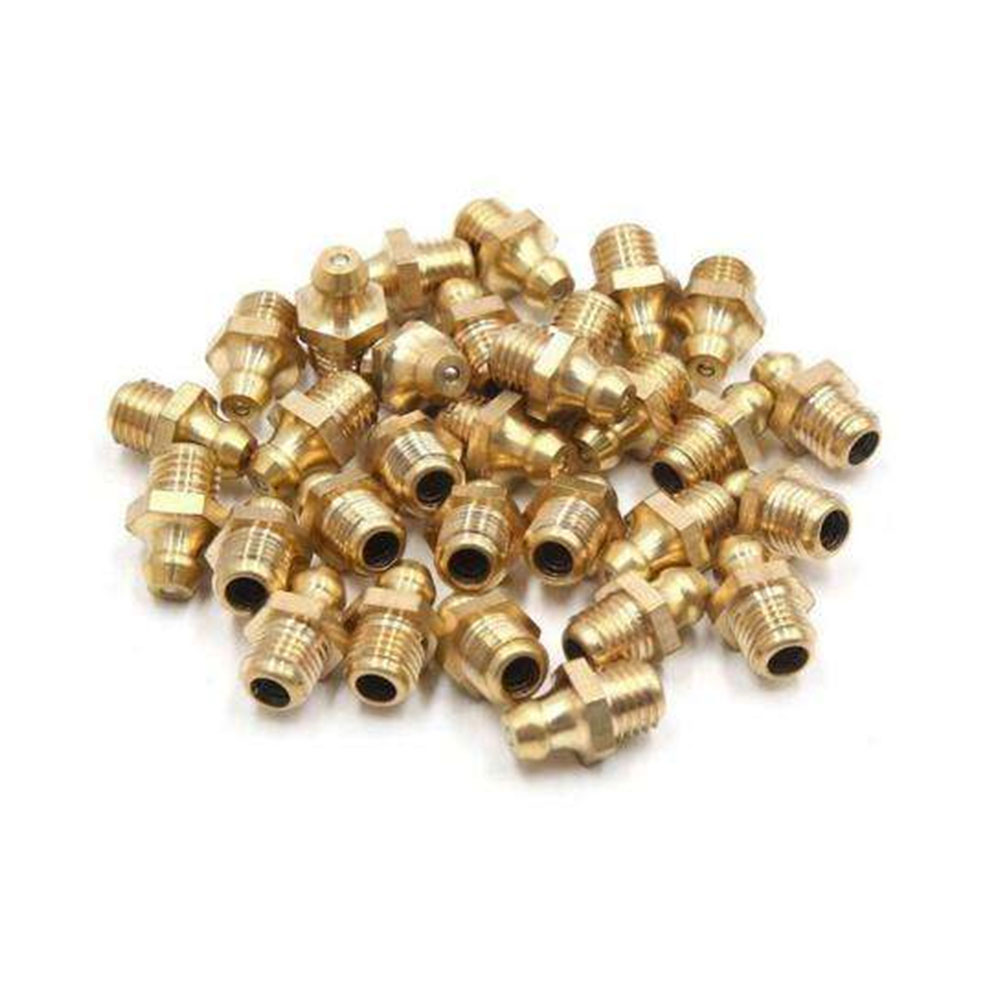

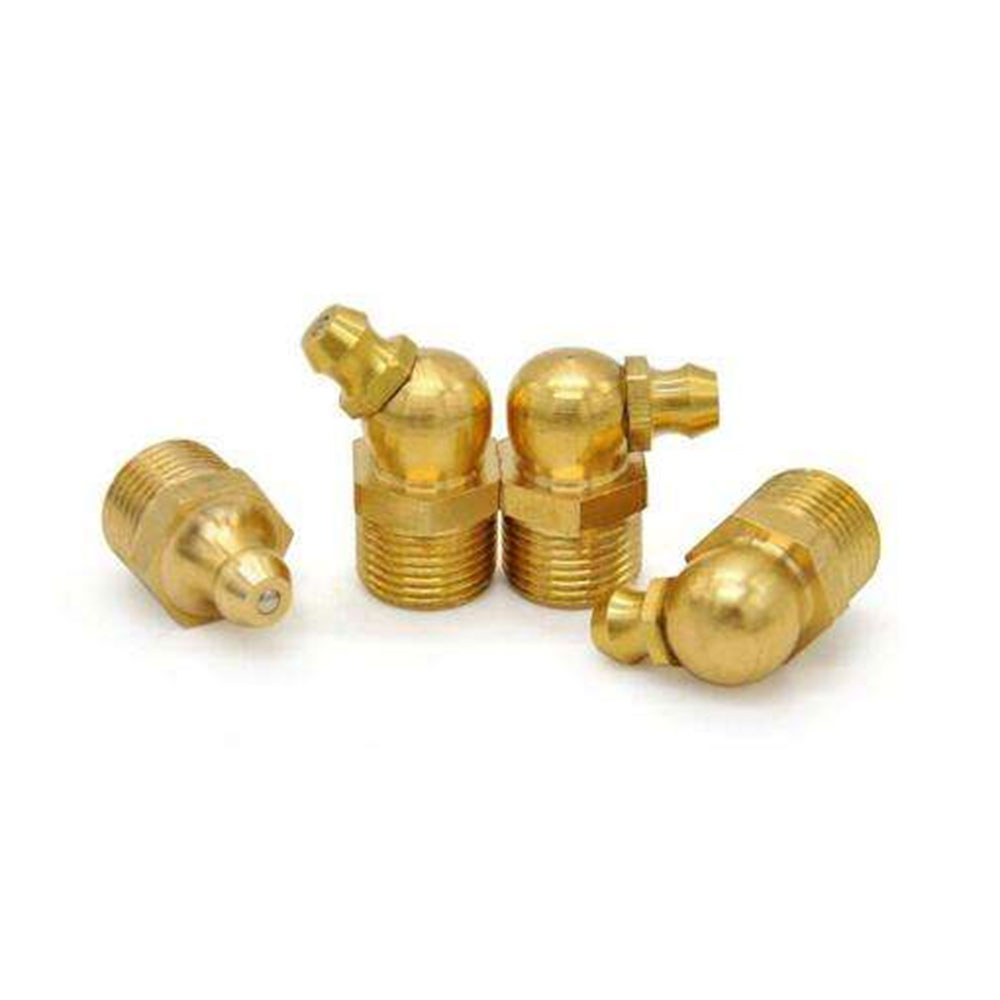

Materials:stainless steel or brass for corrosion resistance,precision steel, zinc plated,hardened and blue chromed,etc.
Manufacturing Process:Precision cold heading and CNC machining.etc
Customizable Lengths: Choose from standard or custom lengths to fit specific needs.
Quality Control:Meets international standards, no leakage or blockage in long-term use.
Customization & Service:OEM/ODM supported, custom sizes, fast quote and on-time bulk delivery.
Functional Performance:Spring ball valve seals tightly, dust-proof and smooth for frequent greasing.
Industrial & Automotive Applications:Widely used in vehicles, agricultural & construction machinery worldwide.
Installation instructions for Grease Fitting Nipples:
Clean the threaded hole on equipment to remove dust, rust and impurities.

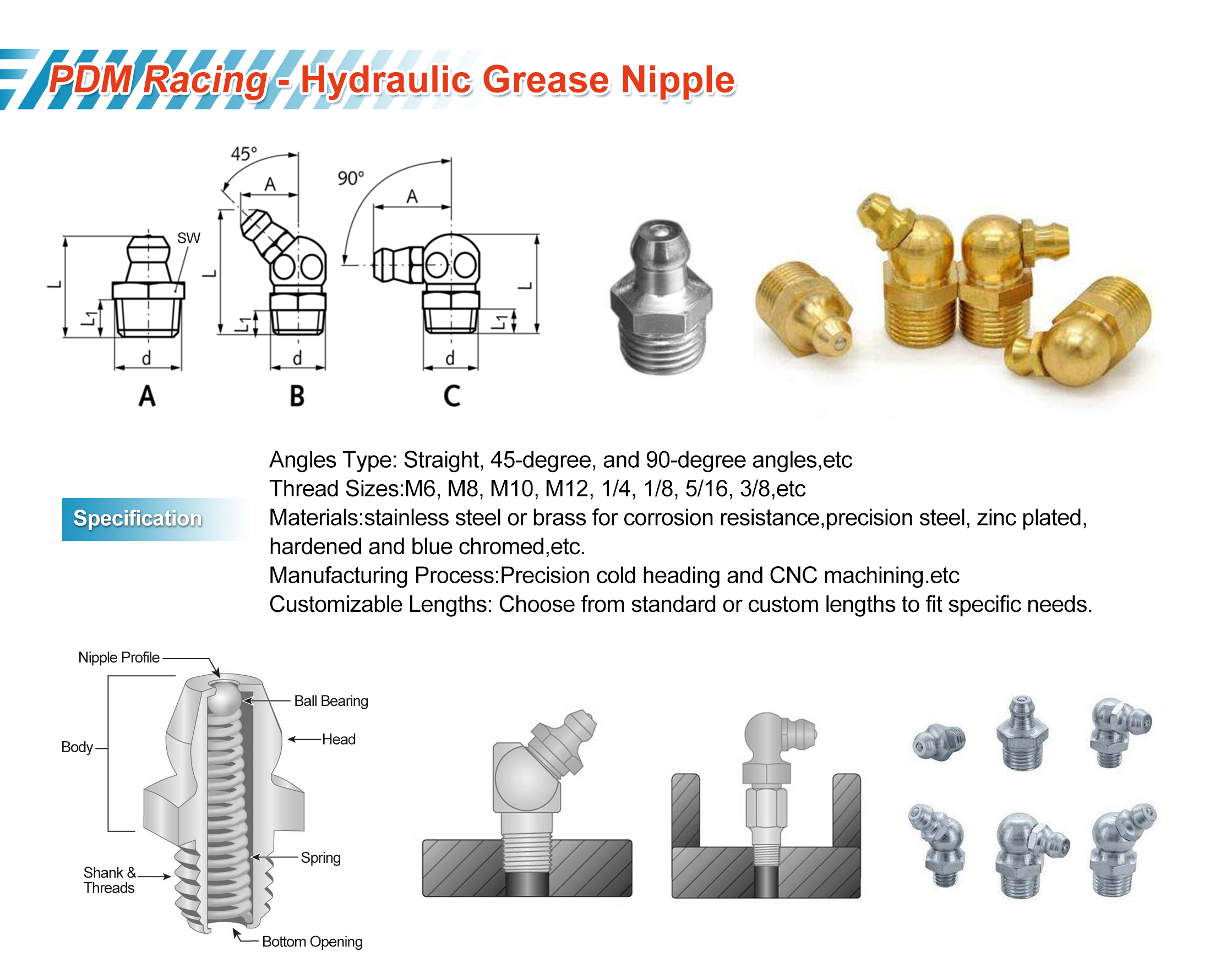

| Thread Size | Type(Degree) | L(mm) | L1(mm) | SW(mm) |
| M6 x 0.75 | 180° | 13.5 | 6.0 | 7.0 |
| M6 x 0.75 | 45° | 21.5 | 5.5 | 7.0 |
| M6 x 0.75 | 90° | 16.5 | 5.5 | 7.0 |
| M6 x 1 | 180° | 13.6 | 6.0 | 7.0 |
| M6 x 1 | 45° | 21.5 | 5.5 | 9.0 |
| M6 x 1 | 90° | 16.5 | 5.5 | 9.0 |
| M6 x 1 | 180° | 15.5 | 6.0 | 7.0 |
| M6 x 1 | 45° | 22.0 | 5.0 | 8.0 |
| M6 x 1 | 90° | 17.0 | 5.5 | 8.0 |
| M8 x 1 | 180° | 15.2 | 4.9 | 9.0 |
| M8 x 1 | 45° | 23.2 | 7.5 | 9.0 |
| M8 x 1 | 90° | 17.5 | 7.5 | 9.0 |
| M8 x 1.25 | 180° | 17.0 | 7.5 | 9.0 |
| M8 x 1.25 | 45° | 22.5 | 6.5 | 9.0 |
| M8 x 1.25 | 90° | 17.5 | 6.5 | 9.0 |
| M10 x 1 | 180° | 17.5 | 8.0 | 10.0 |
| M10 x 1 | 45° | 22.5 | 6.5 | 10.0 |
| M10 x 1 | 90° | 17.5 | 6.5 | 10.0 |
| M10 x 1.5 | 180° | 17.5 | 8.0 | 10.0 |
| M10 x 1.5 | 45° | 22.5 | 6.5 | 10.0 |
| M10 x 1.5 | 90° | 17.5 | 6.5 | 10.0 |
| M12 x 1 | 180° | 20.5 | 8.7 | 12.0 |
| M12 x 1 | 45° | 25.5 | 8.0 | 12.0 |
| M12 x 1 | 90° | 20.0 | 8.0 | 12.0 |
| M12 x 1.25 | 180° | 20.5 | 8.7 | 12.0 |
| M12 x 1.25 | 45° | 25.5 | 8.0 | 12.0 |
| M12 x 1.25 | 90° | 20.0 | 8.0 | 12.0 |
| M14 x 1 | 180° | 20.0 | 8.6 | 14.0 |
| M14 x 1 | 45° | 26.0 | 8.5 | 14.0 |
| M14 x 1 | 90° | 21.0 | 8.5 | 14.0 |
| Model | Size | Type(Degree) | L(mm) | L1(mm) | SW(mm) |
| BSP | 1/4"-28 | 180° | 13.5 | 6.0 | 7.0 |
| BSP | 1/4"-28 | 45° | 21.5 | 5.5 | 9.0 |
| BSP | 1/4"-28 | 90° | 16.5 | 5.5 | 9.0 |
| BSP | 1/4"-28 | 180° | 15.5 | 6.0 | 7.0 |
| BSP | 1/4"-28 | 45° | 22.0 | 5.5 | 8.0 |
| BSP | 1/4"-28 | 90° | 17.0 | 5.5 | 8.0 |
| BSP | 1/8"-28 | 180° | 18.2 | 8.5 | 10.0 |
| BSP | 1/8"-28 | 45° | 23.0 | 7.0 | 10.0 |
| BSP | 1/8"-28 | 90° | 18.0 | 7.0 | 10.0 |
| BSP | 1/8"-28 | 180° | 20.0 | 8.8 | 10.0 |
| BSP | 1/8"-28 | 45° | 25.5 | 8.0 | 10.0 |
| BSP | 1/8"-28 | 90° | 20.0 | 8.0 | 10.0 |
| BSP | 1/4"-19 | 180° | 20.0 | 8.5 | 14.0 |
| BSP | 1/4"-19 | 45° | 26.0 | 8.5 | 14.0 |
| BSP | 1/4"-19 | 90° | 21.0 | 8.5 | 14.0 |
| NPT | 1/8"-27 | 180° | 18.2 | 8.5 | 11.0 |
| NPT | 1/8"-27 | 45° | 23.0 | 7.0 | 11.0 |
| NPT | 1/8"-27 | 90° | 18.0 | 7.0 | 11.0 |
| SAE | 1/4"-28 | 180° | 13.5 | 6.0 | 7.0 |
| SAE | 1/4"-28 | 45° | 21.5 | 5.5 | 9.0 |
| SAE | 1/4"-28 | 90° | 16.5 | 5.5 | 9.0 |
| SAE | 5/16"-24 | 180° | 16.7 | 7.5 | 9.0 |
| SAE | 5/16"-24 | 45° | 22.5 | 6.5 | 9.0 |
| SAE | 5/16"-24 | 90° | 17.0 | 6.5 | 9.0 |
| SAE | 3/8"-24 | 180° | 17.5 | 8.0 | 10.0 |
| SAE | 3/8"-24 | 45° | 22.5 | 7.0 | 10.0 |
| SAE | 3/8"-24 | 90° | 17.5 | 7.0 | 10.0 |
| SAE | 1/2"-20 | 180° | 21.0 | 9.0 | 14.0 |
| SAE | 1/2"-20 | 45° | 25.0 | 7.5 | 14.0 |
| SAE | 1/2"-20 | 90° | 20.0 | 7.5 | 14.0 |
Instructions for Use of Stainless Steel Grease Nipple:
Steel grease nipple m6 m8 m10 straight 45 degree 90 degree Application:
Widely used in automobiles, commercial vehicles, trucks, trailers, agricultural machinery, construction machinery and industrial equipment for regular lubrication and maintenance.
