MF&Alu-alloy with O-ring&FF Flanges
PDM-Racing
| Quantity: | |
|---|---|
Features of Exhaust Flanges
Pipe Fittings Flange Title:
Flanges Pipe Fittings Steel & Stainless Steel Flange for Heavy Duty
V Band Clamp and Flanges Introduction:
Its core function is to resist high temperature deformation and maintain airtightness, and it is widely used in automobiles, ships, and industrial equipment.
Common Flange Types:

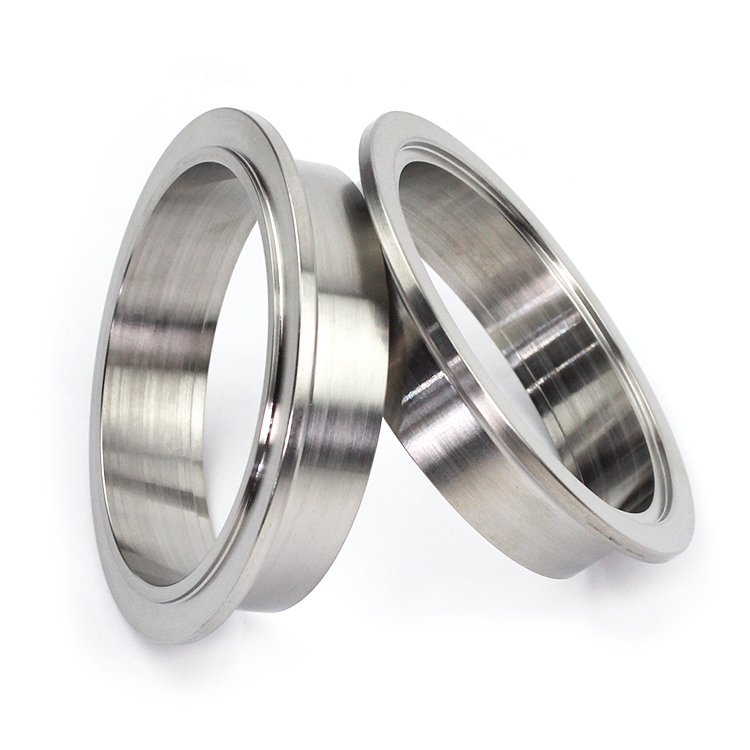

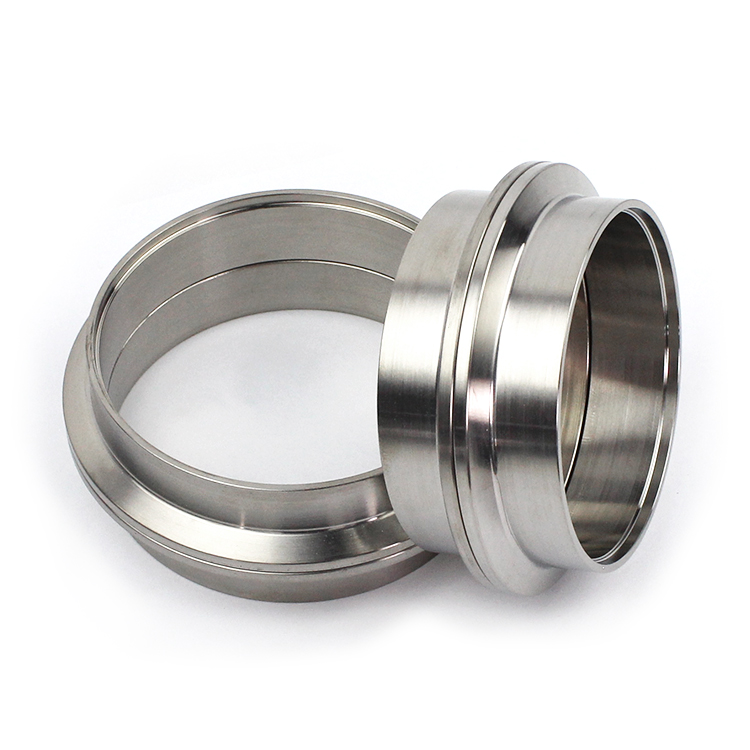

Male Female Flange
Structural features:
Composed of a combination of convex and concave surfaces, precise alignment is achieved through concave convex fitting;
The flange inner diameter matches the nominal diameter of the pipeline, and the bolt holes are distributed according to the ANSI/ASME B16.5 standard;

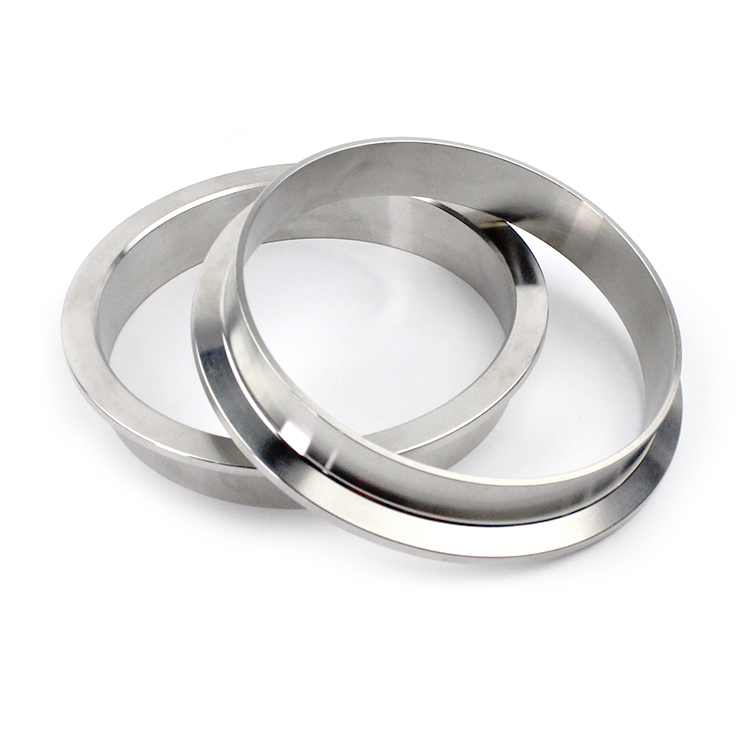

Flat flange
Design features:
The sealing surface is full flat (FF) and needs to be used with a flat gasket (such as asbestos rubber sheet). The bolt torque should be evenly distributed to avoid leakage.
Common materials are carbon steel (Q235) or stainless steel (304/316);

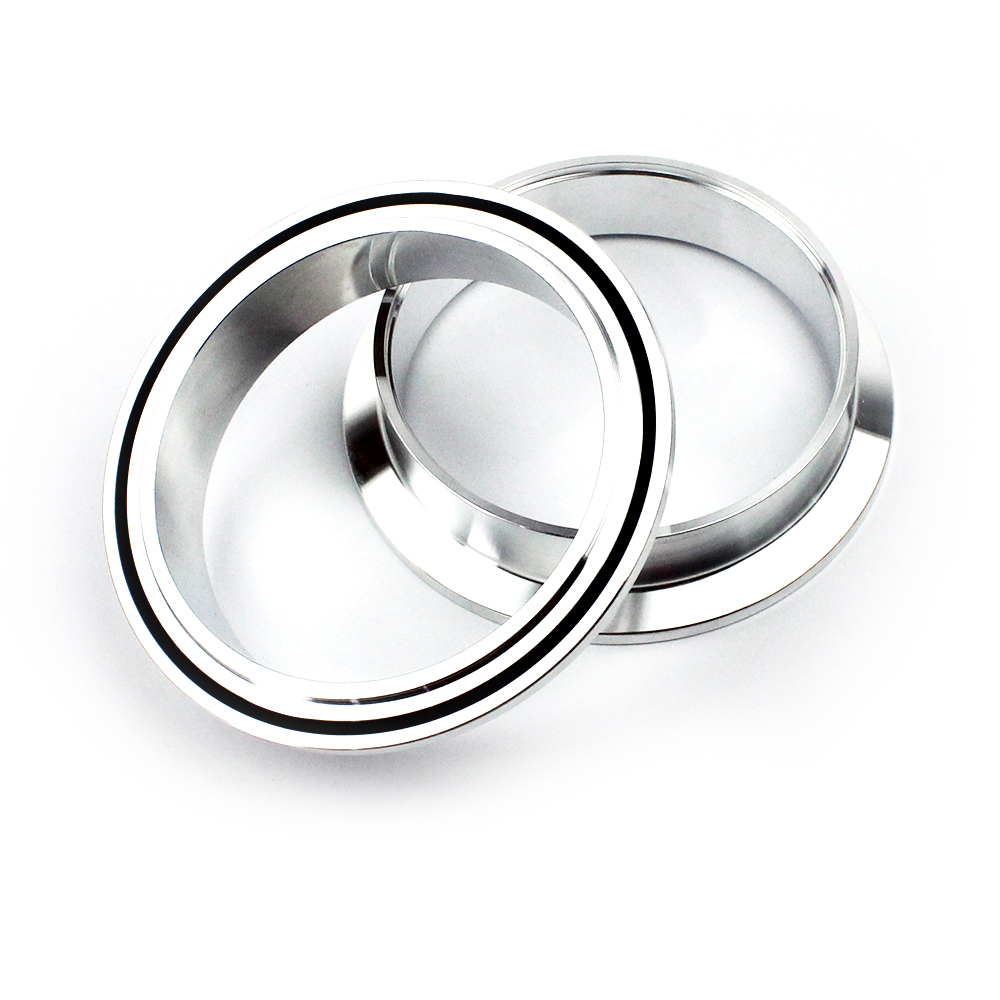

Aluminum Alloy with O-ring Flange
Technical advantages:
Using 6061 or 3003 aluminum alloy, surface anodizing treatment enhances corrosion resistance.
Integrated rubber/fluororubber O-ring for gasket free sealing (suitable for frequent disassembly scenarios);
| PN | Size | ID(mm) | OD(mm) | Height |
| MF150 | 1.5" | 38.9 | 55.4 | 20 |
| MF175 | 1.75" | 45.2 | 62.2 | 20 |
| MF200 | 2.0" | 51.6 | 69.6 | 20 |
| MF225 | 2.25" | 57.9 | 75.9 | 20 |
| MF236 | 2.36" | 60.5 | 78.5 | 20 |
| MF2375 | 2.375" | 61.1 | 79.1 | 20 |
| MF250 | 2.5" | 64.3 | 82.3 | 20 |
| MF275 | 2.75" | 70.6 | 88.6 | 20 |
| MF300 | 3.0" | 77 | 95 | 20 |
| MF325 | 3.25" | 88.3 | 101.3 | 20 |
| MF350 | 3.5" | 89.7 | 107.7 | 20 |
| MF375 | 3.75" | 96 | 114 | 20 |
| MF400 | 4.0" | 102.4 | 120.4 | 20 |
| MF450 | 4.5" | 115.1 | 133.1 | 20 |
| MF500 | 5.0" | 127.8 | 145.8 | 20 |
| MF550 | 5.5" | 140.5 | 158.5 | 20 |
| MF600 | 6.0" | 153.2 | 171.2 | 20 |
Application:
Automotive exhaust system clamps, heavy industry, etc.
Function in automotive exhaust system:
Connection and modular design
Segmented connection of exhaust manifold, catalytic converter, muffler and other components, supporting quick maintenance and replacement;
Typical interface: The manifold catalyst flange uses V-band clamp flange to achieve 360 ° uniform locking;
Vibration reduction and sealing guarantee
When engine vibration is transmitted to the exhaust system, the flange gasket absorbs high-frequency vibration to prevent bolt loosening or weld cracking.
