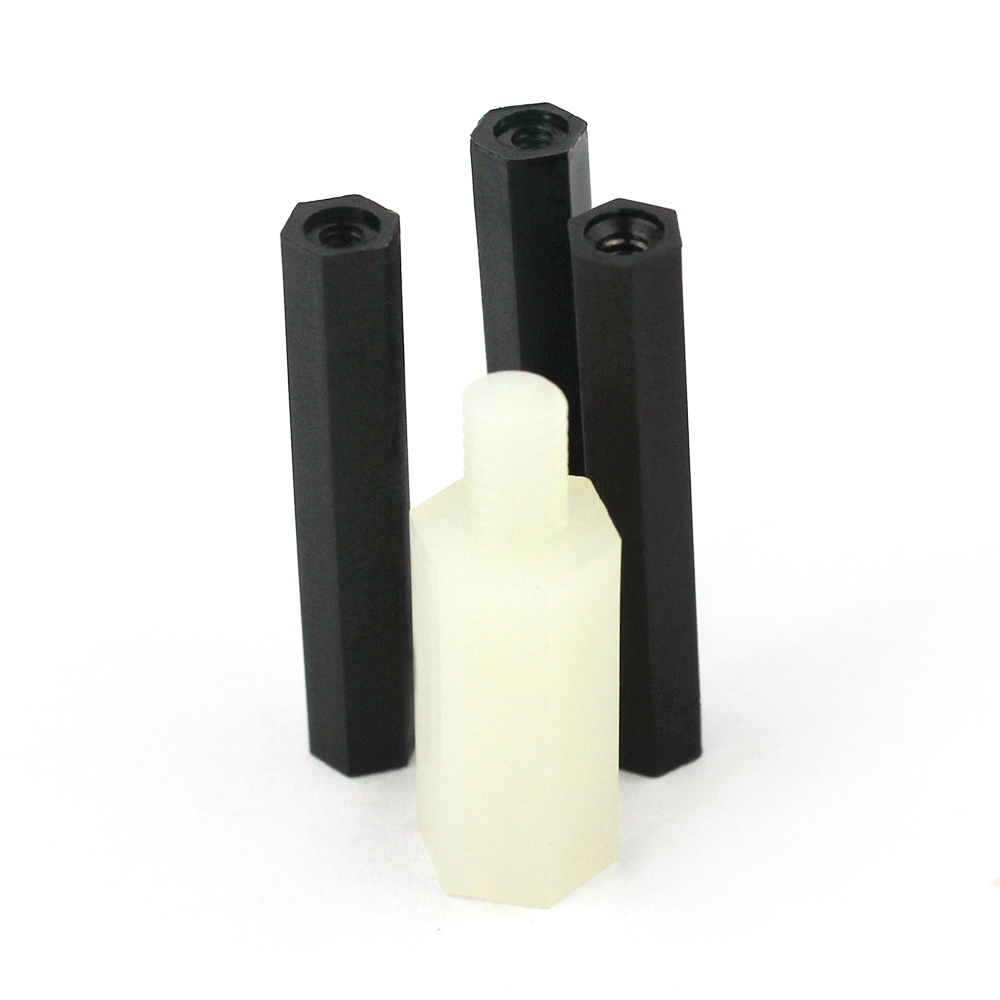

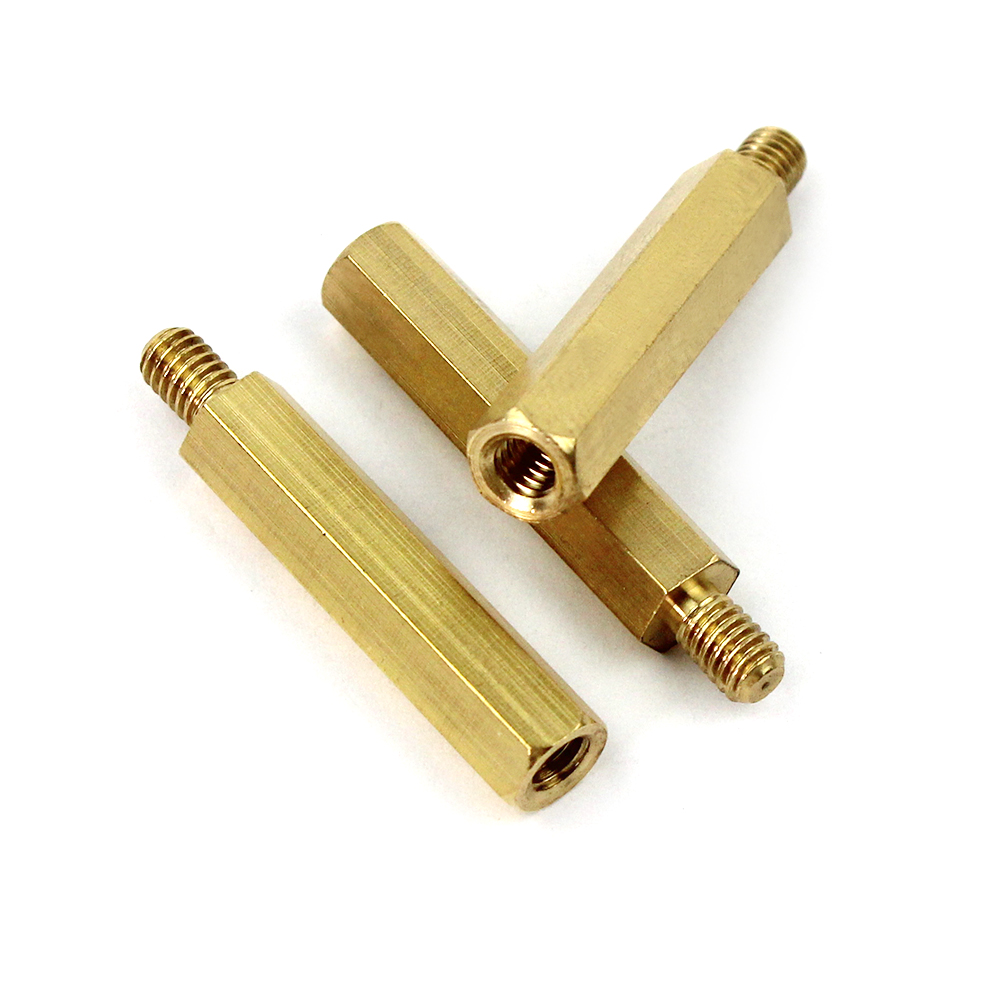

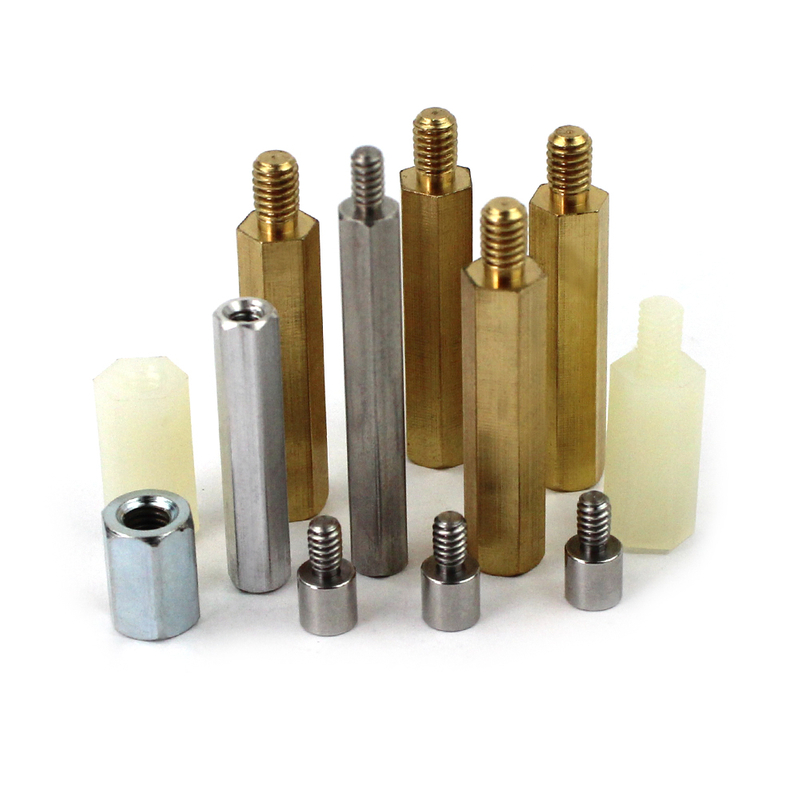

Male & Female Thread Standoff Stud
PDM
| Quantity: | |
|---|---|

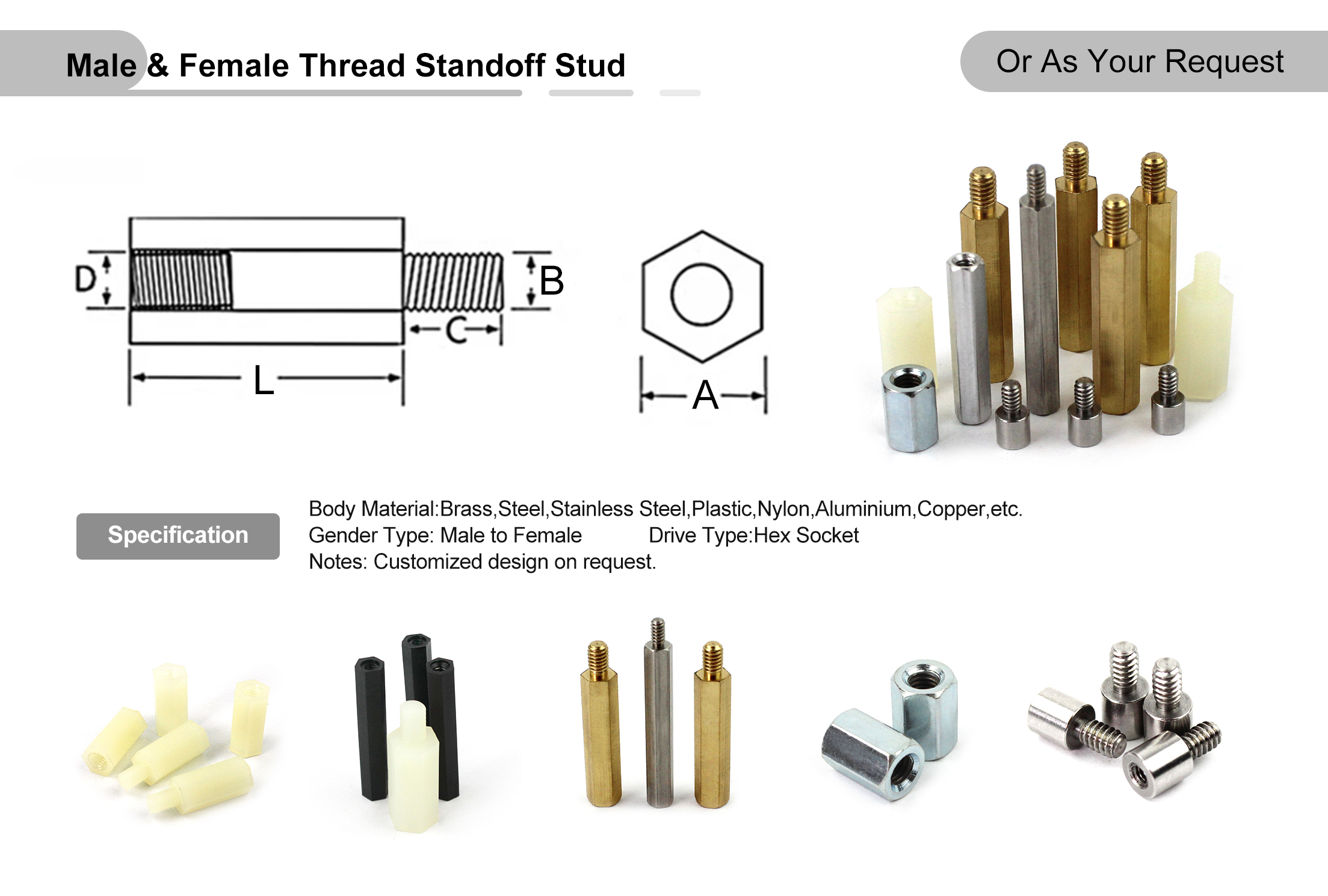

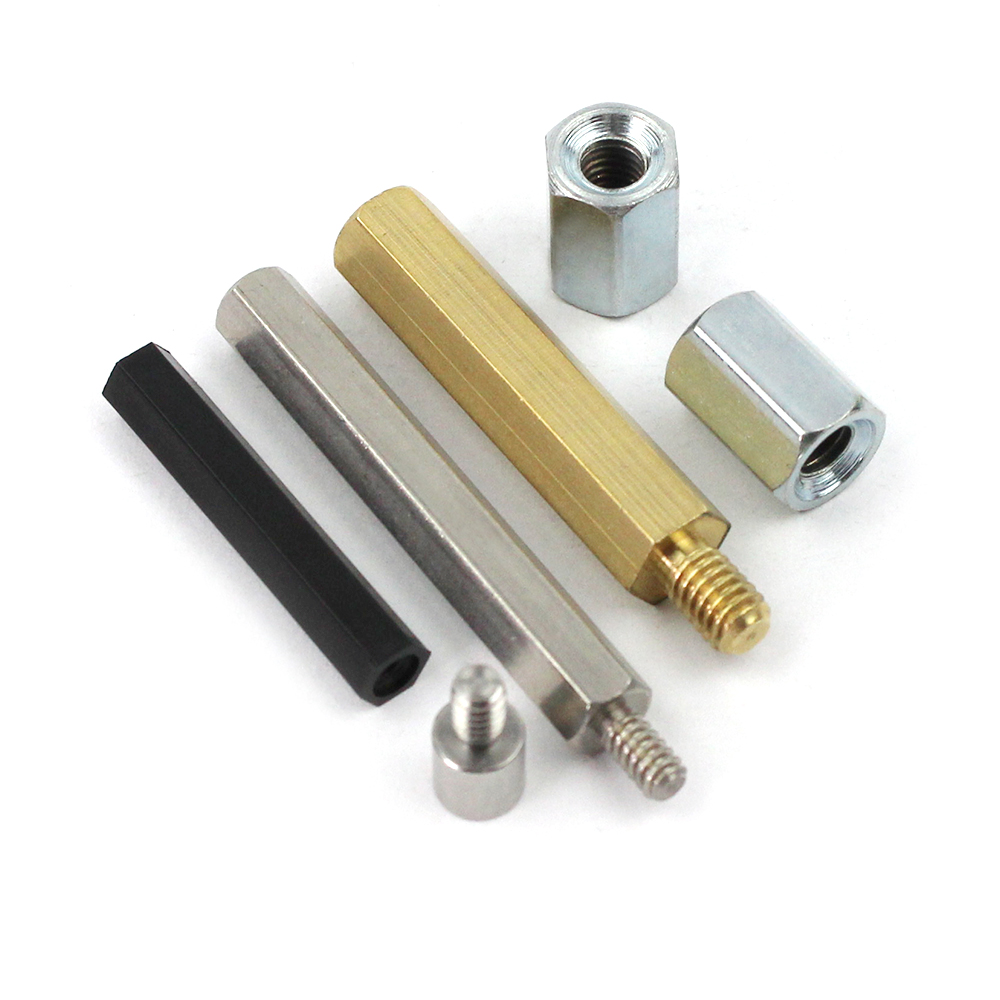

Features of Thread Standoff
Stainless Steel Stand Offs:
High quality brass spacers hex aluminium stand off 304 for PCB circuit board

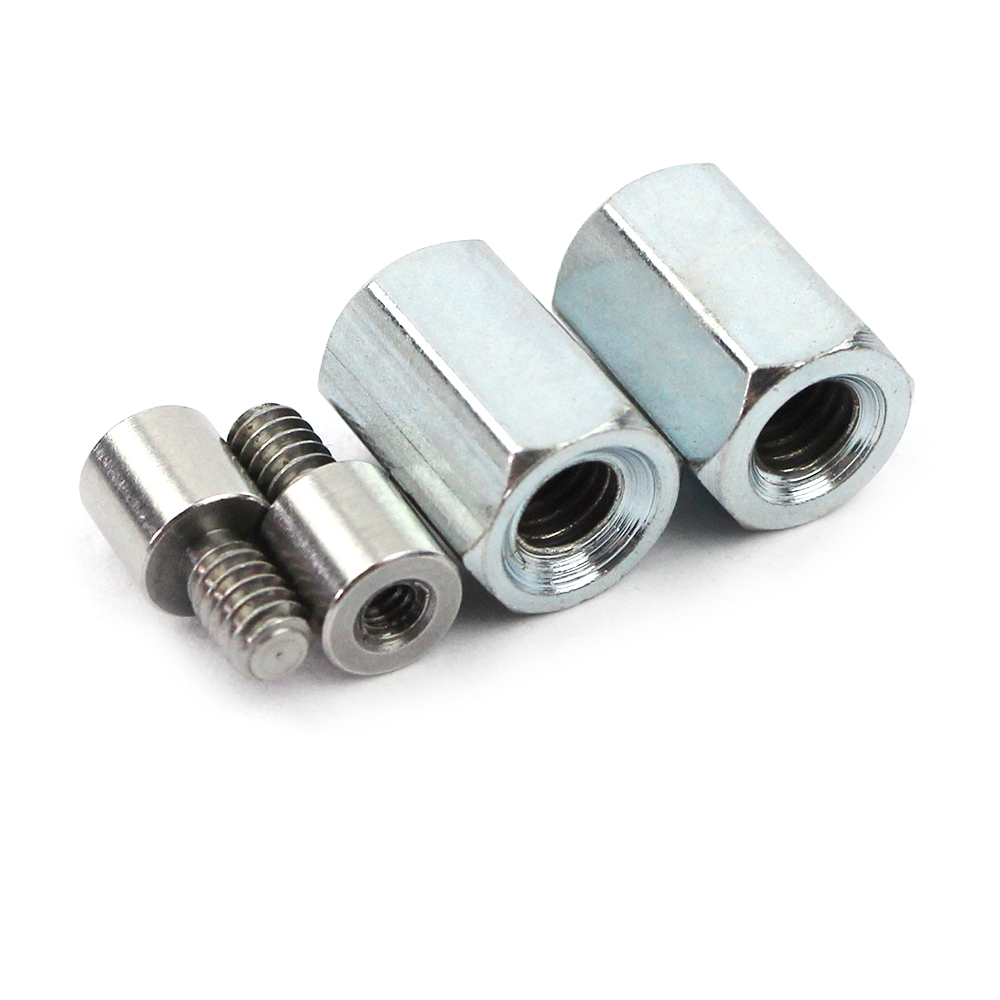

Structural characteristics
Hexagonal head design, embedded in sheet metal substrate by extrusion, and mechanically fixed using displacement metal locking grooves;
Thread through (through-hole) or single end closure (blind hole) provides precise component spacing support.
Component isolation: creating heat dissipation space in PCB circuit board and cabinet assembly;
Anti vibration fixation: Mechanical locking structure prevents displacement caused by high-frequency vibration (automotive electronics/industrial equipment);
Modle Number:
Material: Carbon steel (surface hardening treatment), 316L stainless steel, brass (H62/H65), etc.
Gender Type: Male to Female Drive Type:Hex Socket
Notes: Customized design on request.
Thread Size：M3–M6 or Customized；
Lenght：3–30mm or Customized;
| Item No. | A | B | L |
| HTS-306 | 5.6 | M3 | 6.0 |
| HTS-307 | 5.6 | M3 | 7.0 |
| HTS-308 | 5.6 | M3 | 8.0 |
| HTS-310 | 5.6 | M3 | 10.0 |
| HTS-312 | 5.6 | M3 | 12.0 |
| HTS-315 | 5.6 | M3 | 15.0 |
| HTS-318 | 5.6 | M3 | 18.0 |
| HTS-320 | 5.6 | M3 | 20.0 |
| HTS-322 | 5.6 | M3 | 22.0 |
| HTS-325 | 5.6 | M3 | 25.0 |
| HTS-330 | 5.6 | M3 | 30.0 |
| HTS-410 | 7.0 | M4 | 10.0 |
| HTS-413 | 7.0 | M4 | 13.0 |
| HTS-415 | 7.0 | M4 | 15.0 |
| HTS-419 | 7.0 | M4 | 19.0 |
| HTS-425 | 7.0 | M4 | 25.0 |
| HTS-430 | 7.0 | M4 | 30.0 |
| HTS-306 H4 | 5.6 | M3 | 6.0 |
| HTS-308 H4 | 5.6 | M3 | 8.0 |
Application:
In the field of electronic manufacturing: PCB motherboard layered support, server rack heat dissipation;
Industrial machinery assembly: module isolation inside the control cabinet, sensor installation bracket;
Installation steps:
Confirm that the stud material (such as SS 304 stainless steel), thread specifications (M3/M4/M6), and substrate hole tolerance match;
The coaxiality deviation between the screw and the substrate hole is ≤ 0.1mm to prevent thread biting;
Pre tightening force control - anti loosening treatment
Chemical locking: Apply anaerobic adhesive to the threaded engagement area;
Mechanical locking: Install spring washers on the hexagonal end face;
