Metal Shrinker and Stretcher Set
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of Metal Shrinker and Stretcher
Sheet Metal Shrinker Stretcher Title:
Metal Fabrication Tools shrinker and stretcher tool shrinker & stretcher metal sheet
These tools typically combine contraction and stretching functions, applying pressure through mechanical means such as manual operation or machine drive, avoiding heating or welding processes, thereby reducing the risk of material deformation and improving work efficiency.
Metal Shrinker and Stretcher Set:
2-in-1 design: For example, the 90mm width model is designed specifically for 16/18 gauge (approximately 1.2-1.5mm thickness) low-carbon steel, integrating shrinkage and stretching functions into a single device to enhance portability and versatility. Common specifications include capacity (mostly supporting 1.2mm thick metal), size (such as 208mm or 90mm width), and material compatibility (mainly for low carbon steel), which directly affect the applicability and performance of the tool;

| Item | Metal Shrinker and Stretcher Set |
| Material | Steel |
| Finish | Powder Coated |
| Process | Stamping, bending, Welding,etc. |

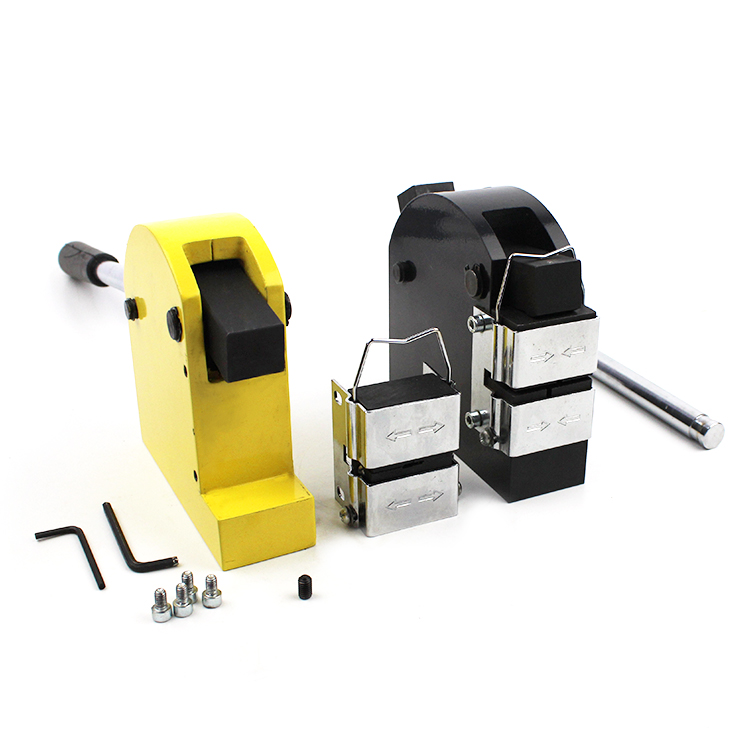

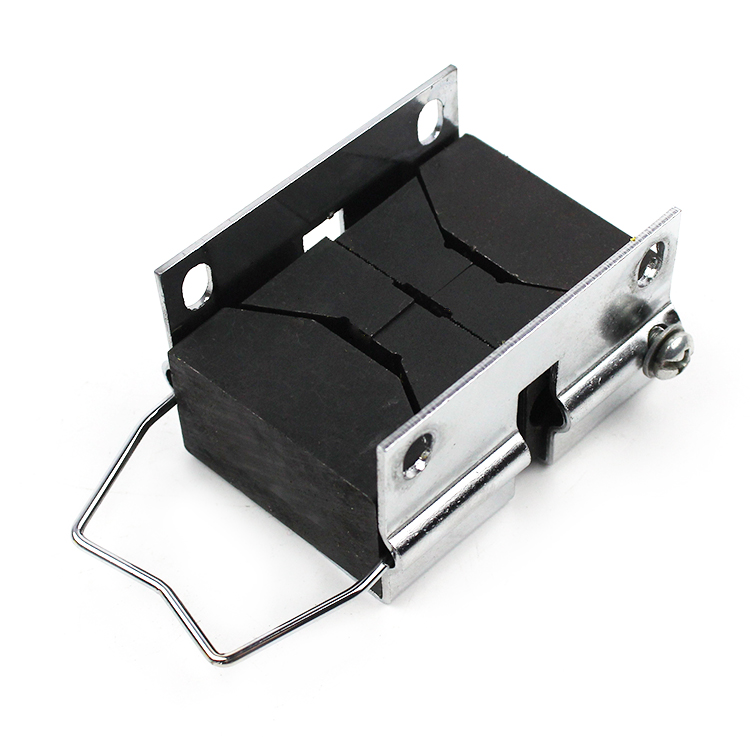

| Construction | 2 Bodies,1Set Shrinker Jaw,1 Set Stretcher Jaw,2 Handles. |
| Capacity | (1.2mm)18 Gauge Mild Steel,16 Gauge Aluminium (1.6mm), 20Gauge Stainless (1mm) |
| Bend Capacity | Up to 3inch Radius |
| Handle Length | 356mm / 14inch |
| Throat Depth | 25.4mm / 1inch |
| Jaw Clearance | 3.2mm / 1/8inch |
| Type | Sheet Metal Fabricaton Components |
| Application | Sheet Metal Repair in Automotive Industry,Aerospace Curved Surface Forming. |
Application:
It has a wide range of application scenarios, especially playing a key role in car body repair, customized metal parts manufacturing, and home DIY maintenance, helping users achieve precise metal forming.

Notes:
SS-16 Metal Shrinker and Stretcher: As a metal rotating machine with a capacity of 1.2mm, it emphasizes commercial grade durability and is suitable for high-strength sheet metal processing.
SS-18 Manual Set: Designed specifically for automotive repair, including shrink and stretch components, easy to operate and lightweight, suitable for DIY users to make precise metal adjustments.
2-in-1 Performance Model: such as a 90mm width package, integrating shrinkage and stretching functions, optimized for 16/18 gauge low-carbon steel, emphasizing efficiency and portability.
