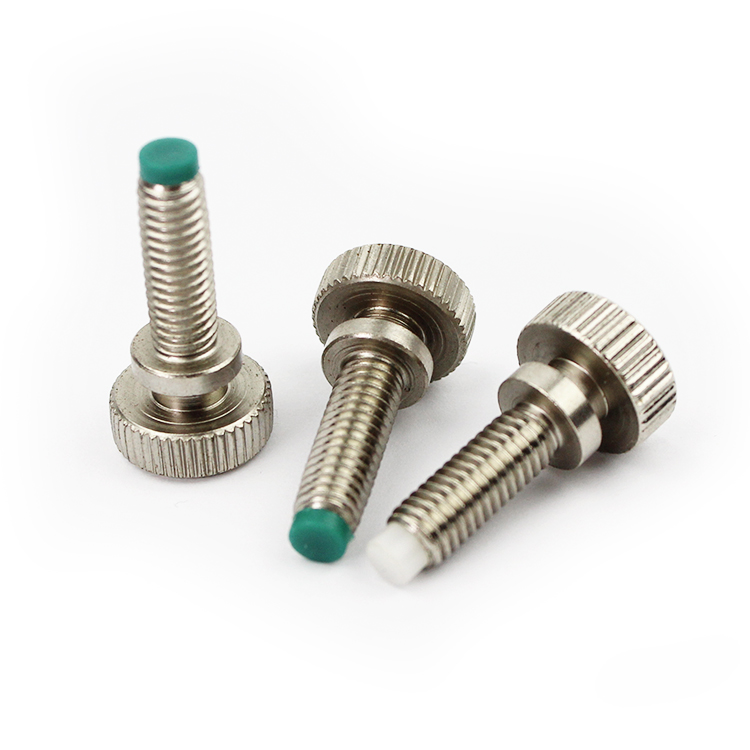

Metric & Inch Nylon Tip Round Thumb Screw
PDM
| Material: | |
|---|---|
| Quantity: | |

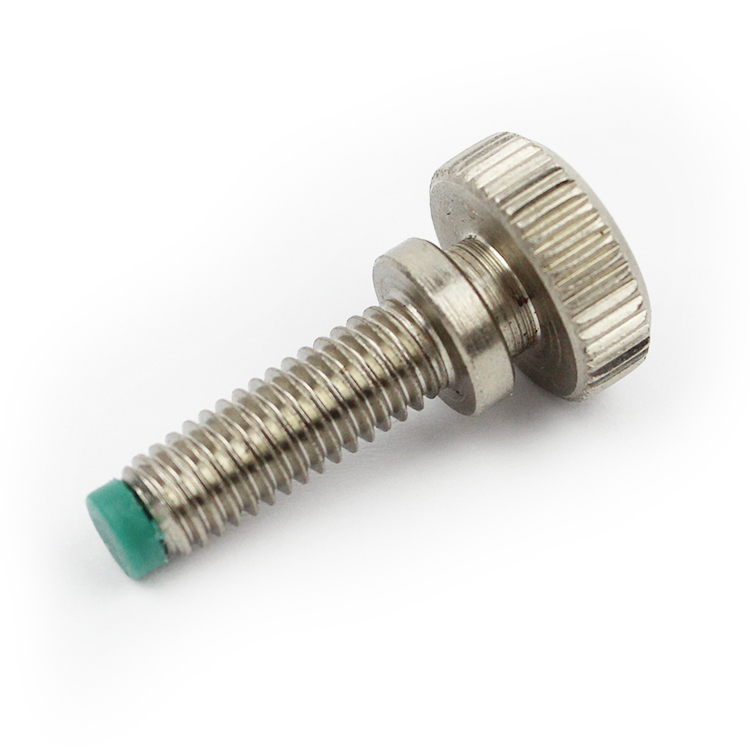

Features of Metric & Inch Nylon Tip Round Thumb Screw
Soft Tip Set Screw Title:
Socket nylon tip set screw colorful soft tip set screw

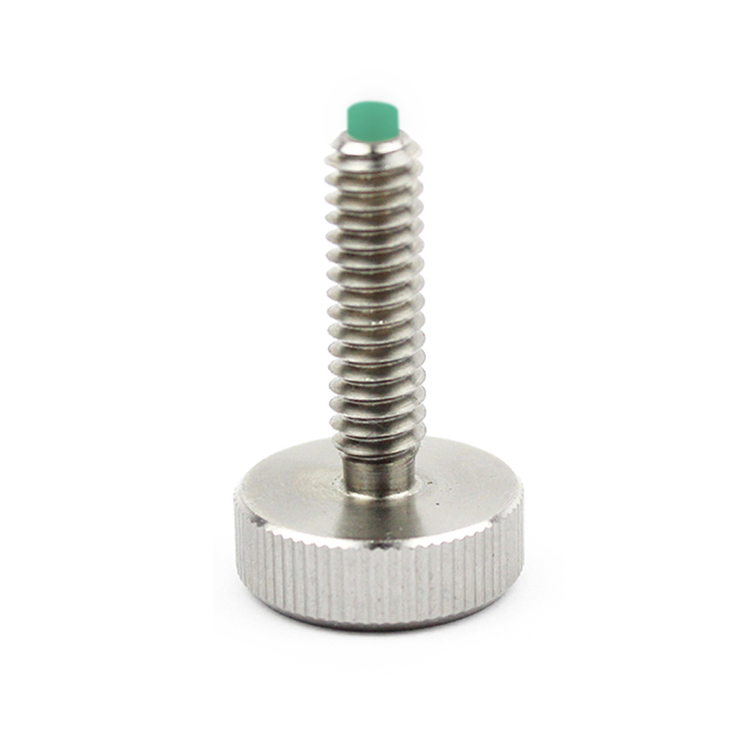

Round Tip Set Screw Introduction:
The basic composition of Nylon Tip Round Thumb Screw is a combination of Round Head Thumb Screw and nylon material (mostly nylon 66) embedded at the end, which combines manual quick twisting and vibration locking functions;

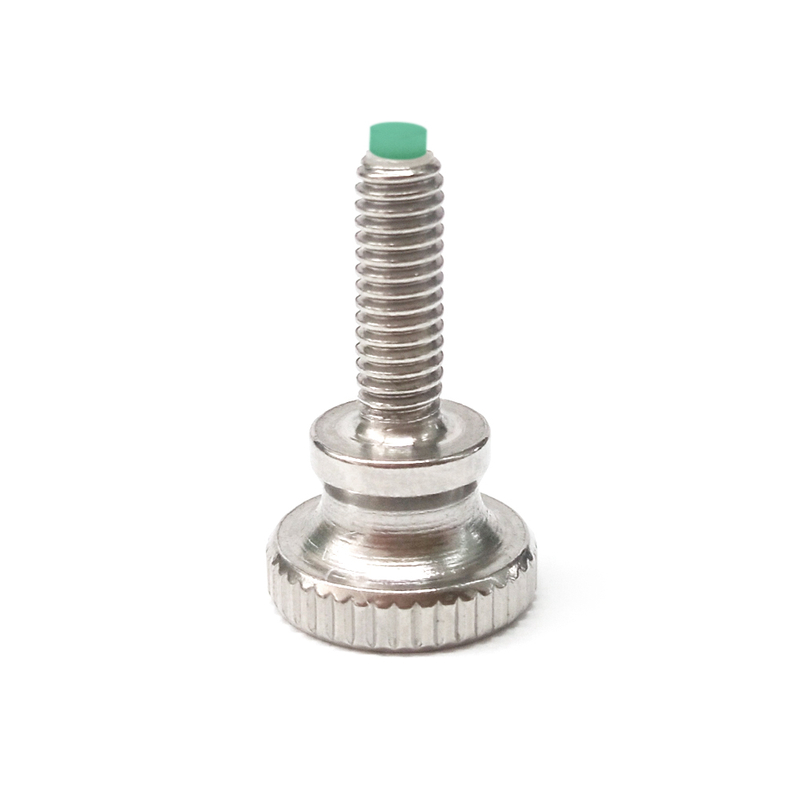

Round headed wing shaped design: The head is circular and has wings (or rolled flower patterns)

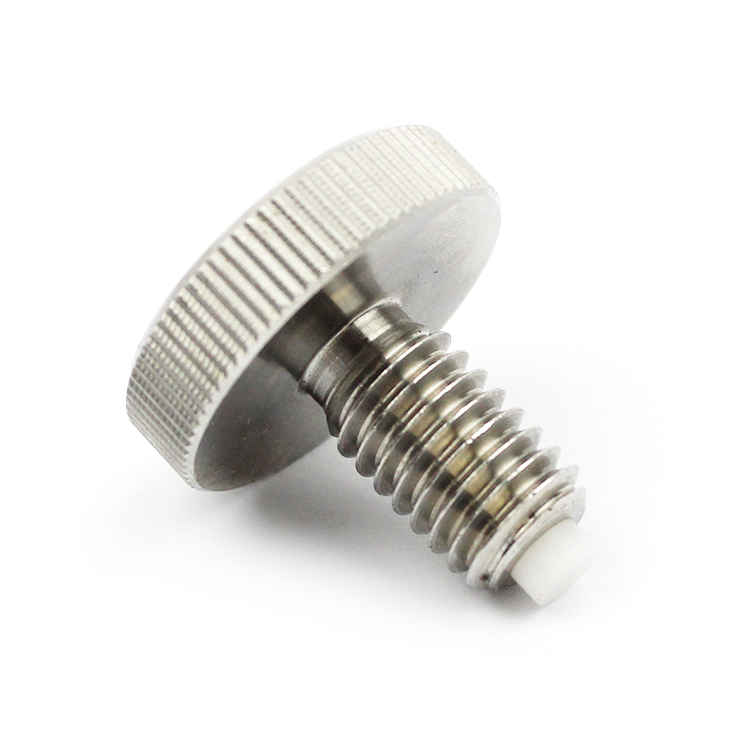

Nylon head buffer end: The end nylon expands elastically after being compressed, filling the thread gap and suppressing loosening;

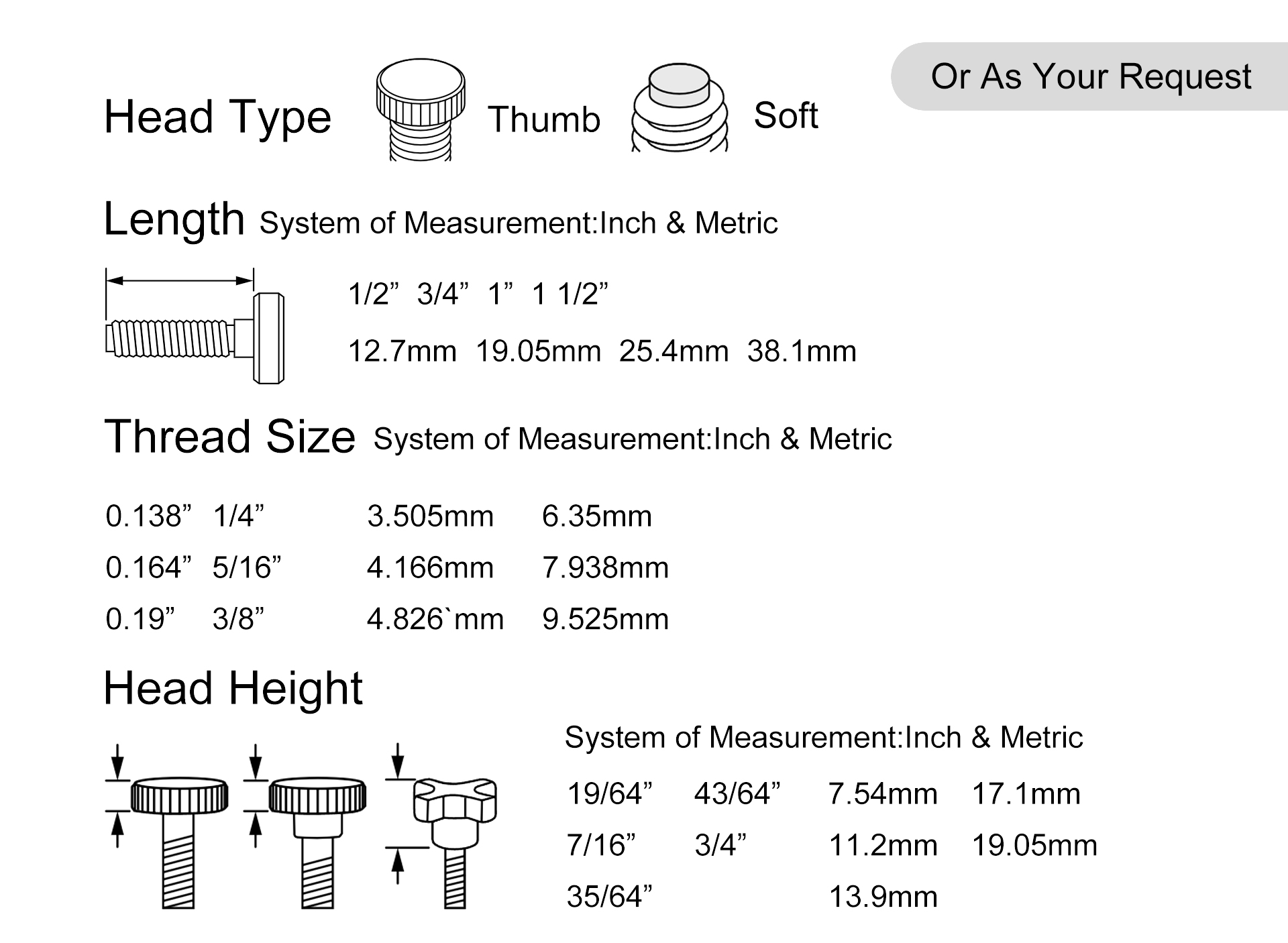

Thread Size: System of Mesurement:
Metric & Inch (Customizable Inch Thread Size)

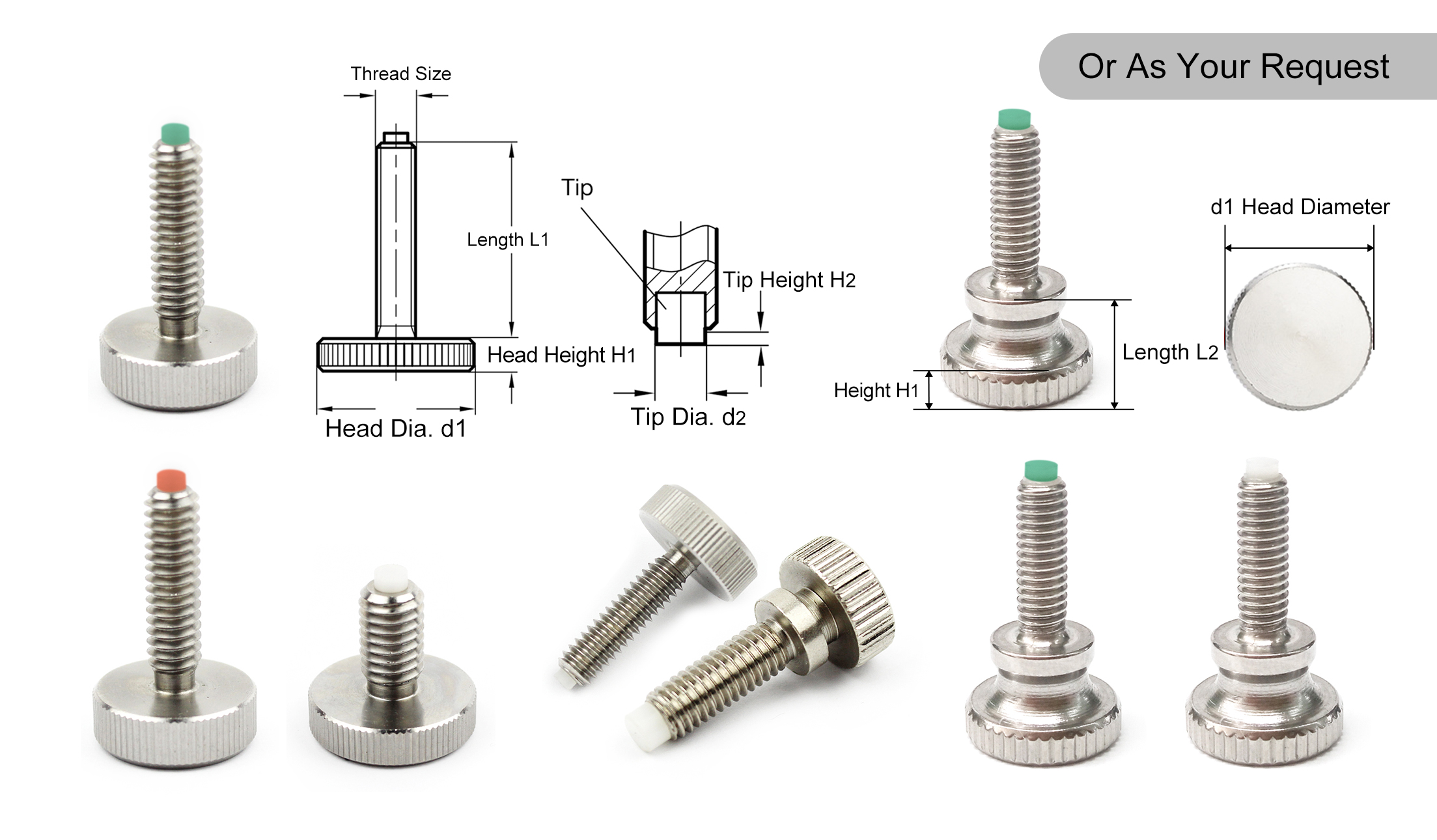

| Thread Size | d1(mm) | L1(mm) | H1(mm) | H2(mm) | Tip Dia. d2 | L2(mm) |
| M2*3 | 8 | 3 | 2 | 0.8/1.0 | 0.8mm | 5mm |
| M2*4 | 8 | 4 | 2 | 0.8/1.0 | 0.8mm | 5mm |
| M2*5 | 8 | 5 | 2 | 0.8/1.0 | 0.8mm | 5mm |
| M2*6 | 8 | 6 | 2 | 0.8/1.0 | 0.8mm | 5mm |
| M2.5*10 | 9 | 10 | 2.2 | 0.8/1.0 | 0.8mm | 5.5mm |
| M3*10 | 11 | 10 | 2.8 | 1.6/1.7 | 0.8mm | 7mm |
| M3*20 | 11 | 20 | 2.8 | 1.6/1.7 | 0.8mm | 7mm |
| M3*30 | 11 | 30 | 2.8 | 1.6/1.7 | 0.8mm | 7mm |
| M3*40 | 11 | 40 | 2.8 | 1.6/1.7 | 0.8mm | 7mm |
| M4*10 | 12 | 10 | 3 | 2.0/2.4 | 1.2mm | 8mm |
| M4*20 | 12 | 20 | 3 | 2.0/2.4 | 1.2mm | 8mm |
| M4*30 | 12 | 30 | 3 | 2.0/2.4 | 1.2mm | 8mm |
| M4*40 | 12 | 40 | 3 | 2.0/2.4 | 1.2mm | 8mm |
| M4*50 | 12 | 50 | 3 | 2.0/2.4 | 1.2mm | 8mm |
| M5*10 | 16 | 10 | 4 | 2.0/2.4 | 1.2mm | 10mm |
| M5*20 | 16 | 20 | 4 | 2.0/2.4 | 1.2mm | 10mm |
| M5*30 | 16 | 30 | 4 | 2.0/2.4 | 1.2mm | 10mm |
| M5*40 | 16 | 40 | 4 | 2.0/2.4 | 1.2mm | 10mm |
| M5*50 | 16 | 50 | 4 | 2.0/2.4 | 1.2mm | 10mm |
| M6*10 | 20 | 10 | 4 | 3.0/3.3 | 1.6mm | 12mm |
| M6*20 | 20 | 20 | 4 | 3.0/3.3 | 1.6mm | 12mm |
| M6*30 | 20 | 30 | 4 | 3.0/3.3 | 1.6mm | 12mm |
| M6*40 | 20 | 40 | 4 | 3.0/3.3 | 1.6mm | 12mm |
| M6*50 | 20 | 50 | 4 | 3.0/3.3 | 1.6mm | 12mm |
| M6*60 | 20 | 60 | 4 | 3.0/3.3 | 1.6mm | 12mm |
| M8*10 | 24 | 10 | 6 | 4.8/5.0 | 2.4mm | 16mm |
| M8*20 | 24 | 20 | 6 | 4.8/5.0 | 2.4mm | 16mm |
| M8*30 | 24 | 30 | 6 | 4.8/5.0 | 2.4mm | 16mm |
| M8*40 | 24 | 40 | 6 | 4.8/5.0 | 2.4mm | 16mm |
| M8*50 | 24 | 50 | 6 | 4.8/5.0 | 2.4mm | 16mm |
| M8*60 | 24 | 60 | 6 | 4.8/5.0 | 2.4mm | 16mm |
| M10*10 | 30 | 10 | 8 | 4.8/5.0 | 2.4mm | 20mm |
| M10*20 | 30 | 20 | 8 | 4.8/5.0 | 2.4mm | 20mm |
| M10*30 | 30 | 30 | 8 | 4.8/5.0 | 2.4mm | 20mm |
| M10*40 | 30 | 40 | 8 | 4.8/5.0 | 2.4mm | 20mm |
| M10*50 | 30 | 50 | 8 | 4.8/5.0 | 2.4mm | 20mm |
| M10*60 | 30 | 60 | 8 | 4.8/5.0 | 2.4mm | 20mm |
| M12*10 | 30 | 10 | 8 | 6.0/6.4 | 3.2mm | 20mm |
| M12*20 | 30 | 20 | 8 | 6.0/6.4 | 3.2mm | 20mm |
| M12*30 | 30 | 30 | 8 | 6.0/6.4 | 3.2mm | 20mm |
| M12*40 | 30 | 40 | 8 | 6.0/6.4 | 3.2mm | 20mm |
| M12*50 | 30 | 50 | 8 | 6.0/6.4 | 3.2mm | 20mm |
| M12*60 | 30 | 60 | 8 | 6.0/6.4 | 3.2mm | 20mm |

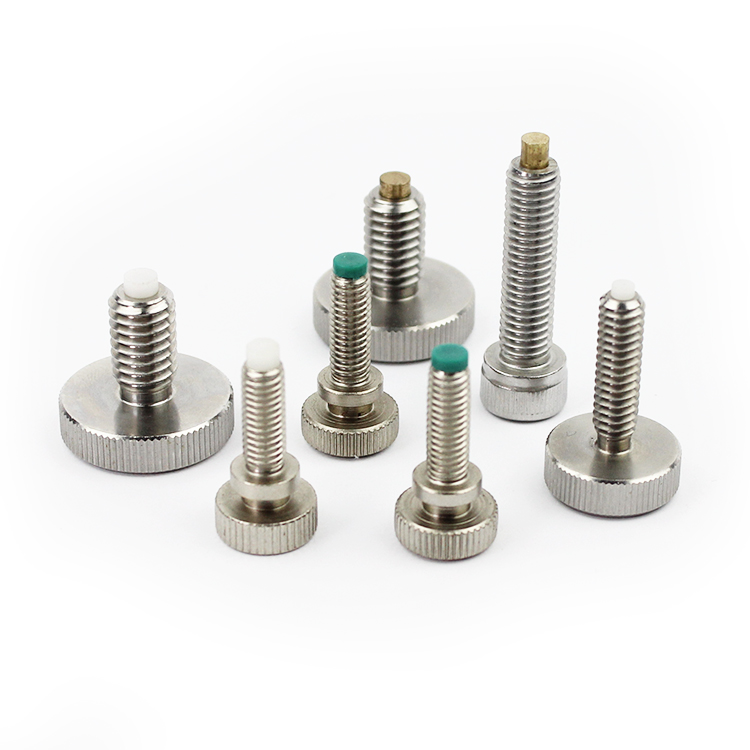

The common types of Soft Tipped Set Screw are as follows:
Set Screw with Nylon and Brass Tip
Socket Cap Head with Nylon and Brass Tip
Spade Thumb Screw with Nylon and Brass Tip
Thread Size:Metric-M2-M24 or according to the product
Inch:#2/#3/#4/1/4inch/5/16inch or according to the product
Screw Material:Carbon Steel (Black Oxide), Stainless Steel (Such as SS304/SS316), Brass or plastic (POM/PP/Nylon)
Tip Material:Plastic,Nylon6/6,Brass,etc
Tip Color:Nylon Tipped Green/Red/Blue,etc
Screw Head Type:Flat Head,Pan Head,Round Head,etc.
Screw Drive Style:Slotted Type,Phillips,Hex Socket,etc.
Finish:Zinc-plated,Nickel-plated,Black Oxide,etc.
Application:
Furniture Assembly, PCB Board Fixation, Precision Instruments, etc.
The Function of Socket Set Screw Nylon Tip:
Soft end material reduces wear on the surface of the workpiece;
Some models of anti loosening design integrate Threadlocker or groove structure to enhance seismic and anti loosening performance;
Standard hex socket or slot driver, suitable for conventional tool operation;
Rubber Tipped Set Screws Advatage:
Knurled Round Thumb Screw: The head is densely covered with a rolling pattern, enhancing the friction during twisting.
Flat Head Thumb Screw: countersunk design, requiring pre embedded holes for flush installation;
Nylon head isolates current to avoid the risk of short circuit in electronic devices
Round headed wing design provides strong friction, allowing for quick loading and unloading in small spaces.
Correct installation of Nylon Tip Round Thumb Screw:
1. Pre treatment of hole positions;
2. Manually screw in for initial positioning: Pinch the head of the round wing with your fingers, insert the screw vertically into the threaded hole, and rotate clockwise until the thread "engages" and automatically brings in; (Keep the screw axis perpendicular to the installation surface to avoid thread damage caused by oblique force)
3. Hand tightening: Using a round wing head with rolled flowers/wing design, apply force with fingers to tighten until there is a noticeable sense of resistance;
