Mini Quick Change Tool Post Holder Kit
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of Mini Quick Change Tool Post Holder Kit
Mini lathe quick change tool post Title:
12 pcs or 15pcs mini quick Change tool post holder kit Aluminium quick change tool post mini lathe
Product Composition:
Tool Post: It is a key component that connects the lathe and the tool holder, usually installed on the middle slide plate of the lathe through bolts or T-nuts. The size and installation method of different models of knife holder bodies may vary, and their knife holder bodies may be equipped with M8 or M10 mounting bolts.
Structural composition:
Tool holders: Common ones include external turning tool holders, boring tool holders, cutting tool holders, etc.

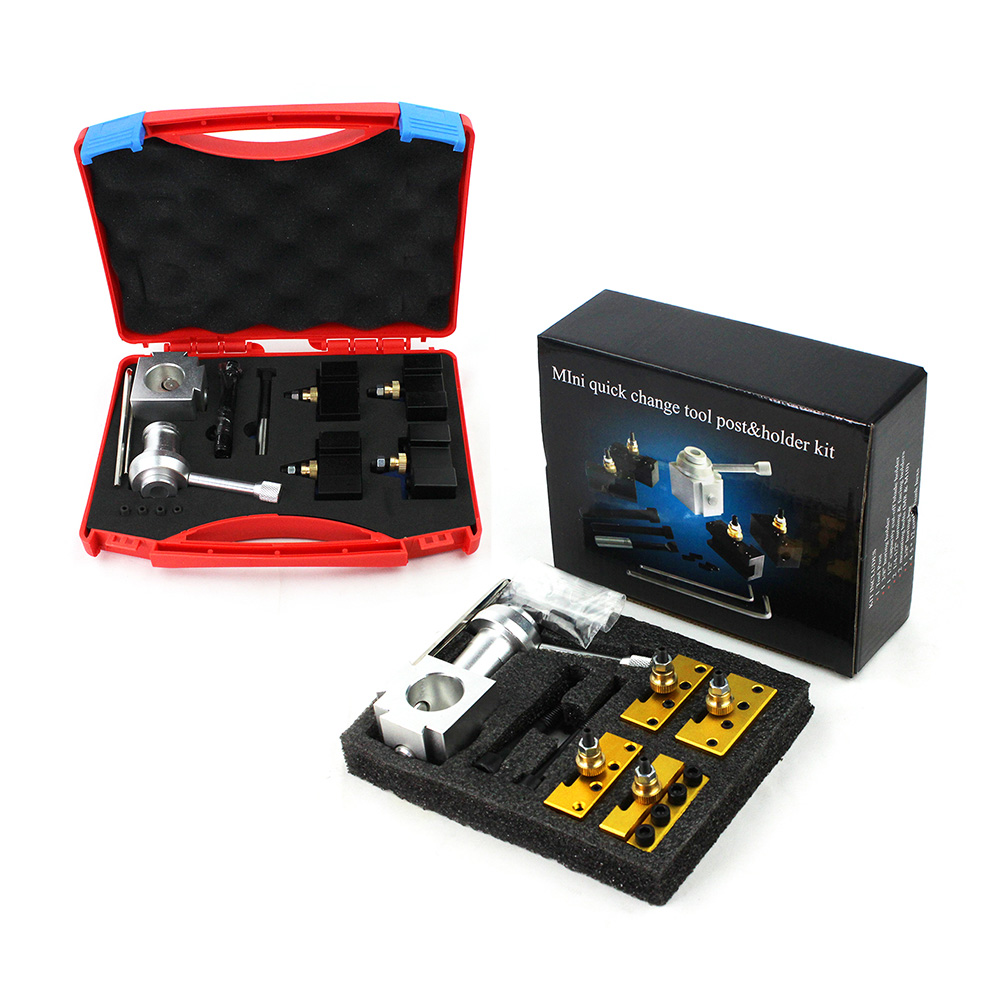

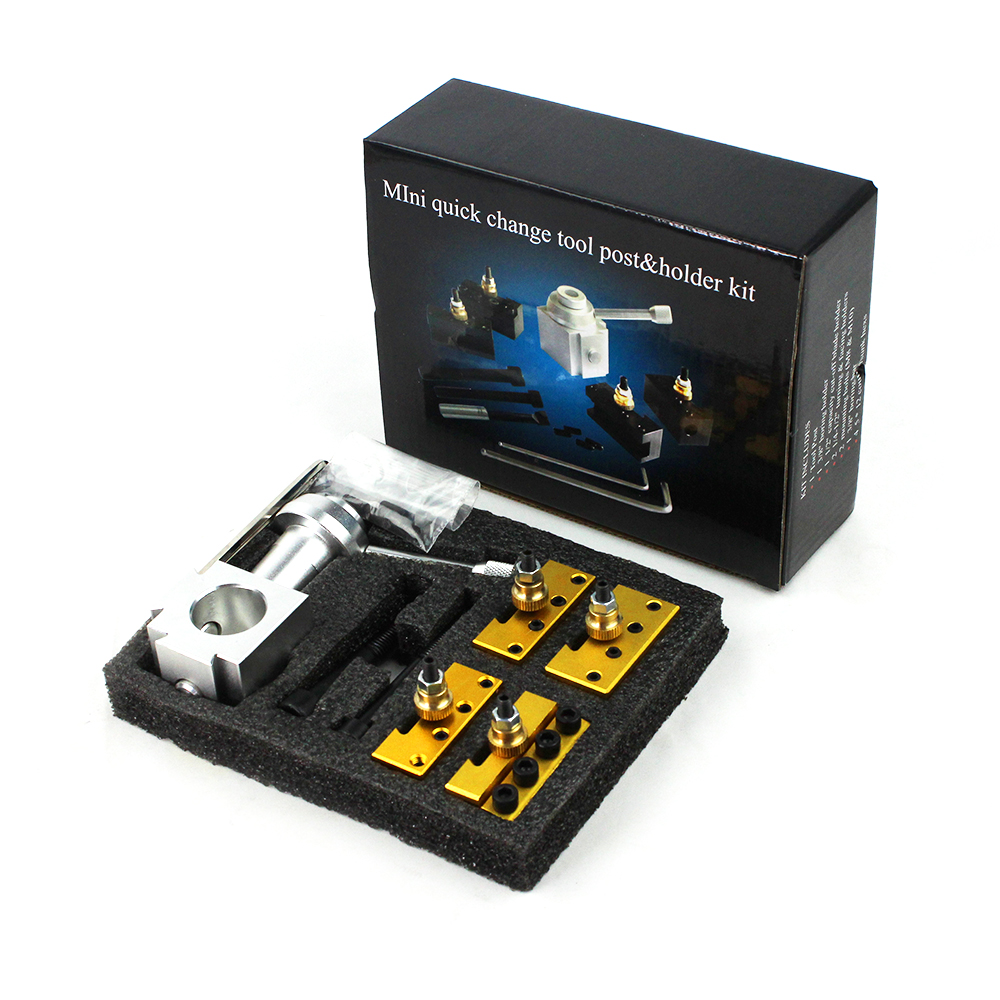

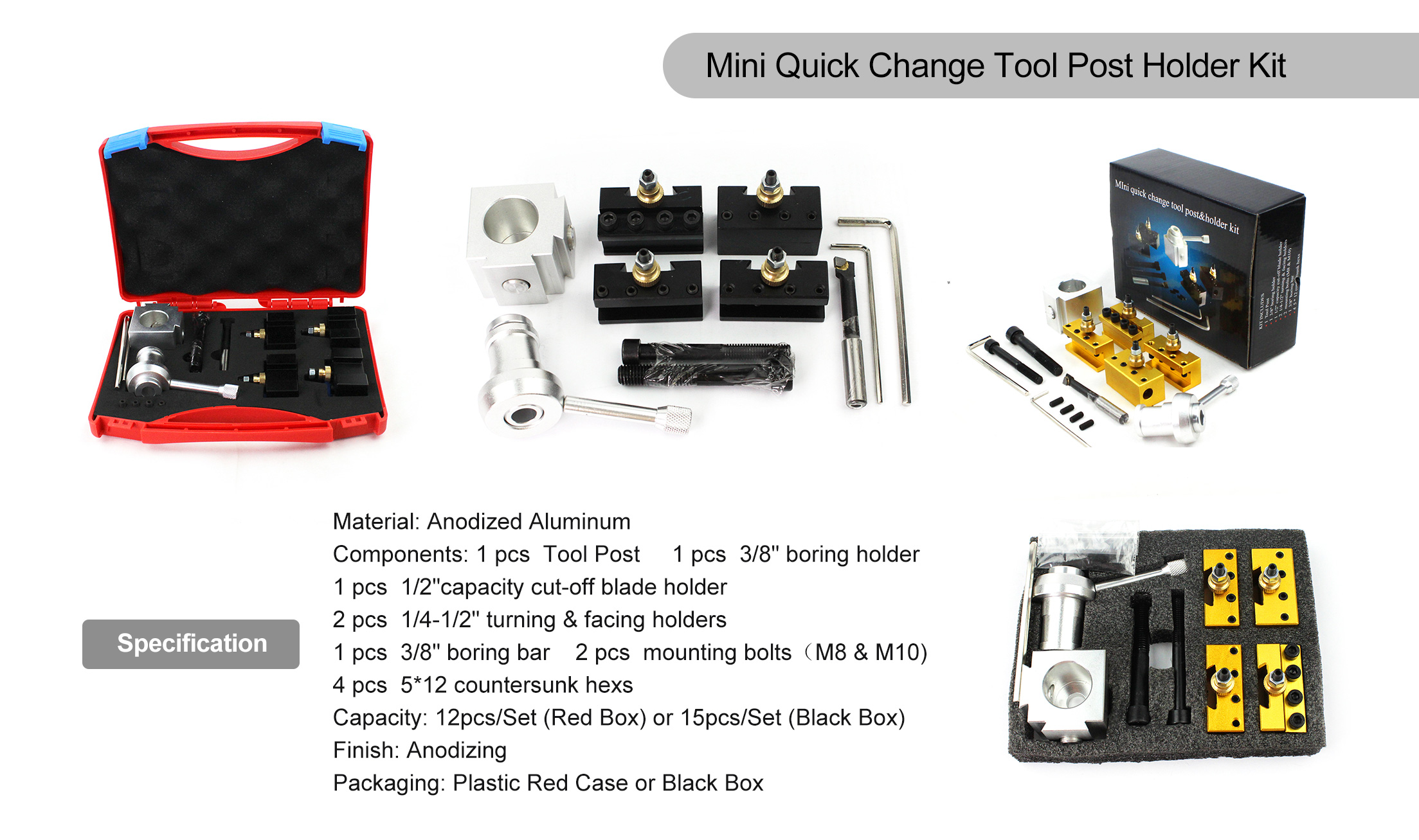

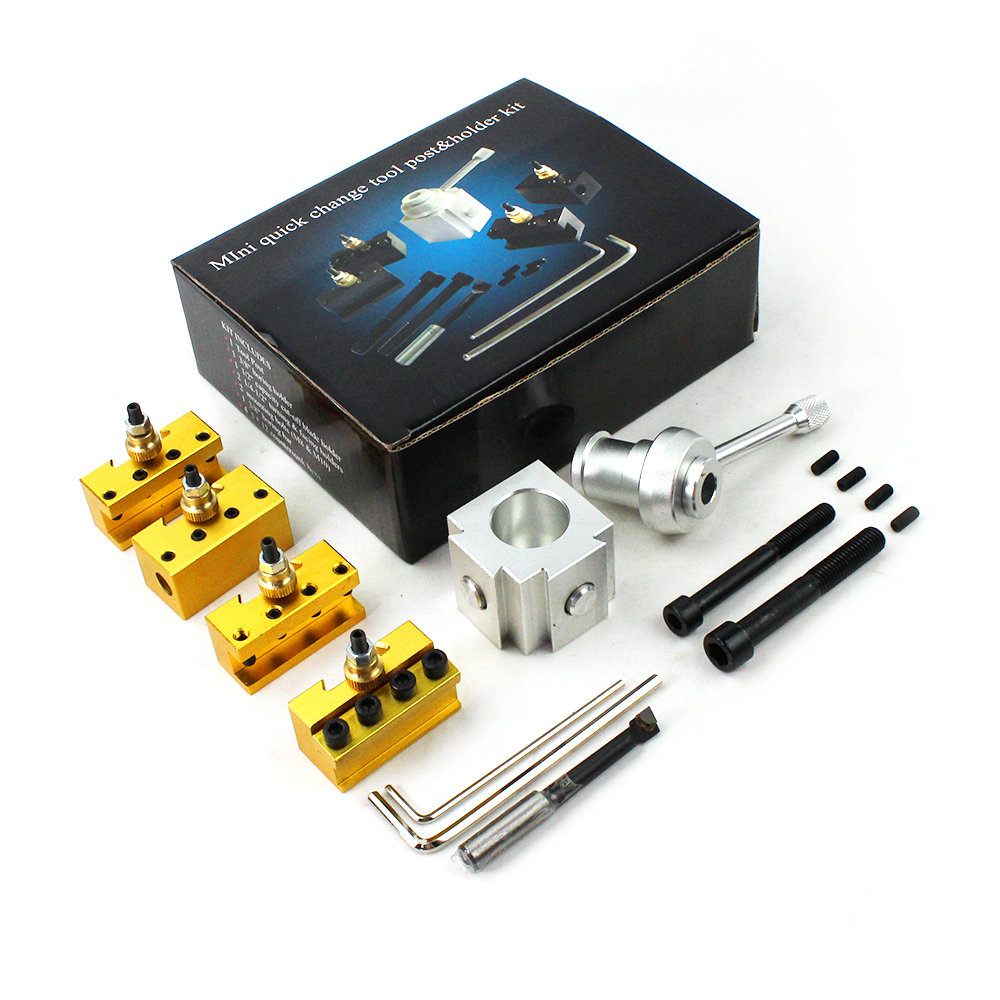

KITINCLUDES
1 pcs Tool Post
1 pcs 3/8"boring holder
1 pcs 1/2"capacity cut-off blade holder
2 pcs 1/4-1/2"turning&facing holders
1 pcs 3/8"boring bar
2 pcs mounting bolts(M8&M10)
4 pcs 5*12countersunk hexs
Installation Accessories:
generally include bolts, nuts, wrenches, etc., used to fix the tool holder body on the lathe and install the tool on the tool holder.

Material and Performance:
Made of high-quality aluminum alloy:
aluminum alloy kits are lightweight and corrosion-resistant, while steel kits have higher hardness and rigidity.

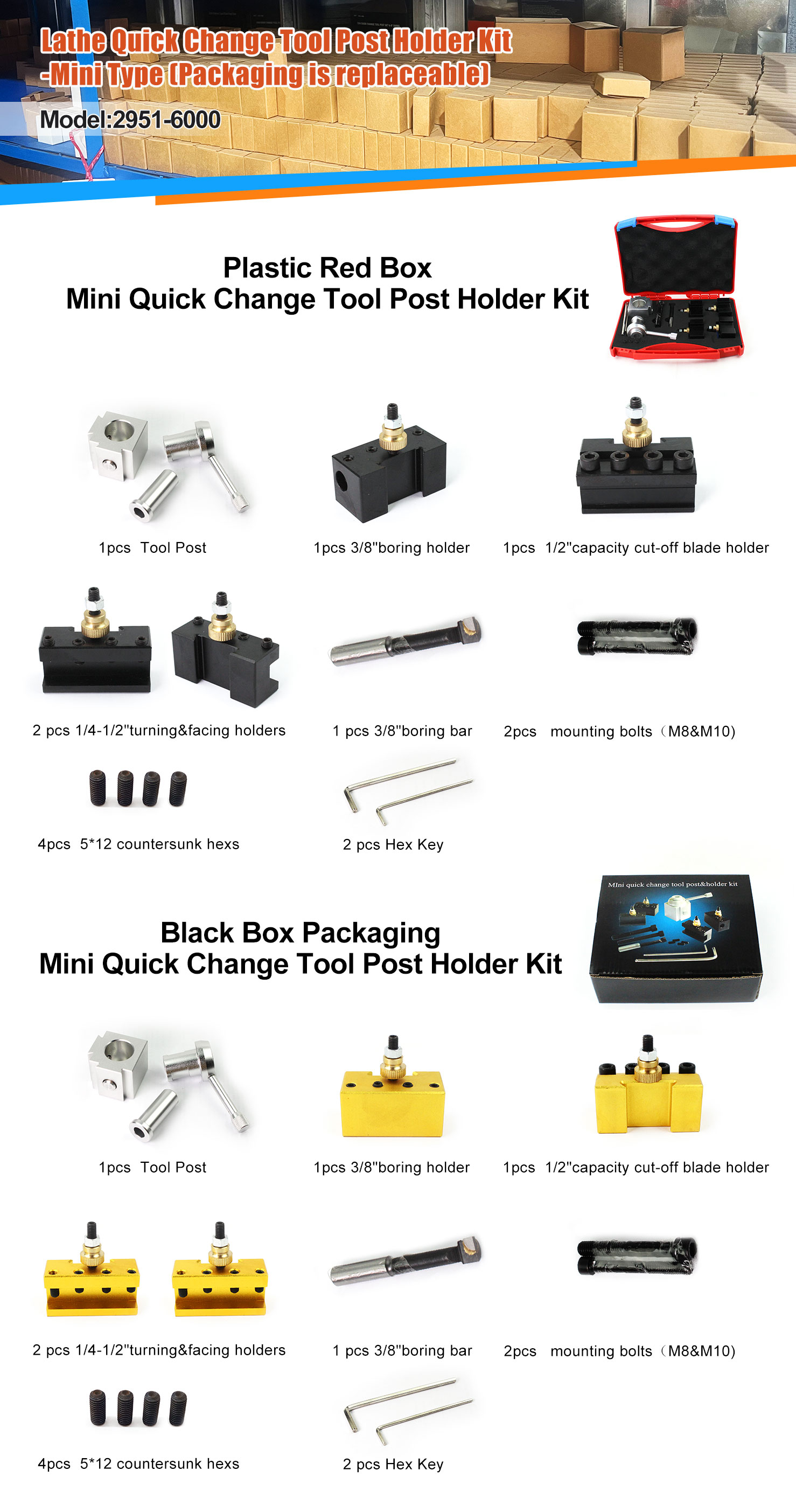

| Includes | Order No. | Order No. |
| 1 Pcs Tool Post | 2951-6001 | 2951-6000 |
| 1 Pcs 3/8" Boring Holder | 2951-6002 | 2951-6000 |
| 1 Pcs 1/2" Capacity Cut-off Blade Holder | 2951-6003 | 2951-6000 |
| 2 Pcs 1/4-1/2" Turning & Facing Holders | 2951-6004 | 2951-6000 |
2 Pcs Mounting Bolts(M8 & M10) | 2951-6005 | 2951-6000 |
4 Pcs 5*12 Countersunk Hexs | 2951-6006 | 2951-6000 |
1 Pcs 3/8" Boring Bar | 2951-6007 | 2951-6000 |
Application:
Lathe type: mainly suitable for small lathes, such as 7x10, 7x12, 7x14, 9x16 and other specifications of lathes, as well as some micro lathes.
Processing type: It can be used for various processing operations such as external turning, end face turning, cutting, boring, drilling, rolling, and reaming.

Product Features:
Quick tool change:
With the quick change structure, tool change can be completed in just a few seconds, significantly reducing auxiliary time and improving machining efficiency compared to traditional tool change methods.
High precision positioning:
The positioning accuracy is high when changing the tool, ensuring the dimensional accuracy and surface quality of the processed parts.
Easy to operate:
No need for washers, adjust the tool height through knobs or nuts, easy to operate, reducing the skill requirements for operators.
Compact structure:
small in size and light in weight, suitable for small lathes, micro lathes, etc. with limited space.
