Customized Plastic Knob Handle
PDM
| Material: | |
|---|---|
| Quantity: | |
Features of Handles and Knob
Knob Handle Manufacturer Title:
Plastic Moulding Machine manufacturer custom colorful handles and knobs index pin konb for Mouting
Metal Screw Knob Suppliers Introduction:

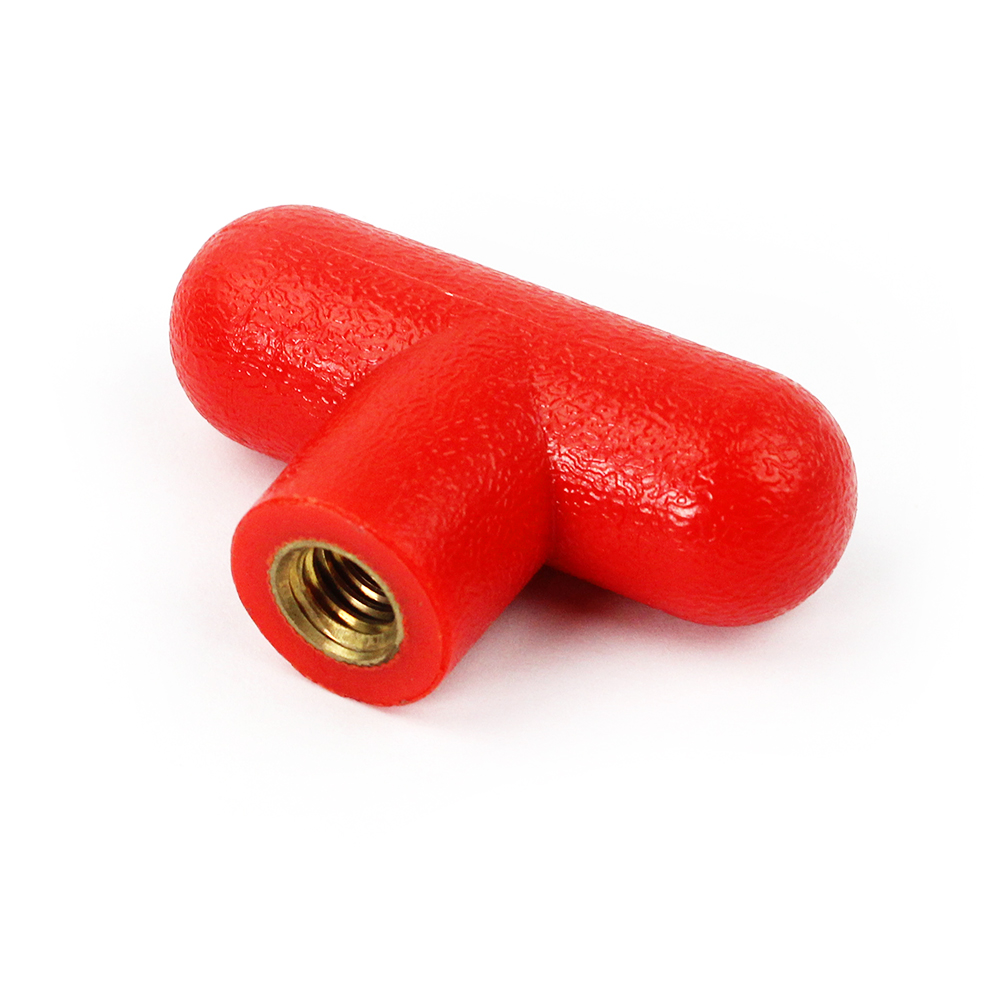

The custom metal handle knob can be adjusted, switched, and positioned by holding it with bare hands. It is often used in conjunction with screws, shafts, or adjusters and can be operated without the need for professional tools.
Knob body (core part): The material is mainly made of engineering plastics (PA66, ABS, POM, etc.), and some high-end models use a "metal core+plastic outer layer" (to enhance strength); The color can be customized (red, blue, yellow, green, orange, etc.), and can be colored through integrated injection molding. The color is uniform, not easy to fade, wear-resistant and scratch resistant, and can be matched with equipment color matching according to customer needs.
Grip surface design: The surface is treated with anti slip measures, and common patterns include rolling, vertical, and grid patterns. Some smooth designs are suitable for precision instruments; No sharp edges, comfortable grip, avoiding hand injuries during operation.
Connecting components: The bottom is equipped with a built-in connecting structure, which commonly includes internal threaded holes, through holes, keyways, and set screws. It can be directly connected to the shaft, screw, and adjusting rod, and is easy to install without the need for additional tools.
Optional accessories: can add indicator lines (for precise positioning adjustment), anti slip rubber rings (to enhance grip feel), anti loosening structure (to avoid long-term use loosening).
The common materials and characteristics of knots and handles plastic are as follows:
Nylon PA66: high strength, wear resistance, and temperature resistance; Full color compatibility, not easy to fade, ETC.
ABS: Good rigidity, bright appearance, easy coloring, moderate cost, suitable for bright and solid colors (such as red, blue, ETC)
POM: low friction, size stability, wear resistance, suitable for frequent adjustment, suitable for light color series (white, gray), etc.
Metal core+plastic outer layer: Balancing strength and insulation, wear-resistant and impact resistant, etc.
Diameter specifications: Regular 10mm to 50mm, customizable to meet different grip needs.
Height specifications: Regular 5mm to 25mm, customizable.
Connection specifications: internal thread (M3-M12), through-hole (φ 3- φ 12), keyway (customized according to the size of the shaft).
Color specifications: regular colors (black, white, gray), bright colors (red, blue, yellow, green), customizable Pantone color codes.
Anti slip patterns: rolled pattern, vertical pattern, grid pattern, smooth surface (optional).
| Item | Size | Feature |

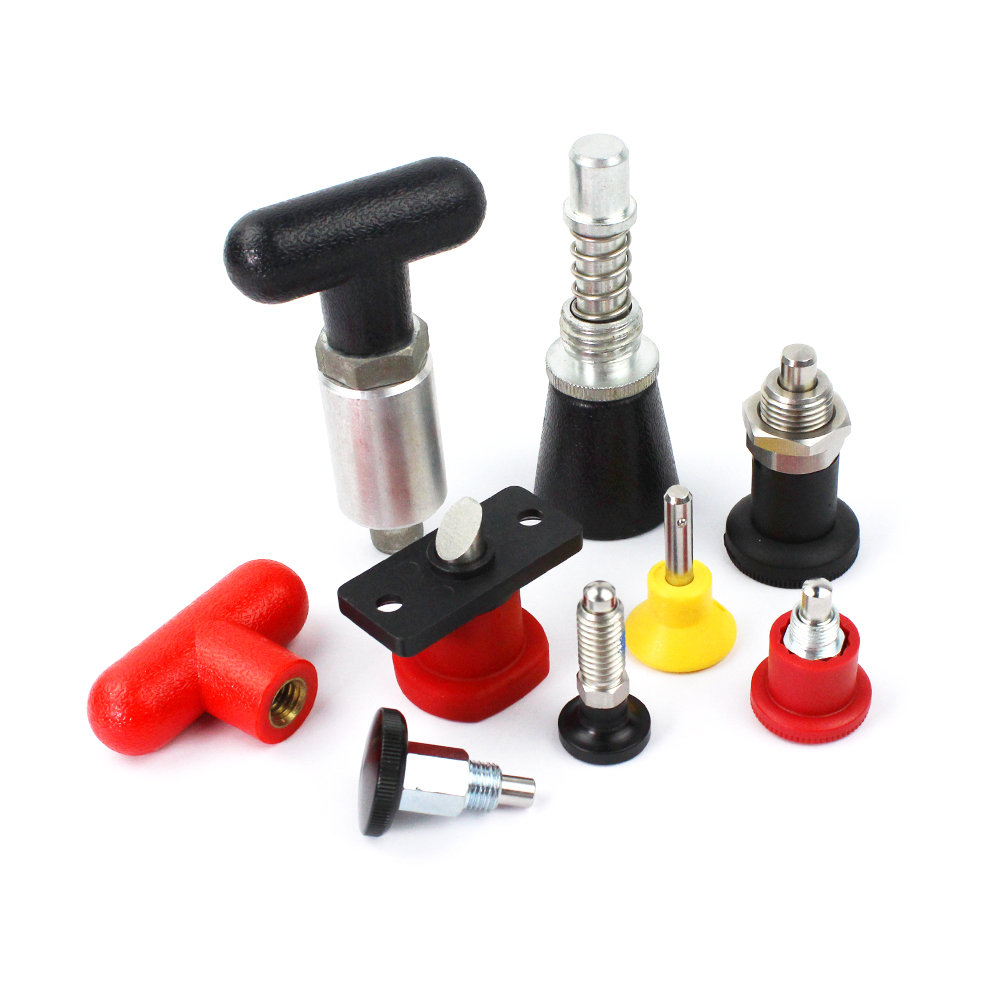

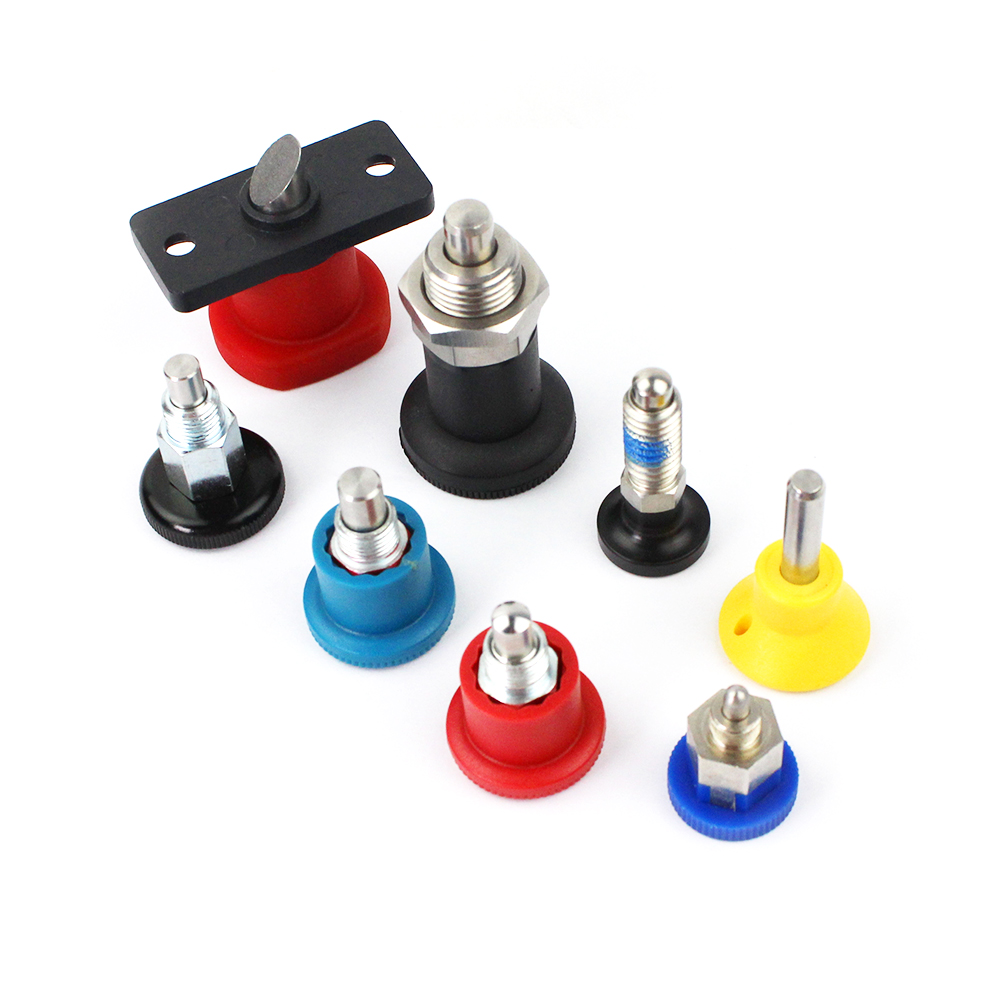

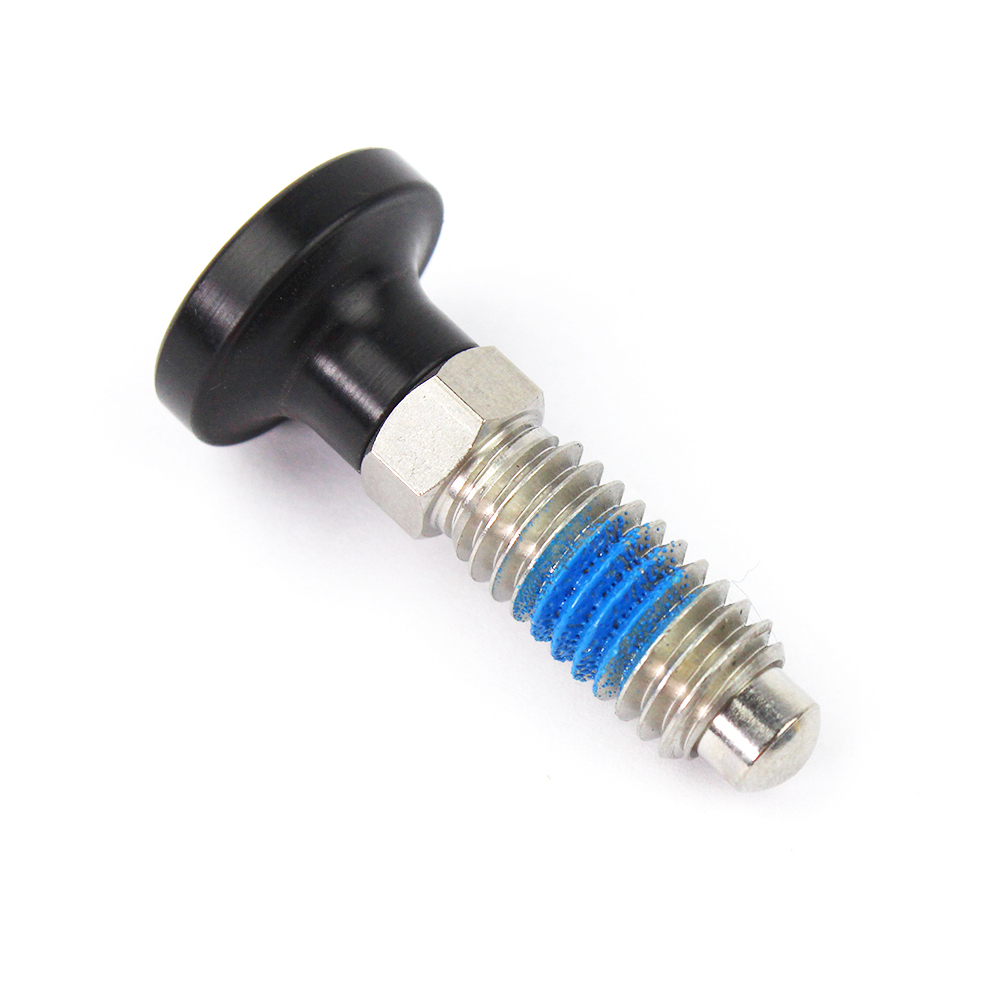

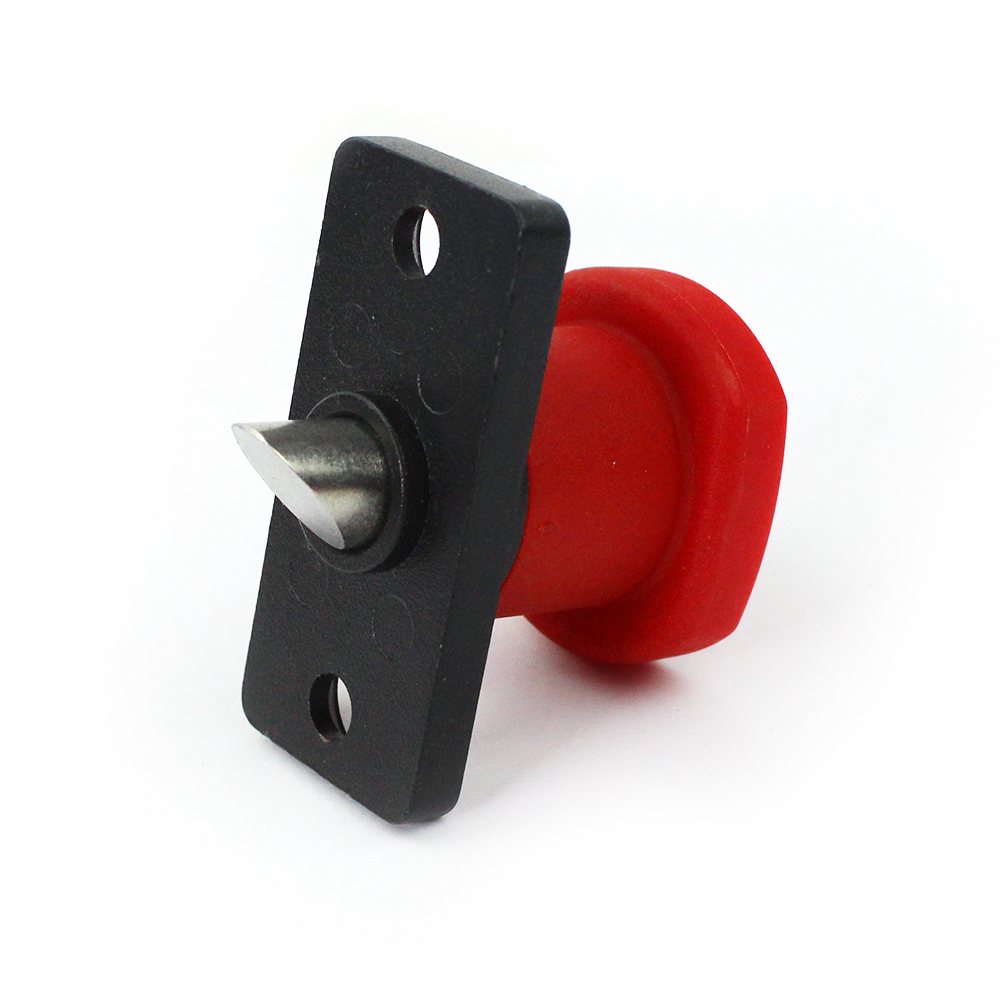

| Indexing Plungers | M8 x 0.75 M10 x 1 or Customized | Knob Material:Polymide based (PA) technopolymer, black matte finish. Knob Color:Red,Black,Yellow,White,Orange,etc. Plunger:ANSI303 Stainless Steel Body:ANSI303 Stainless Steel,Zinc Plated Steel,etc Index Pin Style:With or Without Rest Position (Pull the knob and turn it by 30° |
| Spring Loaded Pull Pins | PinDia.:1/4inch,3/8inch, 1/2inch or Customized | Knob Material:Polymide based (PA) technopolymer, Colorful matte finish. Knob Color:Red,Black,Yellow,White,Orange,etc. Knob Style:T handle,Round Handle or Custom Handles. Pull Pin Housing:Stainless Steel,Steel,Aluminum,etc Plunger:Stainless Steel,Steel,Aluminum,etc Feature:With or Without Rest Position(Pull the knob and turn it by 30°) |

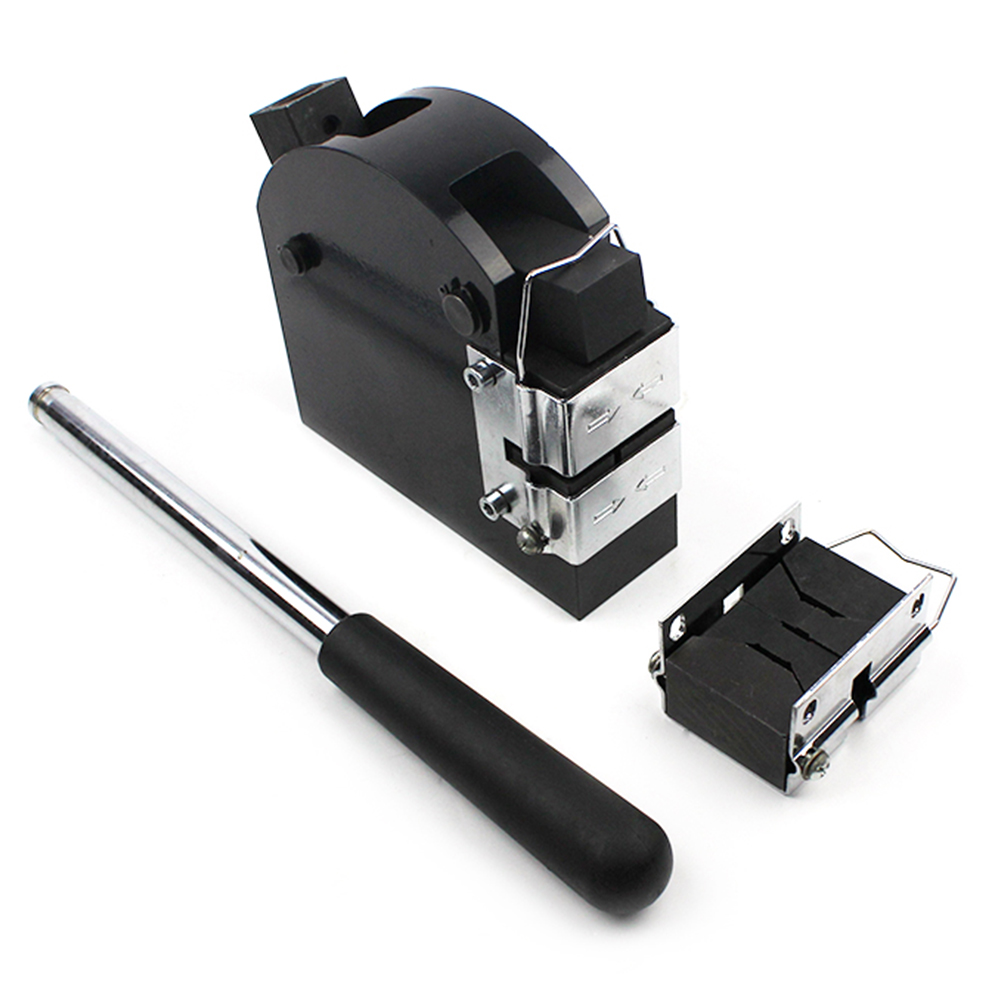

| Tool Handles | Customize according to the selected product consultation | Knob Material:Polymide based (PA) technopolymer, black matte finish. Knob Color:Red,Black,Yellow,White,Orange,etc. Applicaiton:Metal Fabricaiton Tools Handles or Other Tool Handles, Bakelite Handles,etc. |
Colorful identification for easy differentiation: Available in multiple colors, color schemes can be divided according to device functions;
Strong customization: customizable colors, sizes, grip patterns, connection methods, can embed logos, and adapt to the personalized needs of customer devices.
Wear resistant and durable: one-piece injection molding coloring, not easy to fade or peel off paint; The material is wear-resistant and temperature resistant, suitable for long-term use, and not easily deformed or damaged.
Threaded Knob Handle Application:
Electronic and electrical: instruments and meters, distribution boxes, frequency converters, audio equipment (adjusting volume and frequency).
Mechanical equipment: machine tools, printing machines, packaging machines (positioning, adjusting speed).
Medical equipment: small detectors, rehabilitation equipment (with insulation adjustment to avoid electric shock).
Conventional Manufacturing Process:

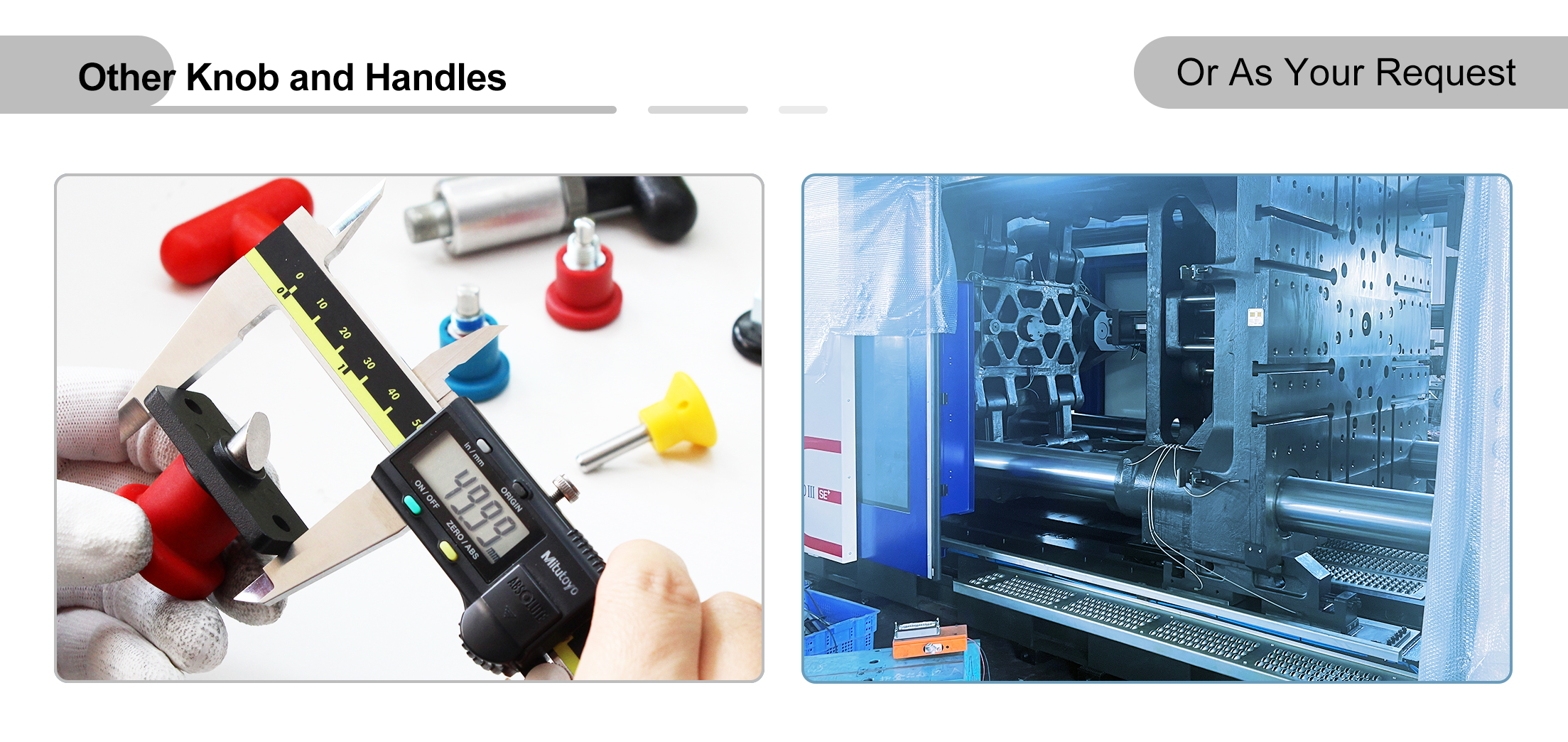

Handles and knobs injection molding (main body+color integrated molding) → anti slip pattern processing → connection structure processing (threads, through holes) → quality inspection → packaging.
