Plastic Expansion Wall Anchor
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of Wall Plug Anchor
Self-drilling Anchor Title:
Self drilling anchor manufacturers PE&POM plastic split anchor wall for Plasterboard
Materials and Design:

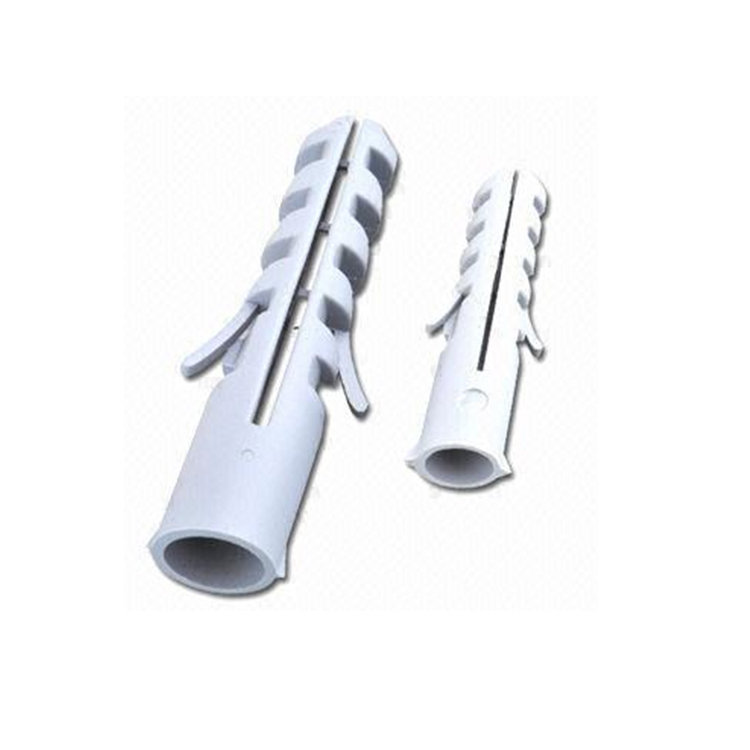

The main body is made of engineering plastics such as nylon (PA), polypropylene (PP), or polyethylene (PE), which have the advantages of insulation, lightweight, and low cost.
Self expanding structure, when the screw is screwed in after inserting the drill hole, the plastic sleeve expands radially and is embedded in the hole wall to achieve fixation;

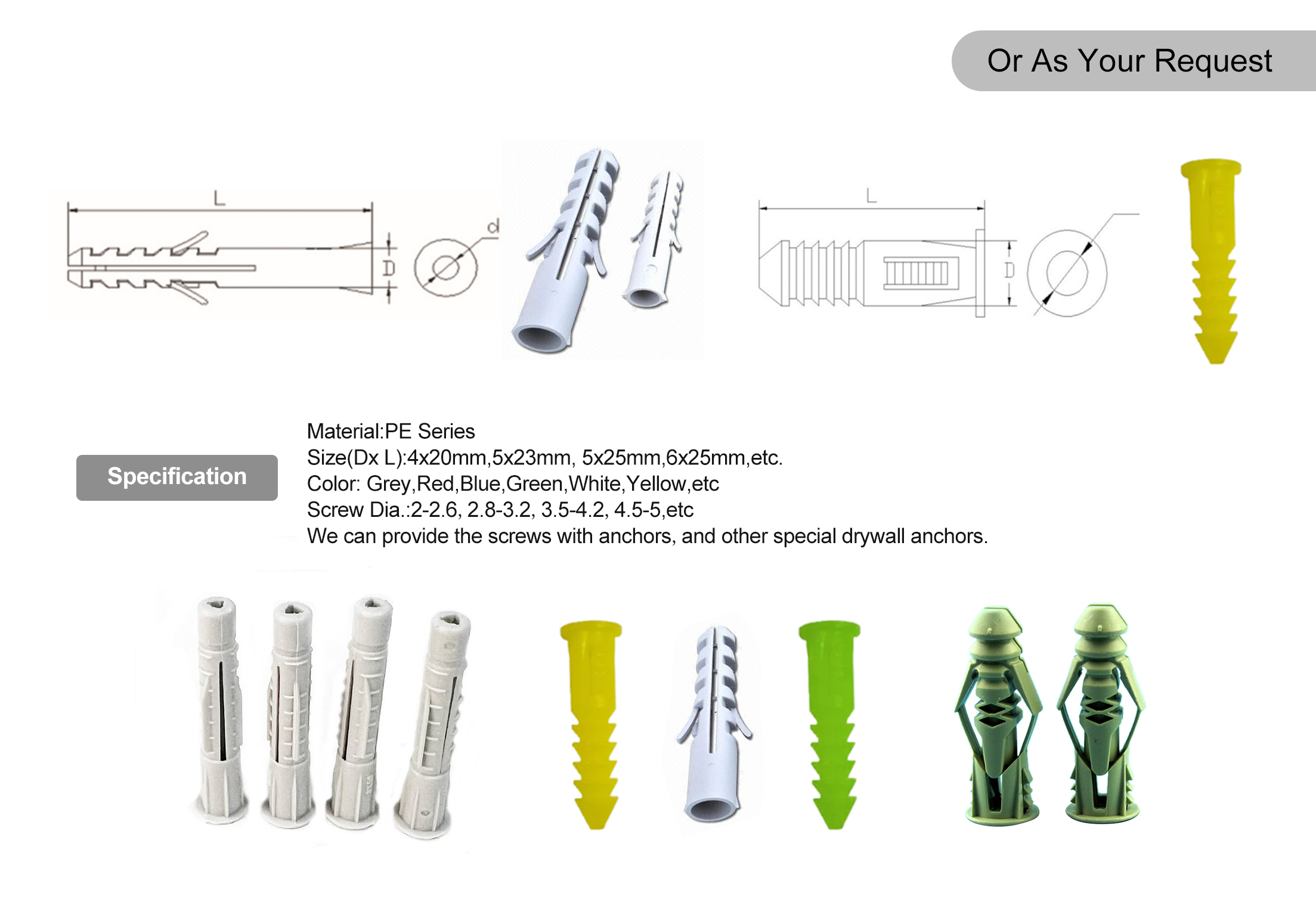

Material:PE Series
Size(Dx L):4x20mm,5x23mm, 5x25mm,6x25mm,etc.
Color: Grey,Red,Blue,Green,White,Yellow,etc
Screw Dia.:2-2.6,2.8-3.2,3.5-4.2,4.5-5,etc
We can provide the screws with anchors,and other special drywall anchors.

| Part No. | Size (DxL) mm | Screw Dia. | Material |
| PFA0420 | 4x20mm | 2-2.6 | PE |
| PFA0523 | 5x23mm | 2.8-3.2 | PE |
| PFA0525 | 5x25mm | 2.8-3.2 | PE |
| PFA0625 | 6x25mm | 3.5-4.2 | PE |
| PFA0627 | 6x27mm | 3.5-4.2 | PE |
| PFA0630 | 6x30mm | 3.5-4.2 | PE |
| PFA0730 | 7x30mm | 4.5-5 | PE |
| PFA0735 | 7x35mm | 5-5.5 | PE |
| PFA0837 | 8x37mm | 5-5.5 | PE |
| PFA0840 | 8x40mm | 5-5.5 | PE |
| PFA1037 | 10x37mm | 6.0-7.0 | PE |
| PFA1043 | 10x43mm | 6.0-7.0 | PE |
| PFA1050 | 10x50mm | 6.0-7.0 | PE |
| PFA1060 | 10x60mm | 6.0-7.0 | PE |
| PFA1260 | 12x60mm | 8-9.5 | PE |
| PFA1273 | 12x73mm | 8-9.5 | PE |
| PFA1475 | 14x75mm | 10-11.5 | PE |
| Color:White,Grey,Red,Blue | |||
| WA0522 | 3/16 x 3/4 | 1.0-2.0 | PE |
| WA0625 | 3/16 x 7/8 | 2.0-3.0 | PE |
| WA0730 | 9/32 x 1-1/4 | 3.0-4.5 | PE |
| WA0840 | 5/16 x 1-9/16 | 4.0-6.0 | PE |
| Color: Yellow and Blue | |||
Application:
Lightweight home decoration (such as picture frames and lighting fixtures), electrical installation (using insulation to avoid electromagnetic interference), and wall fixing in dry indoor environments.
Advantages: Easy installation, light weight, and good insulation.

Installation steps
Drilling: Use a handheld drill to drill straight holes in the wall, with a diameter that matches the size of the anchor bolt and a depth slightly greater than the length of the anchor bolt.
Cleaning the hole: Remove debris from the hole to ensure there is no residue.
Insert anchor bolt: Press the plastic anchor bolt vertically into the hole until it is flush with the wall surface.
Fixed screws: Use matching screws (such as No.6) to thread through the fixed object and screw in until the screw head is tightly attached to the surface;
