Quick Release V Band Clamp Kit
PDM-Racing
| Quantity: | |
|---|---|
Features of Quick Release V Band Clamp Kit
V Band Clamp Title:
Quick Release V Band Clamp Stainless Steel V Band Clamp Kit
V Band Exhaust Clamp Introduction:
V band hose clamp is a circular fastening device that uses a V-shaped groove structure to tightly fasten flanged pipes or components, achieving quick connection and sealing fixation. Fasteners specifically designed for fixing and connecting exhaust pipes.V band hose clamp is divided into Standard V band clamps,Quick release v band clamps or Custom special v band clamps.
V-shaped clamp body
Material: 304 stainless steel (surface polished or galvanized);
V-shaped locking strap: with a V-shaped cross-section, it matches the flange slope to enhance the clamping force;

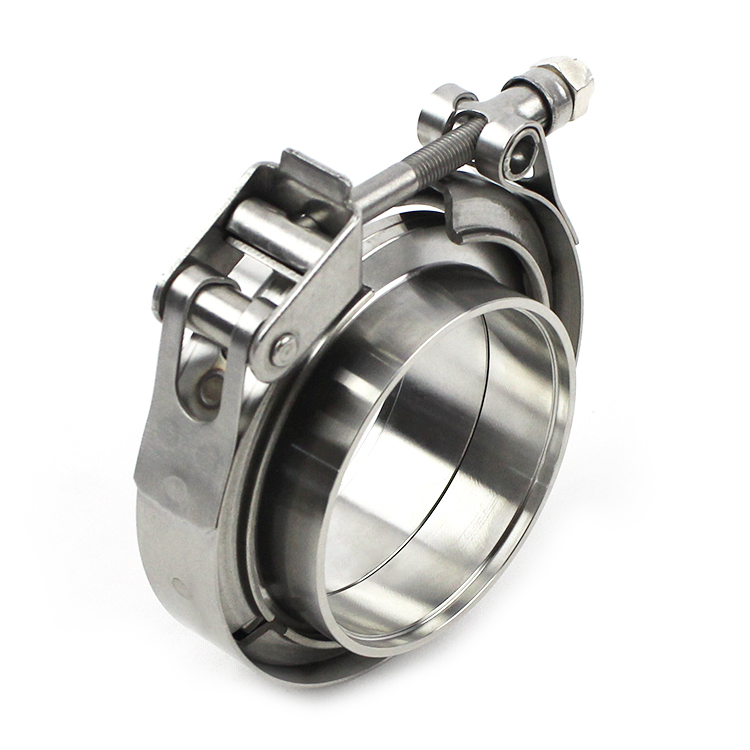

Quick release handle: lever mechanism design, locking when pressed down and releasing when lifted up;
Mother child flange component
Female flange: with groove interface and embedded sealing gasket groove;

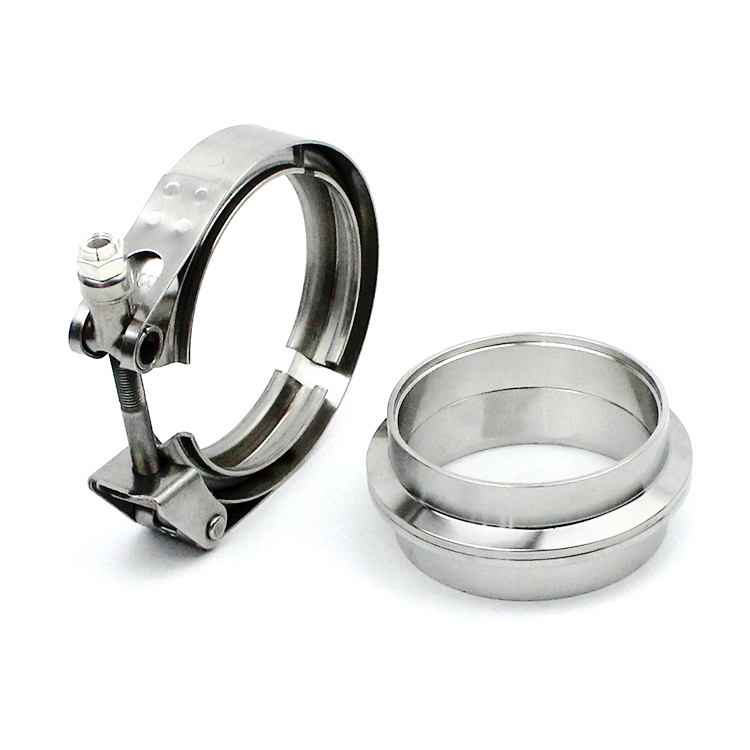

Male flange: a flange structure that is inserted into a female flange to form a mechanical seal;
Sealing gasket: graphite reinforced metal gasket can be additionally configured (optional silicone/fluororubber);
Pipe OD:1.5”1.75”,2.0”,2.25”,2.36”,2.50”,2.75”,3.0”,3.25”,3.5”,4.0”,4.5”,5.0”,6.0” or Custom special Size.
Band Material:Made of stainless steel (such as SUS304) or carbon steel, surface polished or black oxidized to enhance corrosion resistance.
V-shaped groove: prevents offset or looseness

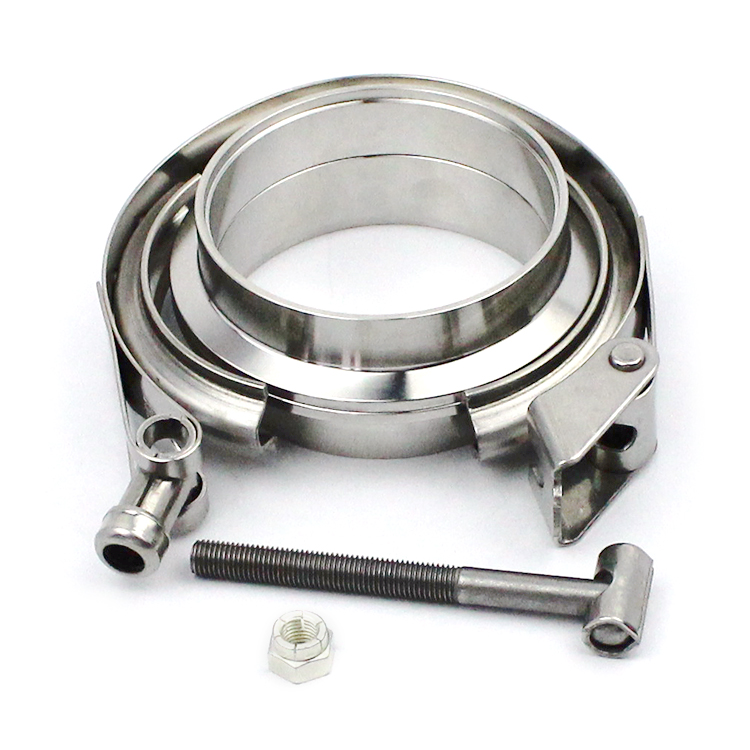

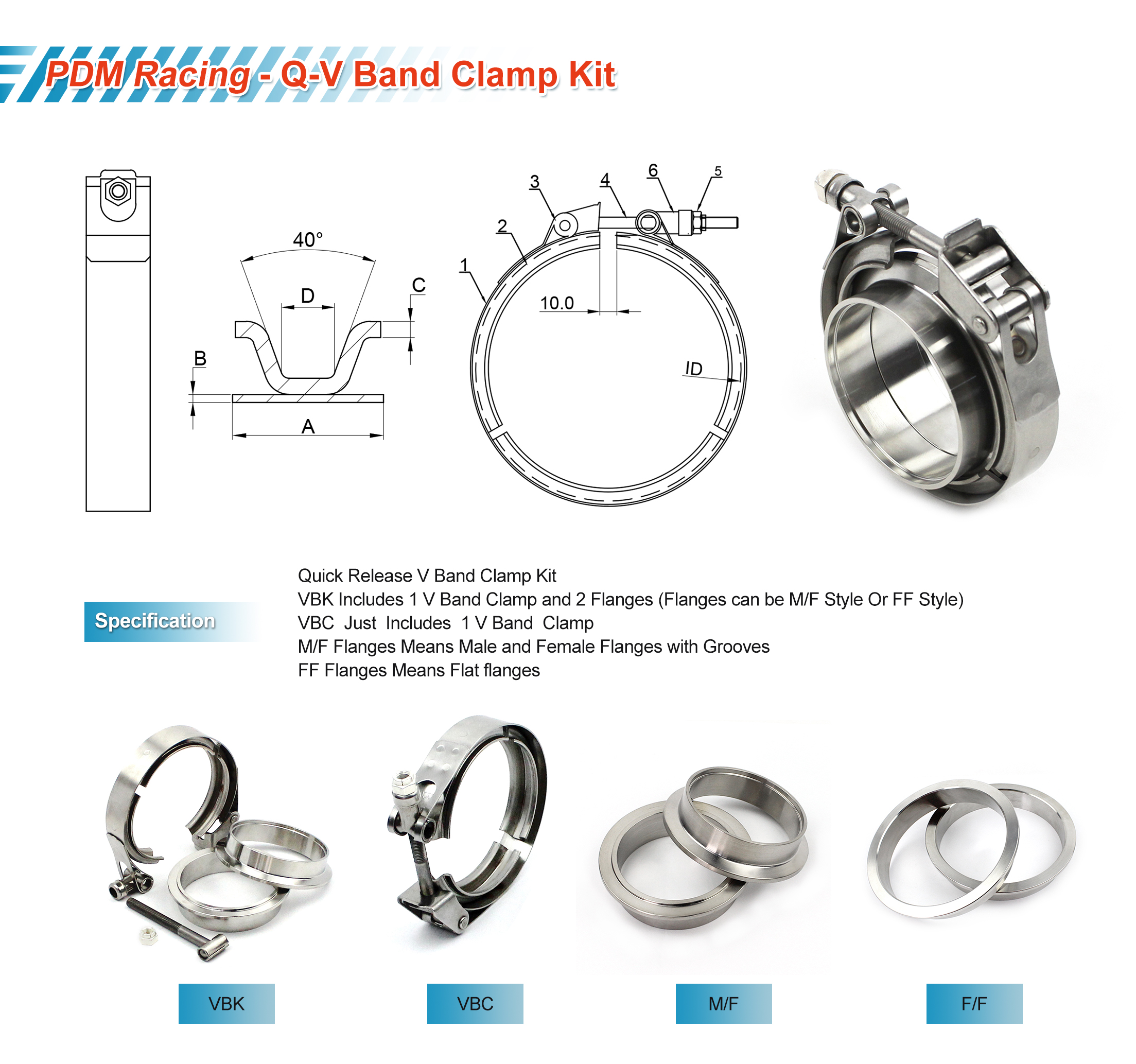

V Band Clamp Kit Includes 1 V Band Clamp and 2 Flanges (Flanges can be M/F Style or FF Style or Custom)
M/F Flanges Means Male and Female Flanges with Grooves FF Flanges Means Flat flanges
Aluminium Flanges with Rubber O-Rings
| Pipe OD(Inch) | V-Band Clamp Kit | V-Band Clamp | Flanges | |
| 1.5" | VBK-Q150 | VBC-Q150 | M/F150 | FF150 |
| 1.75" | VBK-Q175 | VBC-Q175 | M/F175 | FF175 |
| 2.00" | VBK-Q200 | VBC-Q200 | M/F200 | FF200 |
| 2.25" | VBK-Q225 | VBC-Q225 | M/F225 | FF225 |
| 2.36" | VBK-Q236 | VBC-Q236 | M/F236 | FF236 |
| 2.50" | VBK-Q250 | VBC-Q250 | M/F250 | FF250 |
| 2.75" | VBK-Q275 | VBC-Q275 | M/F275 | FF275 |
| 3.00" | VBK-Q300 | VBC-Q300 | M/F300 | FF300 |
| 3.25" | VBK-Q325 | VBC-Q325 | M/F325 | FF325 |
| 3.50" | VBK-Q350 | VBC-Q350 | M/F350 | FF350 |
| 4.00" | VBK-Q400 | VBC-Q400 | M/F400 | FF400 |
| 4.50" | VBK-Q450 | VBC-Q450 | M/F450 | FF450 |
| 5.00" | VBK-Q500 | VBC-Q500 | M/F500 | FF500 |
| 6.00" | VBK-Q600 | VBC-Q600 | M/F600 | FF600 |
Exhaust V Band Clamp Flange Kit Function:
Flange connection: Suitable for flanged components such as pipelines and exhaust pipes, and fastened through bolts or quick release mechanisms;
The V-shaped groove is designed to fit the edge of the flange, and sometimes combined with rubber sealing material to enhance air tightness;
Application:
Automotive exhaust system(Turbocharger and exhaust pipe connection), industrial ventilation duct Ship engine exhaust, etc;
Stainless Steel V Band Clamp Advatage:
Auto parts clamps can tightly connect multiple pipe sections of the exhaust system, forming a continuous exhaust channel, ensuring the sealing and smoothness of the exhaust pipe, and improving the exhaust efficiency of the engine;
Diversified selection of clamp materials:
Stainless steel clamps have characteristics such as corrosion resistance and wear resistance; Compatible with multiple flange types (flat flange, male and female flange, aluminum flange, etc.)
