Self Drilling Drywall Anchors
PDM
| Quantity: | |
|---|---|
Features of Drywall Anchors
Drywall Anchor Screws Title:

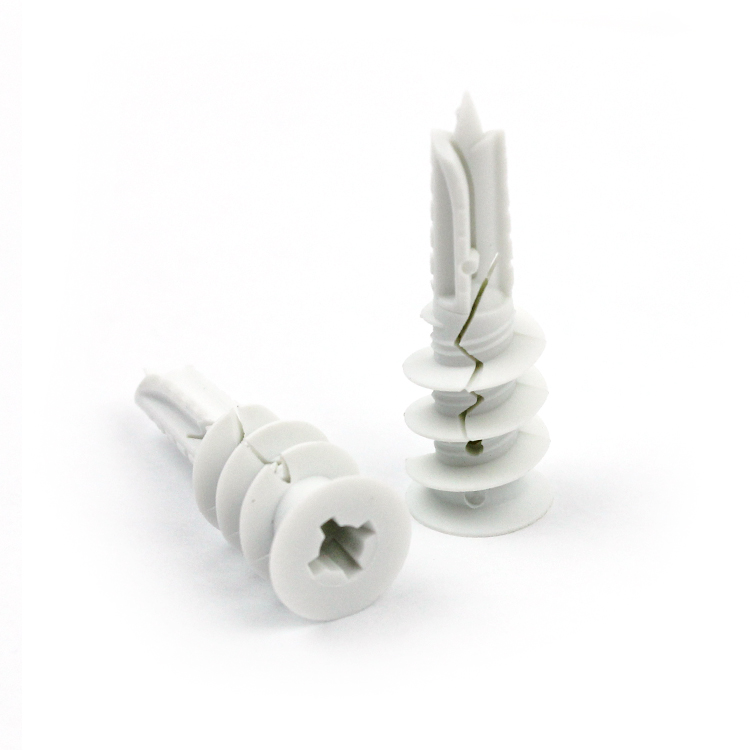

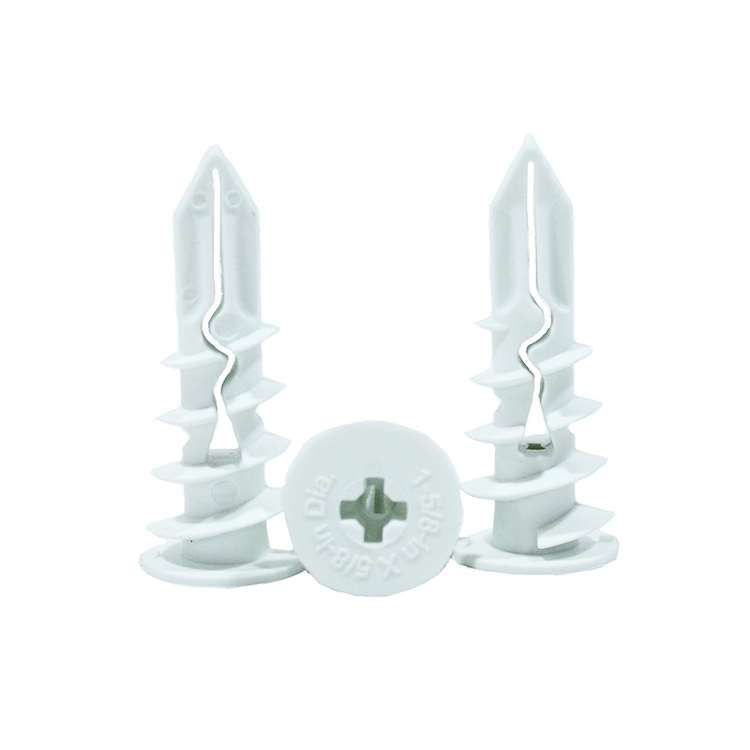

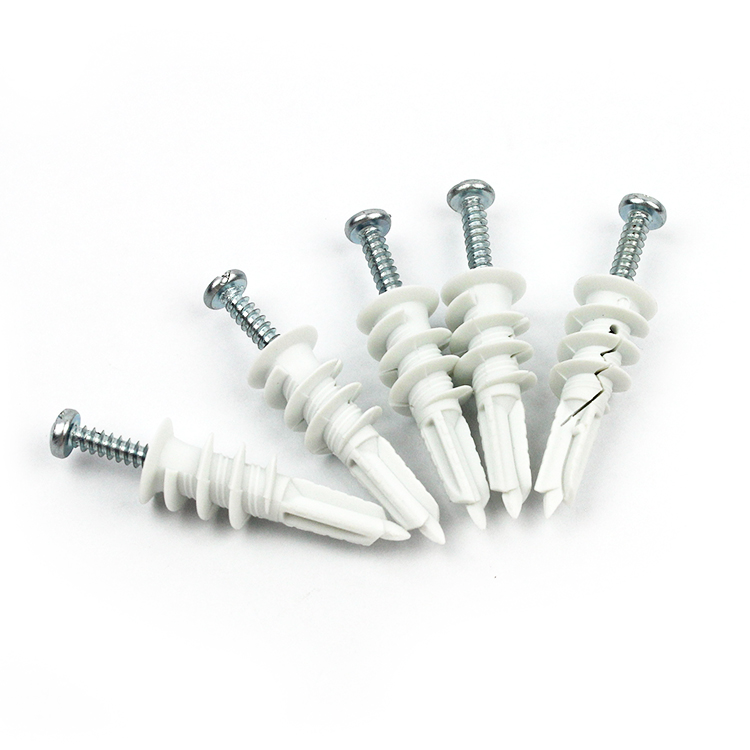

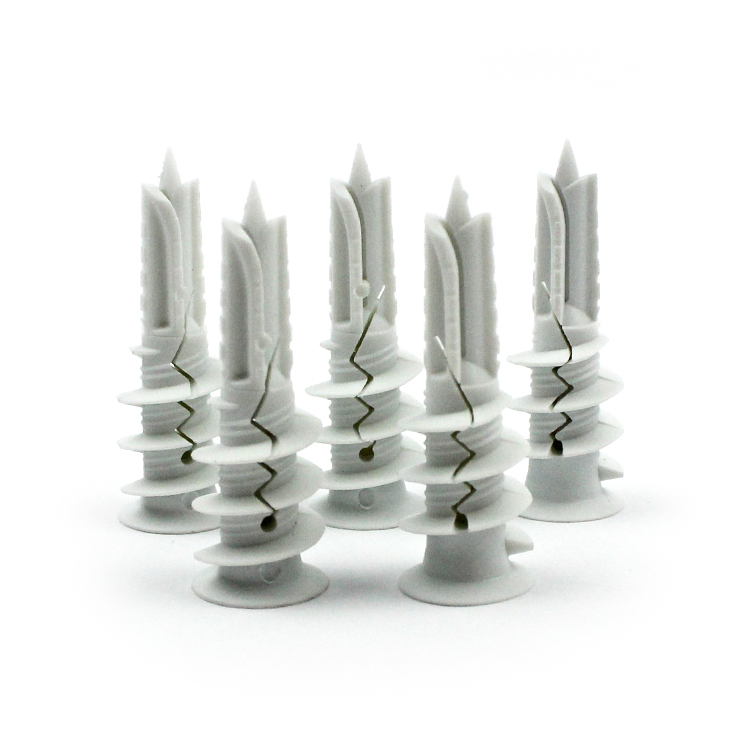

Plastic & Nylon PA66 wall anchors and screw white drywall self drilling anchors
Structural characteristics
Plastic drywall anchors are made of nylon material, which has anti-corrosion, insulation, and vibration reduction properties, effectively preventing loosening or detachment.
Materials and Design
Material: PA Nylon (Nylon 6 or Nylon 66), providing high toughness and chemical resistance, suitable for indoor environments;

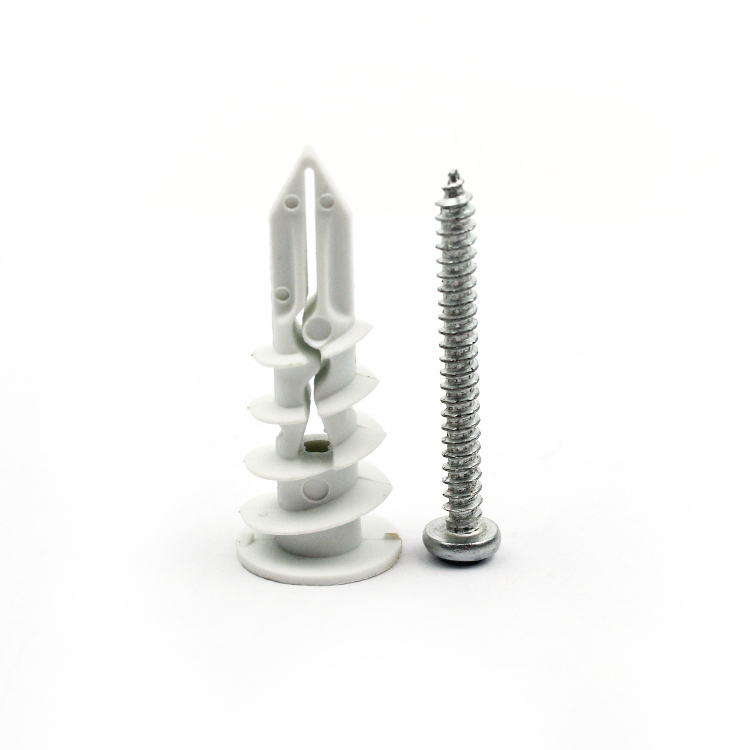

Structure: Integrated self tapping thread anchor body and screw, can be directly drilled into the wall, reducing installation steps;
Anti failure mechanism: Expansion design, the anchor body opens up the interior of the wall when subjected to force, enhancing grip and preventing slippage.
Performance advantages
Convenient installation: omitting the pre drilling step;
Corrosion resistance: Nylon material prevents metal corrosion and extends its service life in humid environments;
Load adaptation: 50LB-85LB
Size:13*40mm,11*33mm,16*42mm,11*31mm
Screw Size:#6,#8
Surface treatment: No special coating, maintaining the original characteristics of nylon;
Packaging: plastic bag+cardboard box+pallet transportation;
| Part No. | Size(D x L) | Screw Size | Material | Color | Loading LB |
| DA1340 | 1/2" x 1.5"(13 x40mm) | #8 x 1 1/4"(4.2 x30mm) | Nylon66 | White/Black | 75/LB |
| DA1133 | 3/8" x 1 1/4"(11 x33mm) | #6 x 1 1/4"(3.5 x30mm) | Nylon66 | White/Black | 50/LB |
| DA1642 | 5/8" x 1 5/8"(15.8 x42mm) | #8 x 1 1/2"(4.2 x38mm) | Nylon66 | White/Black | 85/LB |
| DA1131 | 1/2" x 1 1/4"(11 x31mm) | #6 x 1 1/4"(3.5 x30mm) | Nylon66 | White/Black | 65/LB |
Application:
Building decoration: fixing lightweight decorative items (such as picture frames, wall lamps) on drywall or gypsum board surfaces;
Use # 6- # 8 screws for furniture assembly to prevent screws from loosening.
Industrial maintenance: Temporary equipment mounted on hollow partitions, such as electrical boxes or pipe supports;
Installation steps:
Positioning and Drilling
Measure the positioning point with a tape measure and calibrate the position with a level;
No pre drilling operation: Align the anchor bolt tip directly with the marked point without the need for pre drilling.
Manual operation:
Insert a screwdriver into the groove of the anchor bolt head;
Press the wall vertically and rotate clockwise until the cutting blade completely penetrates the gypsum board;
Mechanical assistance:
Adjust the electric drill to low speed gear;
Continuously apply gentle thrust and rotate until the anchor bolt collar is fully aligned with the wall surface.
Screw fixation
Remove the temporary screws used for installing anchor bolts;
Screw the fastening screws of the object to be suspended into the internal thread of the anchor bolt;
