Spade Head Thumb Screws
PDM
| Material: | |
|---|---|
| Quantity: | |
Features of Spade Thumb Screw
Thumb Screw Spade Head Title:
Factory Directly Spade-head thumb screw m6 m8 or Custom thum screw spade brass steel stainless steel
M6 or Custom Spade Head Thumb Screw Introduction:

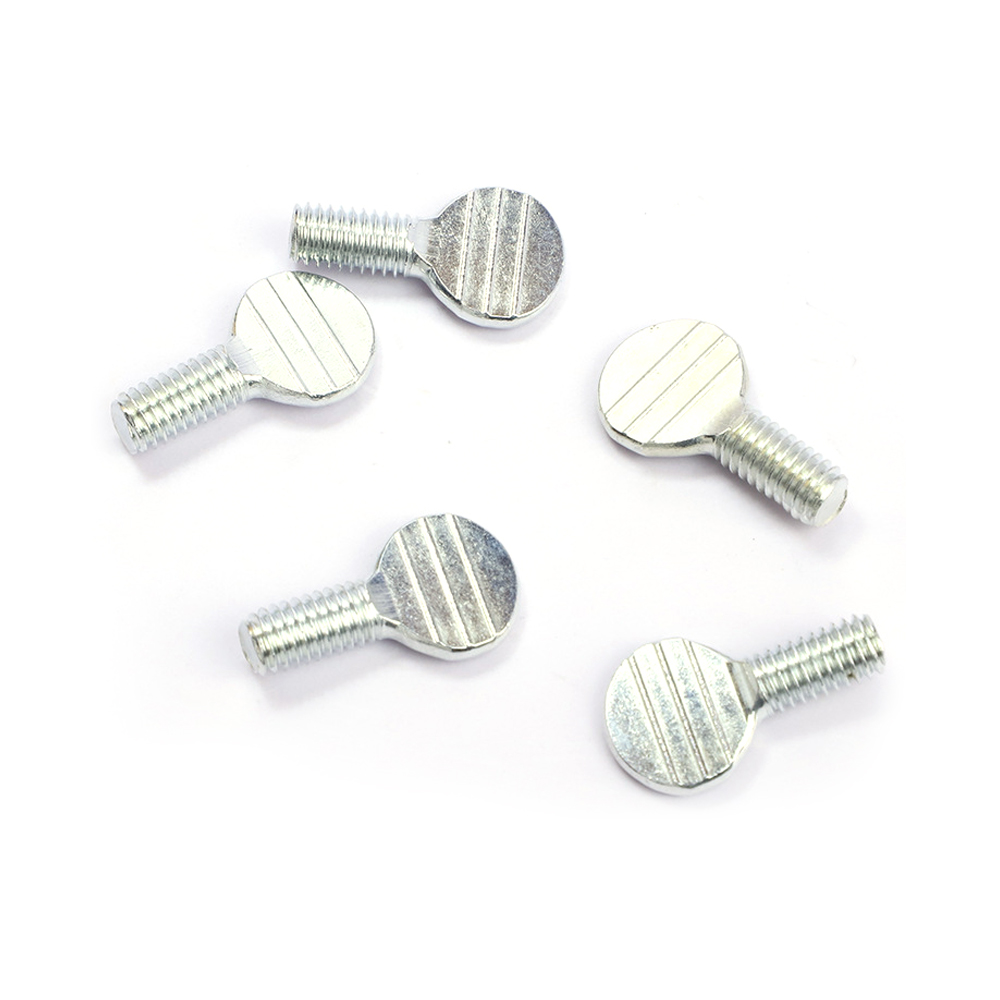

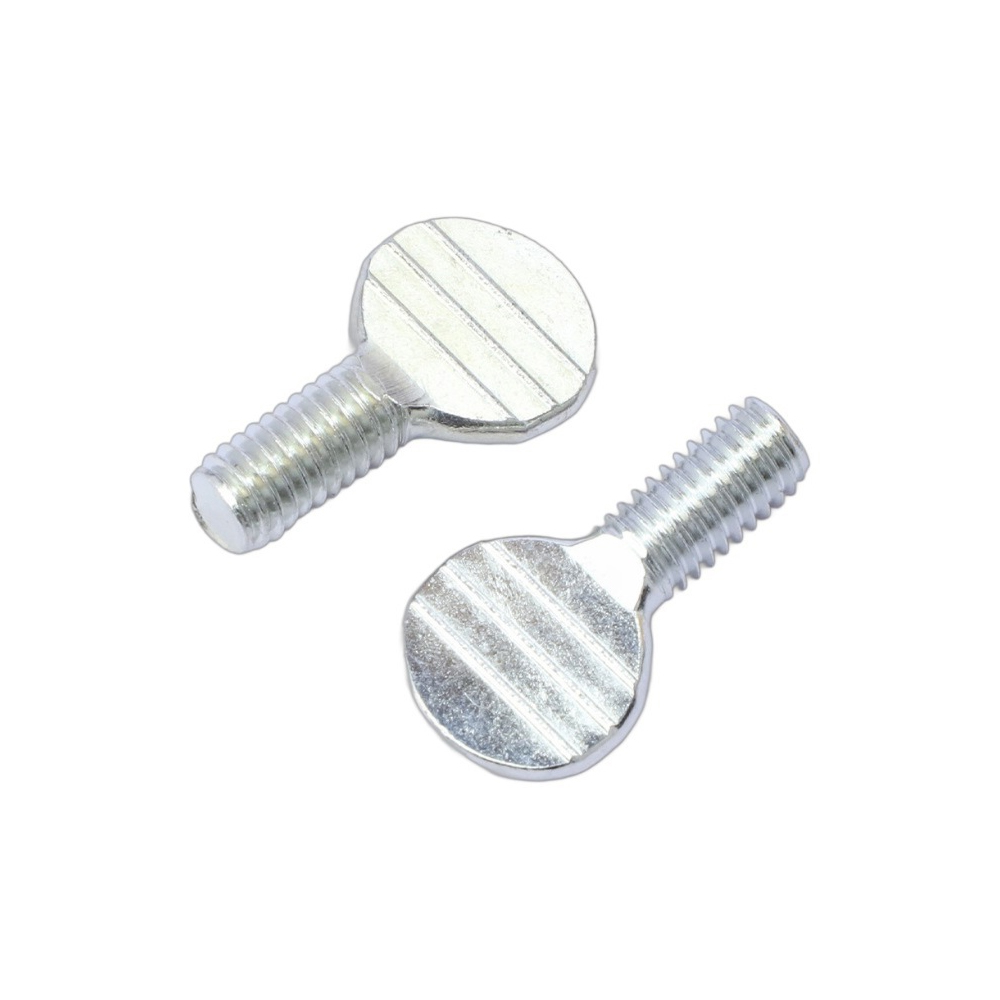

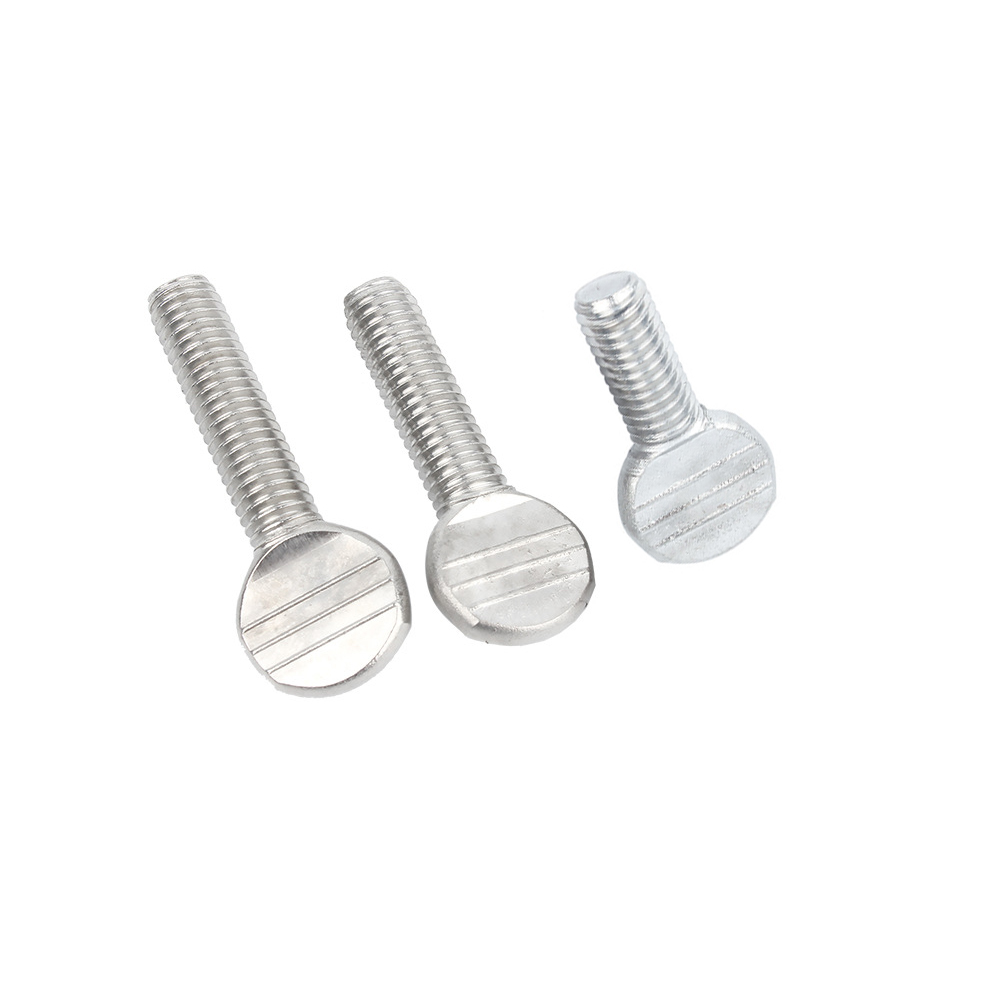

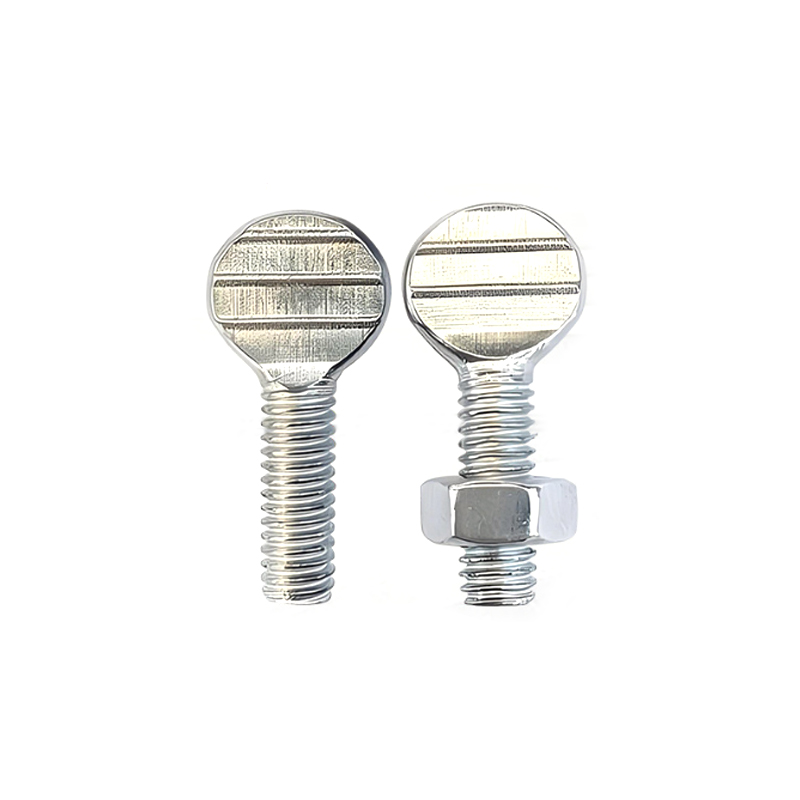

The head is in the shape of a flat shovel (similar to a shovel or flat blade), extending on both sides to provide grip, without the need for a wrench/screwdriver, and can be tightened with just fingers. It is used for frequent adjustment or disassembly of connection parts.
Head Type: Flat shovel shaped, symmetrically extending on both sides, providing leverage force for easy manual twisting;
Thread Style: Full thread, divided into Type A (with shoulder) and Type B (without shoulder) according to the presence or absence of shoulder
Shoulder: The Type A shoulder design ensures that the head is level with the mating surface, preventing over twisting and slipping
Length: Type A from the lower edge of the shoulder to the tip; Type B from the junction of the head and shaft to the tip
The main types of Spade Thumb Screw are:standard Type,Shoulder type,
Shoulderless type,Anti loosening type,Offset type,Cylindrical combination type,etc.
Material:Carbon Steel,Stainless Steel,Brass,Aluminium,Plastic,etc.
Surface Treatment:Zinc Plated,Black Oxide,Polished,Passivation,Plain,Anodizing,Nickel Plated,etc.
Thread specifications: metric (M2-M12 common), American (# 4-1/4 "common), full thread design.
Size range: Length 1/4 "-6" (approximately 8mm -150mm), head width increases with thread specifications.
| Thread Size | D(mm) | L(mm) | P(mm) | T(mm) |
| M4 | 9mm | 8/10/12/16/20 | 0.7mm | 2.5mm |
| M5 | 13mm | 10/12/16/20/25 | 0.8mm | 2.87mm |
| M6 | 14mm | 10/12/16/20/25/30/35/40 | 1mm | 2.9mm |
| M8 | 18.5mm | 16/20/25/30/35/40 | 1.25mm | 3.3mm |
| M10 | / | 20/25/30/35/40 | 1.5mm | / |
| Stainless Steel 304 Spade Head Thumb Screws-Inch | |||
| Thread Size | D(mm) | L(mm) | P(mm) |
| 1/4 | / | 10/12/16/20/25 | 1.27mm |
| 5/16 | / | 16/20/25 | 1.58mm |
| White Zinc Plating Spade Head Thumb Screws | ||||
| Thread Size | D(mm) | L(mm) | P(mm) | T(mm) |
| M5 | 13mm | 10/12/16/20 | 0.8mm | 2.87mm |
| M6 | 14mm | 10/12/16/20/25/30/40/50/60/70/80/90/100 | 1mm | 2.9mm |
| M8 | 18.5mm | 50/60/70/80/90/100 | 1.25mm | 3.3mm |
Application:
Industrial equipment: Use shoulder shaped screws to fix the machine tool access door, which can be quickly opened without the need for tools. The shaft shoulder prevents over tightening and damages the threads.
Medical equipment: 316 stainless steel shovel shaped screws are used for adjusting components of the operating table, which are corrosion-resistant and easy to disinfect.
Electronic chassis: Shoulderless shovel shaped screws are used to fix the side panels, which require frequent disassembly and maintenance while also meeting the requirements of conductive grounding.
Food machinery: polished shovel shaped screws+USIT sealing washers, meeting hygiene standards and preventing dust accumulation.
M6 or Customized Spade Head Thumb Screw Butterfly Wing Nut Advantages & Features
Tool free operation: Thumbs and fingers can quickly loosen and tighten, improving efficiency.
Frequent adjustment: Suitable for parts that require repeated disassembly/adjustment.
Anti over twist protection: Shoulder design prevents thread slippage and protects the mating surface.
Space adaptation: The offset/flat head design is suitable for narrow spaces.
Diversified selection: Material/structure coverage ranges from general to specific requirements.
