Special Drywall Anchors
PDM
| Quantity: | |
|---|---|
Features of Plastic Wall Anchors
Wall Anchors Self Drilling Drywall Title:
High Loading plastic anchor wall plug PA & POM & Nylon wall anchor china
Dry Wall Anchors:
Special "refers to the optimization of special engineering plastic materials, combining" PA "(polyamide, nylon) and" POM "(polyoxymethylene) to enhance wear resistance and chemical corrosion resistance, suitable for both home and commercial environments;

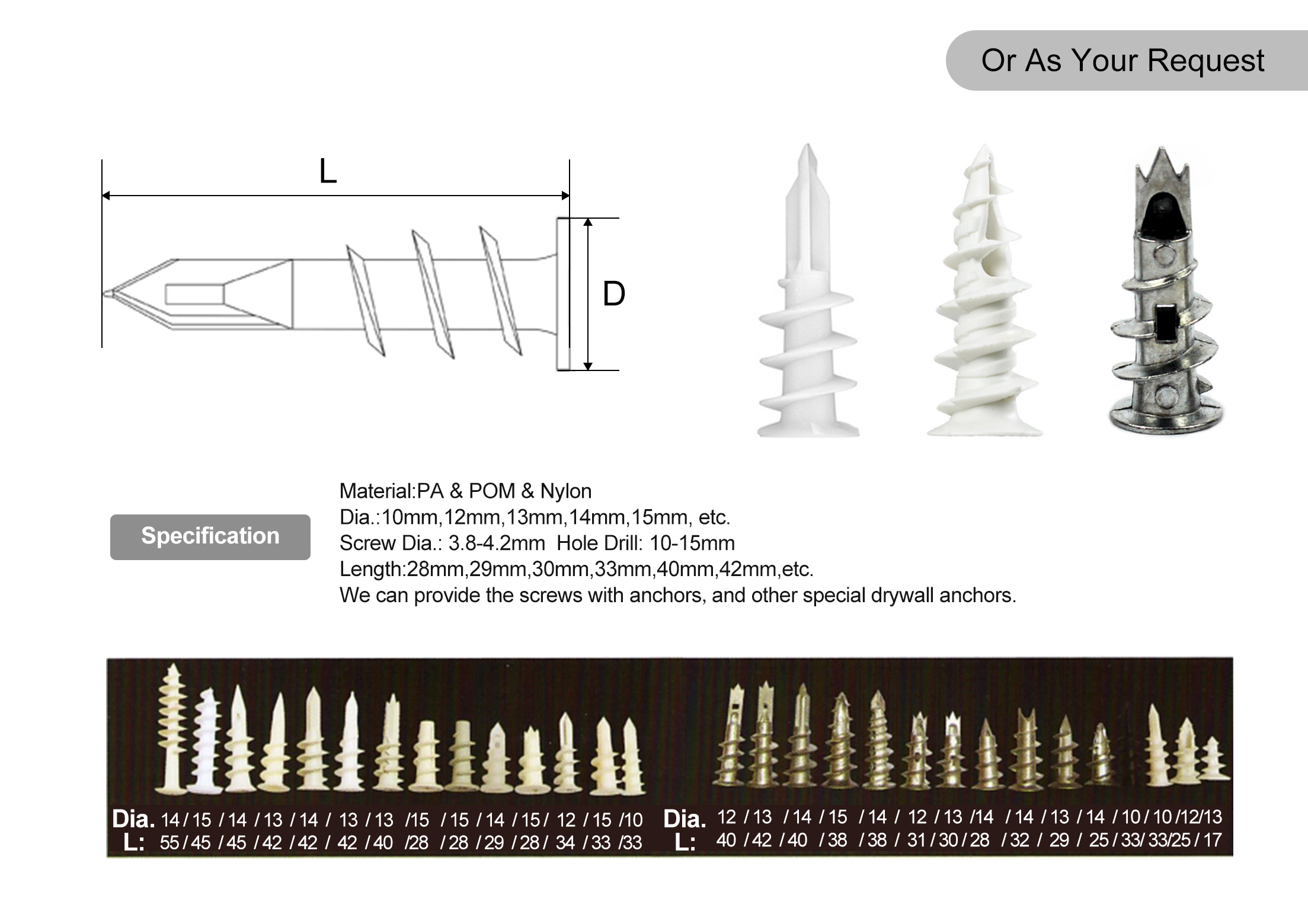

Material:PA & POM & Nylon& Zinc Alloy,etc.
Dia.:10mm,12mm,13mm,14mm,15mm, etc.
Screw Dia.: 3.8-4.2mm Hole Drill: 10-15mm
Length:28mm,29mm,30mm,33mm,40mm,42mm,etc.
We can provide the screws with anchors,and other special drywall anchors.
Materials and Design
PA POM composite material ensures high strength and low friction coefficient, reducing installation resistance;
The surface of Zinc Alloy Wall anchors is often treated with a coating (such as zinc plating) to enhance their rust prevention ability, making them suitable for dry indoor environments and avoiding use in humid areas (such as bathrooms).
| Modle | Dia.(mm) | Length(mm) | Drill Dia. | Hole Drill | Screw Dia. | Material |
| PDM5091 | 14 | 55 | 6 | -- | -- | PA |
| PDM5091 | 15 | 45 | 6 | 10-15 | 3.8-4.2 | PA |
| PDM5091 | 14 | 45 | 6 | 10-15 | 3.8-4.2 | PA |
| PDM5091 | 13 | 42 | 6 | 10-15 | 3.8-4.2 | PA/POM |
| PDM5091 | 13 | 40 | 6 | 10-15 | 3.8-4.2 | PA |
| PDM5091 | 15 | 28 | 6 | 10-15 | 3.8-4.2 | PA |
| PDM5091 | 14 | 29 | 6 | 10-15 | 3.8-4.2 | PA |
| PDM5091 | 12 | 34 | 6 | 10-15 | 3-3.5 | PA |
| PDM5091 | 15 | 33 | 6 | 10-15 | 3.5-4 | PA |
| PDM5091 | 10 | 33 | 6 | 10-15 | 3-3.5 | PA/POM |
| PDM5091 | 12 | 40 | Zemark Material Anchor can Drill into Drywall without Holes. | 3.8-4 | Zinc | |
| PDM5091 | 13 | 42 | 3.8-4 | Zinc | ||
| PDM5091 | 14 | 40 | 3.8-4 | Zinc | ||
| PDM5091 | 15 | 38 | 3.8-4 | Zinc | ||
| PDM5091 | 14 | 38 | 3.8-4 | Zinc | ||
| PDM5091 | 12 | 31 | 3.5-4 | Zinc | ||
| PDM5091 | 13 | 30 | 3.5-4 | Zinc | ||
| PDM5091 | 14 | 28 | 3.8-4.2 | Zinc | ||
| PDM5091 | 14 | 32 | 3.8-4.2 | Zinc | ||
| PDM5091 | 13 | 29 | 3.5-4 | Zinc | ||
| PDM5091 | 14 | 25 | 3.5-4 | Zinc | ||
| PDM5091 | 10 | 33 | 6 | 10-15 | 3-3.5 | PA/POM |
| PDM5091 | 12 | 25 | 6 | 10-15 | 3-3.5 | PA |
| PDM5091 | 13 | 17 | 6 | -- | -- | PA |
Core functions and applications
Suitable for fixing lightweight items such as curtain rods, small storage racks, or electrical devices; Multiple anchor bolts can improve stability when subjected to dispersed forces.
During installation, it is necessary to avoid internal wires or pipelines, and prioritize the use of wall studs to enhance support; If the wall is hard, small holes can be pre drilled to guide it, but excessive screwing should be avoided to prevent breakage.
Precautions
Only for use with hollow gypsum board, prohibited for use on brick walls or concrete (expansion bolts must be used instead); The screw must match the inner diameter of the anchor bolt (such as No.6), as being too thick or too thin can cause loosening or cracking.
Regularly check if the load exceeds the limit, and recommend using stainless steel alternatives in humid environments to extend its lifespan.
