Square U Bolts
PDM
| Quantity: | |
|---|---|
Features of Square U Bolt
U Square Bolt Title:
High strength square u bolt zinc custom thread size & bolt length square u bolt for truck
Core structural features:
Square section: The U-shaped curved section is made of square steel to reduce stress concentration and improve compressive strength;

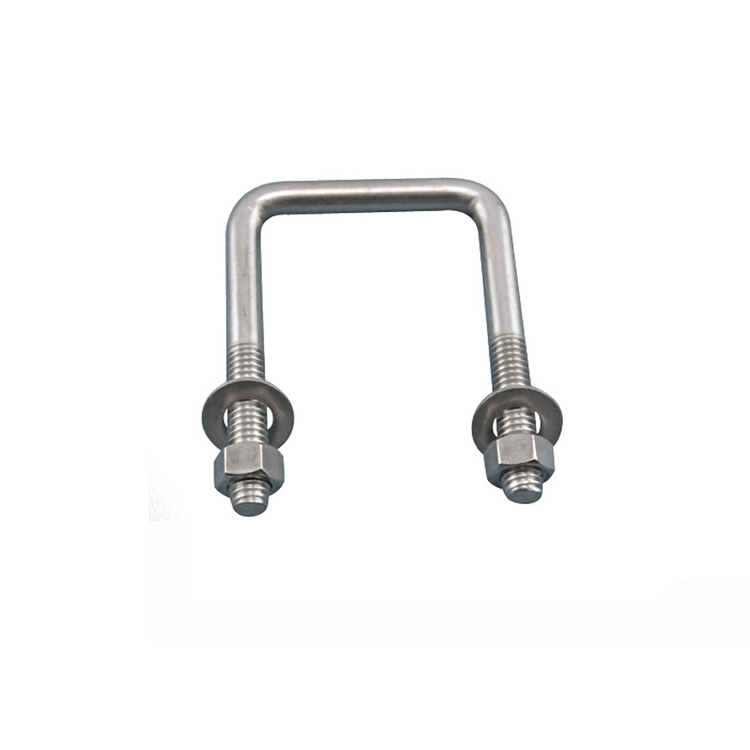

Threaded end: Both ends have standard threads (such as metric/imperial), suitable for hexagonal nut locking;
Material selection: Common stainless steel 304/316 (corrosion-resistant) or carbon steel (high-strength);

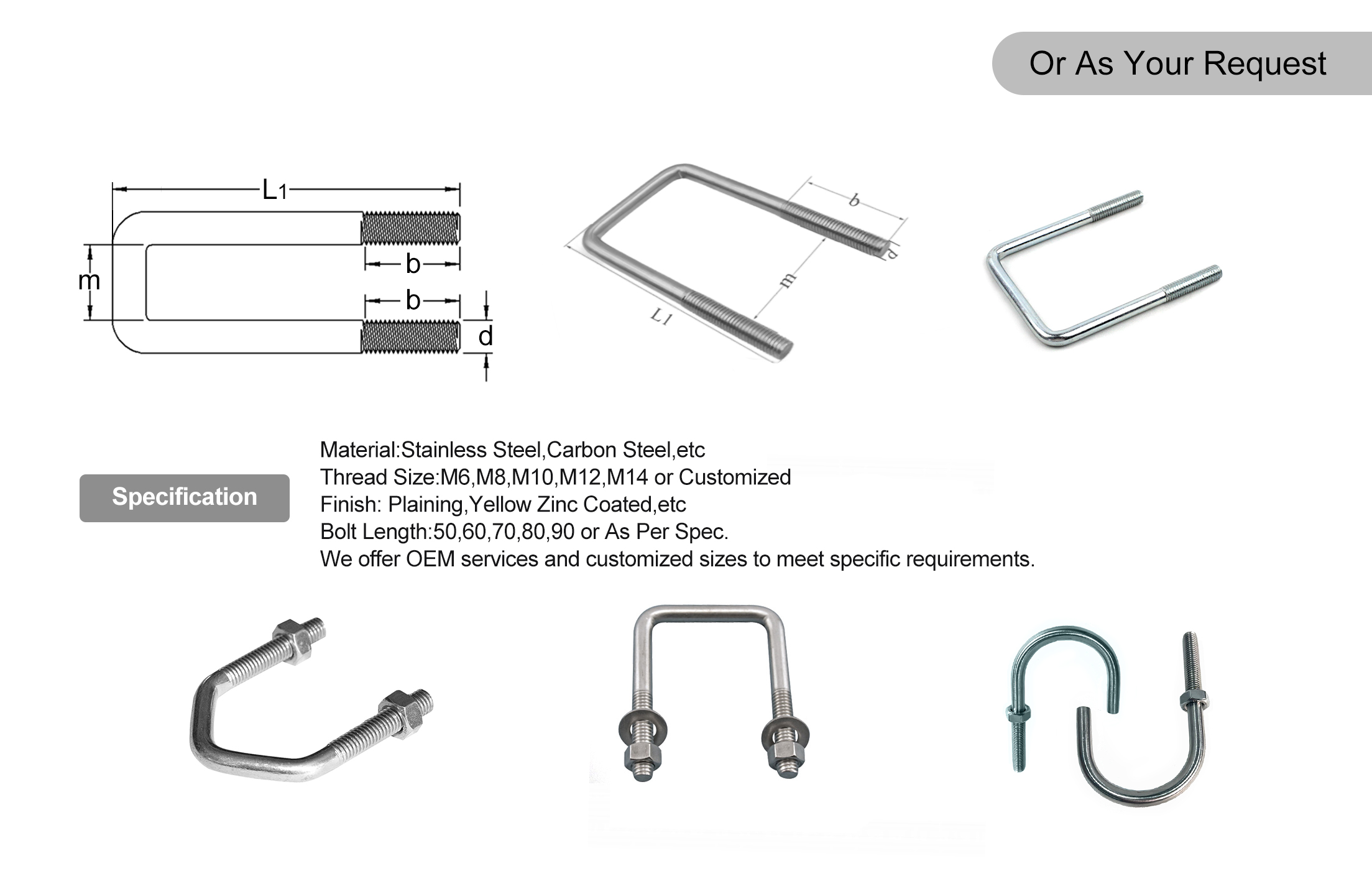

| Size | d | m | Width | b | L1 |
| M6*25*50 | 6 | 25 | 33 | 25 | 50 |
| M6*30*50 | 6 | 30 | 38 | 25 | 50 |
| M6*35*70 | 6 | 35 | 43 | 30 | 70 |
| M6*35*90 | 6 | 35 | 43 | 40 | 90 |
| M6*40*80 | 6 | 40 | 48 | 40 | 80 |
| M6*42*65 | 6 | 42 | 50 | 30 | 65 |
| M6*45*75 | 6 | 45 | 53 | 35 | 75 |
| M6*50*80 | 6 | 50 | 58 | 40 | 80 |
| M6*65*80 | 6 | 65 | 73 | 40 | 80 |
| M8*25*50 | 8 | 25 | 35 | 30 | 50 |
| M8*25*75 | 8 | 25 | 35 | 35 | 75 |
| M8*30*60 | 8 | 30 | 40 | 30 | 60 |
| M8*30*75 | 8 | 30 | 40 | 35 | 75 |
| M8*35*85 | 8 | 35 | 45 | 40 | 85 |
| M8*35*100 | 8 | 35 | 45 | 50 | 100 |
| M8*40*65 | 8 | 40 | 50 | 35 | 65 |
| M8*40*80 | 8 | 40 | 50 | 40 | 80 |
| M8*40*100 | 8 | 40 | 50 | 50 | 100 |
| M8*40*120 | 8 | 40 | 50 | 50 | 120 |
| M8*45*110 | 8 | 45 | 55 | 50 | 110 |
| M8*50*80 | 8 | 50 | 60 | 40 | 80 |
| M8*50*100 | 8 | 50 | 60 | 50 | 100 |
| M8*50*120 | 8 | 50 | 60 | 50 | 120 |
| M8*55*80 | 8 | 55 | 65 | 40 | 80 |
| M8*60*80 | 8 | 60 | 70 | 40 | 80 |
| M8*60*90 | 8 | 60 | 70 | 50 | 90 |
| M8*60*160 | 8 | 60 | 70 | 50 | 160 |
| M8*65*65 | 8 | 65 | 75 | 35 | 65 |
| M8*70*100 | 8 | 70 | 80 | 50 | 100 |
| M8*70*180 | 8 | 70 | 80 | 50 | 180 |
| M8*75*110 | 8 | 75 | 85 | 50 | 110 |
| M8*95*118 | 8 | 95 | 105 | 50 | 118 |
| M8*100*100 | 8 | 100 | 110 | 50 | 100 |
| M8*100*140 | 8 | 100 | 110 | 50 | 140 |
| M8*150*185 | 8 | 150 | 160 | 50 | 185 |
| M10*50*120 | 10 | 50 | 62 | 50 | 120 |
| M10*50*150 | 10 | 50 | 62 | 50 | 150 |
| M10*60*100 | 10 | 60 | 72 | 30 | 100 |
| M10*70*250 | 10 | 70 | 82 | 50 | 250 |
| M10*75*120 | 10 | 75 | 87 | 50 | 120 |
| M10*85*100 | 10 | 85 | 97 | 45 | 100 |
| M10*85*125 | 10 | 85 | 97 | 50 | 125 |
| M10*90*70 | 10 | 90 | 102 | 40 | 70 |
| M10*95*100 | 10 | 95 | 107 | 50 | 100 |
| M10*100*140 | 10 | 100 | 112 | 50 | 140 |
| M10*100*190 | 10 | 100 | 112 | 50 | 190 |
| M10*110*135 | 10 | 110 | 122 | 50 | 135 |
| M10*120*90 | 10 | 120 | 132 | 50 | 90 |
| M10*120*160 | 10 | 120 | 132 | 50 | 160 |
| M10*120*190 | 10 | 120 | 132 | 50 | 190 |
| M10*140*180 | 10 | 140 | 152 | 50 | 180 |
| M10*150*200 | 10 | 150 | 162 | 100 | 200 |
| M10*160*210 | 10 | 160 | 172 | 100 | 210 |
| M12*60*115 | 12 | 60 | 74 | 50 | 115 |
| M12*70*190 | 12 | 70 | 84 | 50 | 190 |
| M12*90*130 | 12 | 90 | 104 | 50 | 130 |
| M12*100*150 | 12 | 100 | 114 | 50 | 150 |
Application:
Heavy duty equipment: fixed heavy-duty pipelines, mechanical components, and automotive leaf springs;
Special environment: anti-corrosion demand scenarios in chemical/marine equipment;
In the field of construction: embedded parts for cantilever scaffolding and steel structure connections;
Notes: Customization options
Size specifications: Supports non-standard customization (bending radius, leg length, thread specifications);
Surface treatment: hot-dip galvanizing, Dacromet or passivation treatment, suitable for different corrosive environments;
Certification standards: comply with industrial fastener certification systems such as ISO/DIN/ANSI;
