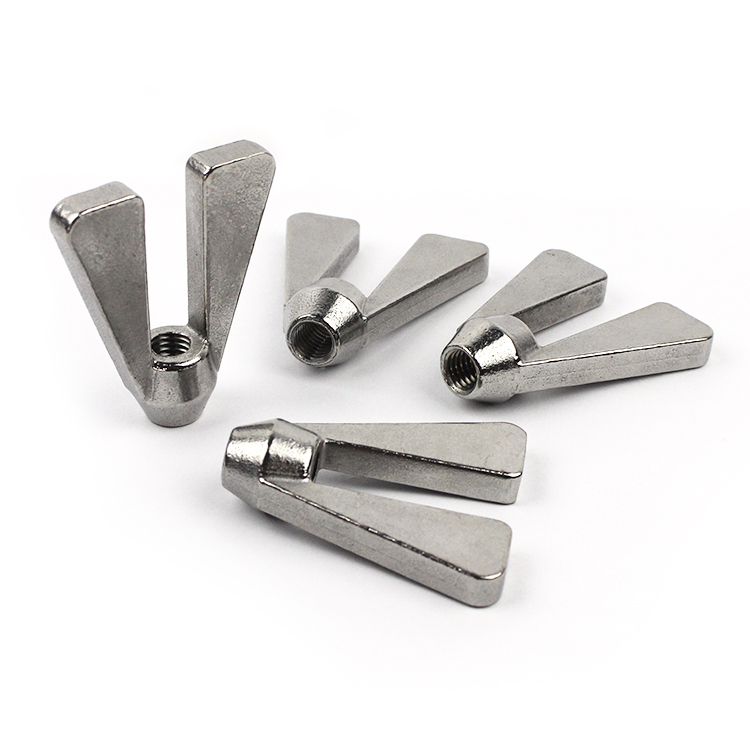

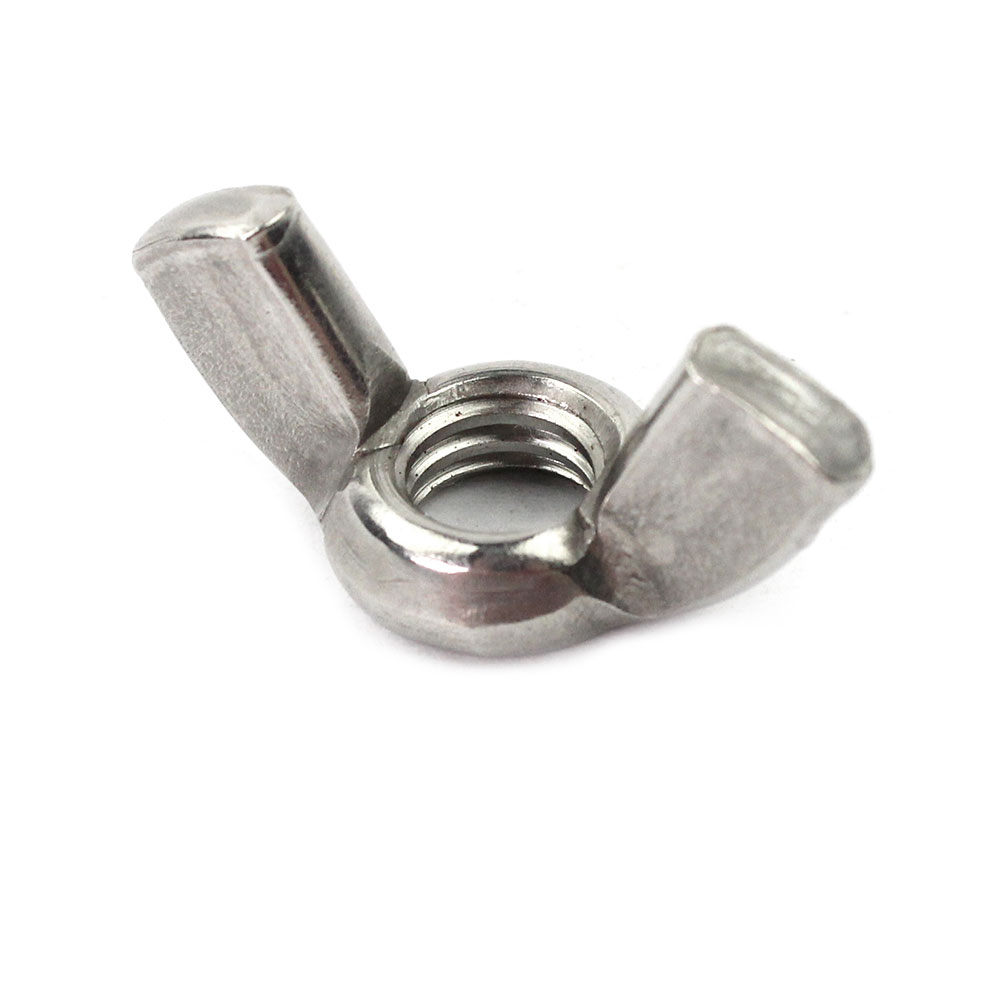

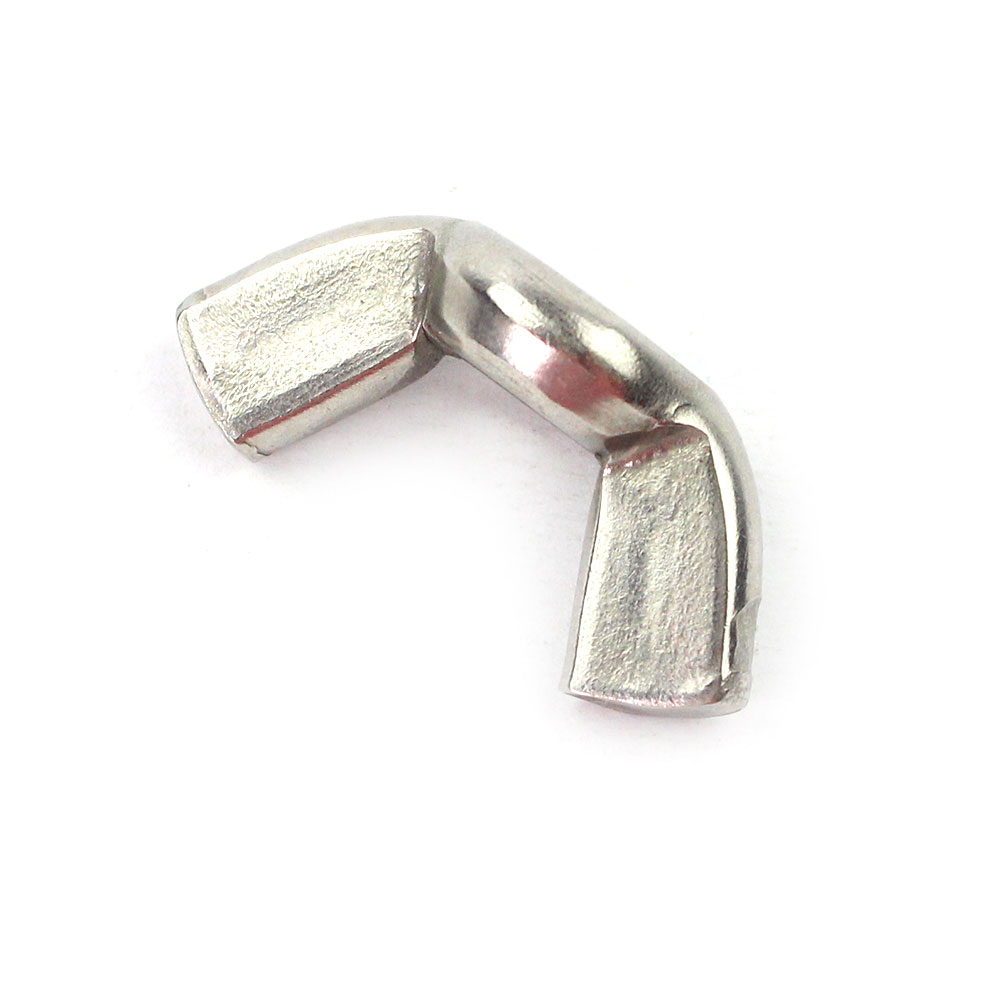

Stainless Steel Wing Nuts
PDM
| Material: | |
|---|---|
| Quantity: | |
Features of Butterfly Wing Nuts
Butterfly Bolt Nut Title:
High Strength M4 M8 M12 Stainless Steel Wing Nuts butterfly nuts and bolt plaining butterfly nut for rod
Wing nut stainless Introduction:
Material specifications and classification:
A4 stainless steel (corresponding to SUS316, marine grade): It has superior corrosion resistance, especially able to resist the erosion of strong corrosive media such as seawater and acid-base solutions, and is suitable for harsh corrosive environments such as marine engineering, chemical engineering, and pharmaceuticals;
Other materials: Some scenes will use AISI 303 stainless steel, which has good machining performance and is suitable for customized products with high precision requirements;
Thread specifications: The mainstream is metric M3-M10 or as per your requirements
Total length (L): 22mm-32mm or as per your requirements;
Height (H): 10mm, 12mm, 14mm or as per your requirements
Surface treatment: Most of them use the natural color of stainless steel and are divided into two types of finishes: matte sandblasting (MT) and polishing (PL); The natural color can meet the corrosion resistance requirements;
| Thread Size | D(mm) | W(mm) | H(mm) | T(mm) |
| M3 | 8mm | 22mm | 10mm | 4mm |
| M4 | 9.6mm | 22mm | 10mm | 4mm |
| M5 | 10mm | 22mm | 10mm | 4mm |
| M6 | 10.5mm | 23mm | 12mm | 4mm |
| M8 | 12mm | 26mm | 12mm | 4.5mm |
| M10 x 1.0 (Fine Thread) | 14.5mm | 32mm | 14mm | 5.6mm |
| M10 x 1.5 (Coarse Thread) | 14.5mm | 32mm | 14mm | 5.6mm |
Standard:
International standards: DIN 315, ASME B 18.6.9 (American standards);
National standards: GB/T 62.1-2004 (Round Wing Butterfly Nut), GB/T 62.2-2004 (Square Wing Butterfly Nut), GB/T 62.3-2004 (Stamped Butterfly Nut);
Feature:
Corrosion resistance, oxidation resistance, high strength, reliable fastening, controllable precision, suitable for automated assembly, complete specifications, etc;
Production Process:
The five major stages of raw material processing, forming, thread processing, surface treatment, and inspection before leaving the factory;
Cold heading process, casting process, stamping process, etc
Application:
Stainless Steel Wing Nuts are widely used in various fields such as industrial, civilian, and high-end engineering, covering both conventional fastening and special scenario requirements;
Architecture and Outdoor Field: Building Curtain Walls, Outdoor Fences, Sunshade Facilities;
High end and special fields: medical equipment, food machinery, aerospace auxiliary equipment, rail transit equipment, etc;
Industrial field: chemical equipment, marine engineering, mechanical equipment, electrical equipment, communication equipment, etc;
Notes:
Material selection: For indoor common scenes (such as furniture and household appliances), choose 304 stainless steel material, which has high cost-effectiveness and meets the basic anti-corrosion requirements;
Specification selection: Select butterfly nuts with corresponding thread sizes based on the specifications of the matched bolts and screws (such as M6 bolts paired with M6 butterfly nuts); Select the corresponding size of product based on the tightening force requirements (M8 and above specifications for heavy-duty scenarios, M3-M5 specifications for light-duty scenarios);
