Wing Screws Stainless Steel
PDM
| Material: | |
|---|---|
| Quantity: | |
Features of Butterfly Wing Screws
Wing Nut Thumb Screw Title:
China Suppliers M4 M5 M8 Wing Screws and Nuts Plaining butterfly screw stainless precision casting for wood
Wing screw stainless Introduction:

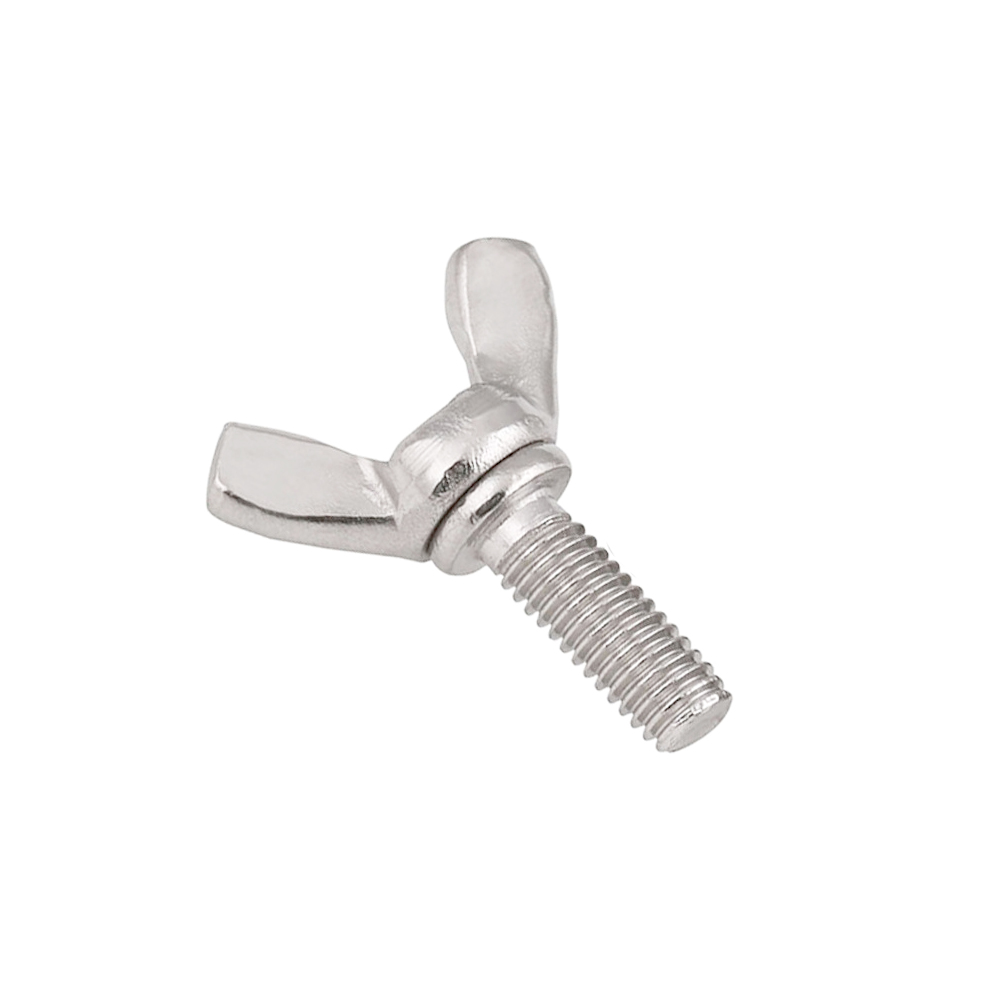

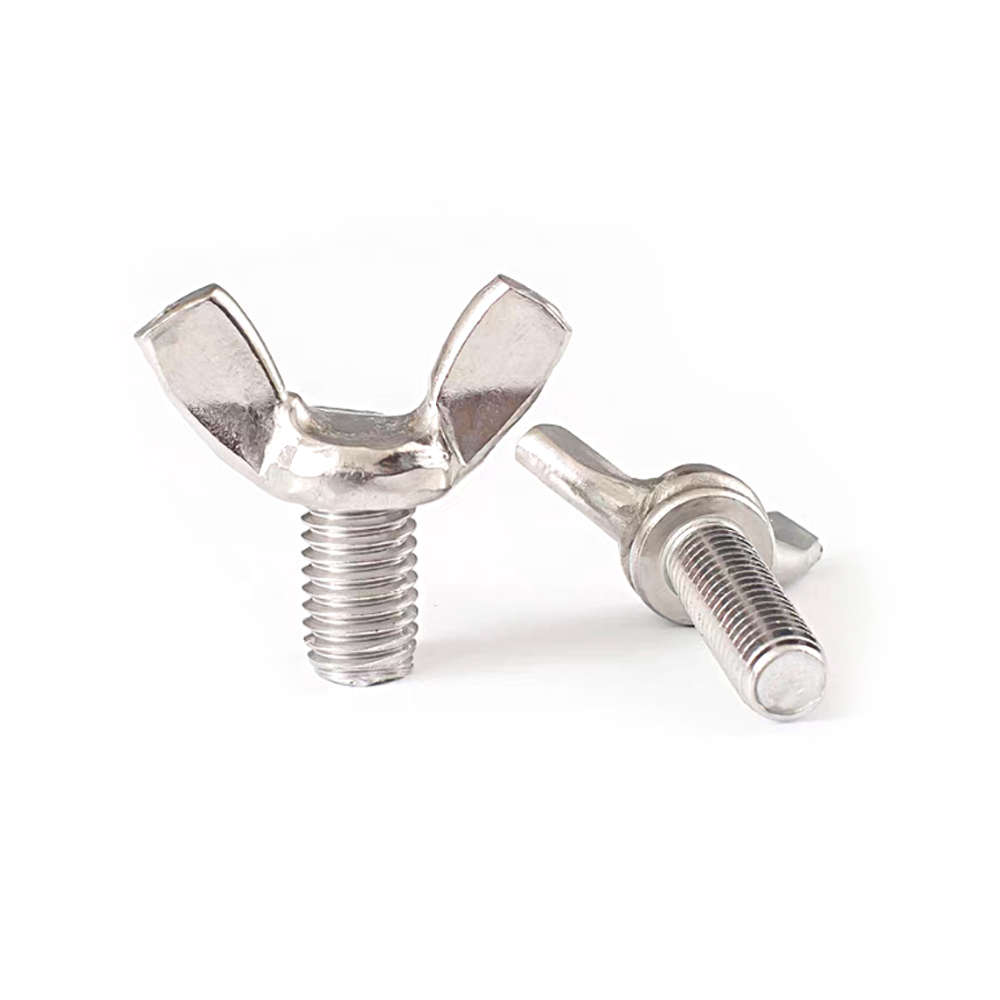

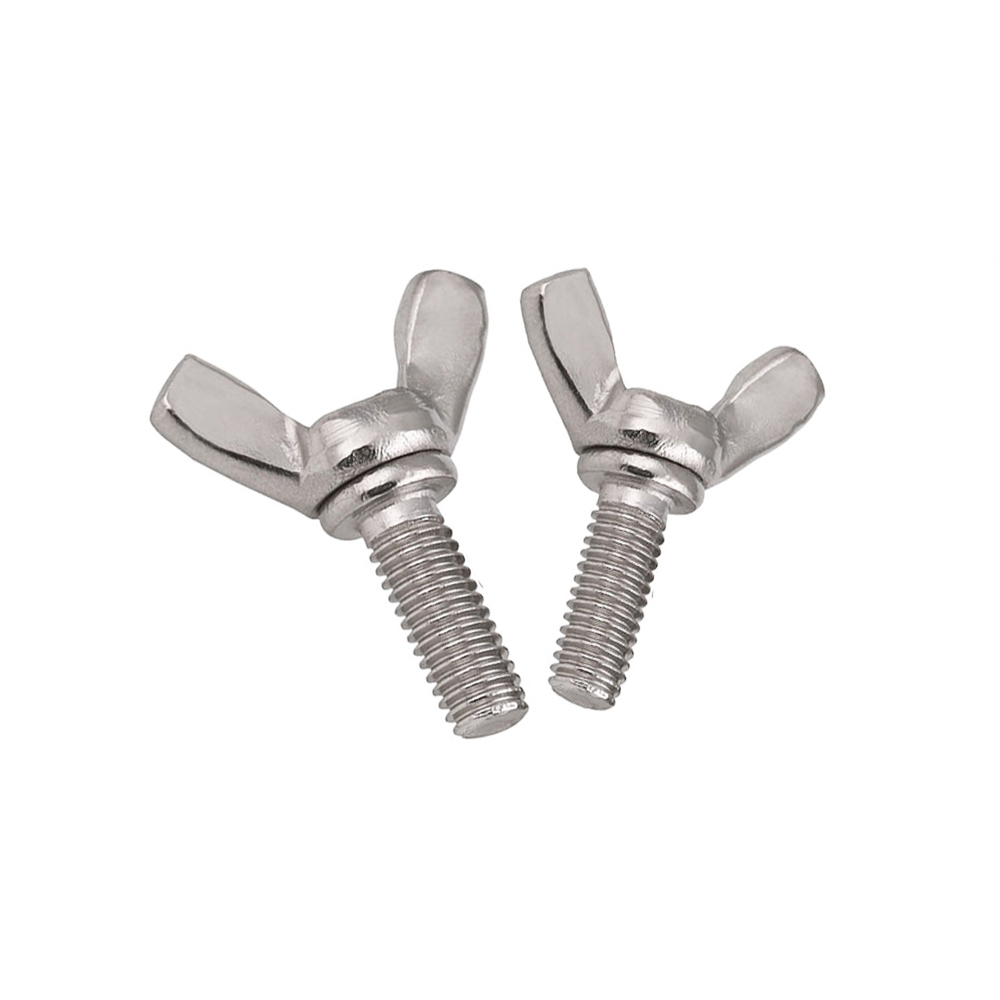

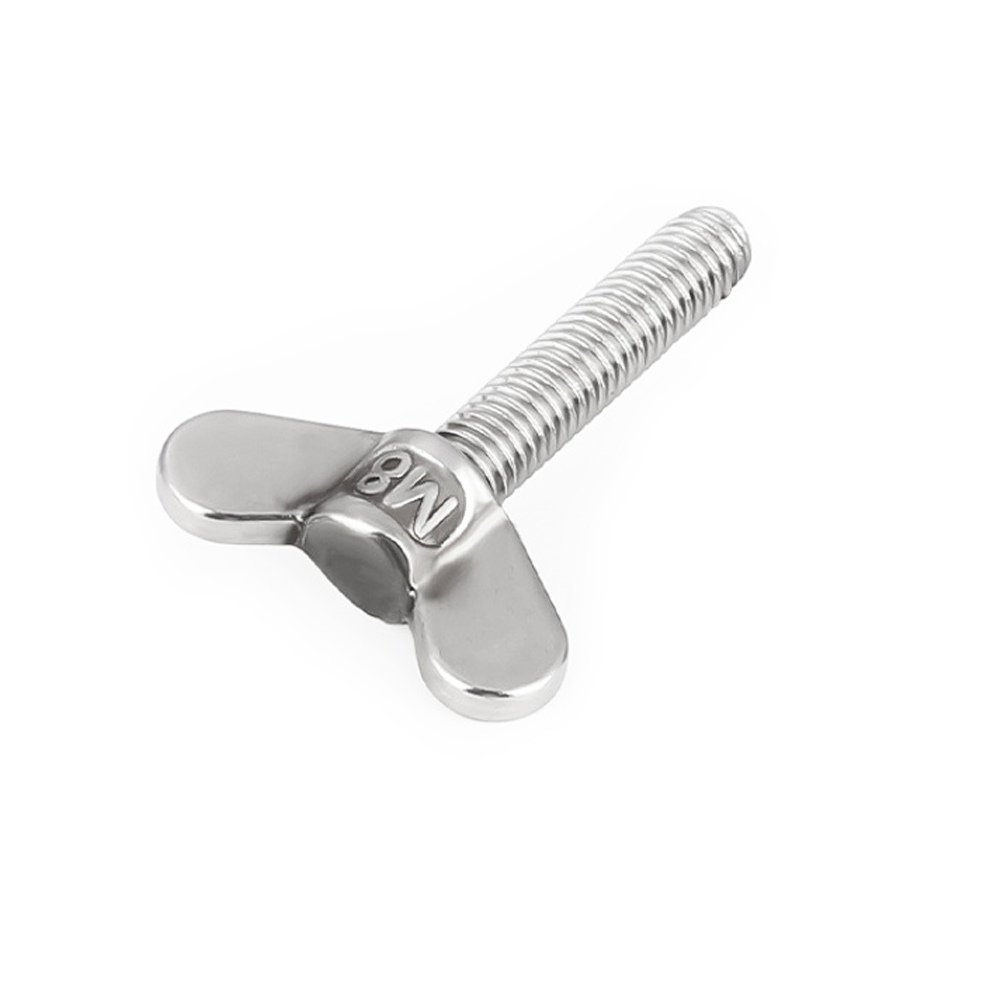

The wing head thumb screw is made of stainless steel material, with a wing shaped design for the head. It can be manually tightened and loosened with the thumb and fingers without the need for tools. It is a threaded fastener that combines convenience and weather resistance, and is widely used in various connection scenarios that require frequent adjustment or convenient disassembly.
Wing Head: The core identifier refers to the screw head with two flat, symmetrical "wing shaped" extensions resembling butterfly wings (also known as butterfly heads).
Thumb Screw: Emphasizing the operation method, this screw is specifically designed for manual tightening, adapting to the force range of the thumb and fingers. It is easy and effortless to operate, even in small spaces where tools cannotbe inserted. Essentially, it is an exclusive classification for manually operated fasteners.
Stainless Steel: The designated core material of the product is different from wing shaped screws made of carbon steel, brass, and other materials. It focuses on the advantages of corrosion resistance, rust prevention, and high strength, and is suitable for wet, outdoor, chemical, and other scenarios that require weather resistance of the material, extending the product's service life.
Material: 201 stainless steel, 304 stainless steel, 316 stainless steel,etc.
Thread Size: Metric (M3-M12), Imperial,etc.
Thread Length: 6mm-150mm or customizable longer/shorter rod length,etc.
Head Style: Fixed wing shape (rounded corners/square edges), Foldable wing shape (customizable with perforated and slotted heads)
Surface Treatment: Stainless steel natural color, galvanized, nickel plated,etc.
| Stainless Steel 304 Wing Nuts | ||||
| Size | W(mm) | L(mm) | H(mm) | T(mm) |
| M3 | 19mm | 6/8/10/12/16/20/25/30/35/40/45/50/60/70/80/90/100 | 10mm | 3mm |
| M4 | 20mm | 6/8/10/12/14/16/20/25/30/35/40/45/50/55/60/65/70/75/80/85/90/95/100 | 10.5mm | 3mm |
| M5 | 22mm | 8/10/12/16/20/25/30/35/40/45/50/55/60/65/70/75/80/85/90/95/100 | 13mm | 3mm |
| M6 | 26mm | 8/10/12/16/20/25/30/35/40/45/50/55/60/65/70/75/80/85/90/95/100/105 /110/120/150 | 14mm | 3.5mm |
| M8 | 36mm | 10/12/16/20/25/30/35/40/45/50/55/60/65/70/75/80/85/90/95/100 /110/120/150 | 16mm | 4mm |
| M10 | 36mm | 12/16/20/25/30/35/40/45/50/55/60/65/70/75/80/85/90/95/100 /110/120/150 | 20mm | 4.5mm |
| M12 | 45mm | 20/25/30/35/40/45/50/55/60/65/70/75/80/85/90/95/100 /110/120/150 | 23mm | 5mm |
| Stainless Steel 201 Wing Nuts | ||||
| Size | W(mm) | L(mm) | H(mm) | T(mm) |
| M4 | 20mm | 8/10/12/16/20/25/30/35/40/45/50 | 10.5mm | 3mm |
| M5 | 22mm | 8/10/12/16/20/25/30/35/40/45/50 | 13mm | 3mm |
| M6 | 26mm | 8/10/12/14/16/20/25/30/35/40/45/50 | 14mm | 3.5mm |
| M8 | 30mm | 10/12/16/20/25/30/35/40/45/50 | 16mm | 4mm |
| M10 | 36mm | 16/20/25/30/35 | 20mm | 4.5mm |
The core material of the product is stainless steel, with mainstream specifications using 304 and 316 stainless steel (some basic models use 201 stainless steel). The material characteristics directly determine the applicable scenarios and service life of the product. Compared with carbon steel, brass and other materials, it has the following core advantages: super strong corrosion resistance, rust prevention/high strength, and not easily deformed;
Applications:
In the field of industrial manufacturing: panel fixation, bracket connection, etc. for mechanical equipment and instruments;
In the field of electronic appliances: fixing cover plates for distribution boxes, control cabinets, audio systems, routers, etc;
Special scenario areas: fastening components for food processing equipment, medical devices, etc;
Notes:
Core features: Complete thread specifications, covering various metric and imperial sizes, can be used in conjunction with various stainless steel nuts and prefabricated threaded holes;
The wing shaped head design does not require any tools and can be tightened or loosened with just the thumb and index finger. It has a fast operating speed and is suitable for frequent disassembly and quick adjustment scenarios;
Made of stainless steel material and precision thread technology, the product has a long service life and can be disassembled and reused repeatedly;
