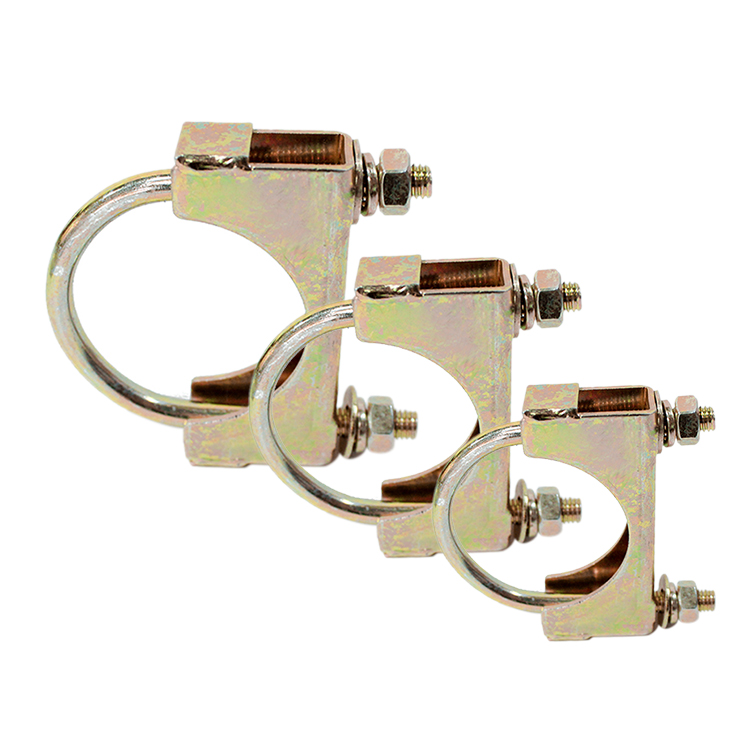

Standard & Special U Bolt Clamp
PDM-Racing
| Quantity: | |
|---|---|

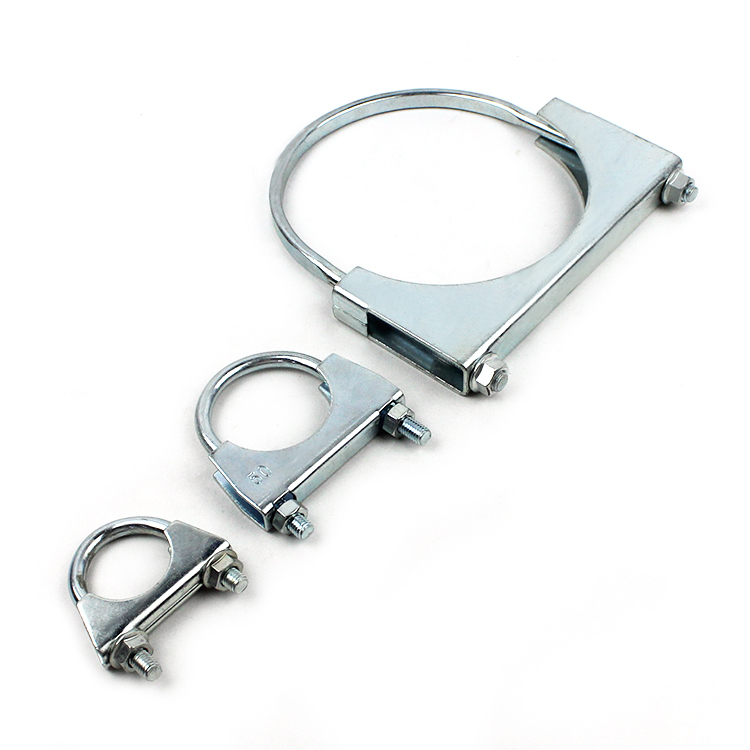

Features of Standard & Special U Bolt Clamp
U Bolt Clamp Title:
Carbon Steel exhaust u bolt clamp Grade 8.8 U-bolt Clamp
U Bolt Pipe Clamp Introduction:
U bolt type clamp is a fastening component consisting of a U-bolt and a matching nut, which is connected to a clamp plate through threads at both ends to form a circular fixing structure. It is used to clamp pipes, plates, or shaft components.

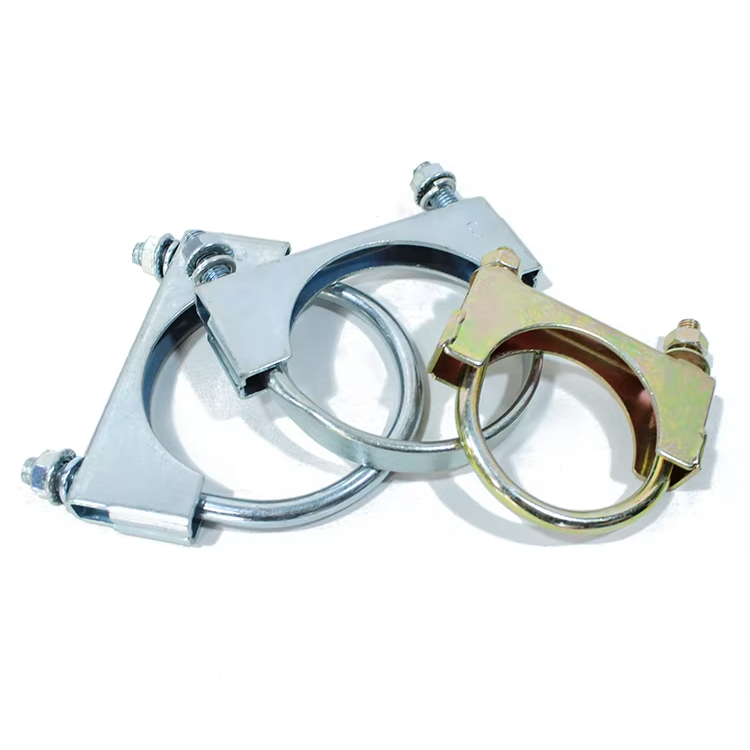

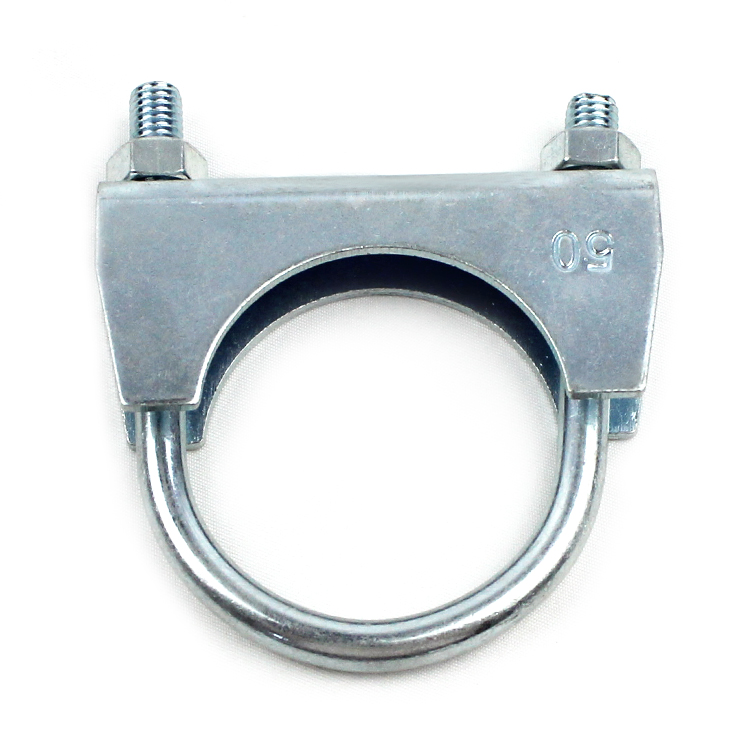

U bolt round clamps Structure:
U-bolt: The main body is U-shaped, with threads on both ends, and the material is mostly carbon steel (black oxide) or stainless steel
Saddle/Nuts: With bolts to fix the target object, some models integrate anti loosening design;
Size:25mm,28mm,30mm,or Customized

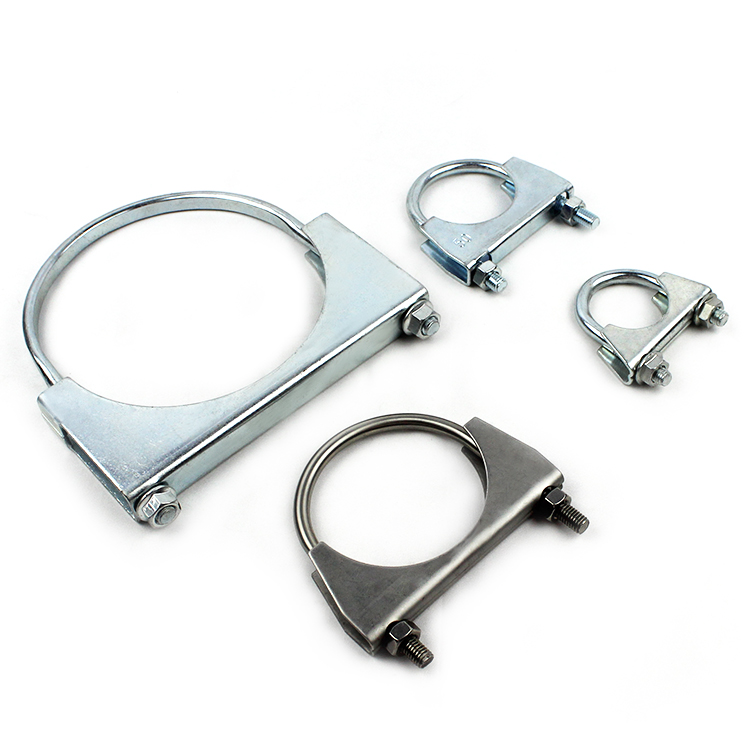

U bolt saddle clamp is divided into Standard U Bolt Clamp and Special U Bolt Clamp
Material and process requirements
Carbon steel: Q235B;
Stainless steel: SUS 304/316L (corrosive environment);
Titanium alloy: aviation hydraulic pipelines.
Manufacturing process
Cold heading forming, heat treatment;
The Function of Exhaust u bolt clamp:
Stable clamping ability of fixtures: fixing pipelines, cables, or mechanical components through bolt pressure;
The spring-loaded design can absorb vibrations and reduce the looseness or wear of mechanical connectors caused by high-frequency vibrations;
| Standard U Bolt Clamp |
 |
| Size(mm) | Standard U Bolt Clamp | Heavy Duty U Bolt Clamp |
| M8 or 5/16" U Bolt-2mm Saddle | M10 or 3/8" U Bolt-2.5mm Saddle | |
| 25 | SUC025 | HUC025 |
| 28 | SUC028 | HUC028 |
| 30 | SUC030 | HUC030 |
| 32 | SUC032 | HUC032 |
| 35 | SUC035 | HUC035 |
| 38 | SUC038 | HUC038 |
| 40 | SUC040 | HUC040 |
| 42 | SUC042 | HUC042 |
| 45 | SUC045 | HUC045 |
| 48 | SUC048 | HUC048 |
| 50 | SUC050 | HUC050 |
| 52 | SUC052 | HUC052 |
| 54 | SUC054 | HUC054 |
| 56 | SUC056 | HUC056 |
| 58 | SUC058 | HUC058 |
| 60 | SUC060 | HUC060 |
| 62 | SUC062 | HUC062 |
| 65 | SUC065 | HUC065 |
| 68 | SUC068 | HUC068 |
| 70 | SUC070 | HUC070 |
| 72 | SUC072 | HUC072 |
| 75 | SUC075 | HUC075 |
| 78 | SUC078 | HUC078 |
| 80 | SUC080 | HUC080 |
| 85 | SUC085 | HUC085 |
| 90 | SUC090 | HUC090 |
| 93 | SUC093 | HUC093 |
| 95 | SUC095 | HUC095 |
| 100 | SUC0100 | HUC0100 |
| 105 | SUC0105 | HUC0105 |
| Special U Bolt Clamp |
|

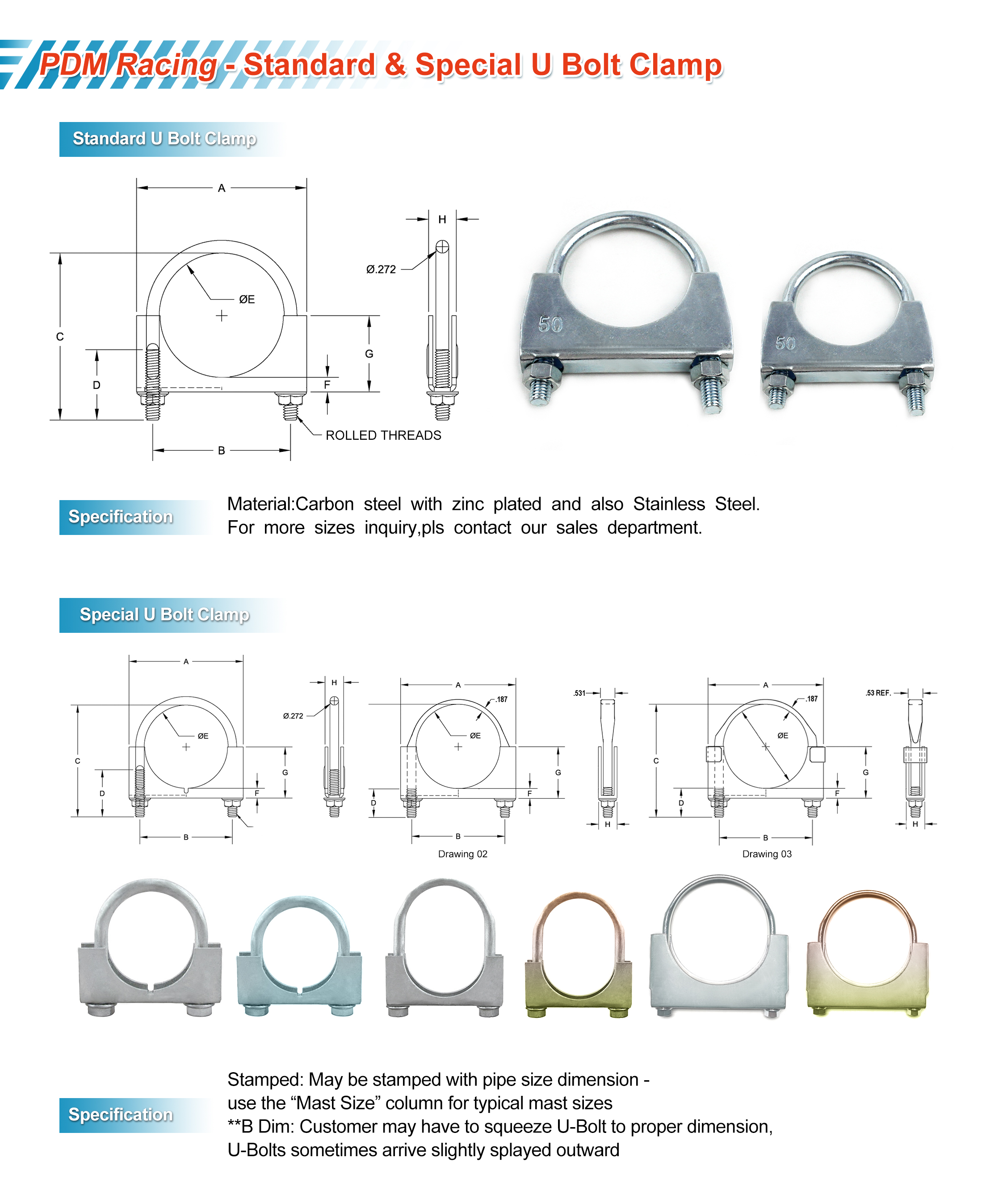

| Drawing01:5/16inch U Bolt Clamp Sizes 1.25inch through 2.125inch | ||||||||||
| Mast Size | Stamped* | A | B** | C | D | φE | F | G | H | Gauge |
| 1.25" | 1-1/8" | 2.44 | 1.75 | 2.12 | 1.00 | 1.48 | 0.26 | 0.99 | 0.56 | 13 |
| 1.50" | 1-3/8" | 2.69 | 1.94 | 2.47 | 1.00 | 1.67 | 0.34 | 1.16 | 0.59 | 13 |
| 1.75" | 1-5/8" | 2.88 | 2.19 | 2.87 | 1.00 | 1.92 | 0.31 | 1.25 | 0.59 | 13 |
| 2.00" | 1-7/8" | 3.13 | 2.44 | 3.06 | 1.00 | 2.17 | 0.27 | 1.36 | 0.59 | 13 |
| 2.125" | 2" | 3.38 | 2.56 | 3.12 | 1.00 | 2.23 | 0.38 | 1.51 | 0.59 | 13 |
| Drawing02: 3/8inch U Bolt Clamp Sizes 2inch through 2.5inch | ||||||||||
| Mast Size | Stamped* | A | B** | C | D | φE | F | G | H | Gauge |
| 2.00" | 2" | 3.25 | 2.5 | 3.82 | 1.5 | 2.17 | 0.31 | 1.42 | 0.64 | 11 |
| 2.25" | 2-1/4" | 3.5 | 2.75 | 3.94 | 1.5 | 2.42 | 0.32 | 1.55 | 0.64 | 11 |
| 2.50" | 2-1/2" | 3.75 | 3.00 | 4.19 | 1.5 | 2.67 | 0.33 | 1.68 | 0.64 | 11 |
| Drawing03: 3/8inch U Bolt Clamp Sizes 3inch through 3.5inch | ||||||||||
| Mast Size | Stamped* | A | B** | C | D | φE | F | G | H | Gauge |
| 3.00" | 3" | 4.38 | 3.5 | 4.54 | 1.5 | 3.17 | 0.3 | 1.9 | 0.82 | 11 |
| 3.50" | 3-1/2" | 4.88 | 4.00 | 5.04 | 1.5 | 3.67 | 0.56 | 2.4 | 0.82 | 11 |
Application:
Automobile chassis frame connection, axle component positioning, pipeline system fixation, etc.
Square u bolt clamp advantage:
The U-shaped structure is suitable for various cross-sectional objects such as circular and square shapes
No welding required, quick disassembly or replacement through thread adjustment;
Good environmental tolerance;
Features of Standard & Special U Bolt Clamp
U Bolt Clamp Title:
Carbon Steel exhaust u bolt clamp Grade 8.8 U-bolt Clamp
U Bolt Pipe Clamp Introduction:
U bolt type clamp is a fastening component consisting of a U-bolt and a matching nut, which is connected to a clamp plate through threads at both ends to form a circular fixing structure. It is used to clamp pipes, plates, or shaft components.
U bolt round clamps Structure:
U-bolt: The main body is U-shaped, with threads on both ends, and the material is mostly carbon steel (black oxide) or stainless steel
Saddle/Nuts: With bolts to fix the target object, some models integrate anti loosening design;
Size:25mm,28mm,30mm,or Customized
U bolt saddle clamp is divided into Standard U Bolt Clamp and Special U Bolt Clamp
Material and process requirements
Carbon steel: Q235B;
Stainless steel: SUS 304/316L (corrosive environment);
Titanium alloy: aviation hydraulic pipelines.
Manufacturing process
Cold heading forming, heat treatment;
The Function of Exhaust u bolt clamp:
Stable clamping ability of fixtures: fixing pipelines, cables, or mechanical components through bolt pressure;
The spring-loaded design can absorb vibrations and reduce the looseness or wear of mechanical connectors caused by high-frequency vibrations;
| Standard U Bolt Clamp |
|
| Size(mm) | Standard U Bolt Clamp | Heavy Duty U Bolt Clamp |
| M8 or 5/16" U Bolt-2mm Saddle | M10 or 3/8" U Bolt-2.5mm Saddle | |
| 25 | SUC025 | HUC025 |
| 28 | SUC028 | HUC028 |
| 30 | SUC030 | HUC030 |
| 32 | SUC032 | HUC032 |
| 35 | SUC035 | HUC035 |
| 38 | SUC038 | HUC038 |
| 40 | SUC040 | HUC040 |
| 42 | SUC042 | HUC042 |
| 45 | SUC045 | HUC045 |
| 48 | SUC048 | HUC048 |
| 50 | SUC050 | HUC050 |
| 52 | SUC052 | HUC052 |
| 54 | SUC054 | HUC054 |
| 56 | SUC056 | HUC056 |
| 58 | SUC058 | HUC058 |
| 60 | SUC060 | HUC060 |
| 62 | SUC062 | HUC062 |
| 65 | SUC065 | HUC065 |
| 68 | SUC068 | HUC068 |
| 70 | SUC070 | HUC070 |
| 72 | SUC072 | HUC072 |
| 75 | SUC075 | HUC075 |
| 78 | SUC078 | HUC078 |
| 80 | SUC080 | HUC080 |
| 85 | SUC085 | HUC085 |
| 90 | SUC090 | HUC090 |
| 93 | SUC093 | HUC093 |
| 95 | SUC095 | HUC095 |
| 100 | SUC0100 | HUC0100 |
| 105 | SUC0105 | HUC0105 |
| Special U Bolt Clamp |
|
| Drawing01:5/16inch U Bolt Clamp Sizes 1.25inch through 2.125inch | ||||||||||
| Mast Size | Stamped* | A | B** | C | D | φE | F | G | H | Gauge |
| 1.25" | 1-1/8" | 2.44 | 1.75 | 2.12 | 1.00 | 1.48 | 0.26 | 0.99 | 0.56 | 13 |
| 1.50" | 1-3/8" | 2.69 | 1.94 | 2.47 | 1.00 | 1.67 | 0.34 | 1.16 | 0.59 | 13 |
| 1.75" | 1-5/8" | 2.88 | 2.19 | 2.87 | 1.00 | 1.92 | 0.31 | 1.25 | 0.59 | 13 |
| 2.00" | 1-7/8" | 3.13 | 2.44 | 3.06 | 1.00 | 2.17 | 0.27 | 1.36 | 0.59 | 13 |
| 2.125" | 2" | 3.38 | 2.56 | 3.12 | 1.00 | 2.23 | 0.38 | 1.51 | 0.59 | 13 |
| Drawing02: 3/8inch U Bolt Clamp Sizes 2inch through 2.5inch | ||||||||||
| Mast Size | Stamped* | A | B** | C | D | φE | F | G | H | Gauge |
| 2.00" | 2" | 3.25 | 2.5 | 3.82 | 1.5 | 2.17 | 0.31 | 1.42 | 0.64 | 11 |
| 2.25" | 2-1/4" | 3.5 | 2.75 | 3.94 | 1.5 | 2.42 | 0.32 | 1.55 | 0.64 | 11 |
| 2.50" | 2-1/2" | 3.75 | 3.00 | 4.19 | 1.5 | 2.67 | 0.33 | 1.68 | 0.64 | 11 |
| Drawing03: 3/8inch U Bolt Clamp Sizes 3inch through 3.5inch | ||||||||||
| Mast Size | Stamped* | A | B** | C | D | φE | F | G | H | Gauge |
| 3.00" | 3" | 4.38 | 3.5 | 4.54 | 1.5 | 3.17 | 0.3 | 1.9 | 0.82 | 11 |
| 3.50" | 3-1/2" | 4.88 | 4.00 | 5.04 | 1.5 | 3.67 | 0.56 | 2.4 | 0.82 | 11 |
Application:
Automobile chassis frame connection, axle component positioning, pipeline system fixation, etc.
Square u bolt clamp advantage:
The U-shaped structure is suitable for various cross-sectional objects such as circular and square shapes
No welding required, quick disassembly or replacement through thread adjustment;
Good environmental tolerance;
